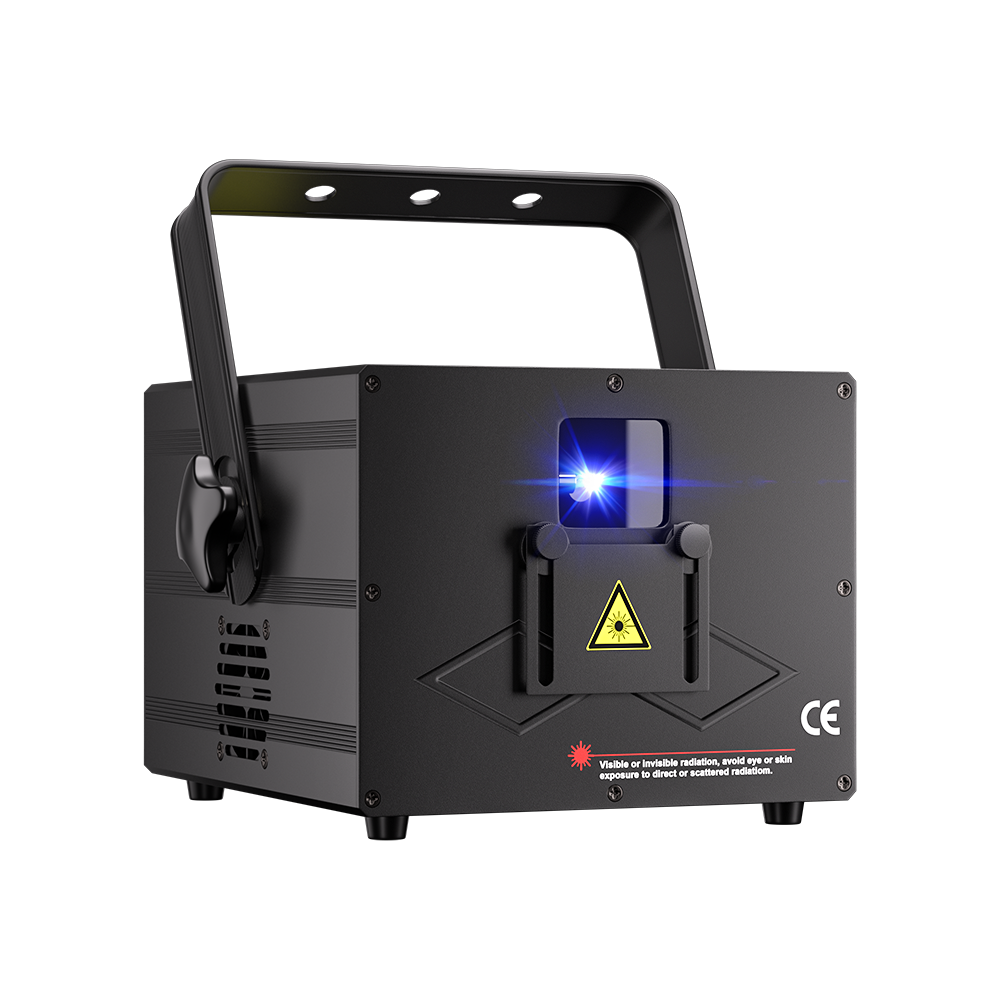

Laser Wavelength:
R-638nm, G-520nm, B-450nm
Laser Power:
R-0.8W, G-0.8mW, B-1.5W
Spot Size (laser window spot)
5.5mm
Light Source Divergence Angle
＜1.2mrad
Modulation Mode
0~5V analog, up to 50khz/TTL
Laser Class
Class IV
Laser Color
Red, green, blue mixed colors
Evenness
>98%
Lens Horizontal Offset
-30% to +30%
Lens Vertical Offset
-30% to +30%
Imaging Mode
3D/2D pattern and animation (with software)
Projection Distance
＜20M The best distance is 20~50M
Playback Rate
20 KPPS
Playback Angle
Max60°
Security project
Over current and voltage protection
Class of protection
IP20
Operating temperature
-15℃~45℃
Control interface
DMX In/Out ,ILDA In/Out
DMX channel
16/20CH
Power supply interface
PowerCon
Power of operation
100~240V AC 50/60HZ
Power supply
Max 42W
Product size:
23.6*20*18cm
Productgewicht:
3.55kg
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
You use them to tell stories about your beliefs, experiences, creations, and myths.
Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

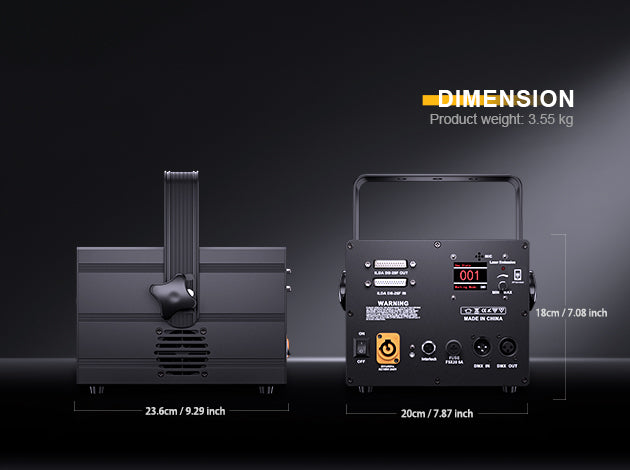

Product Size
Product size: 9.29x7.87x7.08 inch / 23.6x20x18 cm
Product weight: 3.55 Kg

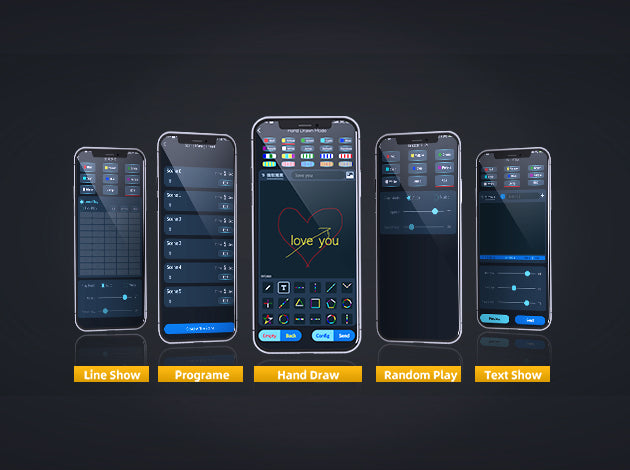

APP Conctrol
Support wireless remote control for Android and Apple system apps for laser output and setting menu options.

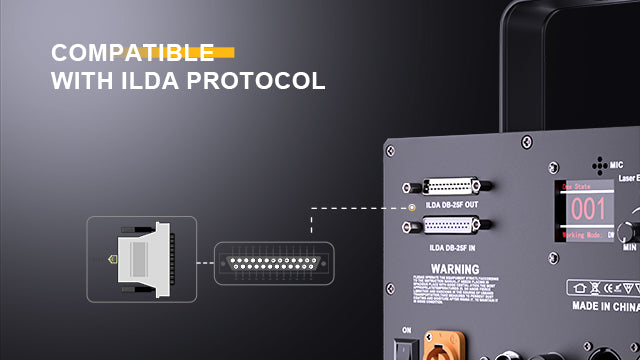

Compatible With ILDA Protocol
Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond Quick Show FB3/FB4.
With Beyond Quick Show FB3/FB4, you have access to a vast library of pre-programmed laser effects, as well as the ability to customize and create unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible 3w laser lights.
Control Mode
The best feature of this animated scanner laser is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
It also supports sound mode and auto mode. They can change freely according to the music and environment to bring more outstanding effects.

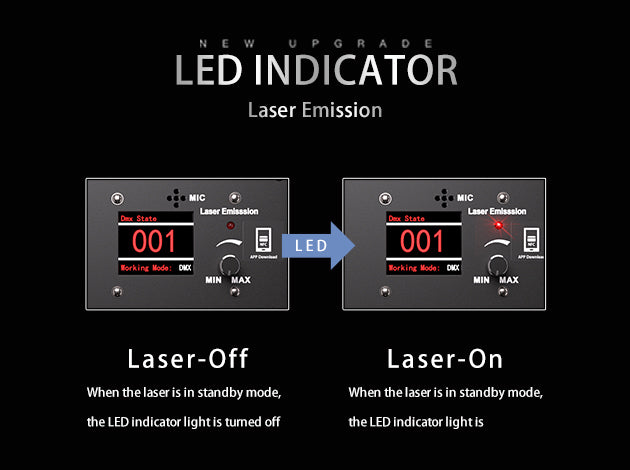

The laser operation indicator light continuously lights up or flashes. It reminds you to pay attention to the laser radiation and avoid direct exposure to the laser beam.

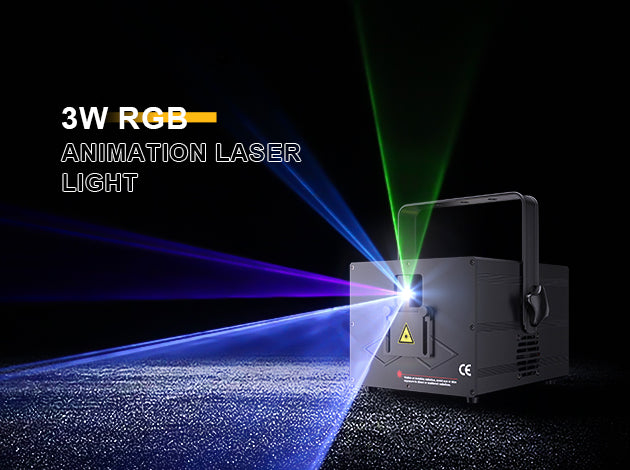

Using a semiconductor laser diode light source, the standard full-color analog laser uses 3 primary colors: Red, Green, and Blue. Can mix multiple brilliant colors! For example, Magenta, Yellow, Cyan, White.
The 3W laser beam exhibits bright, sharp, and pure lines, with high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments. In large-scale performances, exhibitions, or events, the animated scanner laser brings unparalleled visual impact, enhances the atmosphere, and immerses the audience in a dreamlike audio-visual enjoyment.
Presenting a dreamy and colorful visual effect similar to the aurora. Providing more possibilities and creative space for various occasions.
Supporting multiple color blends and gradients. Local patterns are more colorful and vibrant in color. Dynamic effects (such as rapid transformation, rotation, and scaling of patterns) can be achieved with preset programs or voice commands. It brings a more vivid visual experience.
The 3W laser lights create stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue.

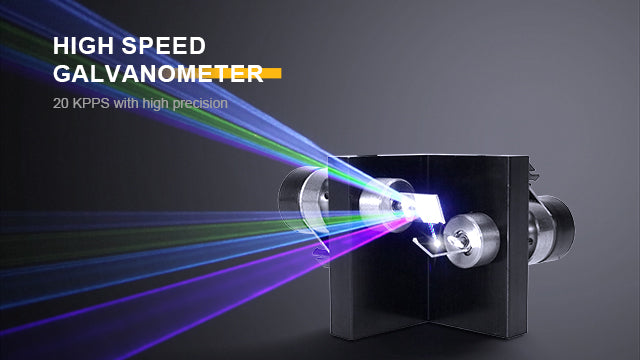

High-frequency scanning galvanometer technology accurately captures every detail through fast and continuous laser scanning. It achieves smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine.
Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond Quick Show FB3/FB4! With Beyond Quick Show FB3/FB4, you'll have access to a vast library of pre-programmed laser effects, as well as the ability to customize and create your own unique visuals. From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.
During the use of a laser source, Do Not look directly at the light source. The effect of stage laser lights is formed by high-speed scanning of the laser beam through high-speed galvanometers or low-speed stepper motors. The harm to the human body is mainly reflected in the harm to the eyes; prolonged exposure can lead to blindness.
Flight Case
DIY Service
Equipped with silent 360-degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and a convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
Gracias
It's crazy you can get a 3W RGB ILDA laser for so cheap!! Been using it with Liberation and it's perfect.
Laser works great. works woth app and profiles
Poměr cena a výkon doporučuji kvalitní produkt za dobré peníze,
Great value for the price!
This laser is just perfect. App control is amazing. Text input from mobile is a great advantage. Brightness is excellent and I do not need to smoke heavily. Just satisfied. Will do a test also for ilda usage later.
I received this laser over the weekend. Out of the box, demo mode was impressive!! This laser is much brighter than I had expected. DMX settings were a little confusing as the downloaded profiles appeared to be missing information. After some time making adjustments and getting used to the unit, DMX is working well and I'm having fun learning all the capabilities of this laser. Highly recommended!!
This was my first SHEIN purchase and, a high dollar one. I love this DJ laser light. It has exceeded my expectations. If it lasts for a few years I will be very happy.
top
This 3W laser is quite impressive and very bright. The DMX capabilities are amazing as well. One of the two lasers was broken in transit, and after reaching out to Shehds, they promptly sent another laser after investigating why it was broken. Highly recommend this laser, great customer service as well. 10/10
