Technical Parameter
Electrical Specification and Connections
Power supply:
400W/24V
Input voltage range:
100-240 V, 50/60 Hz
Power in connector:
300-360W
Source
Colour temperature output:
White Beam 6500-7500K
CRI
65
Illuminance:
72620/1m 34500/2m 24750/3m 17790/4m 13120/5m
Life expectancy:
50000 hours
Optical system
Beam angle:
2.8°-31°
Dimmer:
Linear dimming from 0 to 100%
Dynamic Effects and Features
Pan/Tilt
X:540° Y:180°-200°
Control and programming
Protocols:
DMX512,RDM
DMX Channel Mode:
24/48/57/59CH
Feature:
DMX512, Auto-run, Master-Slave, Sound Control, with RDM function
Mechanical specification
Housing :
Metal, Black
Product size:
44.7*22*36
Product weight:
15.95kg
Package size:
51*28*42
Package size:
52*29*43
Package weight:
18.8kg
Operating temperature:
-25℃~45℃
Ingress protection rating:
IP20
Noise
Powered on: 50dB / Running: 65dB

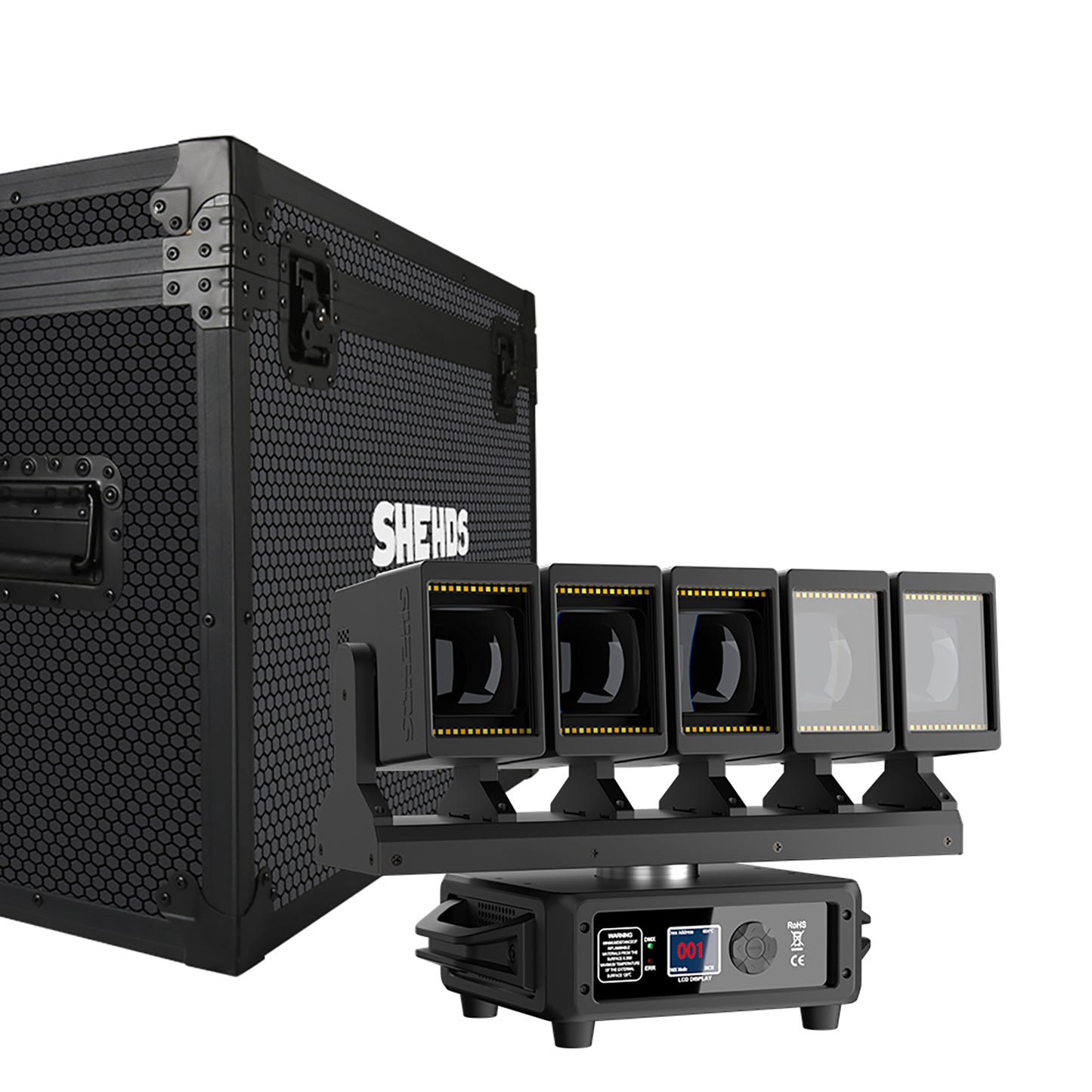

GalaxyJet LED Matrix Beam 5×60W
RGBW 4in1 DMX Single LED Swing Beam Bar Wash Moving Head Light
Brighter Than You Expect
72,620+ Lux @1m, Pure Beam Intensity 7500K White Beam, Pure and Powerful
Power in Every Pixel
60W Super Bright Matrix Beam-Bring Every Stage to Life
True-to-Life Colors
RGBW four-color mixing system for vivid tones and accurate color.
Pixel Control
Individually controlled LEDs let you craft dynamic chases, pixel effects, and immersive lighting scenes.
Infinite Pan & 200° Tilt
With infinite pan rotation and a wide 200° tilt range, you can easily direct the beam for precise, powerful effects and high-quality light output.
Flexible Beam Angle
Individually controllable tilting heads with a 2.8° to 31° zoom range
Creative Macros, Ready-Made
Built-in chase, rainbow, strobe, wave, and more—trigger show-ready looks with one touch.
Efficient, Even Output
Composite optics for smooth color,RGBW works together to deliver saturated colors plus punchy true white-clean hues with minimal color cast.
Various Applications
From DJ Booth to Festival Stage, Ready for Any Event
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
