Technical Parameter
-Electrical Specification and Connections
Power :
AC90-240V,50-60Hz
Power Consumption:
520W
Light Source:
LED 36x18W RGBWA+UV
Dimmer:
0-100% Linear
DMX 512 Channel:
12/18 CH
Strobe Flash:
0-20HZ
Angel Zoom:
15-45°
Anngel Lens:
15°
Product Size:
13.7*8.6*17.7 inch / 34.8*21.9*45 cm
Product Weight:
7.55kg
Package Size:
18.1* 16.1*12.2 inch / 46*41*31 cm
Package Weight:
8.4Kg

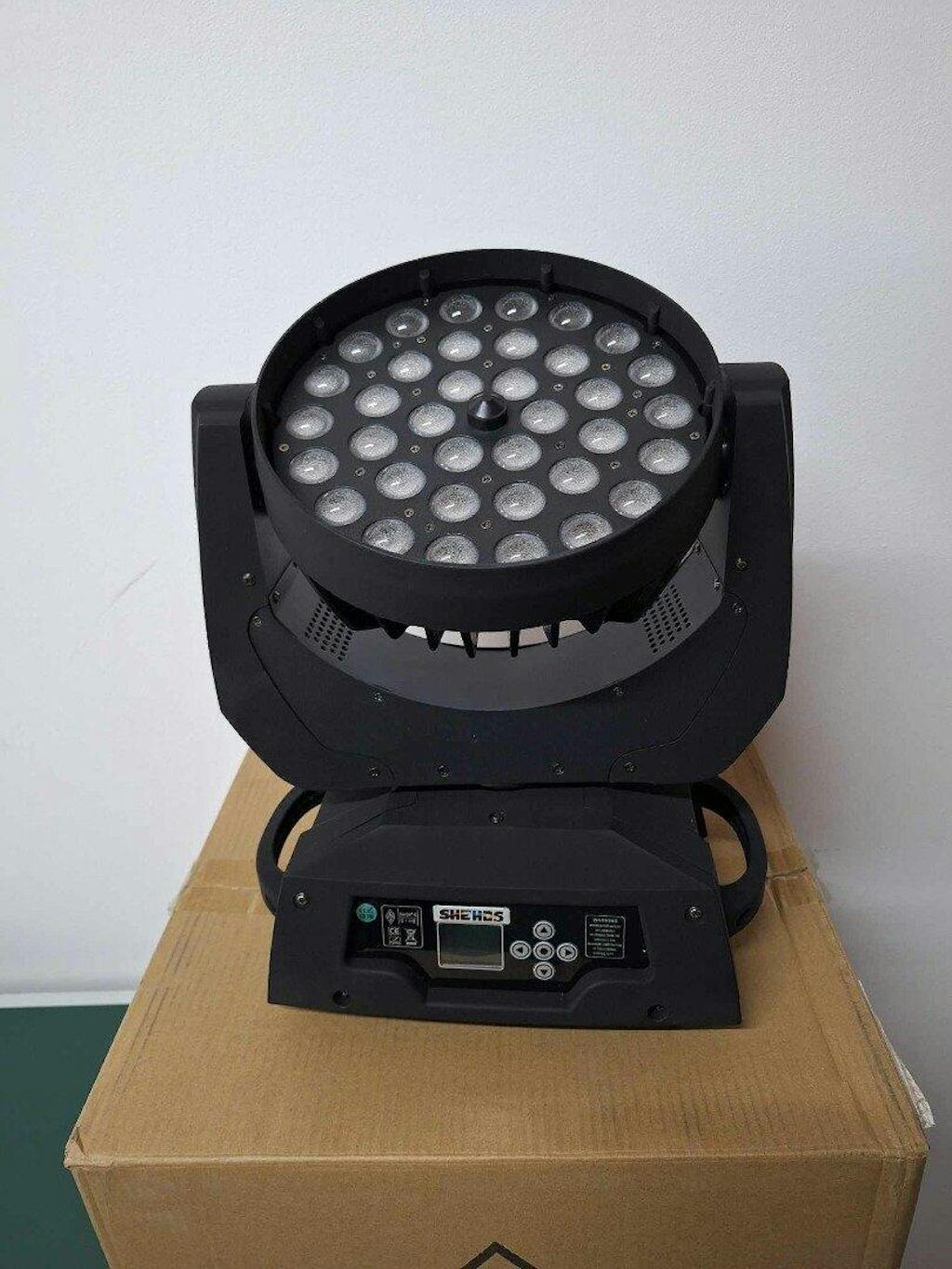

36x18W RGBWA+UV
LED Zoom Wash
Movinng Head Lighting
Create a uniform color mixing system , The beam mode is full of sharpness,
and the excellent light output creates a strong visual impact for the performance.
![](http://shehds.com/cdn/shop/files/1_fe99a430-15a7-408e-b6d7-23387128671c_2048x2048.jpg?v=1708224327)
![](http://shehds.com/cdn/shop/files/2_3f22ced7-8d3d-4948-871f-22373f06273e_2048x2048.jpg?v=1708228338)
Product Features
Multiple channel modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.
Dimension
Product size:Size: 13.7*8.6*17.7 inch / 34.8*21.9*45 cm
Product weight: 7.55kg
![](http://shehds.com/cdn/shop/files/3_a89918eb-9a5f-4329-a0e5-0fb56e0b6144_2048x2048.jpg?v=1708241839)
![](http://shehds.com/cdn/shop/files/4_8cbf8dd6-6636-4591-8b96-11bcc7228a7a_2048x2048.jpg?v=1708241870)

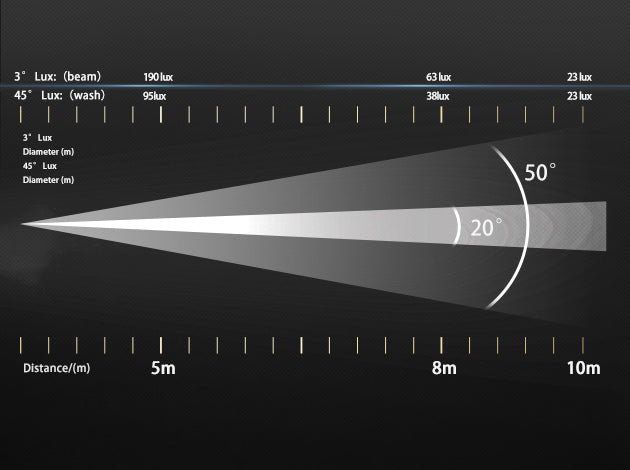

Beam Angle
Zoom Angel :15-45°
Function Introduction
DMX512 signal/power cord interface
![](http://shehds.com/cdn/shop/files/5_5a3ef9ad-963c-4ffa-8475-6eb7d3c67773_2048x2048.jpg?v=1708241922)
![](http://shehds.com/cdn/shop/files/6_a1d3f906-a46e-4187-9d75-ebc3e603895d_2048x2048.jpg?v=1708241989)
Carefully Select Excellent Accessories
Each process undergoes strict verification
Packing List
Each process undergoes strict verificationEvery part is carefully selected
![](http://shehds.com/cdn/shop/files/15_3b77a639-f889-40ad-80d3-81cb18023068_2048x2048.jpg?v=1708224608)
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
