Laser Wavelength:
R-638nm, G-520nm, B-450nm
Laser Power:
R-1W / G-2W / B-3W
Spot Size (laser window spot)
5.5mm
Light Source Divergence Angle
<1.2mrad
Modulation Mode
0~5V analog, up to 25khz/TTL
Laser Class
Class IV
Laser Color
Red, green, blue mixed colors
Evenness
>98%
Imaging System
-30% to +30%
Lens Vertical Offset
-30% to +30%
Imaging Mode
3D/2D pattern and animation (with software)
Projection Distance
<100M The best distance is 10~25M
Playback Rate
20 KPPS
Playback Angle
Max60°
Pan
540° and 16Bit
Tilt
180° and 16Bit
Safety Item
Overcurrentand voltage protection
Degree Of Protection
IP20
Operating Temperature
-15℃~45℃
Control Interface
DMX In/Out,RJ45 In/Out
Control mode
DMX512、Bluetooth APP
DMX Channel
26CH
Power Interface
PowerCon in
Cooling Method
Air cooled
Structure
60mm plug-in heat dissipation layer
Bentilation Fan
60mm fan * 1
Working Power
100~240V AC 50/60HZ
Working Power
100~240V AC 50/60HZ
Power Consumption
Max 50W
Product Size
9.84x7.87x13.38 inch / 25x20x34 cm
Product Weight
5.08 kg
Pack Size
13.58x13.19x12.20 inch / 34.5x33.5x31 cm
Package Weight
6.27 kg
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.
Product Size
Product size : 9.84x12.99x7.09 inch / 25x33x18 cm
Product weight: 8.82 Kg
Pack size: 14.17x14.96x8.27 inch / 36x38x21 cm
Package weight: 10.5 Kg

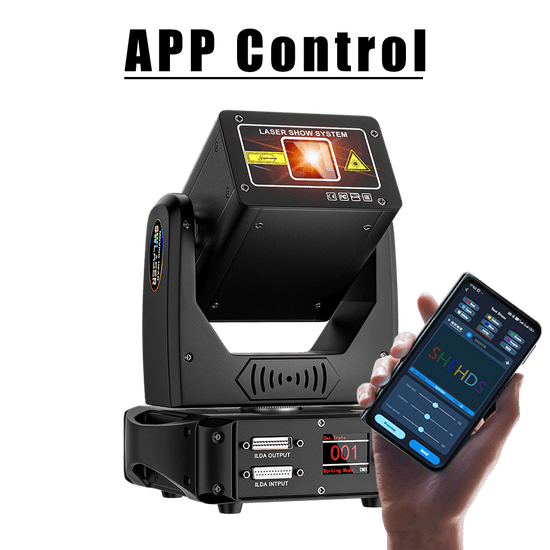

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.
Control Mode
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
