Technical Parameter
-Electrical Specification and Connections
Voltage:
Ac90v-240V 50HZ/60HZ
Power:
350W
LED Source.
Seven X 40W RGBW 4-In-1 Leds
Color Temperature:
2800k-8500k
Life Span Of LED:
50000 h
Menu:
Chinese And English Switching, Screen Automatic Rotation Function
Beam Angle:
3-60°
Angle Of Moving Head:
540° Horizontal, 270° Vertical; Ultra-Fast Scan Run Mode
Control Mode.
Dmx512、Sound、 Auto Run、 Control
Channel Mode:
23ch/35ch/51ch
Effects Of Function:
Linear CTo Color Temperature Adjustment, Effect Mode (Swirl, Kaleidoscope)
Strobe：
0-25 Times/S,Synchronization + Random Fast Strobe Function
Protection Rating :
Ip20
Packing Sizes:
13.3x10.2x18.5 inch
Packing Weights.
14 kg
Product Weights.
11.5 kg

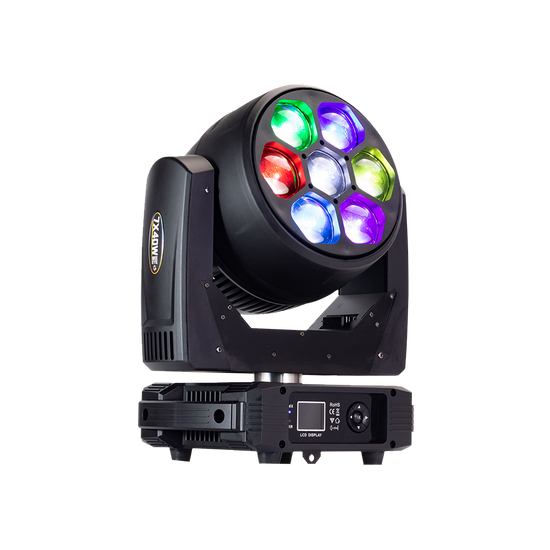

Beam & Wash
7x40W Led Wash
For Stage For Dark
Scenario Apply
Can Be Used In A Variety Of Scenarios
Party / Theater / Concert / Hotel / Bar / Wedding
Product Features
Roll / Zoom / Scan / Auto run
RGBW Mix / Scan / DMX 512 / Point
Product Size
Product size:13.3 inch*10.2 inch*18.5 inch
Product Weights:11.5KG.
Beam Angle
Double Lens For Electronic Trim
Beam angle: 3° / Focus angle: 60°
Beam Effect
Designed For The Stage
beam:Flexible beam effectCan be used as a light-chasing effect
wash:3-60 ° focus stainingDye the light as you please
Rainbow effect:RGBW 4-in-1 hybrid beamLED Running Horse electronically controlled dyeing
Built-In Multiple Effects Programs
Dual Dimming Mode Allows You To Edit Two Lighting Effects At The Same Time
Built-In Dyed Country Fruit
Built-In Static Suburban Fruit Forward And Reverse, Point Control Effect
High-definition Optical Lenses
Hemispherical lens
It Is Composed Of 7 Independent Optical Lenses,
It Has High Transparency, Purity, Colorlessness, Uniform Texture, And Good Refractive Ability
Function
360 Degree Cooling Mode
Fireproof And High Temperature Resistant Abs
Rotate The Light Panel
Linear Infinite Spin
Gradient Rainbow Stained Glow
Brilliant And Colorful Beams
Multiple beam effects
The Light Beam Also Has A Color Change
Focusing Effect
Adjust lighting through the lens to enhance the atmosphere of the scene
【Spread Light】3200k To 6500k White Light
Build In CTO Program 3200k To 6500k
Red, Green, Blue And White 4 Basic Colors
"Mix Them Up To Create More Brilliant Colors! Superior Light Output Creates A Strong Visual Impact On The Show.It Can Also Flexibly Shape The Beam Effect Of Uniform And Colorful Light Spots,"
Scales the beam linearly to the point
"Linear Adjustment Zoom Beam Beam angle zoom / Beam angle enlarge"
Suspension Installation Structure
Reserve installation position and quick lock for safety rope
Good Detail Quality
"Well-Designed + Preferred Materials Pure Copper Board / High Power Supply / Good Quality Three-Phase Motor"
Quick Lock And Safety Rope Hole
Safe and convenient / Non slip handle shell
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
