Technical Parameter
-Electrical Specification and Connections
Power Supply:
1500W
Input Voltage Range:
100-240 V, 50/60 Hz
Power Connector:
PowerCON
Engine Power:
1450W (brush motor)
Fuse:
15A，220V
-Output
Max Vertical Throw Distance:
Appr. 5~5.5 m
Max 45° Throw Distance
Appr. 5~6 m
Max Coverage:
30 ㎡
Tilt Range:
0-180°(Manual)
Wind Speed:
Not adjustable
Maximum Continuous Duration @ full volume:
Appr. 20 sec
Consumable:
Confetti
Operating noise：
Appr. 75 dB(A)
-Light Source
Light Source Type:
LED 50W RGBW 4in1 Color Mixing（12pcs）
LED Lifespan:
20,000 Hours
Dimmer:
0~100% Linear Dimming
-Controlling and Programming
Protocols:
DMX512,RC control
Running Mode:
DMX512 Mode, Manual Mode,RF Mode
DMX Channel Mode：
6 CH
Wireless remote control distance：
20 m
-Mechanical Specification
Housing :
High Strength Aluminum Alloy
Product Zize：
27.5 x 27.5 x 54 cm / 10.82 x 10.82 x 21.26 inch
Product Weight:
8.28kg / 18.25 ib
Package Size:
59 x 31 x 31 cm / 23.22 x 12.2 x 12.2 inch
Package Weight:
9.36kg / 21.24ib
Ingress Protection Rating:
IP20

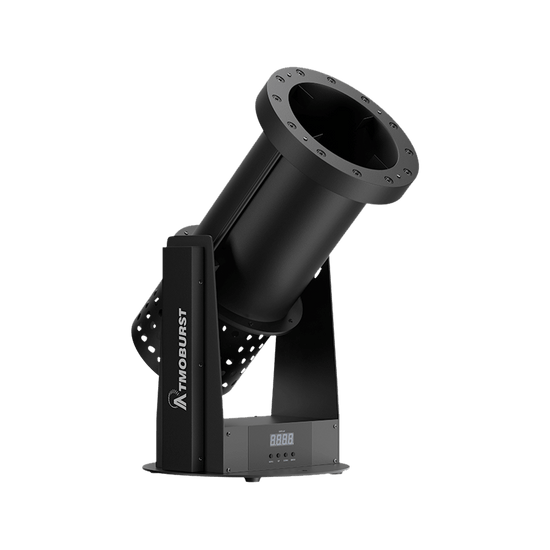

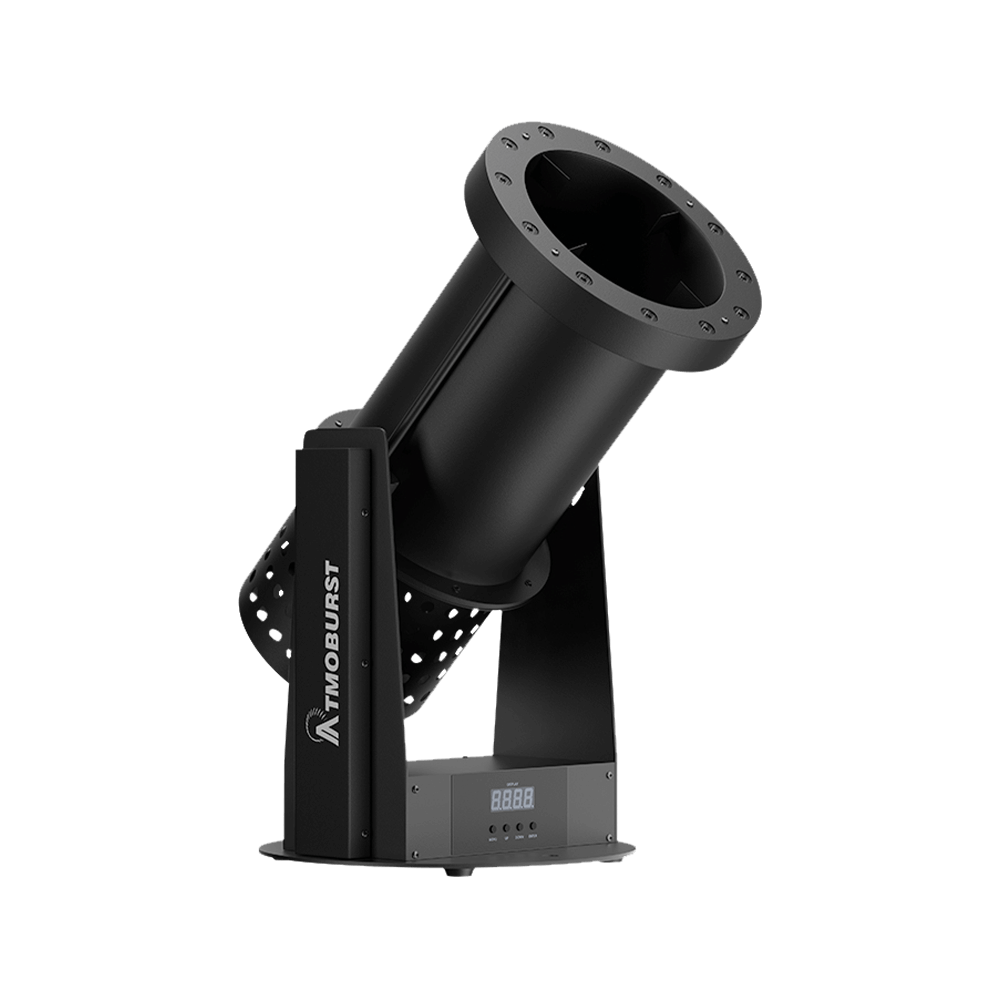

CONFETTI MACHINE - LED RGB
The CONFETTI MACHINE - LED RGB is a premium device crafted for grand occasions,
celebrations, concerts, and special visual effects in film and TV.
With its superior performance, elegant design, and boundless creative potential,
it has evolved into an essential visual magician in the stage art.
Product Features
Easy, single person setup and operation;
No compressed air or CO2 required—just adding confetti;
Super stable and durable; 12 pcs RGBW 3in1 LEDs;
Wireless control, DMX control, built-in digital display panel control, convenient address code set.
Applicable scenarios
Highly safety, avoiding harm to human body and environment, suitable for various occasions
Product Size
27.5 x 27.5 x 54 cm / 10.82 x 10.82 x 21.26 inch
Product Weight: 8.28 kg/18.25 lb
Confetti Throw Distance
Utilizing aerodynamic technology and precision mechanical structure design,
thousands of confetti can be instantly ejected,
covering the entire stage or audience and creating a dreamlike visual effect.
Confetti Choices
Many confetti colors are available for you to choose,
ranging from classic gold and silver to dazzling rainbow colors,
to cater to the color needs of various themed activities.
LED Lighting Effect
The device is equipped with 6 LEDs RGBW 4in1,
making the CONFETTI MACHINE function suitable for more scenes!
Especially suitable for use in scenes such as Halloween, Christmas, children's parks etc.
Adjustable Angle
Manual Tilt 180 ° adjustment for more convenient use
Simple Loading
Simple loading of confetti, lower failure rate, and higher work efficiency!
Anti Blocking Protective Cover
"The protective cover can effectively protect the transmission components of the equipment, preventing equipment damage caused by confetti entanglement, breakage, etc., and ensuring the smooth operation."
Control Mode
"Supporting DMX512, 20m distance wireless remote control, and manual control. DMX512 and power input/output interface, supporting master-slave series mode"
Product Housing
Adopting high-strength aluminum alloy, practical, safe and reliable
Introduction to Panel Functions
"It displays the lighting operation status through multiple interactive programms. The built-in system of lighting operation can check the lighting operation status at any time and let you adjust the parameter easyly."
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
