Technical Parameter

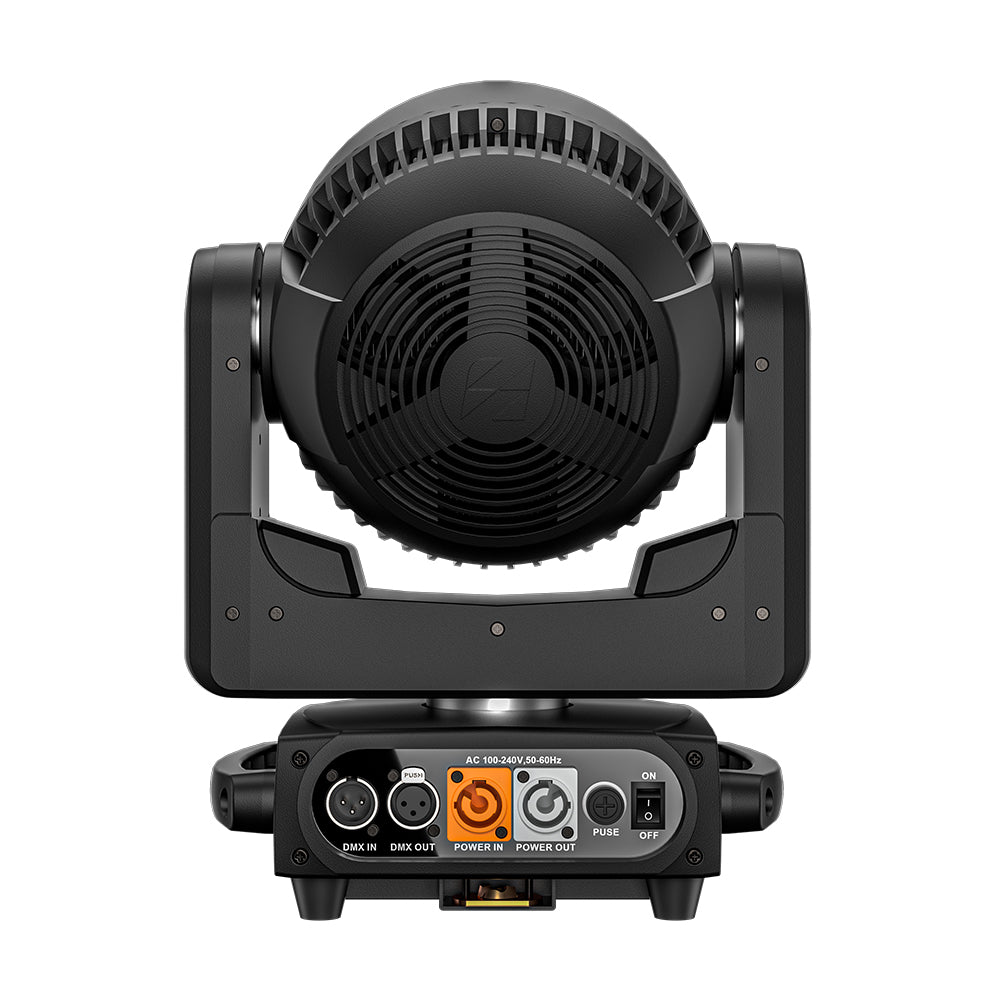

Electrical Specification and Connections
Power supply:
600W-24V-12V
Input voltage range:
100-240 V, 50/60 Hz
Source
Life expectancy:
min. 20000 hours
Light source type1
19*15W LED RGBW
Light source type2
19*15W LED RGBL
Light source type3
19*25W LED RGBW
Light source type4
19*25W LED RGBL
Light source type5
19*20W LED RGBLAC
Light source type6
19*20W LED RGBWA+UV
Illuminance1
19*15W LED RGBW: 116800lux @ 1m 20800lux @ 3m 7560 lux @ 5m
Illuminance2
19*15W LED RGBL:111600lux @ 1m 21200lux @ 3m 7352 lux @ 5m
Illuminance3
19*25W LED RGBW: 140800lux @ 1m34200lux @ 3m14420 lux @ 5m
Illuminance4
19*25W LED RGBL:166600lux @ 1m39980lux @ 3m14570 lux @ 5m
Illuminance5
19*20W LED RGBLAC:93000lux @ 1m17700lux @ 3m6950 lux @ 5m
Illuminance6
19*20W LED RGBWA+UV:8000lux @ 1m16200lux @ 3m7100lux @ 5m
Control and programming
Protocols:
DMX512,RDM
Feature：
Auto mode ,Sound mode,Manual programming scenarios
Mechanical specification
Housing :
High temperature resistant and flame retardant plastic housing
Noise
Static (light on): 38.2 dB Dynamic (light in motion) 55.3 dB
PAN & TILT MOVEMENT
Pan: 540° 16 bit / Tilt: 195° 16 bit
Operating temperature:
-20°-45°
Ingress protection rating:
IP20

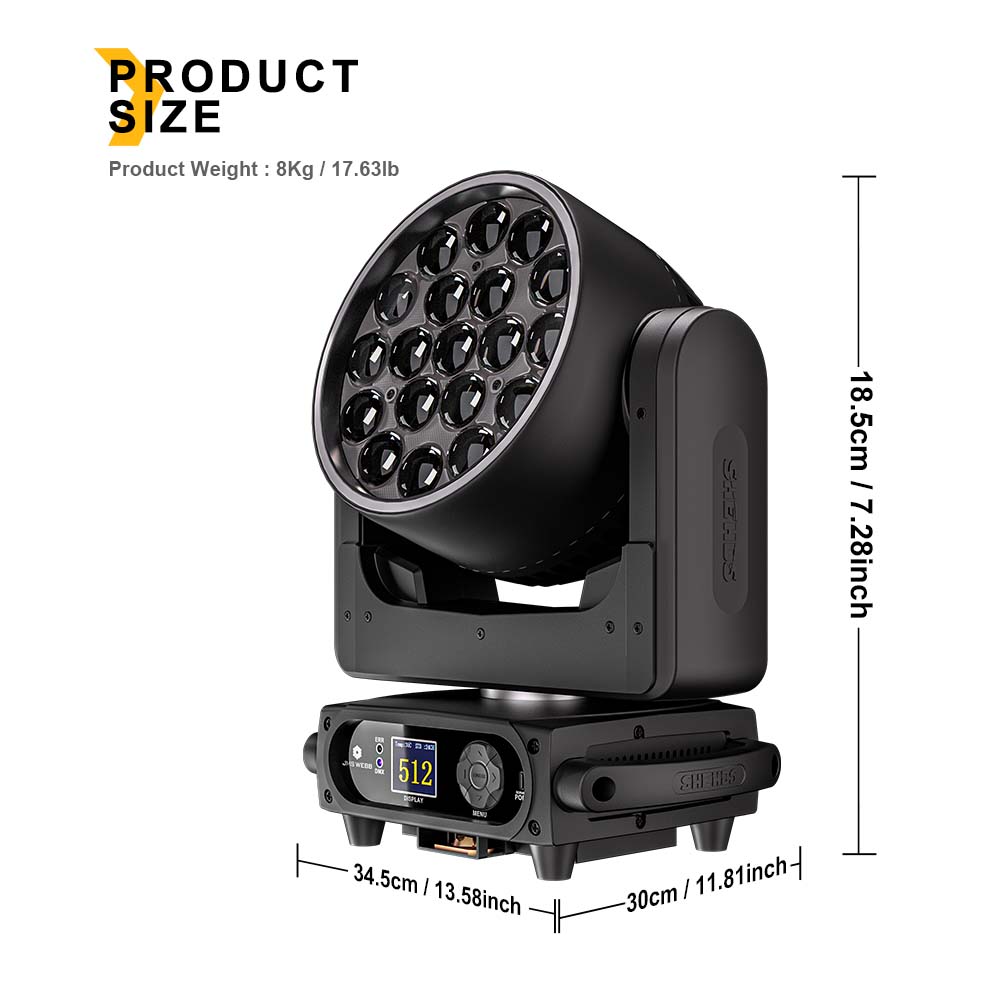

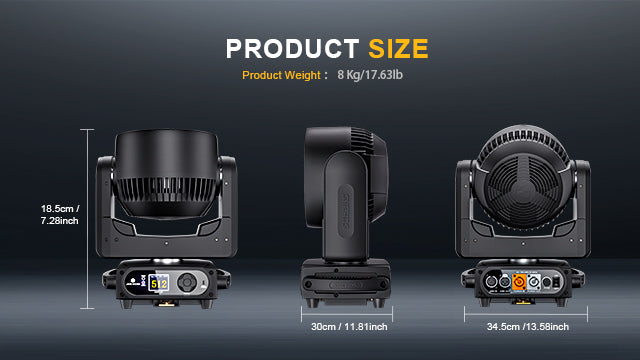

Product size：
34.5*30*18.5 cm
Package size:
50 x 37 x 26 cm

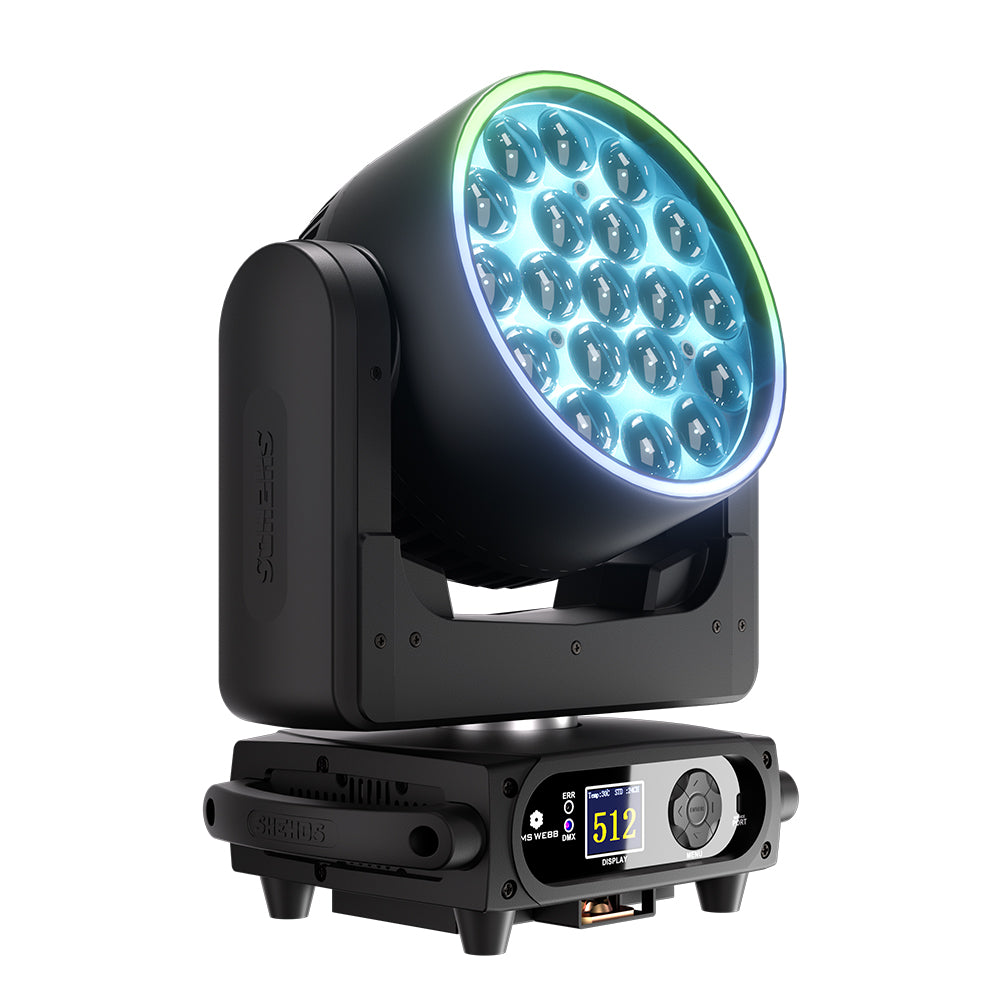

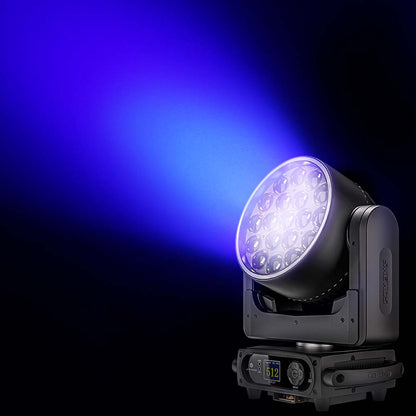

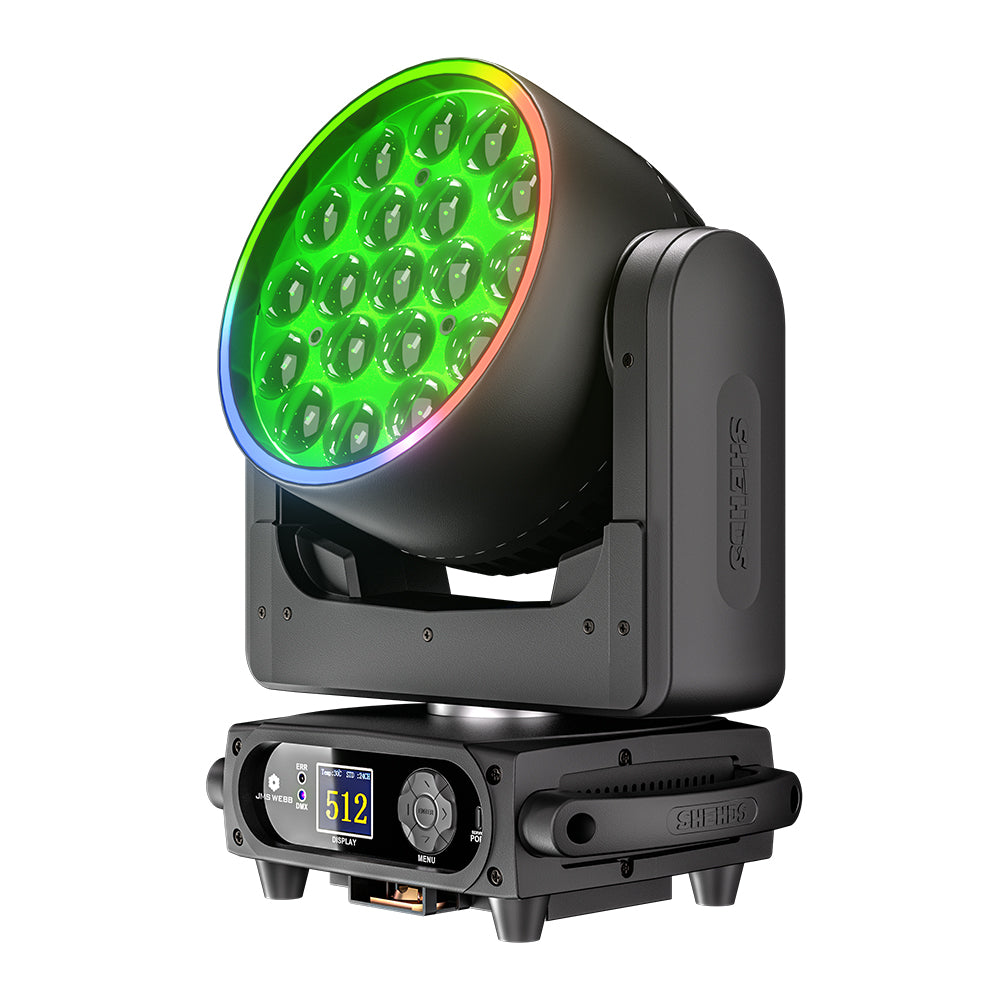

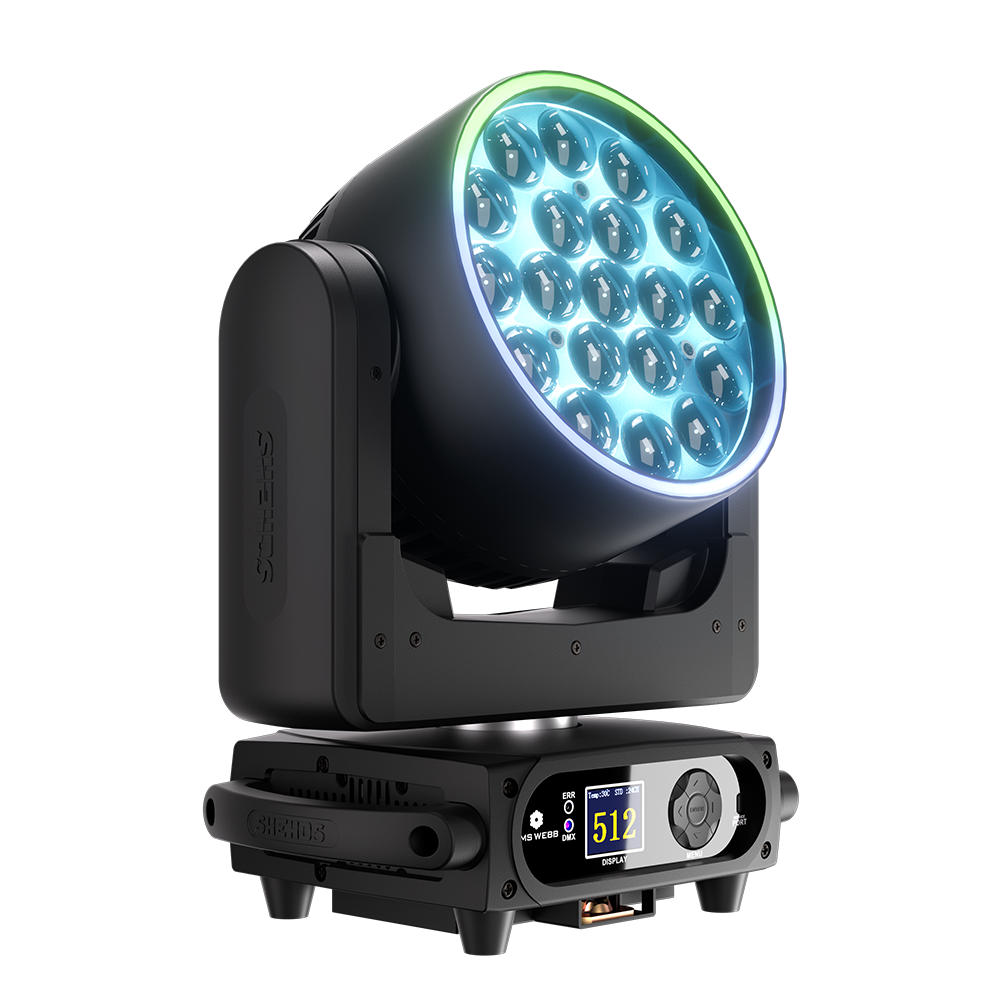

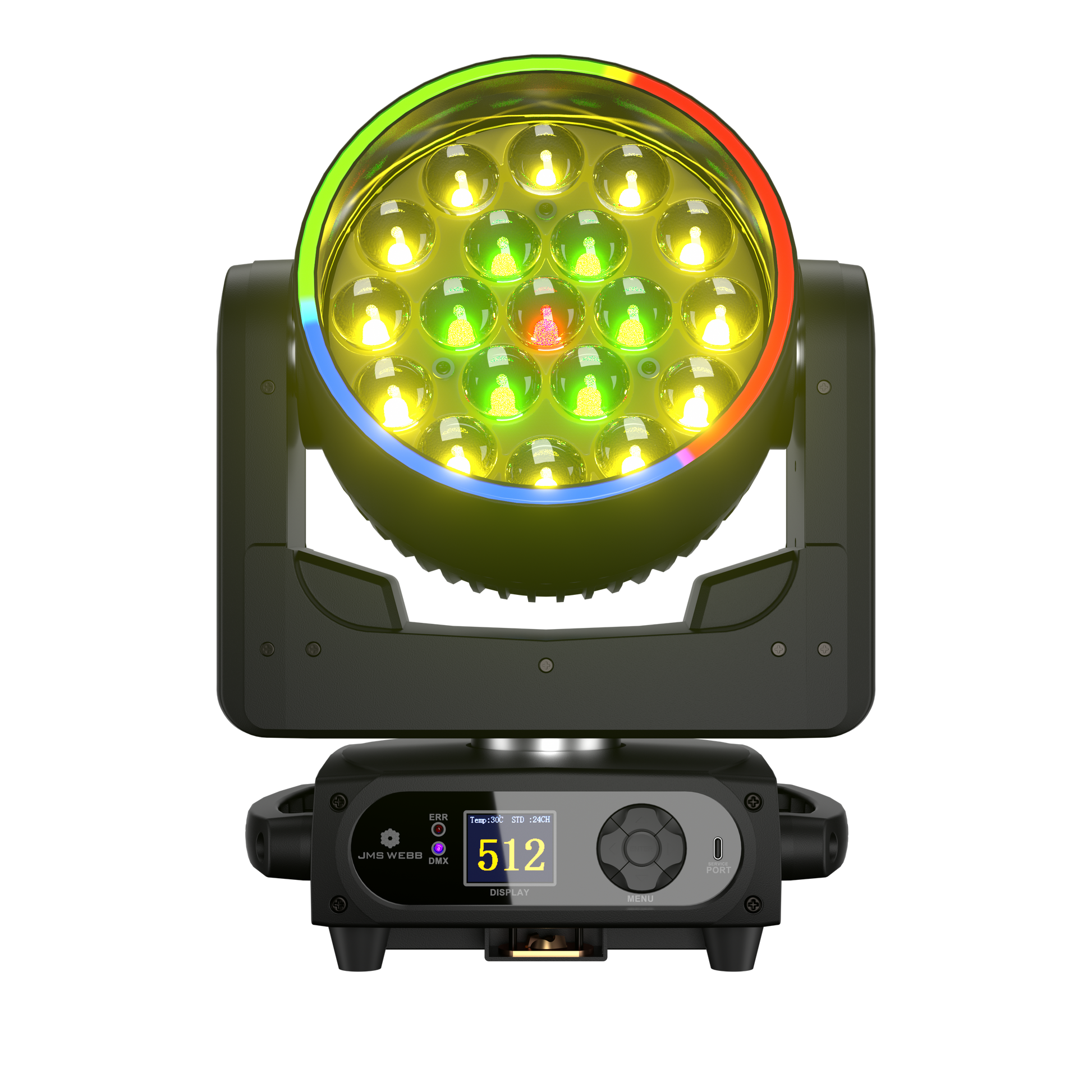

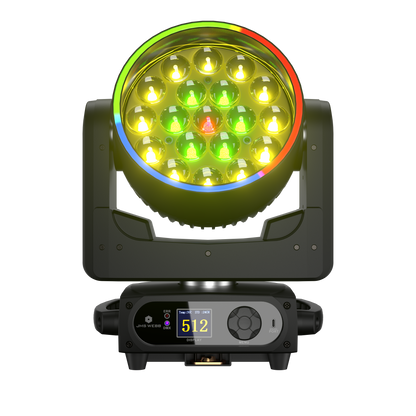

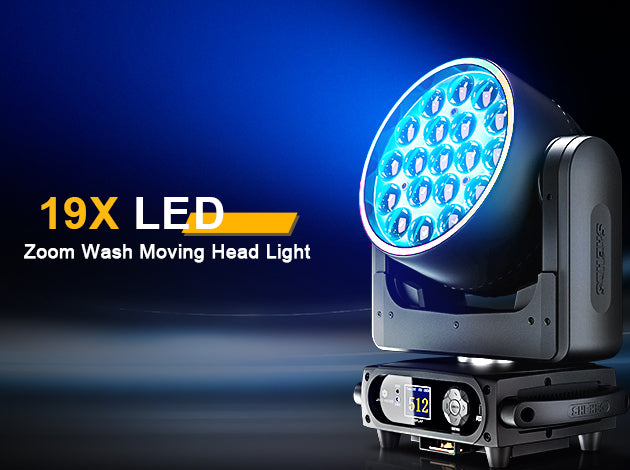

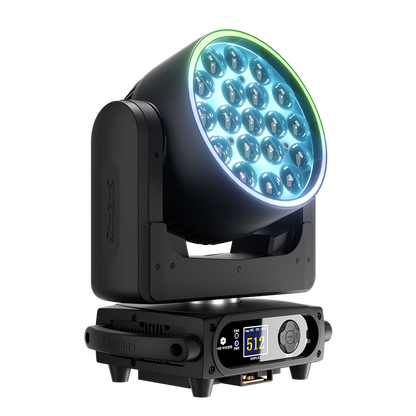

19X LED Zoom Wash Moving Head Light
Available in 15W, 18W, 25W options for versatile brightness.
Creator Picks Collection
See how influencers put SHEHDS 19X to the test , real scenes, real performance.

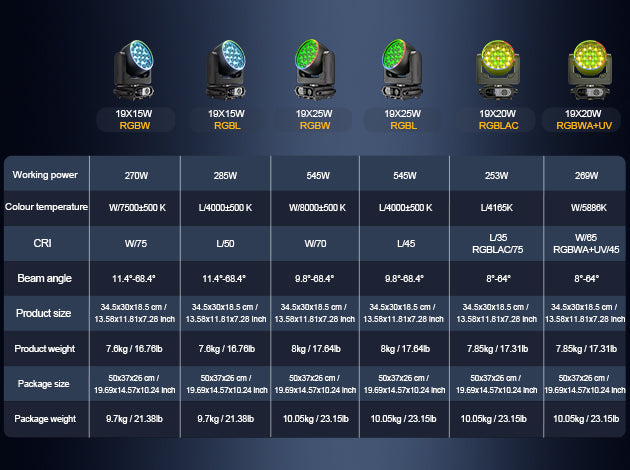

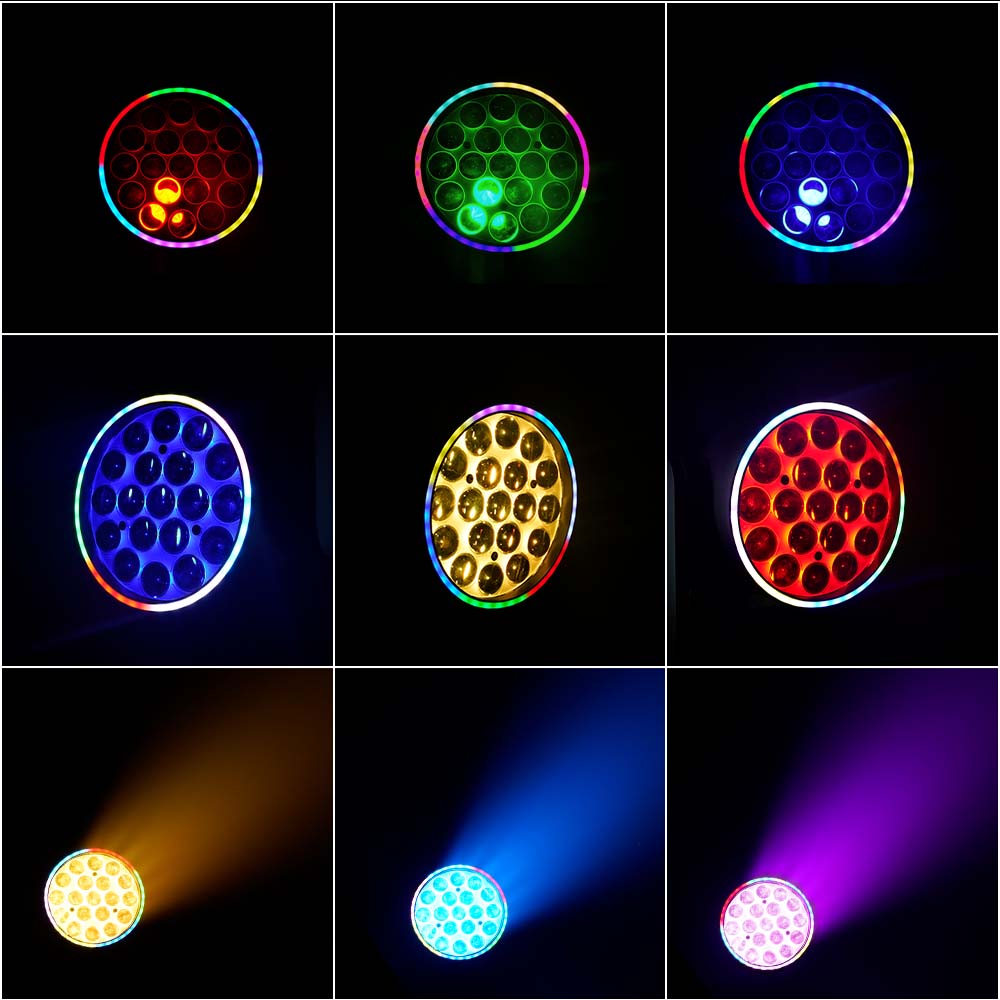

Parameter Comparison
RGBW / RGBL / RGBLAC / RGBWAUV
Different color systems tailored for every creative lighting setup.

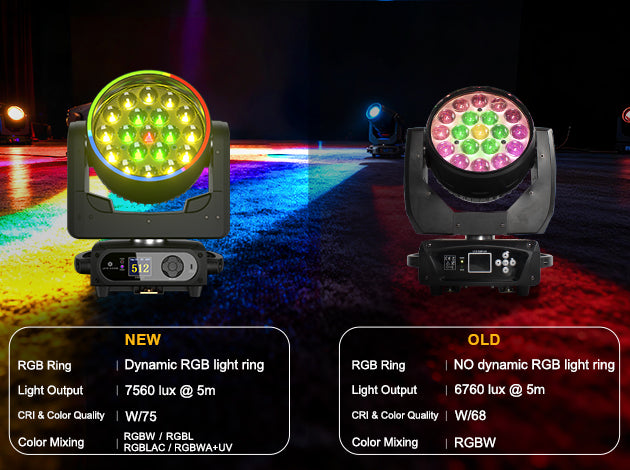

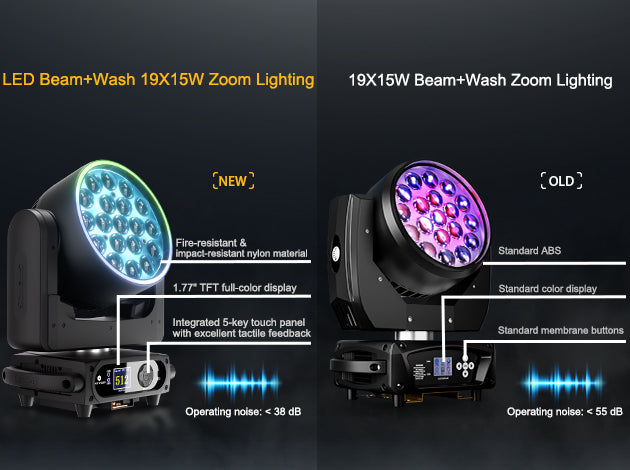

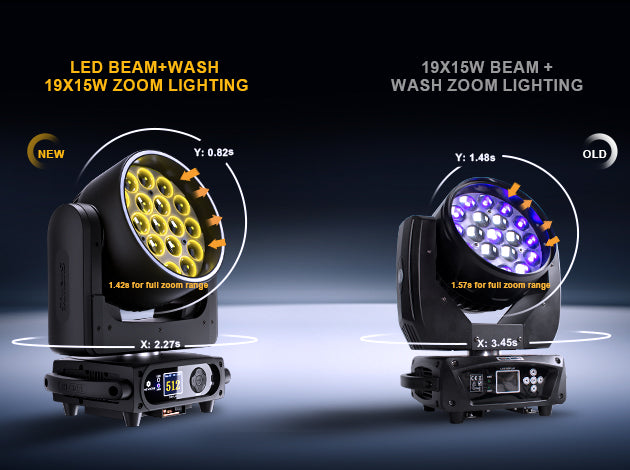

New VS Previous Generation
See what’s improved，
brighter output, smarter control, and more stable performance.
Exterior Upgrade Overview
Refined exterior details for better durability, smoother setup, and a cleaner stage look.
Brighter Output, Smarter Efficiency
Upgraded optics and light engine deliver higher brightness with optimized consumption.
Faster Moves, Smoother Shows
Improved motors and control tuning deliver quicker pan/tilt with stable performance.

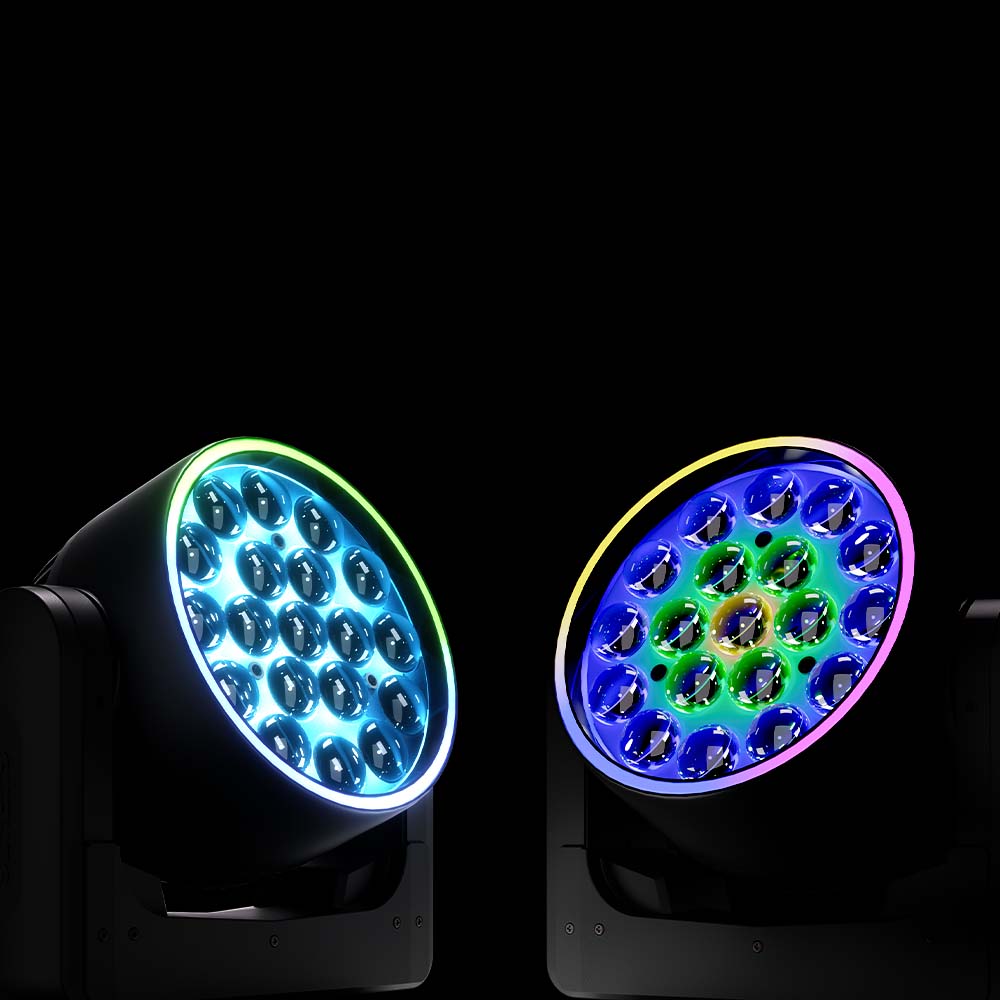

RGBW / RGBL / RGBLAC / RGBWAUV
Color Engine Comparison
High Fidelity Colors
Versatile Choices
Easy Selection
Perfect for Any Scene

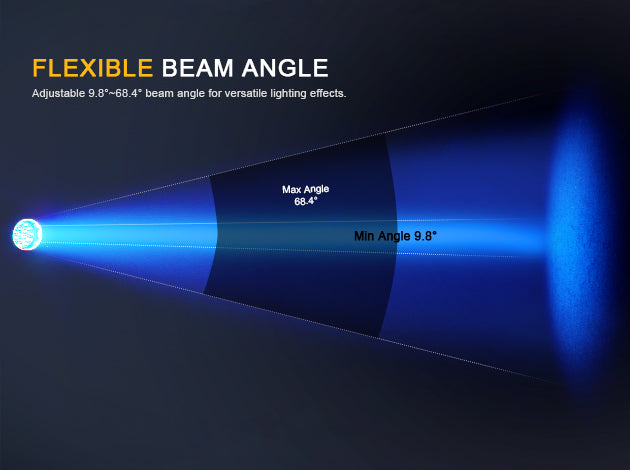

Flexible Beam Angle
Adjustable 9.8°~68.4° beam angle for versatile lighting effects.
All-in-One Stage Light
Ideal for wall wash, moving head, and dynamic stage effects.

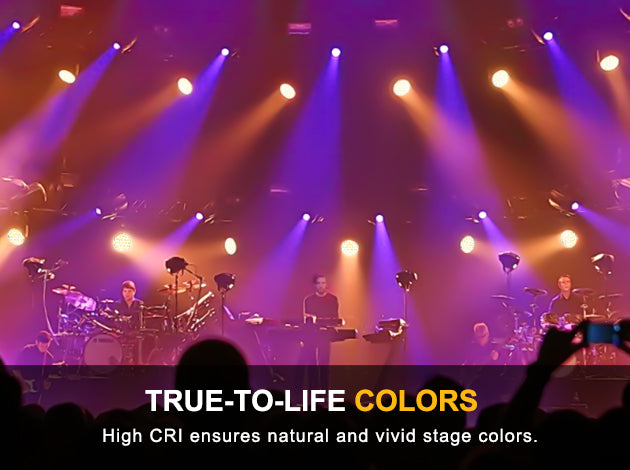

True-to-Life Colors
High CRI ensures natural and vivid stage colors.
Various Applications
Perfect for stage shows, dance halls, KTVs, bars, weddings, home décor, nightclubs, shops, and festive events, and other different occasions.

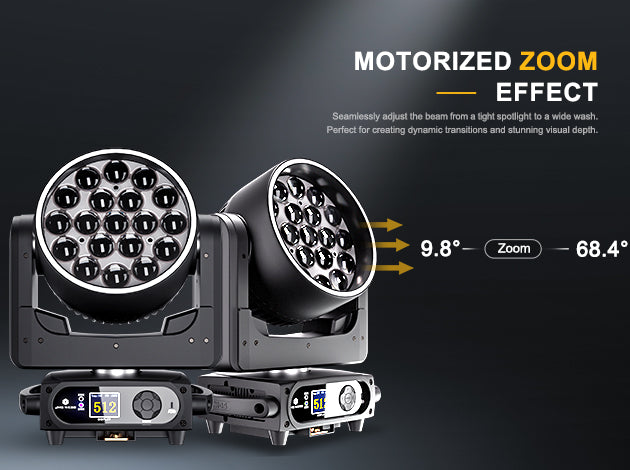

Motorized Zoom Effect
Seamlessly adjust the beam from a tight spotlight to a wide wash. Perfect for creating dynamic transitions and stunning visual depth.

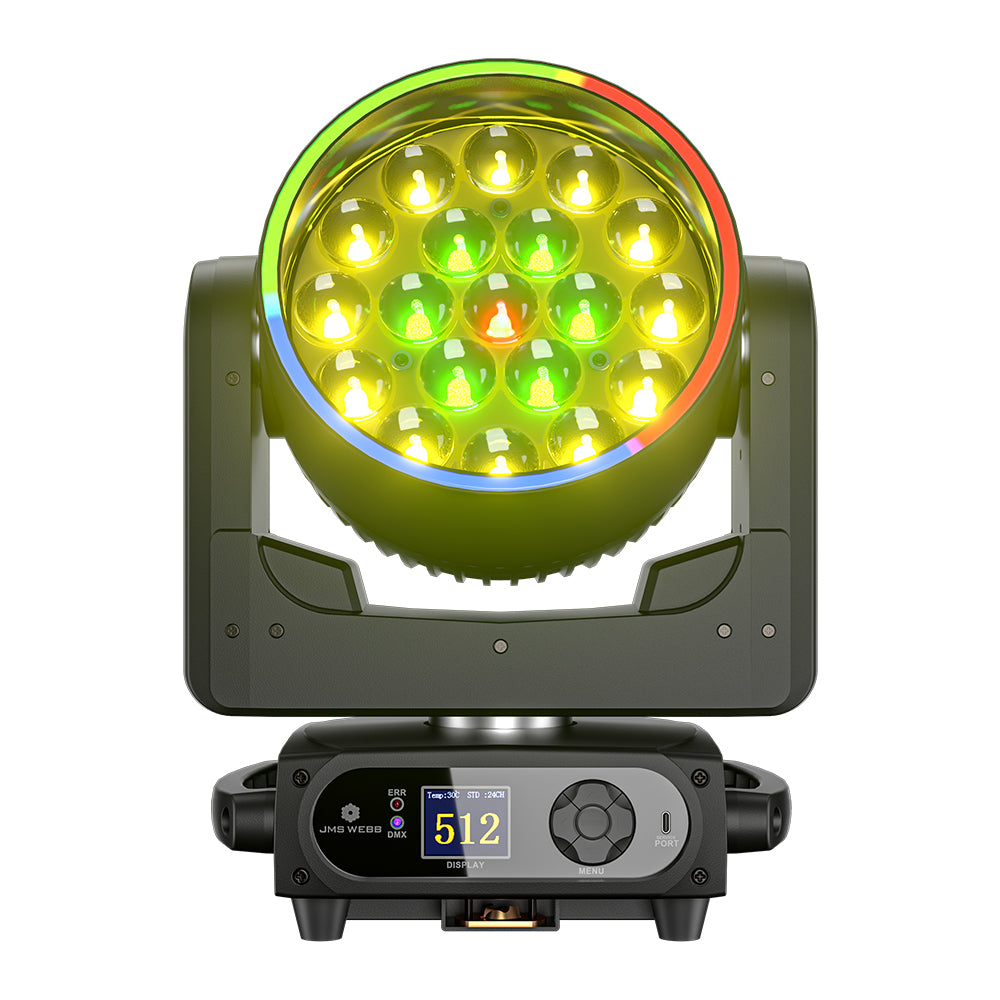

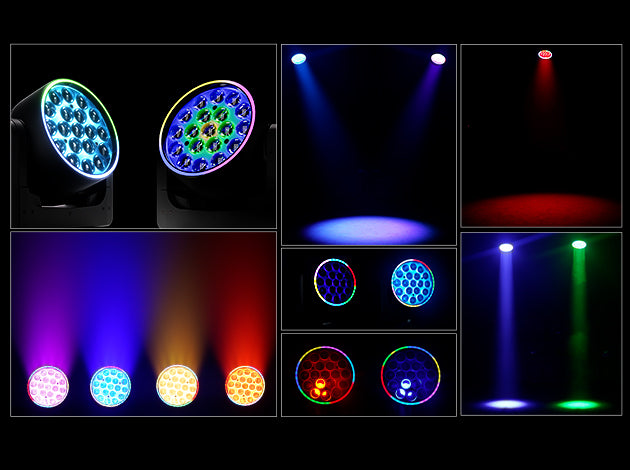

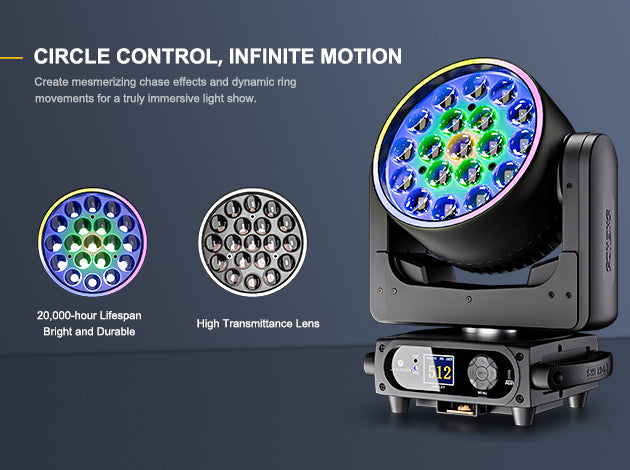

Circle Control, Infinite Motion
Create mesmerizing chase effects and dynamic ring movements for a truly immersive light show.

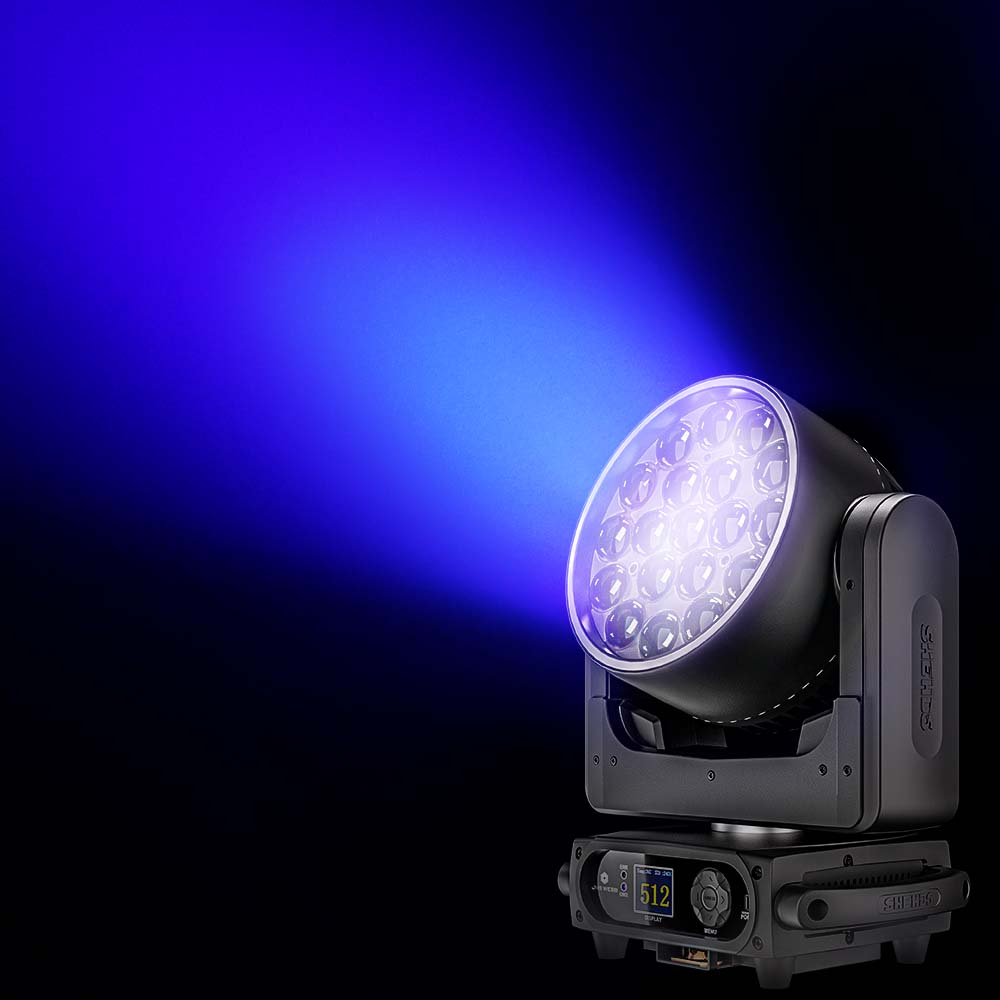

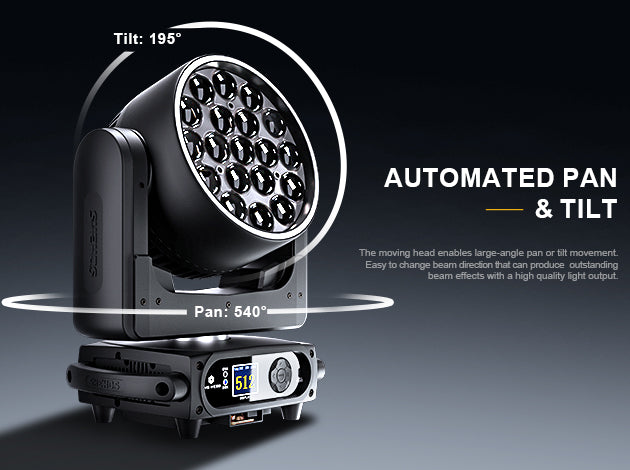

Automated Pan & Tilt
The moving head enables large-angle pan or tilt movement. Easy to change beam direction that can produce outstanding beam effects with a high quality light output.

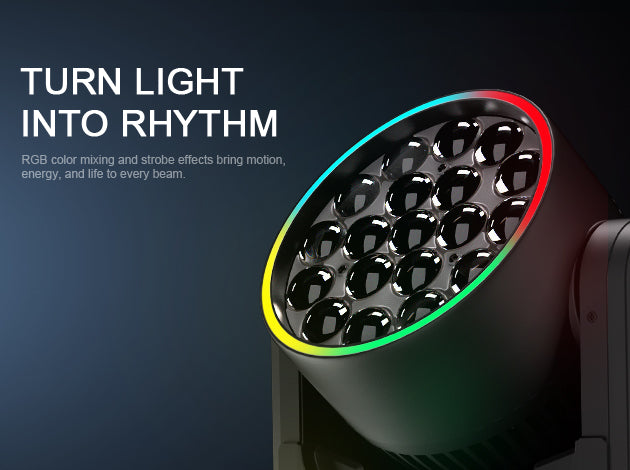

Turn Light into Rhythm
RGB color mixing and strobe effects bring motion, energy, and life to every beam.

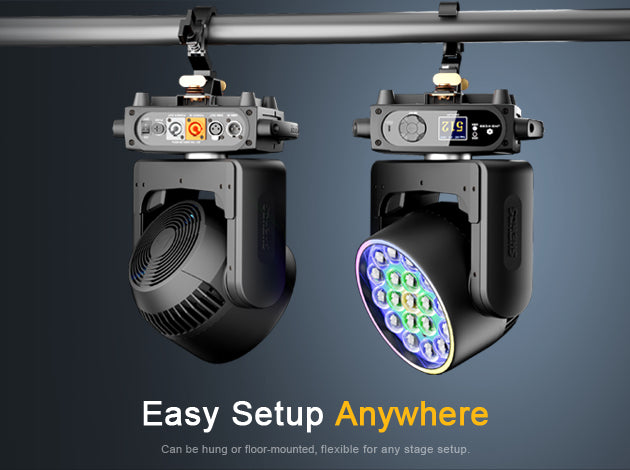

Easy Setup Anywhere
Can be hung or floor-mounted, flexible for any stage setup.

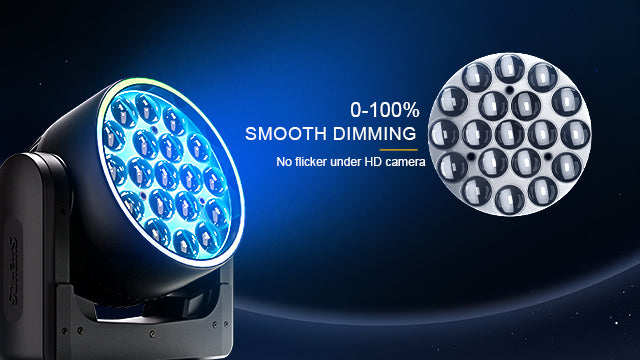

0-100% Smooth Dimming
No flicker under HD camera

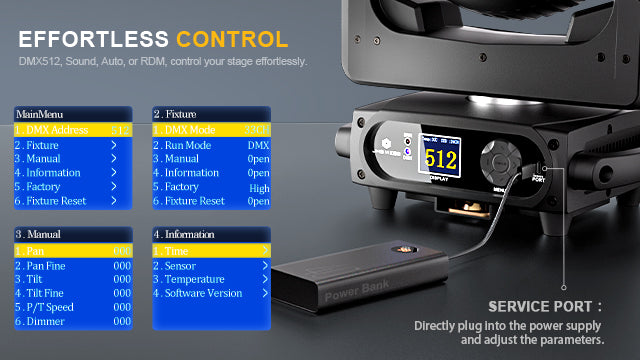

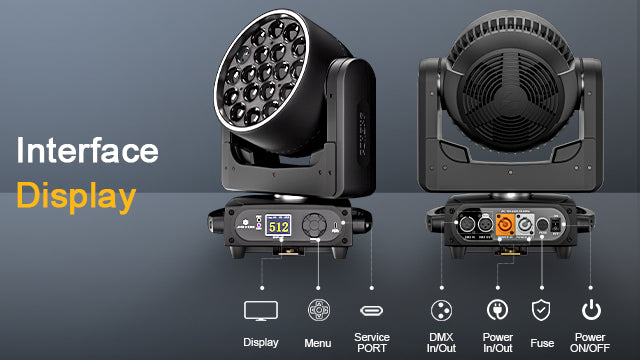

Interface Display
Effortless Control
DMX512, Sound, Auto, or RDM, control your stage effortlessly.

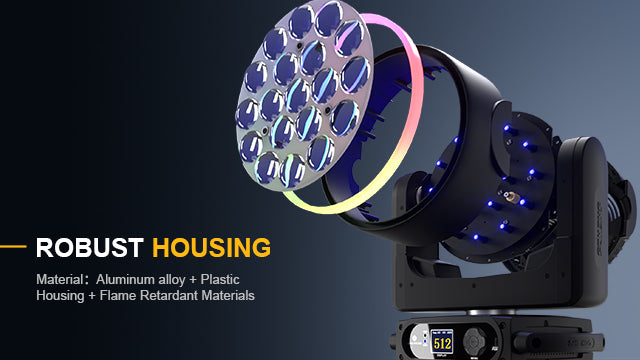

Robust Housing
Material：Aluminum alloy + Plastic Housing + Flame Retardant Materials

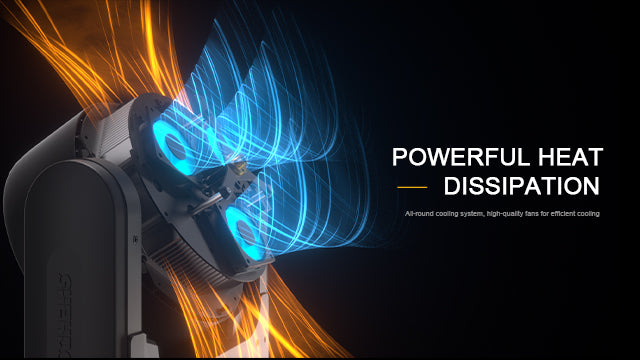

Powerful Heat Dissipation
All-round cooling system, high-quality fans for efficient cooling
Big Effects, Zero Limits
Small in size but big in performance, this versatile moving head delivers professional-quality lighting for any venue or event.

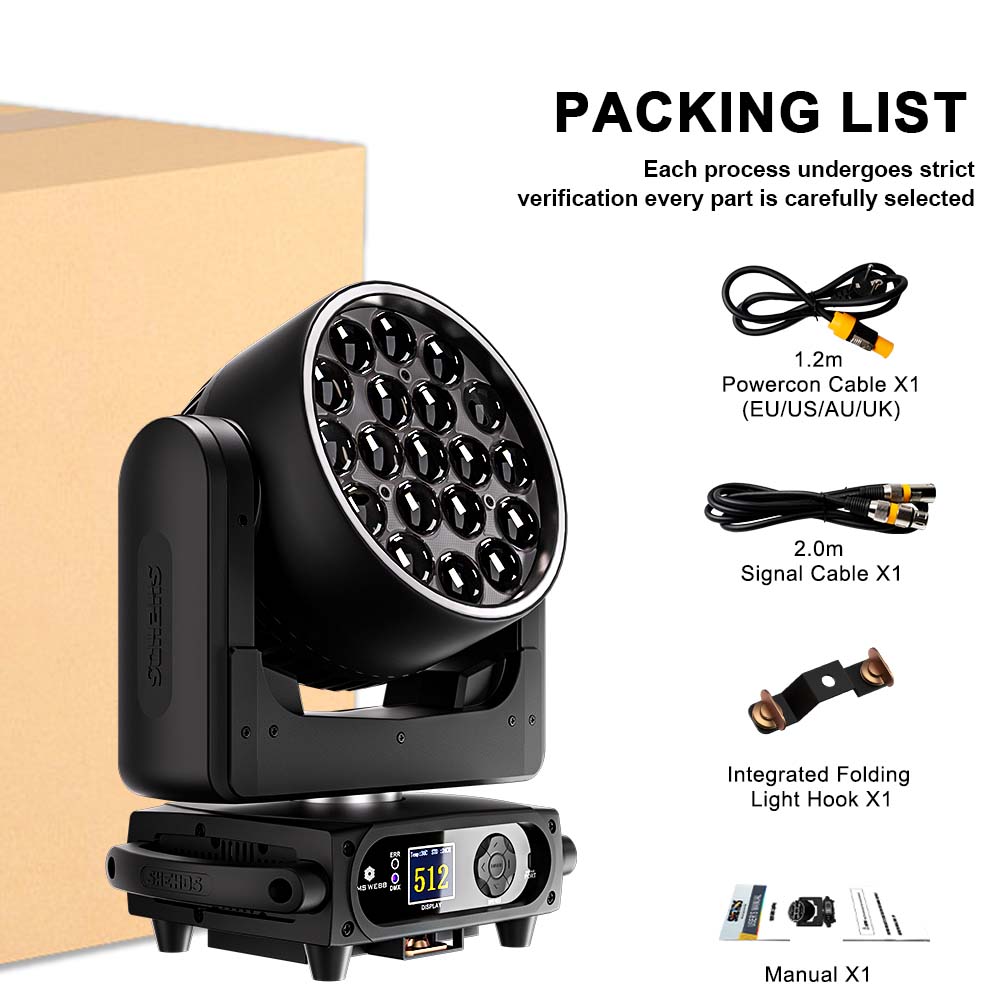

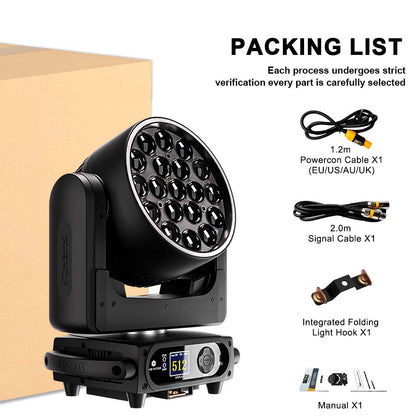

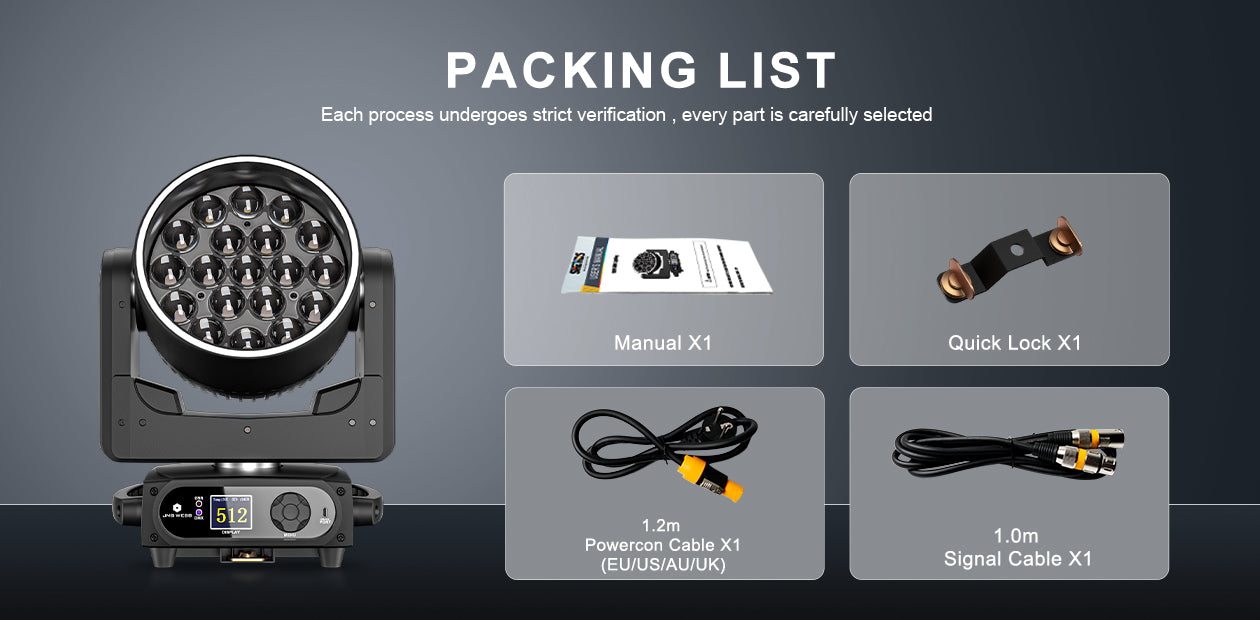

Packing List
Each process undergoes strict verificationEvery part is carefully selected

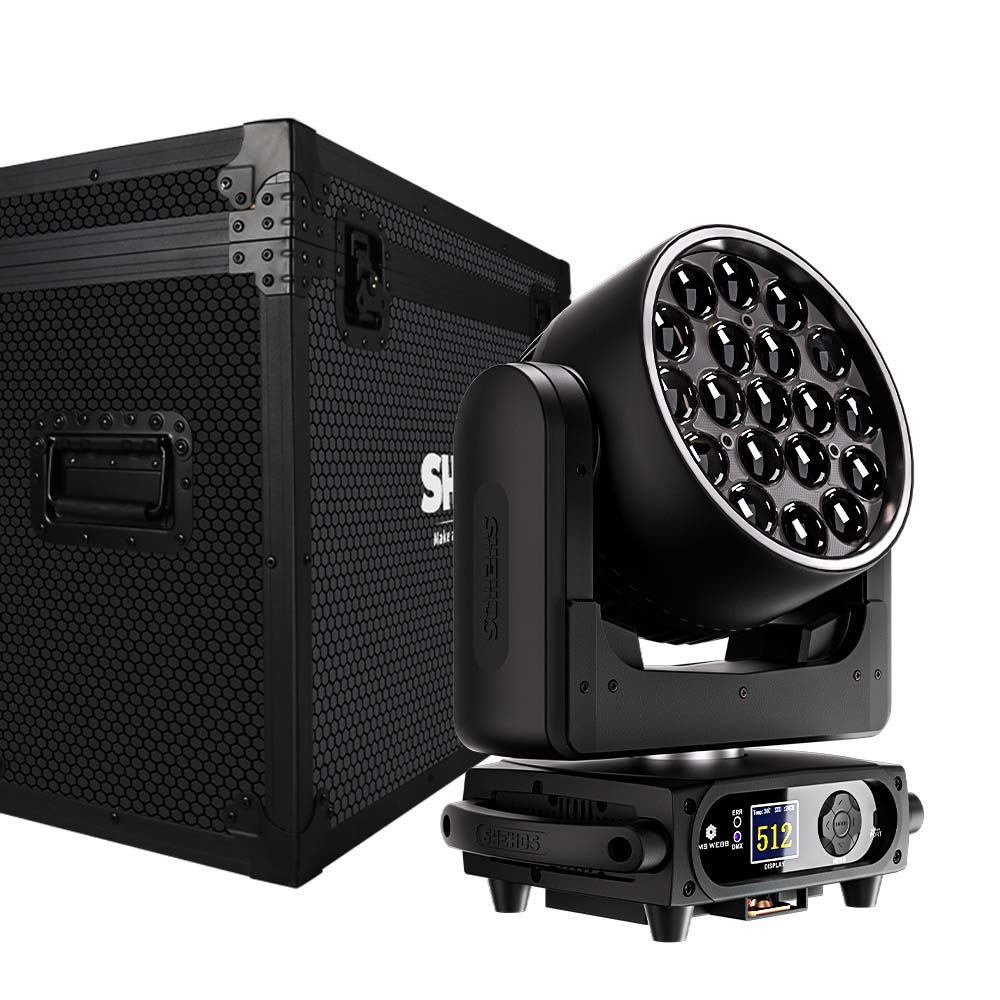

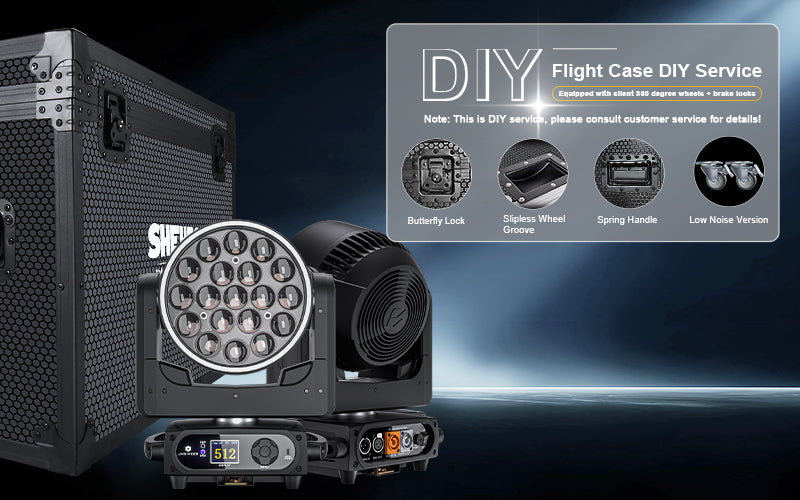

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
