SHEHDS New Patchwork LED Wall Wash 18x18W RGBWA+UV Lighting Recirculating air path for heat dissipation Free Splicing

SHEHDS New Patchwork LED Wall Wash 18x18W RGBWA+UV Lighting Recirculating air path for heat dissipation Free Splicing

Precio habitual $263.12 USD
Precio habitual $299.00 USD Precio de oferta $263.12 USD Save$35.88
Oferta Agotado


2 Years Warranty

Free Shipping

Customer Service


Type: 18x18W
Ship To: US
Ship From: China by Air/Express


Make Money

Like this product?

Join Us to promote this product via an exclusive coupon!

Ver todos los detalles

Technical Parameter

Light source parameters


0-100% 16Bit mechanic

Light source:

18x18W RGBWA UV 6in1 mixing

Beam Lux:

3264 Lux / 2m

Beam angle:

25 degrees


Flash rate 0-25HZ


RGBWA UV 6in1 mixing color

Security System

Safety Item

Over current and voltage protection

Degree Of Protection


Operating Temperature


Interface And Control System

Control Interface

DMX In/Out

DMX Channel

12/108/120 CH

Power Interface

Neutrik PowerCon

Cooling System

Cooling Method

Passive heat dissipation

Power Consumption

Working Power

100~240V AC 50/60HZ

Physical Parameters


Die cast aluminum casing

Product Size

100cm x 8cm x 9.5cm

Product Weight


Package Size

104.5cm x 12cm x 17cm

Package Weight

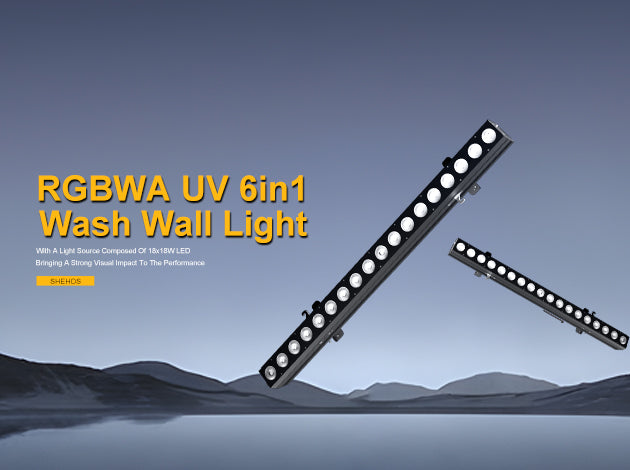

LED 18x18W RGBWA UV 6in1 Wash Wall Light

A new type of freely spliced wall washing lamp independently developed by SHEHDS, with a light source composed of 18x18W LED,
The linearly adjustable color temperature of RGBWA UV creates the most realistic stage scene environment,
Bringing a strong visual impact to the performance.

Product Features

With excellent performance and user-friendly design, we will become your powerful assistant in stage lighting.

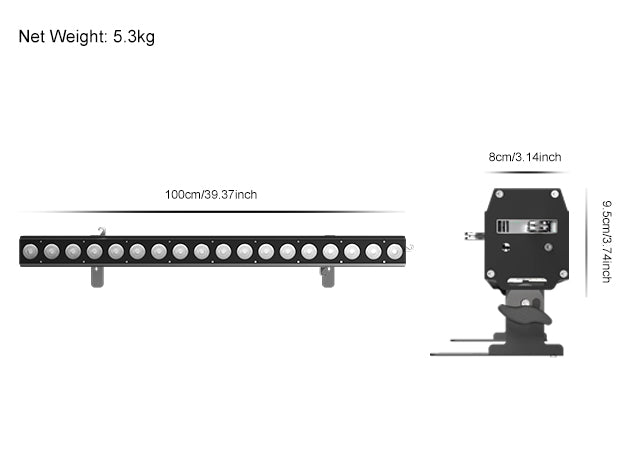

Product Size

Package Size 104.5cm x 12cm x 17cm
Package Weight 6.5kg

Beam Angle

Max 46.7° Beam Angel Covering a wider area can illuminate a larger space. The lighting is more natural and comfortable. It is more natural and will not have overly stiff effects.

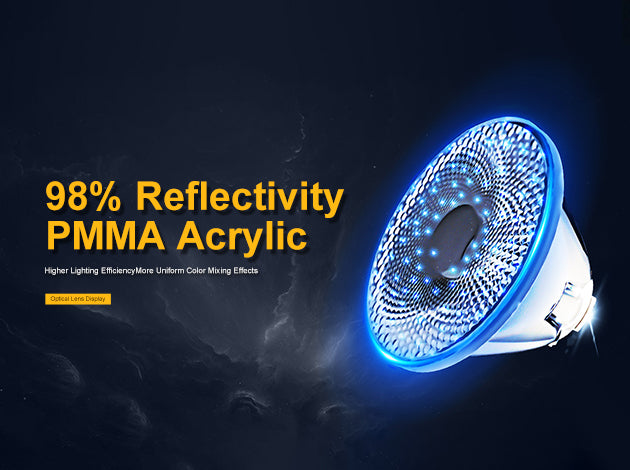

Optical Lens Display

Adopting customized PMMA acrylic material lenses to achieve a 98% reflectivity and higher lighting efficiency
More uniform color mixing effect

Automatic Combination Of Light Effects

The combination of powerful strobe effects and built-in automatic mode lighting not only enriches the visual effects of the performance,
but also provides more creative space for the performance team.

Light Effect

RGBWA UV 6in1 Color Mixing

Different colors of light can gradually transition or quickly switch over time, creating dynamic visual effects. Not only does it add color and vitality to the stage, but it also brings us a brand new visual world.

Free Splicing, Unlimited Creativity

The stage wall washing lamp supports horizontal or vertical splicing installation, making it more convenient for you to arrange the stage. Whether it's a large theater or a small performance, you can easily handle it and create the ideal light and shadow effect in your mind.

LED Light Source

Using ceramic substrate LED Source, Has properties such as high temperature resistance, oxidation resistance, and corrosion resistance So as to adapt to different lighting environments and customer needs.

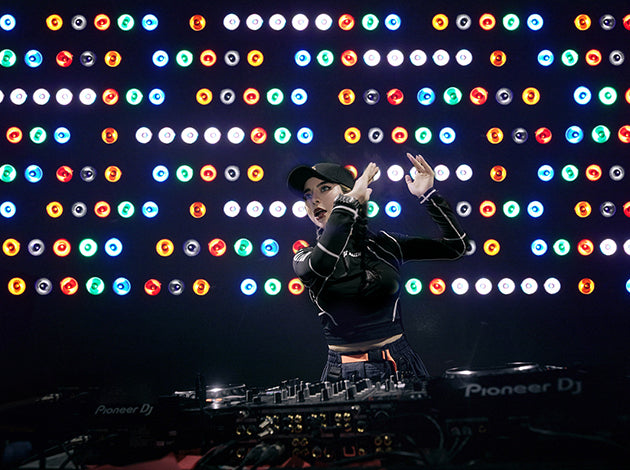

Applicable Scene

These lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue.

Introduction To Panel Functions

Equipped with a 1.8-inch touchscreen menu panel, the operation is simple and intuitive. You can easily adjust parameters such as lighting color, brightness, and mode to achieve personalized stage effects.

Function Introduction

Foot Stand And Knob

Our tripods can provide excellent stability and safety. The limit design can effectively prevent the tripod from slipping in unexpected situations, ensuring that your device remains stable at all times.

Limit buckle

Specially designed limit card holes effectively prevent displacement and torsion of the lighting fixtures during the splicing process. Ensure that every light fixture is stable as before, making your stage safer and more reliable.

Safety rope hole position

Considering the safety of various usage scenarios, we have specially reserved safety rope holes. By connecting safety ropes, further ensure the safety and stability of the lighting fixtures during lifting or high-altitude use.

Carefully Select Excellent Accessories

We focus on quality and details, using high-quality materials and exquisite craftsmanship to create. At the same time, we also provide comprehensive after-sales service and technical support, allowing you to shop worry free and use with peace of mind.

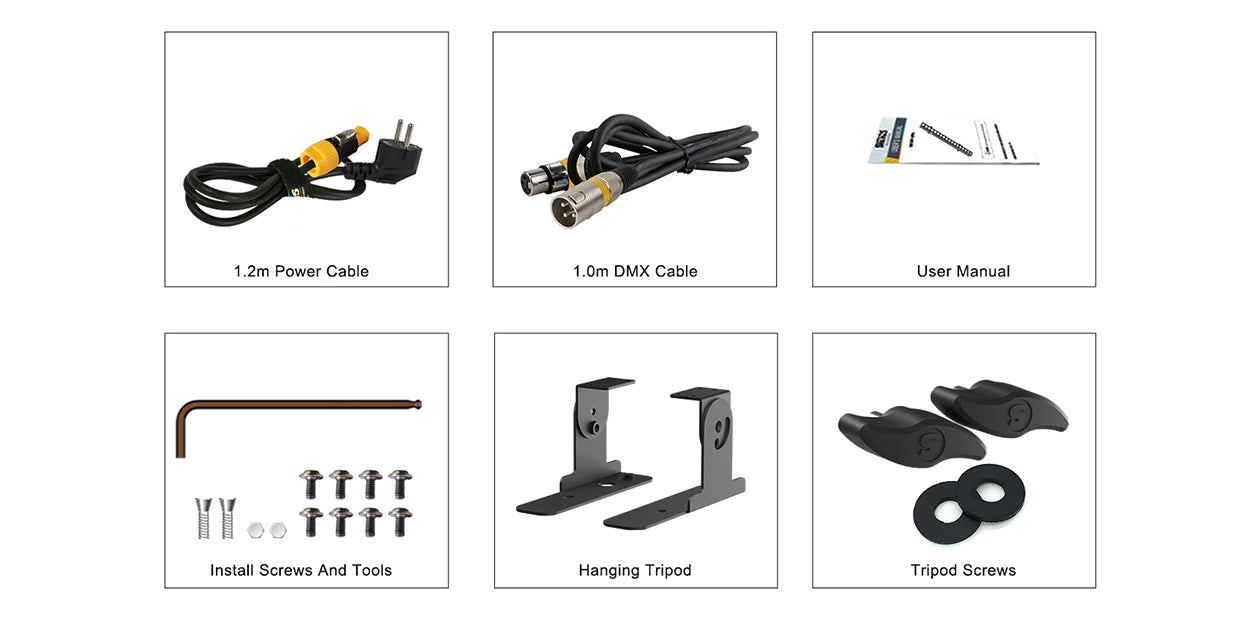

Packing List

Each process undergoes strict verificationEvery part is carefully selected

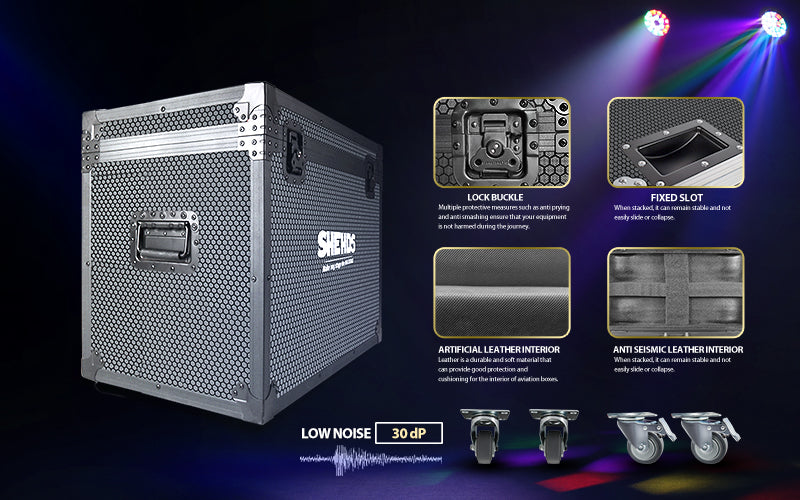

Flight Case
DIY Service

Equipped with silent 360 degree wheels + brake lockers

Note: This is DIY service,
please consult customer service for details!
