Technical Parameter
Electrical Specification and Connections
Power supply:
900W/24V
Input voltage range:
100-240 V, 50/60 Hz
Power in connector:
650-830W
Source
Colour temperature output:
White Beam 6500-7500K
CRI
71
Illuminance:
58480/1m 42350/2m 28750/3m 13190/4m 11800/5m
Life expectancy:
50000 hours
Optical system
Beam angle:
2.8°-31°
Dimmer:
32bit 0~100% Linear dimming
Dynamic Effects and Features
Pan/Tilt
Pan：/Tilt：180°-200°
Control and programming
Protocols:
DMX512,RDM
DMX Channel Mode：
20/53/101/155/169A/169B/179/227CH
Feature：
DMX512, Auto-run, Master-Slave, Sound Control, with RDM function
Mechanical specification
Housing :
Metal, black
Product size：
104*20*31.5
Product weight:
28.9kg
Package size:
111*24*38.5
Package size:
112*25*40
Package weight:
32.5kg
Operating temperature:
-25℃~45℃
Ingress protection rating:
IP20
Noise
Powered on: 50dB / Running: 65dB

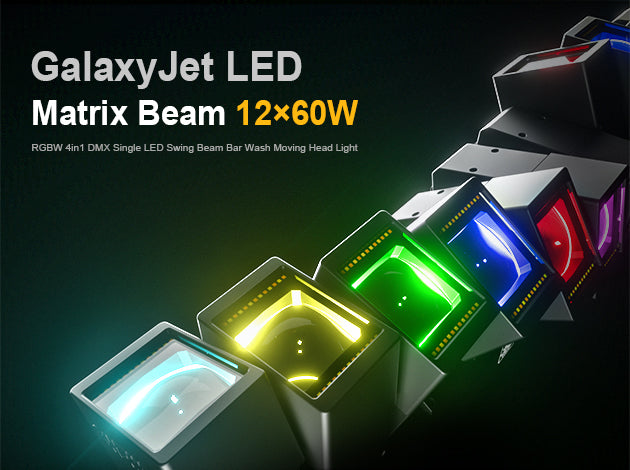

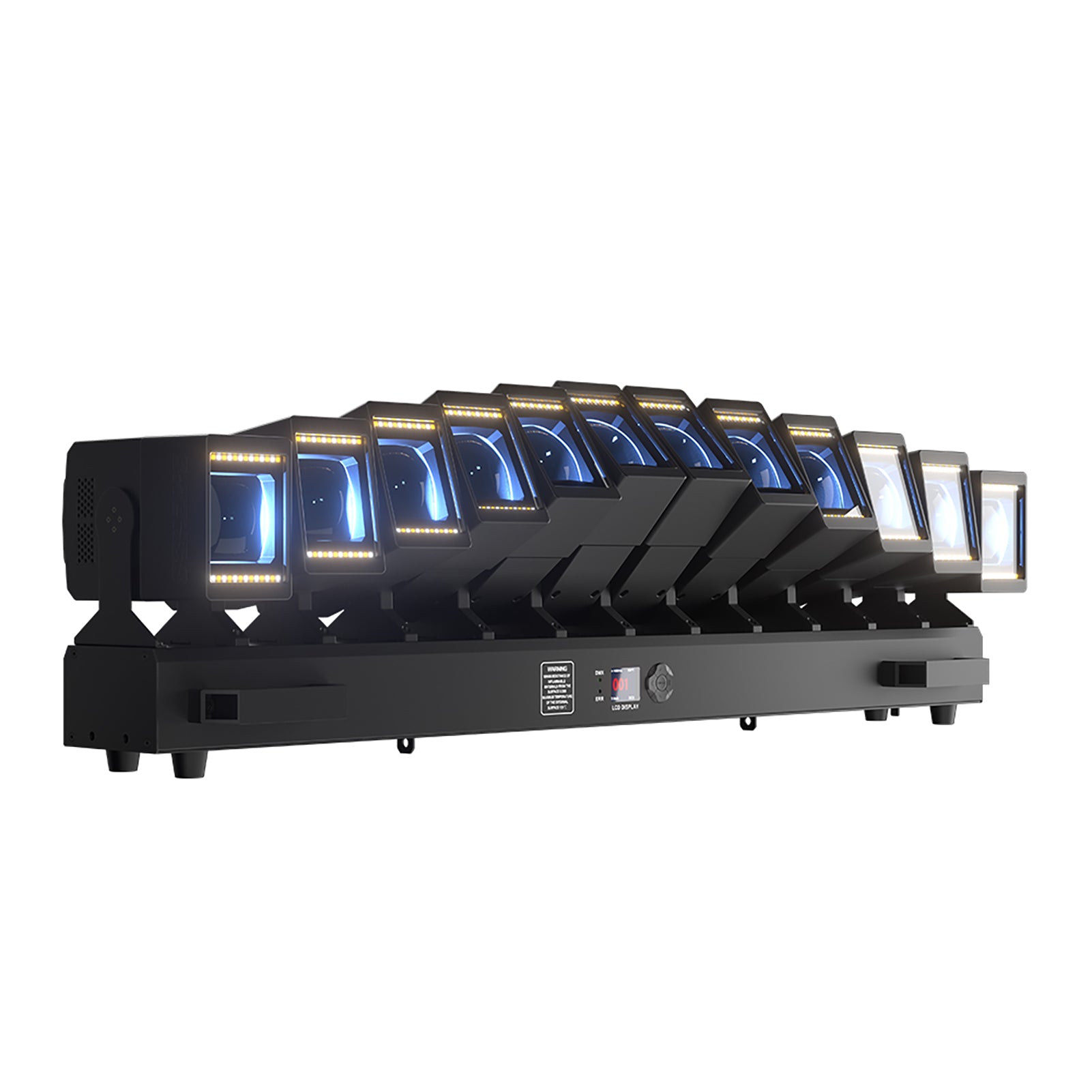

GalaxyJet LED Matrix Beam 12×60W
RGBW 4in1 DMX Single LED Swing Beam Bar Wash Moving Head Light
Pro Creators, Real Shows
See how creators light up real sets with SHEHDS, highlights from reviews, shoots, and live performances.
Power Meets Art
60W RGBW LEDs Deliver Stunning Color Blends
Brighter Than You Expect
58,480+ Lux @1m, Pure Beam Intensity
7500K White Beam, Pure and Powerful
Power in Every Pixel
60W Super Bright Matrix Beam-Bring Every Stage to Life

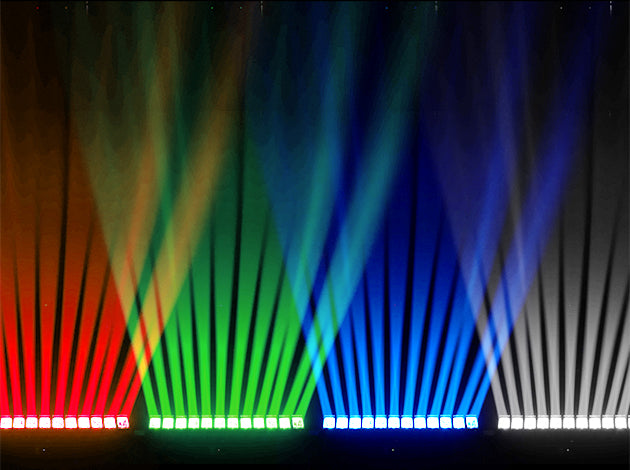

True-to-Life Colors
RGBW four-color mixing system for vivid tones and accurate color.
Pixel Control
Individually controlled LEDs let you craft dynamic chases, pixel effects, and immersive lighting scenes.

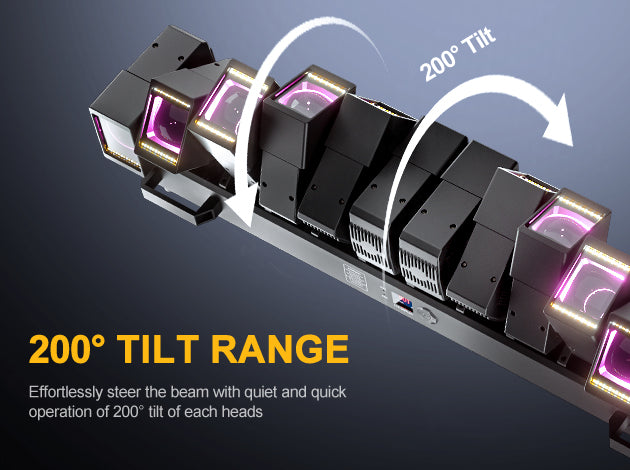

200° Tilt
Effortlessly steer the beam with quiet and quick operation of 200° of tilt of each heads
Flexible Beam Angle
Individually controllable tilting heads with a 2.8° to 31° zoom range

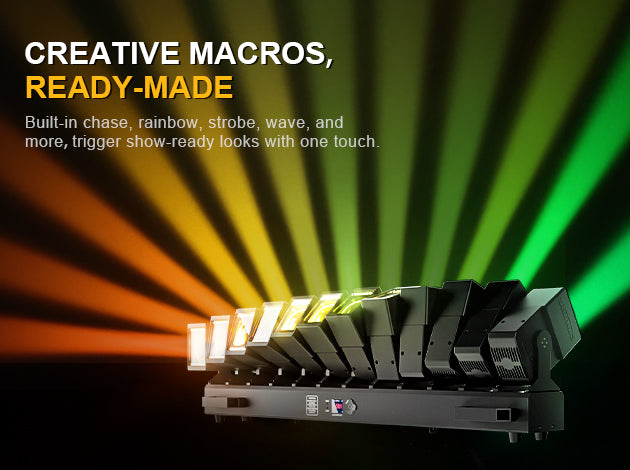

Creative Macros, Ready-Made
Built-in chase, rainbow, strobe, wave, and more—trigger show-ready looks with one touch.
Efficient, Even Output
Composite optics for smooth color，RGBW works together to deliver saturated colors plus punchy true white-clean hues with minimal color cast.
Various Applications
From DJ Booth to Festival Stage, Ready for Any Event
Silence Meets Power
Advanced Cooling System, Low Noise ≤65dB

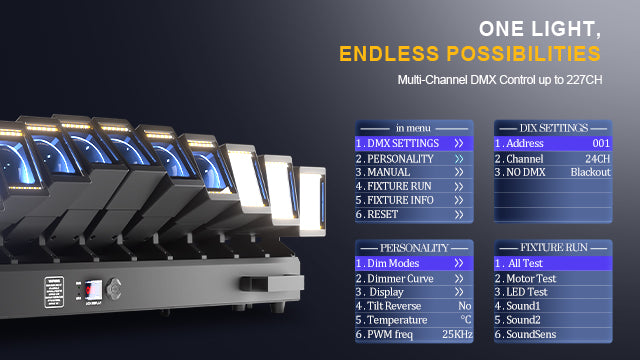

One Light, Endless Possibilities
Multi-Channel DMX Control up to 227CH

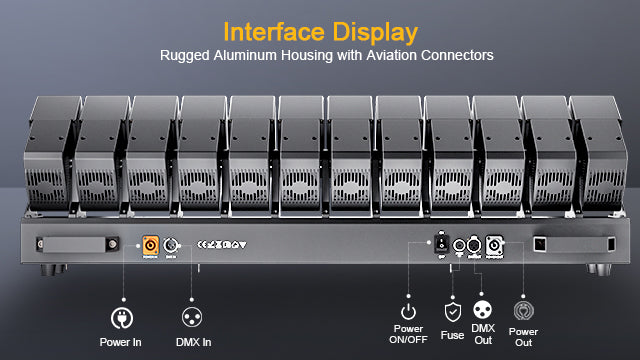

Interface Display

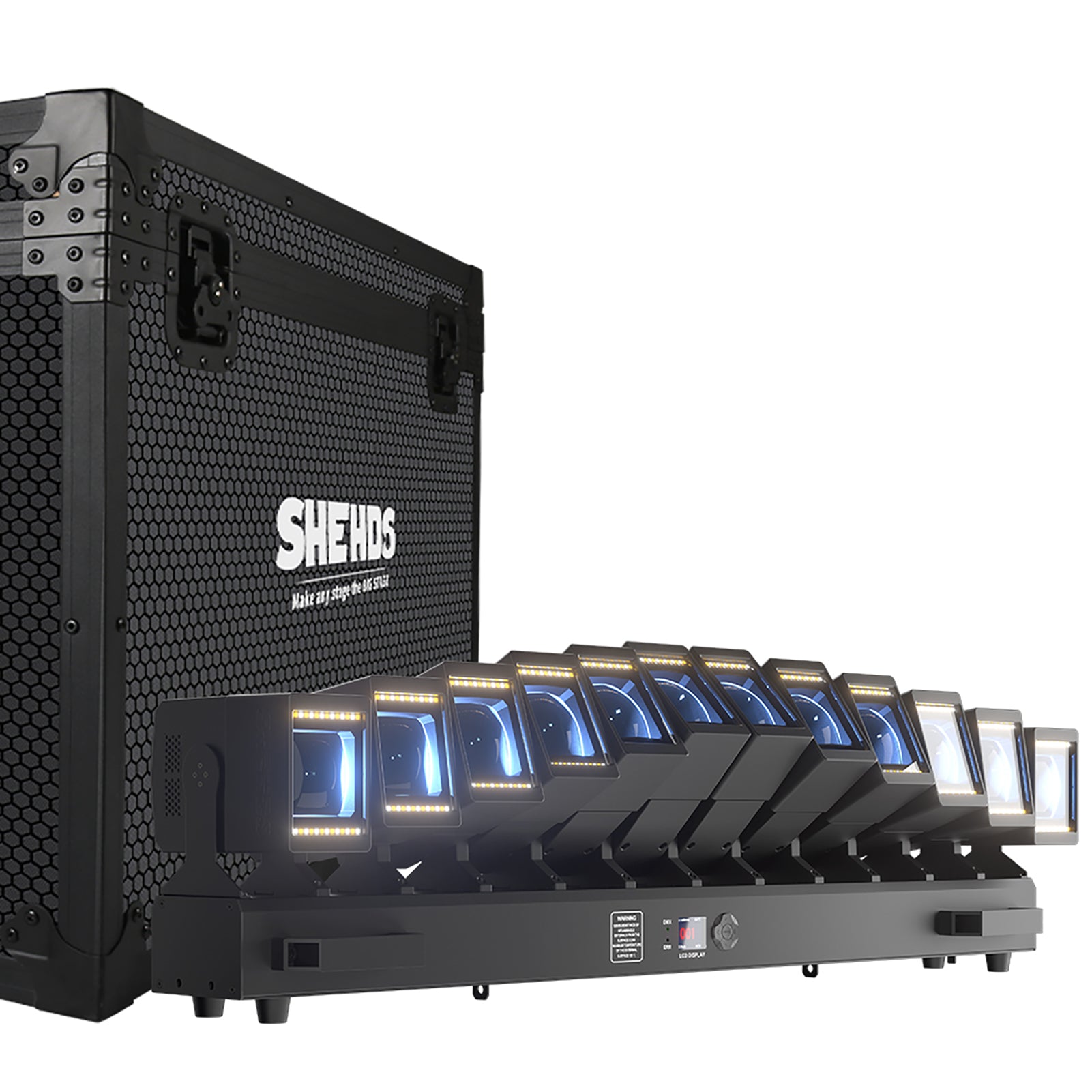

Built for the Stage. Ready for the Tour.Rugged Aluminum Housing with Aviation Connectors

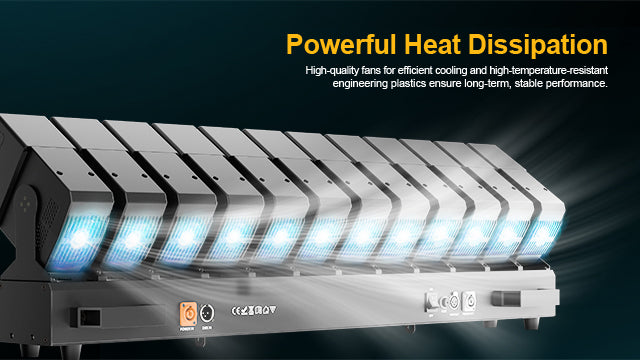

Powerful Heat Dissipation
High-quality fans for efficient cooling and high-temperature-resistant engineering plastics ensure long-term, stable performance.

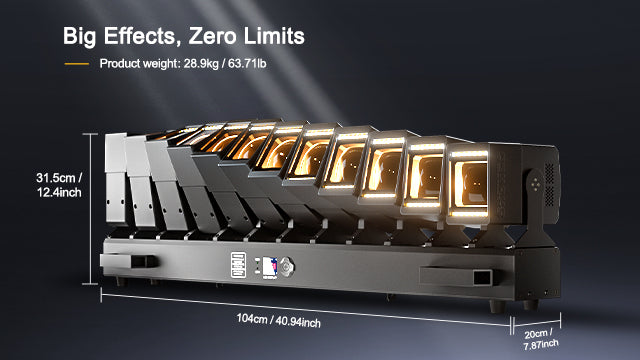

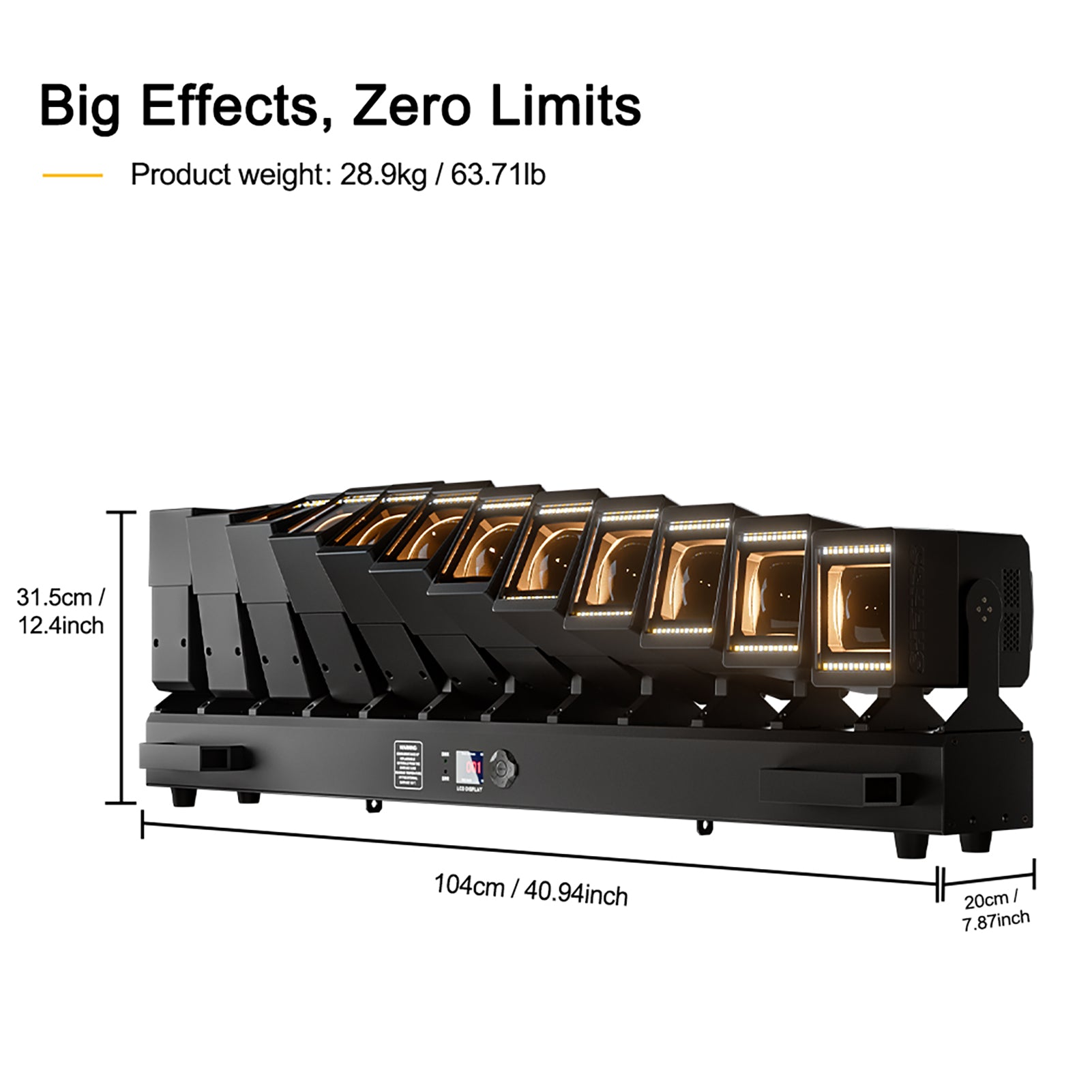

Big Effects, Zero Limits
Small in size but big in performance, this versatile moving head delivers professional-quality lighting for any venue or event.

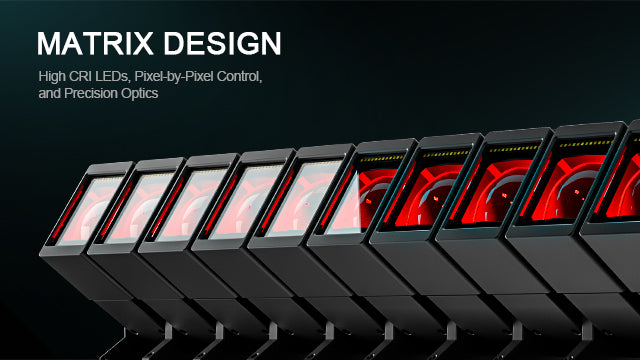

Matrix Design
High CRI LEDs, Pixel-by-Pixel Control, and Precision Optics
