Technical Parameter
Electrical Specification and Connections
Power supply:
400W/24V
Input voltage range:
100-240 V, 50/60 Hz
Power in connector:
300-360W
Source
Colour temperature output:
White Beam 6500-7500K
CRI
65
Illuminance:
72620/1m 34500/2m 24750/3m 17790/4m 13120/5m
Life expectancy:
50000 hours
Optical system
Beam angle:
2.8°-31°
Dimmer:
Linear dimming from 0 to 100%
Dynamic Effects and Features
Pan/Tilt
X:540° Y:180°-200°
Control and programming
Protocols:
DMX512,RDM
DMX Channel Mode：
24/48/57/59CH
Feature：
DMX512, Auto-run, Master-Slave, Sound Control, with RDM function
Mechanical specification
Housing :
Metal, Black
Product size：
44.7*22*36
Product weight:
15.95kg
Package size:
51*28*42
Package size:
52*29*43
Package weight:
18.8kg
Operating temperature:
-25℃~45℃
Ingress protection rating:
IP20
Noise
Powered on: 50dB / Running: 65dB

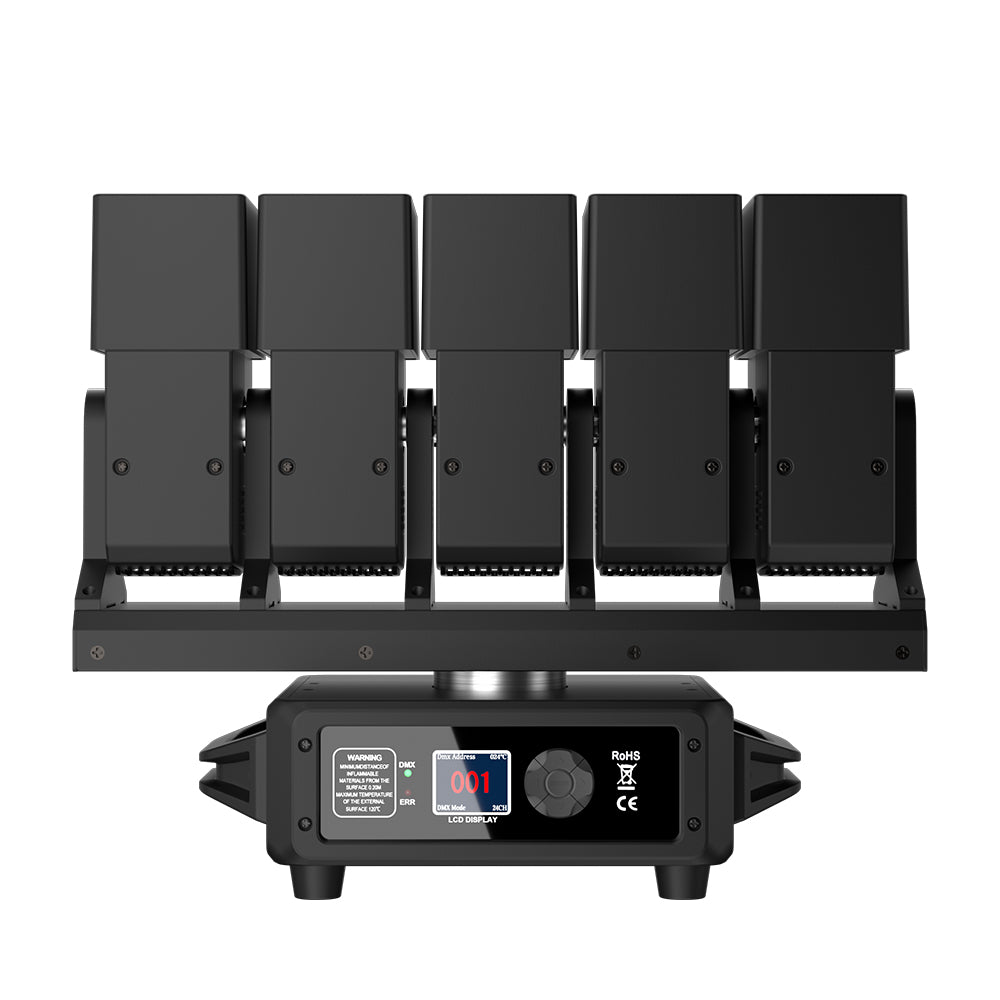

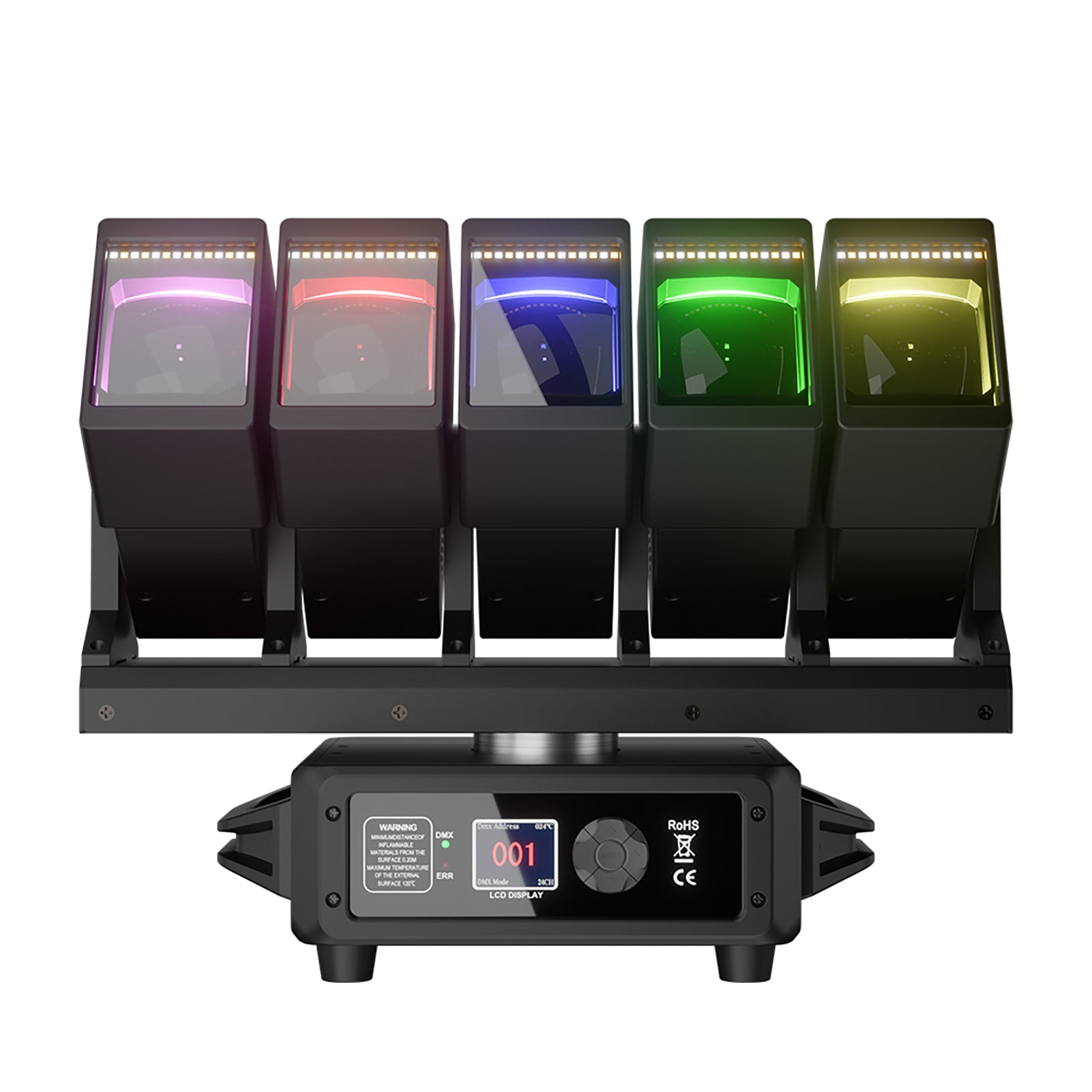

GalaxyJet LED Matrix Beam 5×60W
RGBW 4in1 DMX Single LED Swing Beam Bar Wash Moving Head Light

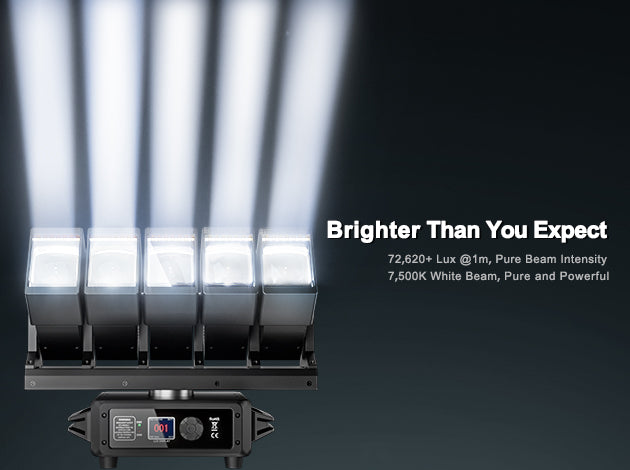

Brighter Than You Expect
72,620+ Lux @1m, Pure Beam Intensity 7500K White Beam, Pure and Powerful

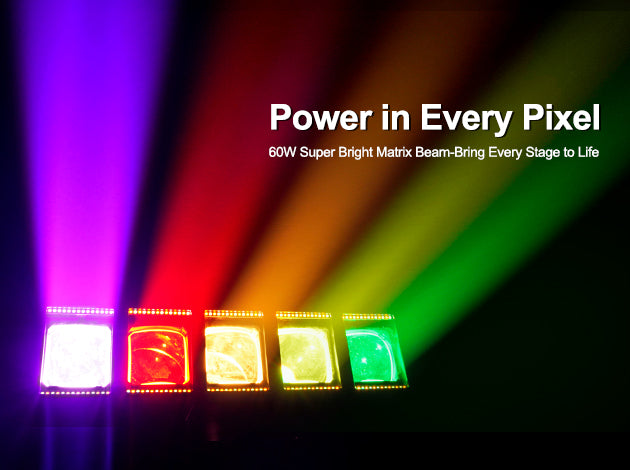

Power in Every Pixel
60W Super Bright Matrix Beam-Bring Every Stage to Life
True-to-Life Colors
RGBW four-color mixing system for vivid tones and accurate color.
Pixel Control
Individually controlled LEDs let you craft dynamic chases, pixel effects, and immersive lighting scenes.
Infinite Pan & 200° Tilt
With infinite pan rotation and a wide 200° tilt range, you can easily direct the beam for precise, powerful effects and high-quality light output.
Flexible Beam Angle
Individually controllable tilting heads with a 2.8° to 31° zoom range
Creative Macros, Ready-Made
Built-in chase, rainbow, strobe, wave, and more—trigger show-ready looks with one touch.
Efficient, Even Output
Composite optics for smooth color，RGBW works together to deliver saturated colors plus punchy true white-clean hues with minimal color cast.

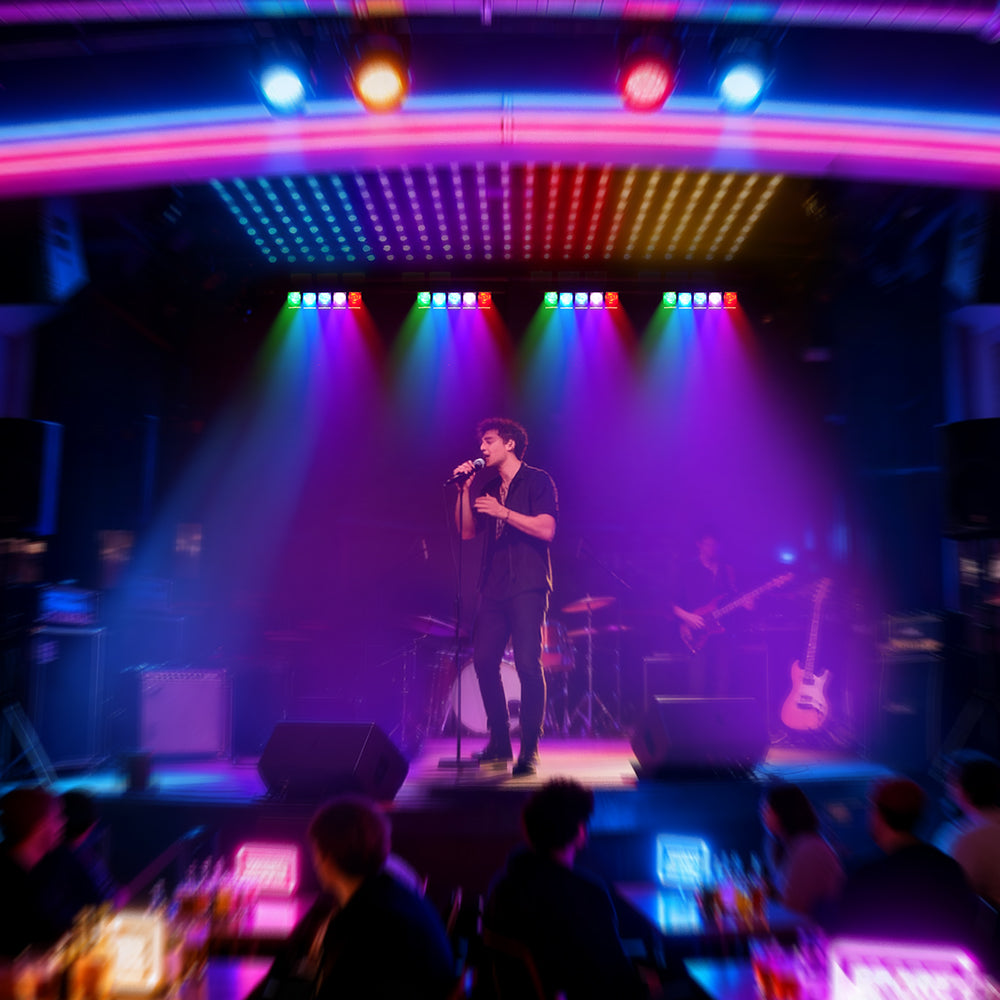

Various Applications
From DJ Booth to Festival Stage, Ready for Any Event

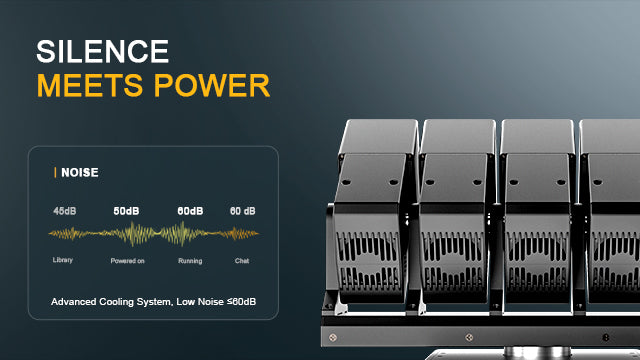

Silence Meets Power
Advanced Cooling System, Low Noise ≤65dB

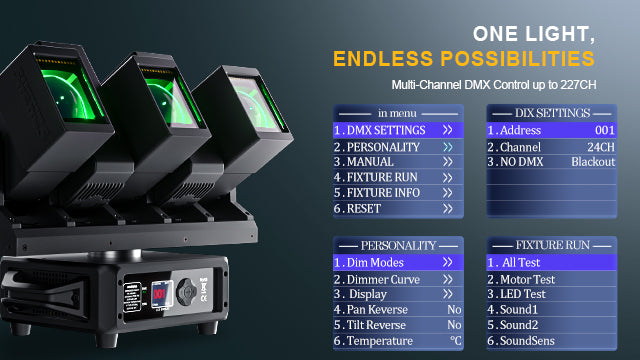

One Light, Endless Possibilities
Multi-Channel DMX Control up to 227CH

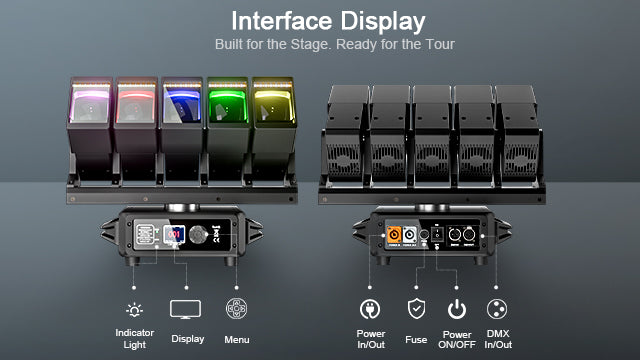

Built for the Stage. Ready for the Tour.
Rugged Aluminum Housing with Aviation Connectors

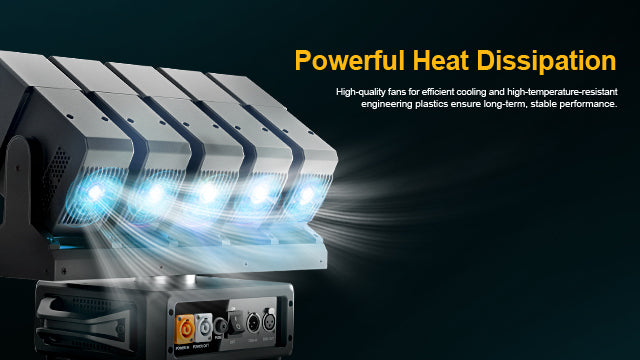

Powerful Heat Dissipation
High-quality fans for efficient cooling and high-temperature-resistant engineering plastics ensure long-term, stable performance.

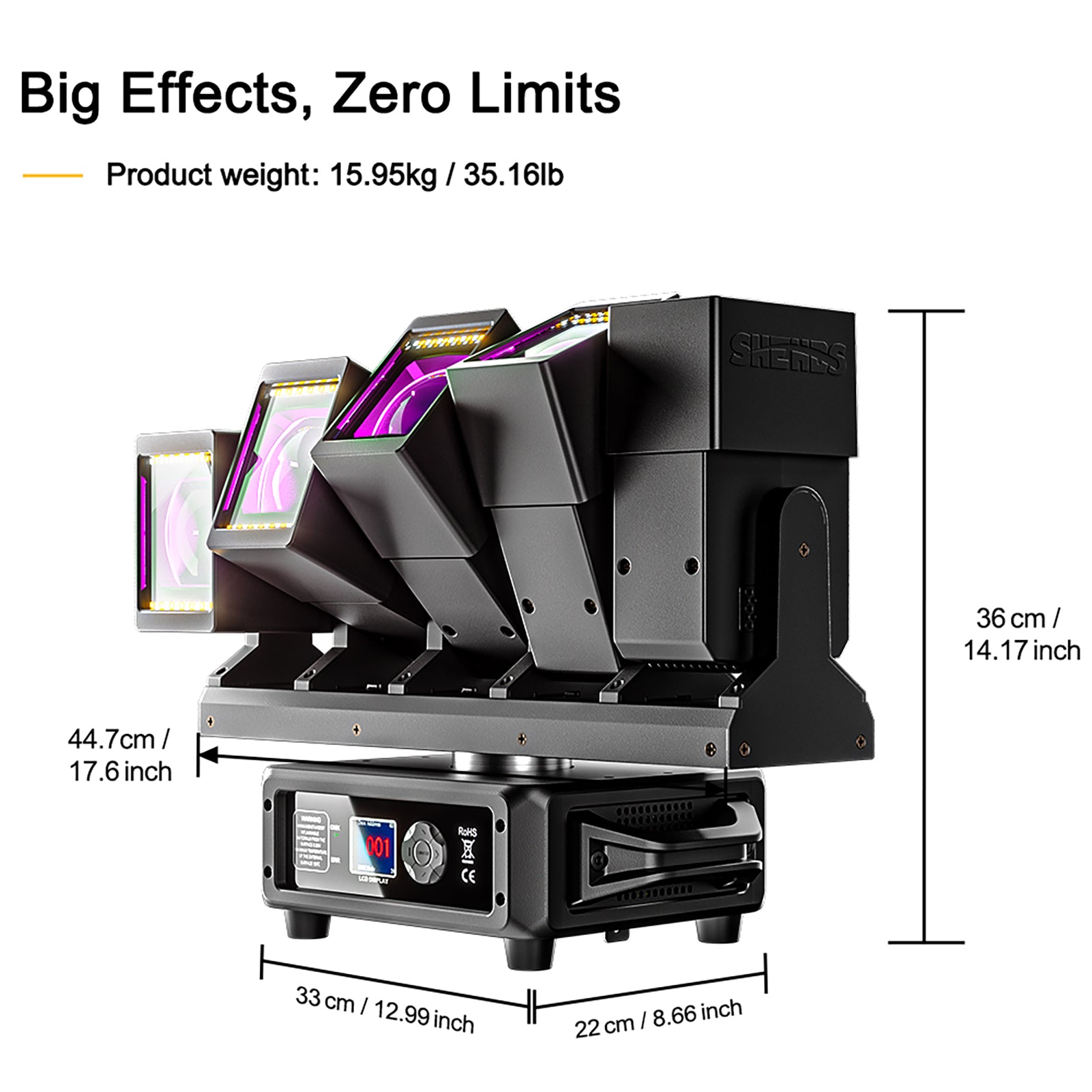

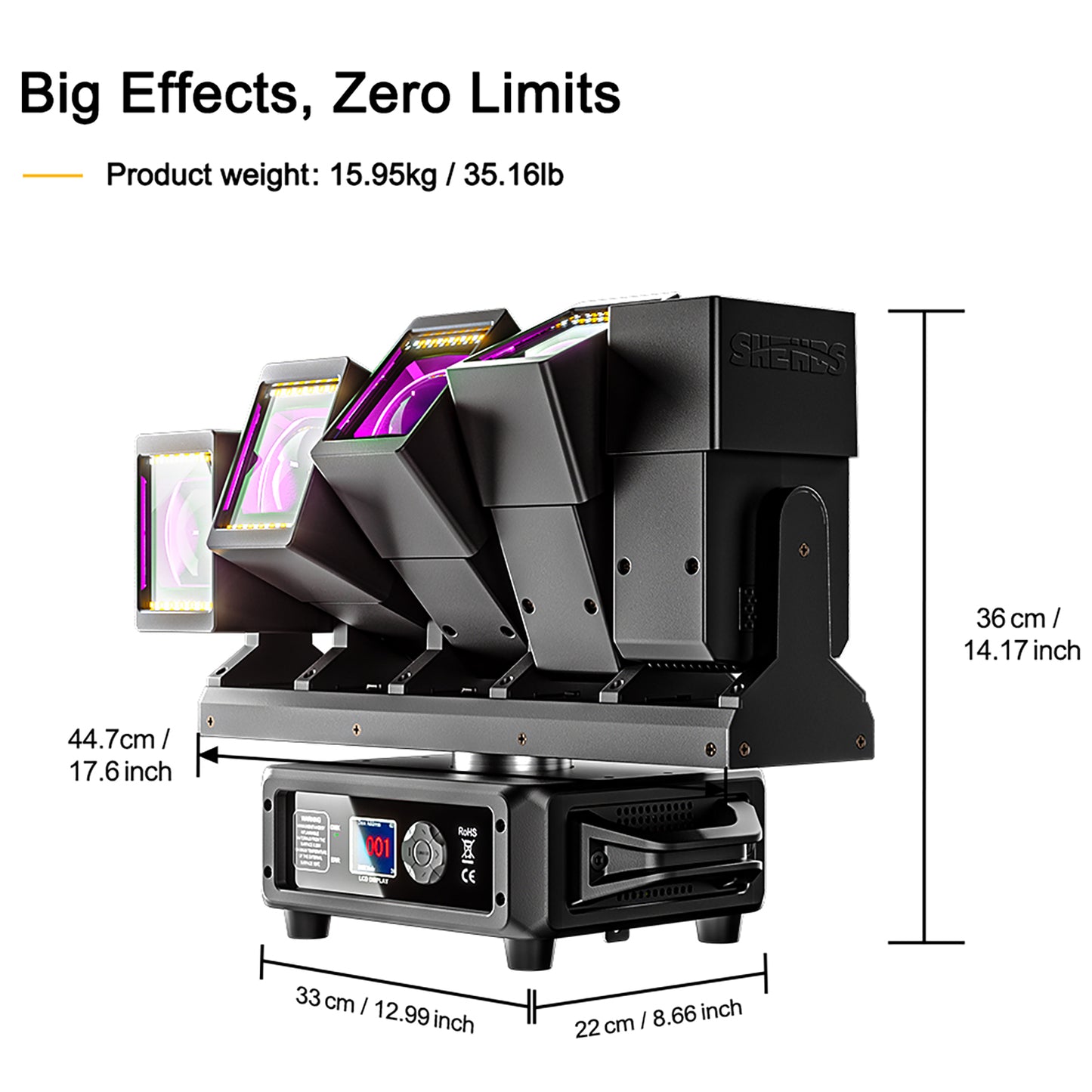

Big Effects, Zero Limits
Small in size but big in performance, this versatile moving head delivers professional-quality lighting for any venue or event.

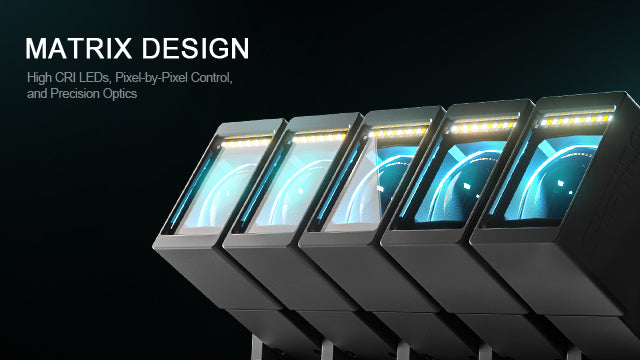

Matrix Design
High CRI LEDs, Pixel-by-Pixel Control, and Precision Optics

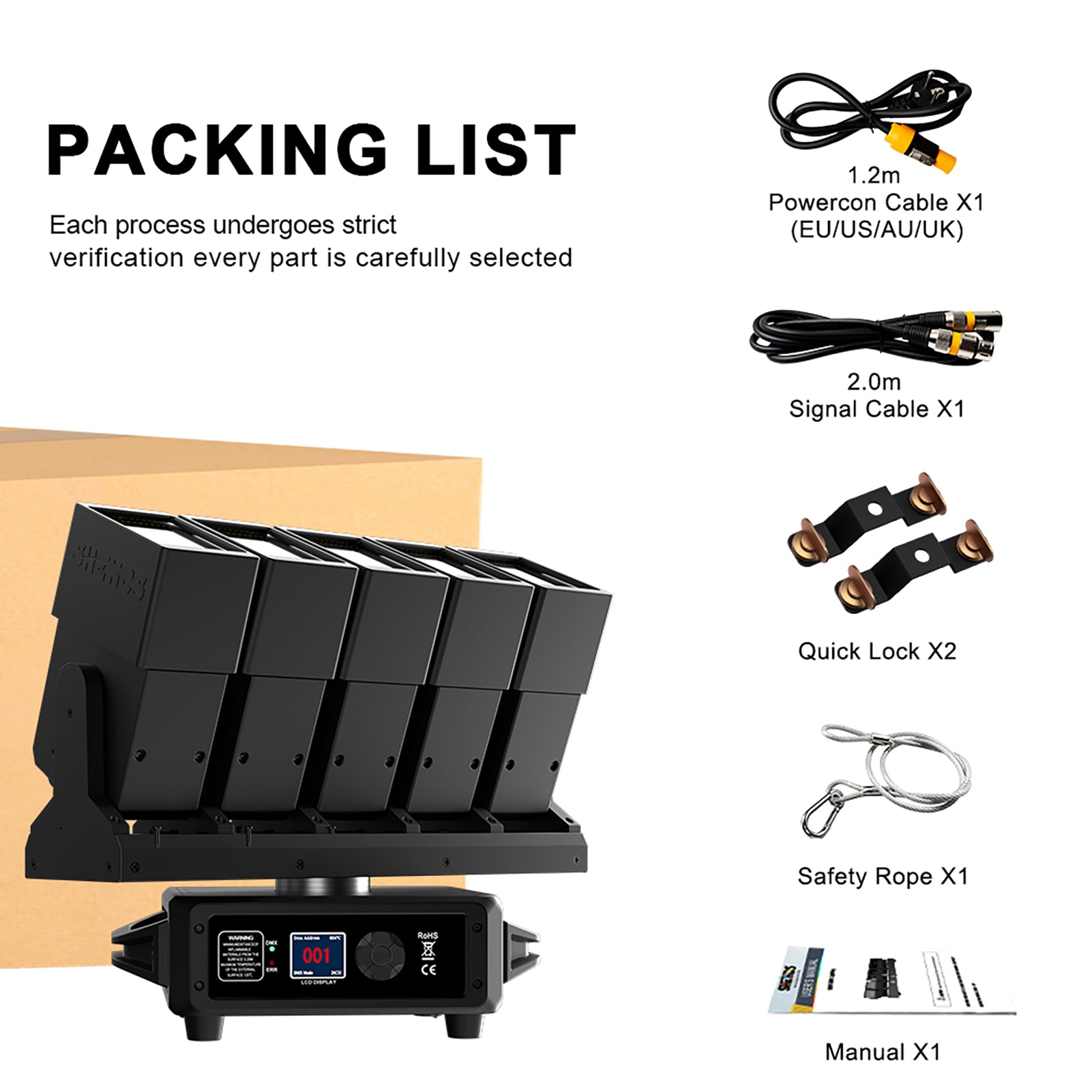

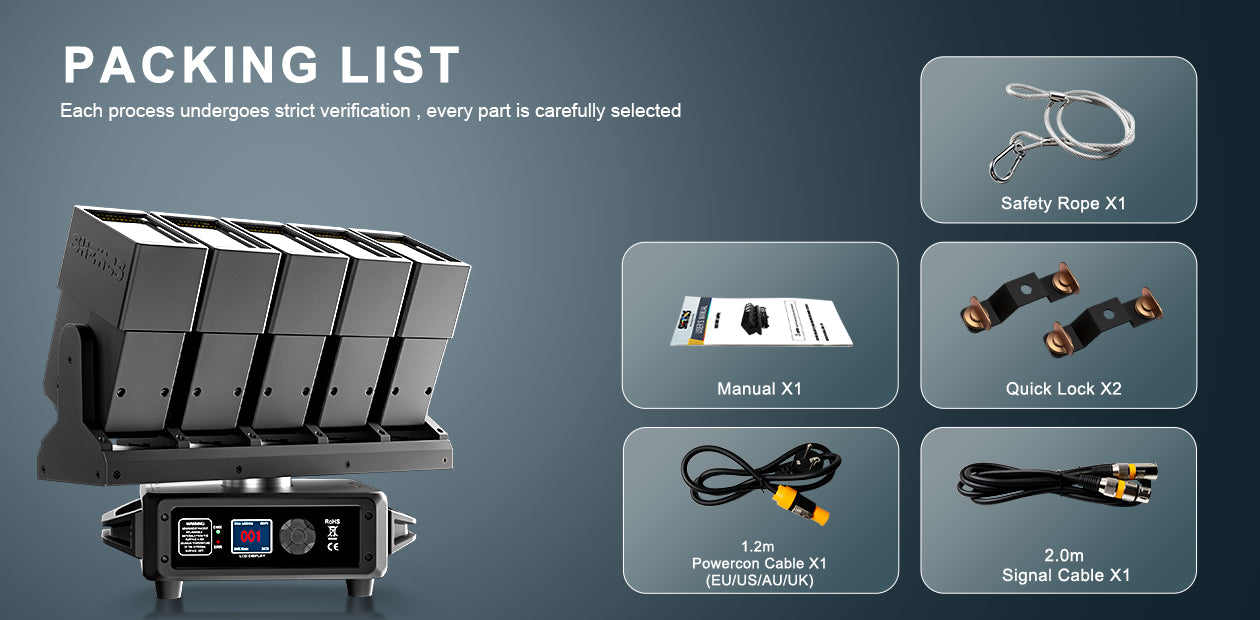

Packing List
Each process undergoes strict verificationEvery part is carefully selected

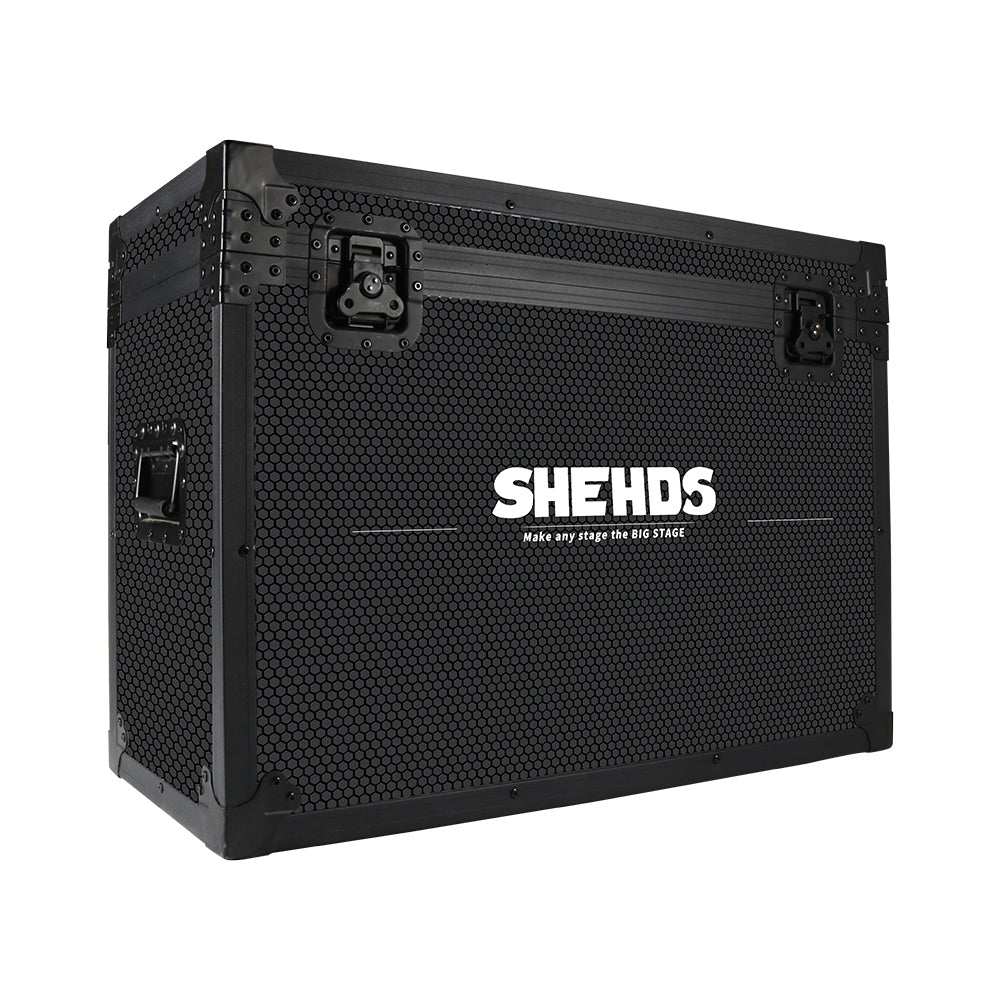

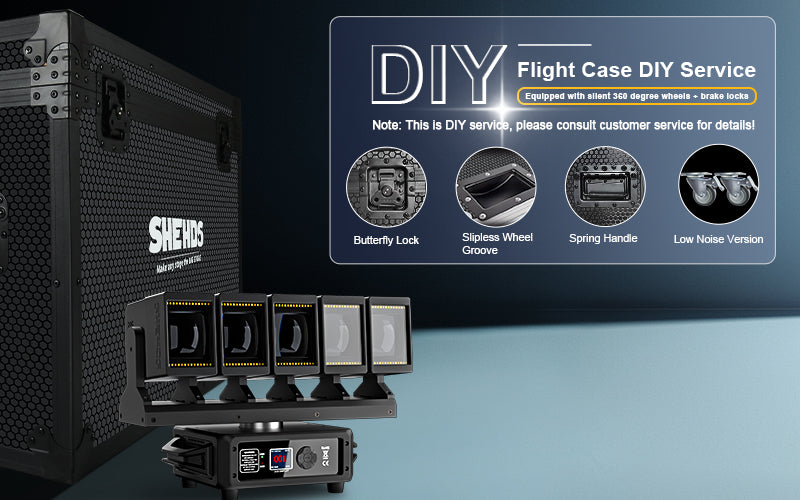

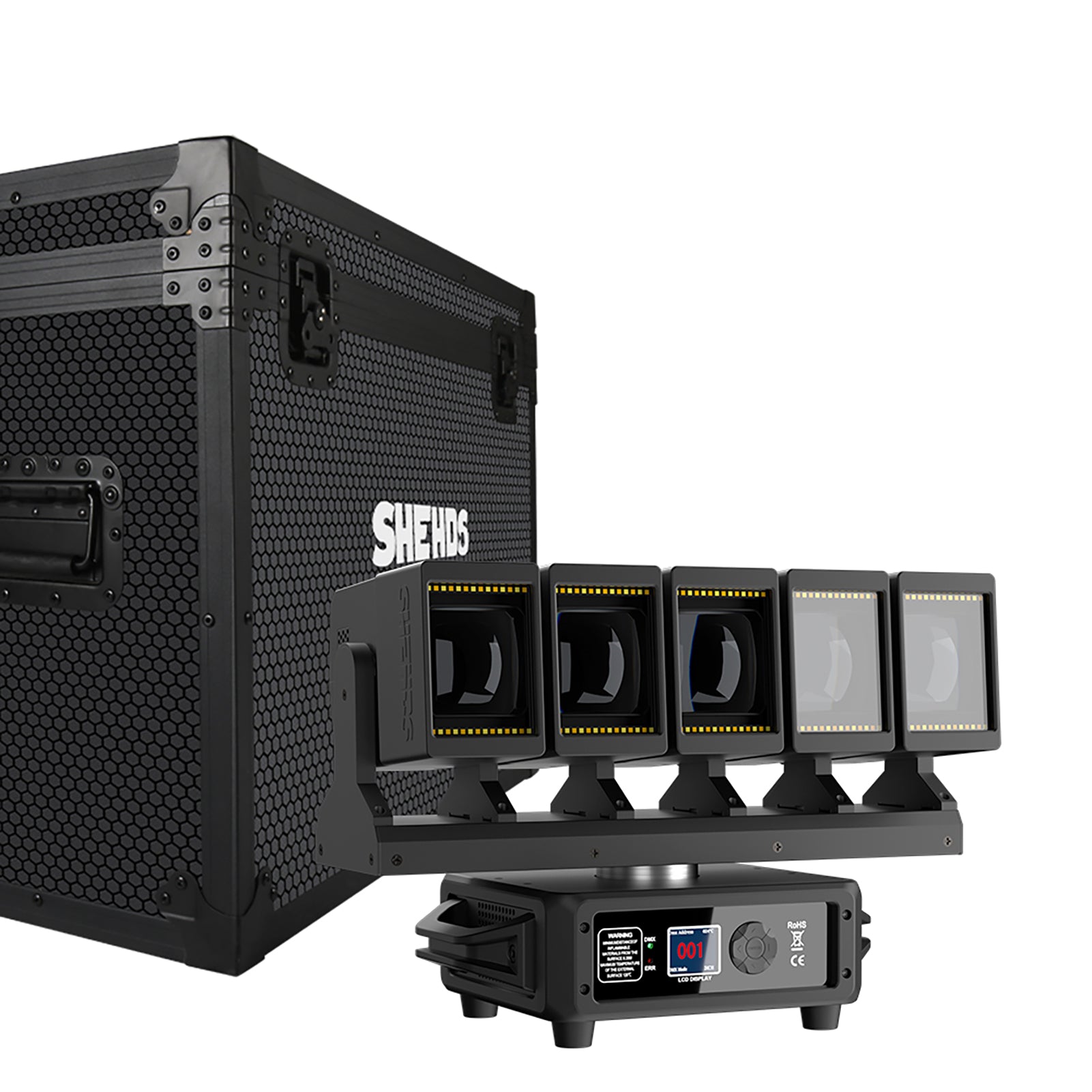

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
