Technical Parameter
-Electrical specification and connections
Power Supply:
1000W electronic auto-ranging
Input Voltage range:
100-240 V, 50/60 Hz
Power In Connector:
Neutrik powerCON
Signal Input/output:
Waterproof 3-pin XLR head socket
-Source
Light Source type:
LED 19x40W RGBW 4in1 color mixing
Colour Temperature Output:
Linear CTO 2500-7200K
LED Life Expectancy:
20000 hours
-Optical system
Zoom:
3x efficient zoom optical system
Moving Head Range:
Pan:450° Tilt：270° and 16 bit
Zoom Angle:
4°- 55°
Dimmer:
0~100% linear dimming
Lens Diameter:
250 mm
-Control and programming
Protocols:
DMX512，RDM
DMX Channel Mode：
23/25/101 CH
Display:
1.8 inch TFT color LCD display screen, 180 degree rotatable
Feature：
Auto mode ,sound mode,manual programming scenarios
-Mechanical specification
Housing :
High temperature resistant and flame retardant plastic housing
Heat Dissipation Method:
Overheat protection, efficient heat dissipation system
Product Size：
23 x 16.5 x 10.4 inch / 58.5 x 42 x26.5 cm
Product Weight:
21.5 kg
Package Size:
26.7 * 20.4 * 15.7 inch / 68 x 52 x 40cm
Package Weight:
23.5 kg
Operating Temperature:
-20~60℃
Ingress Protection Rating:
IP65

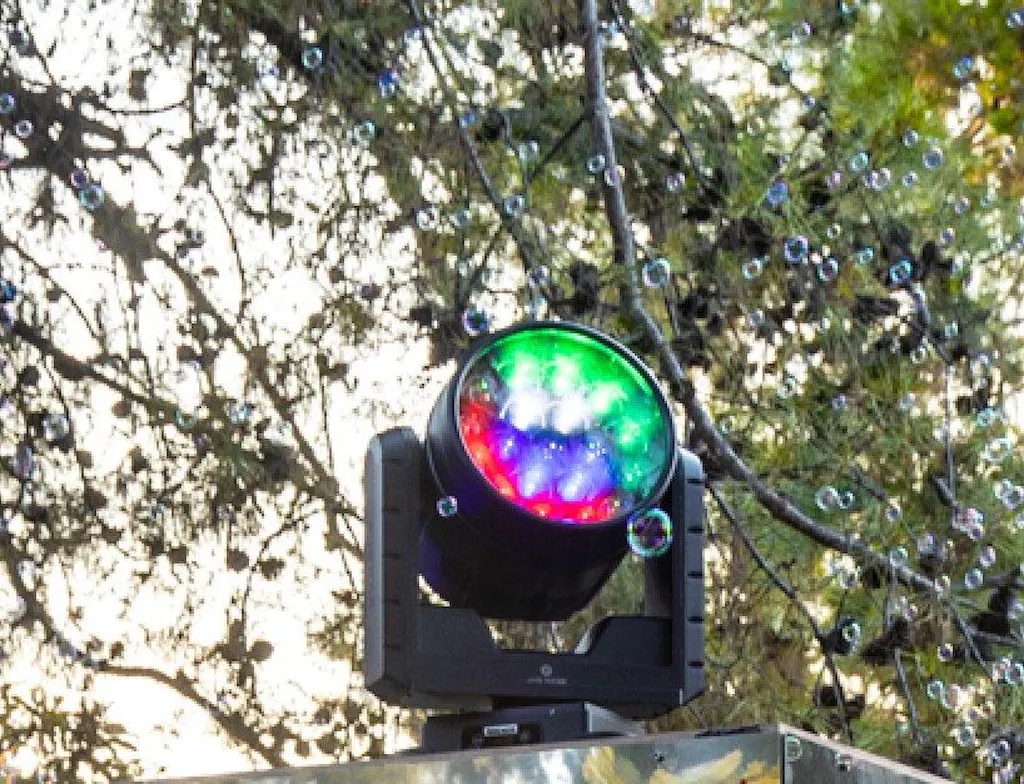

Waterproof LED Zoom&Beam&Wash Bees Eyes
19x40W RGBW 4in1 Light - IP65
The light source consists of 19x40W RGBW four color LEDs,
Create a uniform color mixing system and rainbow effect, The beam mode is full of sharpness,
and the excellent light output creates a strong visual impact for the performance.
Product Features
Independent Control: Each LED bead can be individually controlled, offering area, circular, and global control options to meet complex lighting effects needs.
Multiple Effect Modes: Features a variety of modes including focusing, coloring, beam, and image, allowing for the creation of rich visual effects.
High-Precision Zoom System: Supports a wide linear zoom range of 3.5° to 50°, enabling seamless transitions from beam to coloration.
Dimension
Product size：23 x 16.5 x 10.4 inch / 58.5 x 42 x26.5 cm
Product weight: 21.5 kg
Beam Angel
3.5~50° Beam Angel Covering a wider area can illuminate a larger space.The optical system consists of a lens, a light guide column, and LED beads, with a minimum beam angle projection distance of over 70 meters.
Optical Lens Display
Clockwise and counterclockwise 360 °rotation
Integrating Powerful Beam And Wash Functions
Each light bulb adopts a 40 watt high-power design to ensure optimal brightness and color saturation of the light. The RGBW four color mixing technology makes the lighting colors more diverse, creating a diverse visual effect for your stage.
Zoom Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.
Not only does it add color and vitality to the stage, but it also brings us a brand new visual world.
Beam Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.
Not only does it add color and vitality to the stage, but it also brings us a brand new visual world.
Multiple Effect
23/25/35/78/92/97/99CH channel mode available,
Built-in multiple static, dynamic, and customizable lighting effects,
allowing for easy adjustment of lighting effects
Light Source
Smart LED Light Particles
-5mm Thick pure copper load panel -
- RGBW MIX COLOR -
Waterproof Effect Test
Imitate the effect of the scene in the light rain
Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue.
250mm Large Lens
"Provide better lighting effects, color representation, and lighting control capabilities, adding more visual impact and artistic sense to stage performances"
Split Heat Dissipation
"Independent isolation compartment heat dissipation method, dual insulation and sealing protection measures, high-performance waterproof fan with intelligent temperature control adjustment"
Introduction To Panel Functions
"Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures Built-in lamp operation status sensing and monitoring system, which can check the operation status of the lamp at any time for easy parameter adjustment "
Waterproof Interface
"All Weather Protective Beam Light All weather protective beam light,waterproof power connector input/output , can be used outdoors all year round. The carefully designed heat dissipation performance ensures the waterproofing and heat dissipation of high-power light bulbs, ensuring the lifespan and smooth operation of the lights. "
Integrated Folding Light Hook
Built in integrated folding light hook, easier to install and safer to transport
Carefully Select Excellent Accessories
"Adopting a wide voltage power supply and internationally recognized large capacitors Bold copper wire for higher brightness and better current stability"
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
