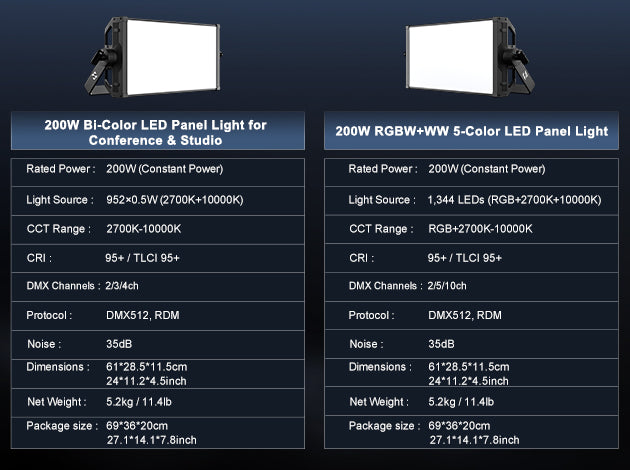

Technical Parameter
LED 200W Warm+Cool White Panel Light
Rated Power ：
200W (Constant Power)
Light Source ：
952×0.5W (2700K+10000K)
CCT Range ：
2700K-10000K
CRI ：
95+ / TLCI 95+
DMX Channels ：
2/3/4ch
Protocol ：
DMX512, RDM
Beam Angle ：
120°
Noise ：
35dB
Lifespan ：
30,000h
Housing ：
Aluminum+Metal+Die-cast Al
Dimensions ：
61×28.5×11.5cm
Net Weight ：
5.2kg
IP Rating ：
IP20
Operating Temp ：
-20°C ~ 45°C
Input Voltage ：
100-240V, 50/60Hz
Power Connector ：
Aviation Plug

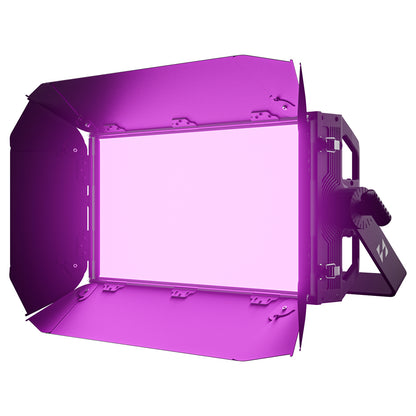

200W RGBW+Warm White Panel Light
Rated Power ：
200W (Constant Power)
Light Source ：
1,344 LEDs (RGB+2700K+10000K)
CCT Range ：
RGB+2700K-10000K
CRI ：
95+ / TLCI 95+
DMX Channels ：
2/5/10ch
Protocol ：
DMX512, RDM
Beam Angle ：
120°
Noise ：
35dB
Lifespan ：
30,000h
Housing ：
Aluminum+Metal+Die-cast Al
Dimensions ：
61×28.5×11.5cm
Net Weight ：
5.2kg
IP Rating ：
IP20
Operating Temp ：
-20°C ~ 45°C
Input Voltage ：
100-240V, 50/60Hz
Power Connector ：
Aviation Plug

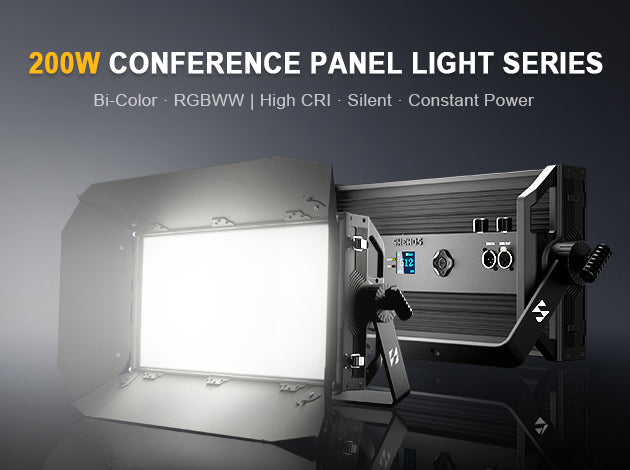

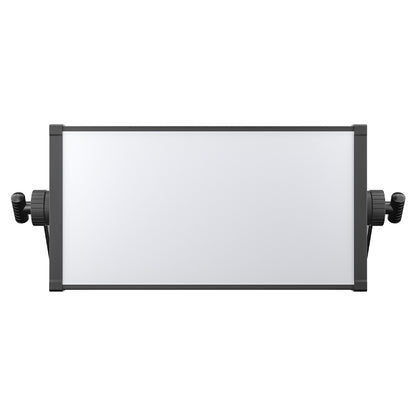

200W Conference Panel Light Series
Bi-Color · RGBWW | High CRI · Silent · Constant Power
Influencer Recommended
Real scenes, real performance
Specifications

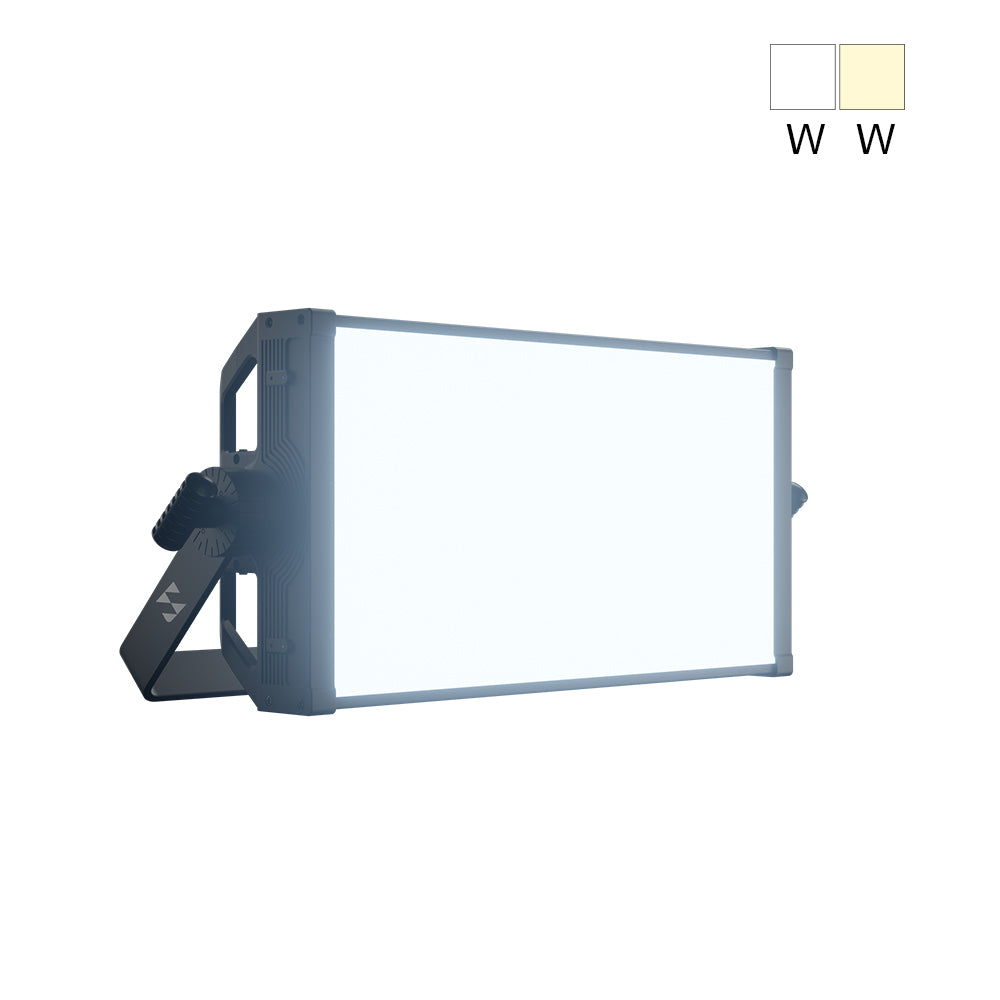

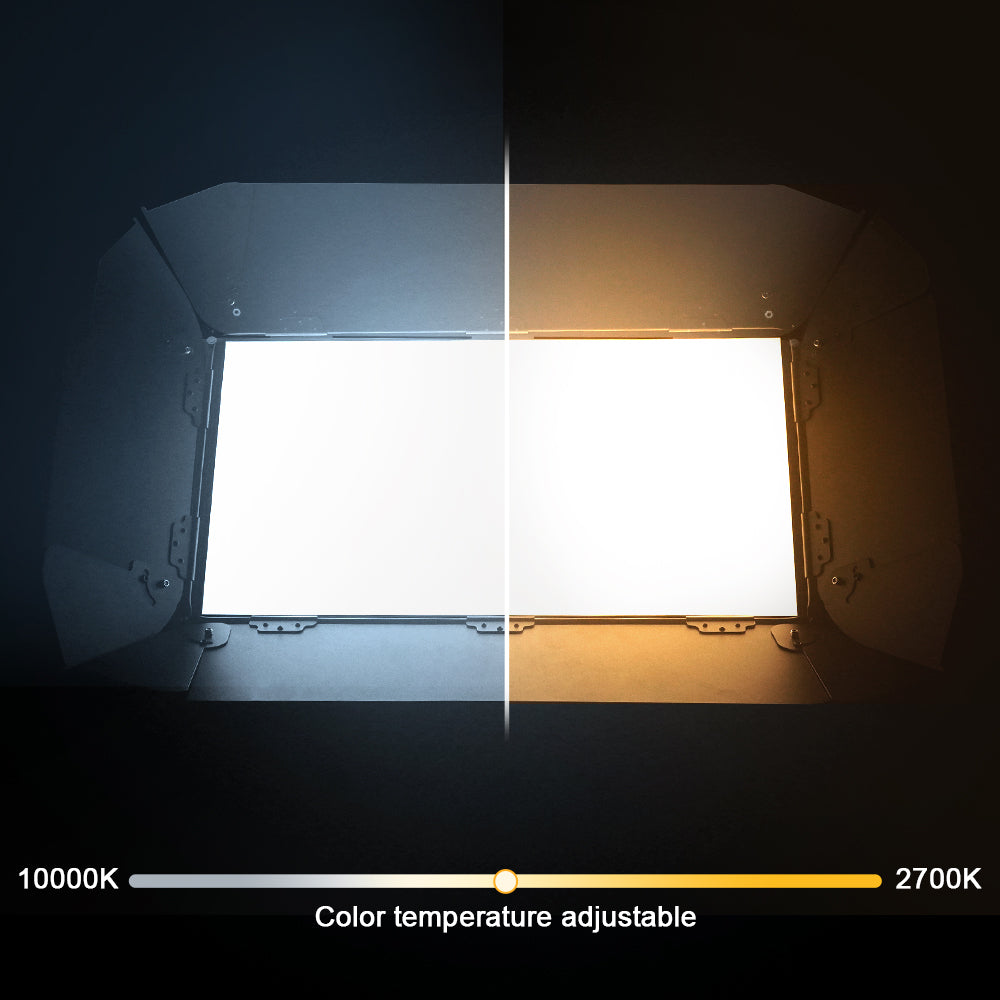

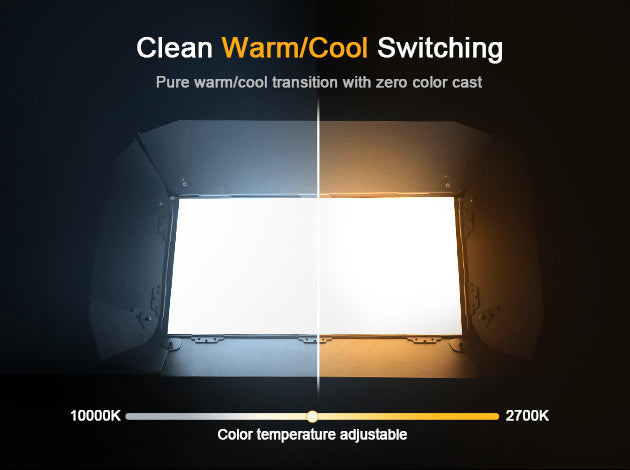

Clean Warm/Cool Switching
Pure warm/cool transition with zero color cast

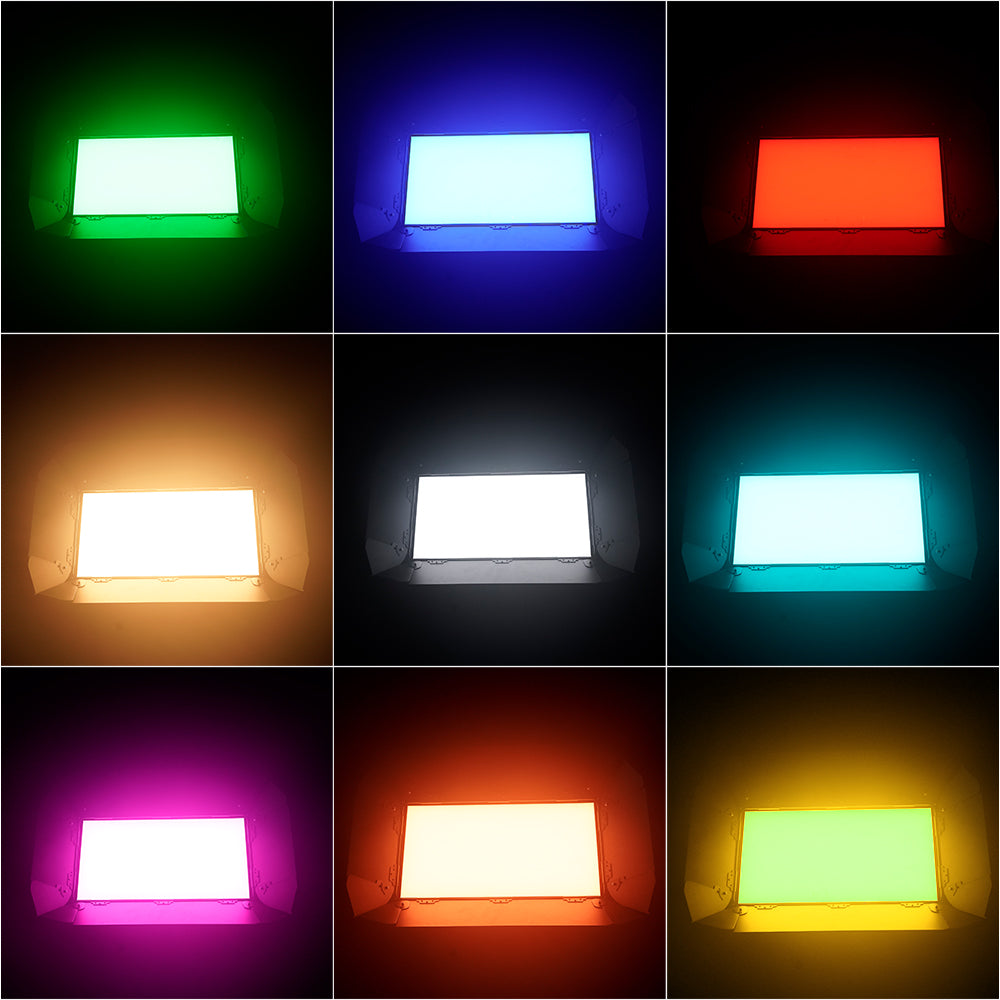

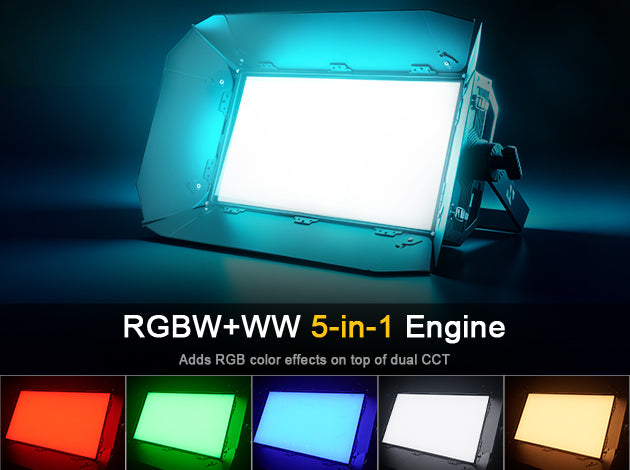

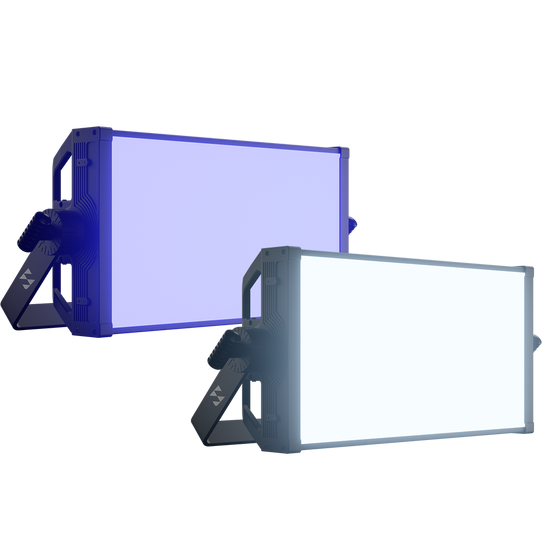

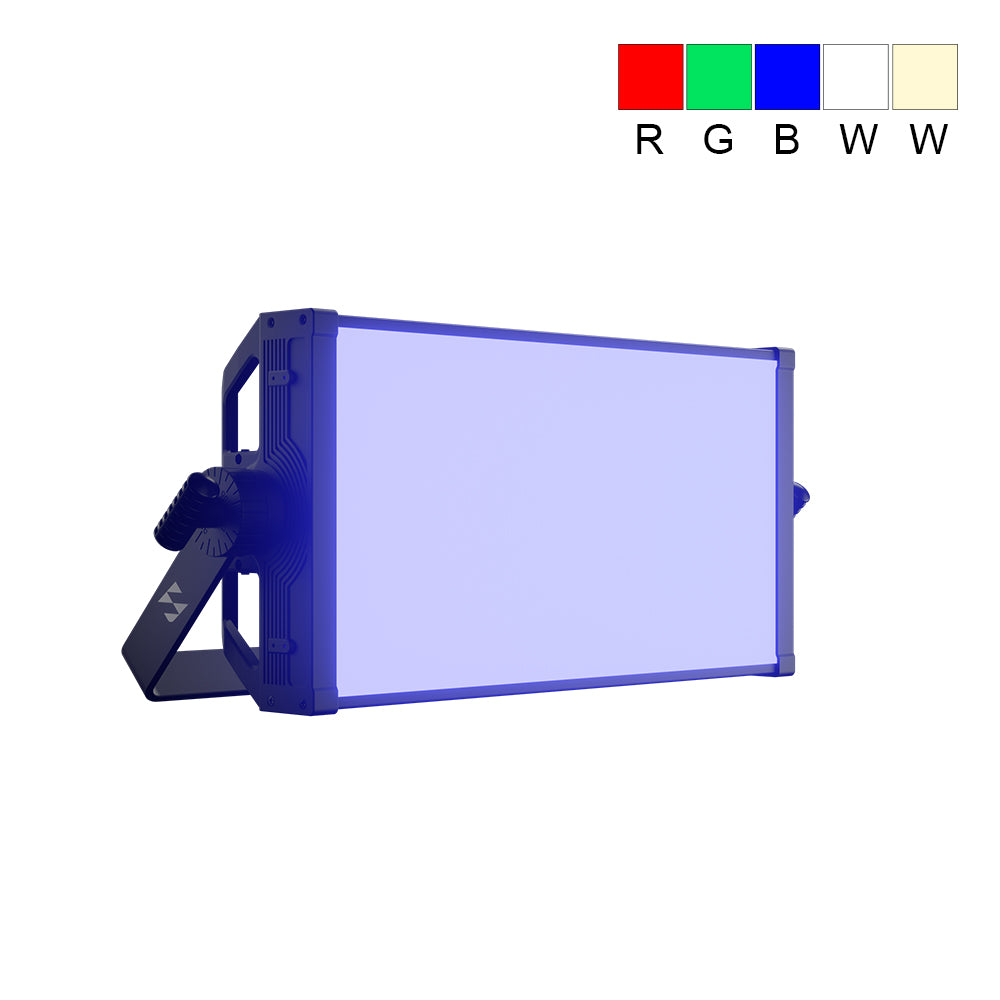

RGBW+WW 5-in-1 Engine
Adds RGB color effects on top of dual CCT

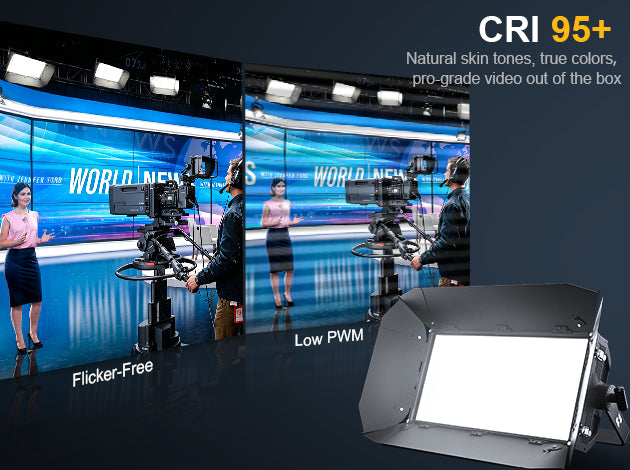

CRI 95+
Natural skin tones, true colors, pro-grade video out of the box

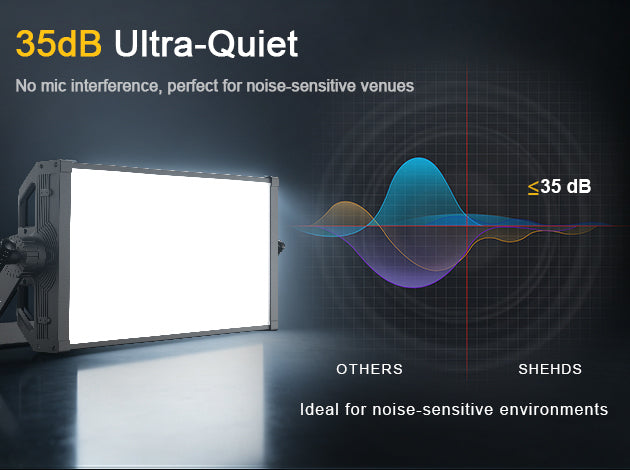

35dB Ultra-Quiet
No mic interference, perfect for noise-sensitive venues

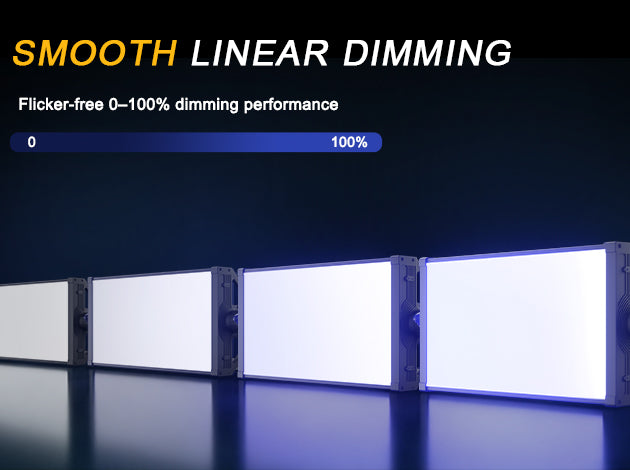

0-100% Smooth Stepless Dimming
Seamless brightness transitions, precise control with no step changes
One Light, Multi Scenarios
Ideal for Meeting rooms, Live streaming, Theaters/halls, Churches/worship

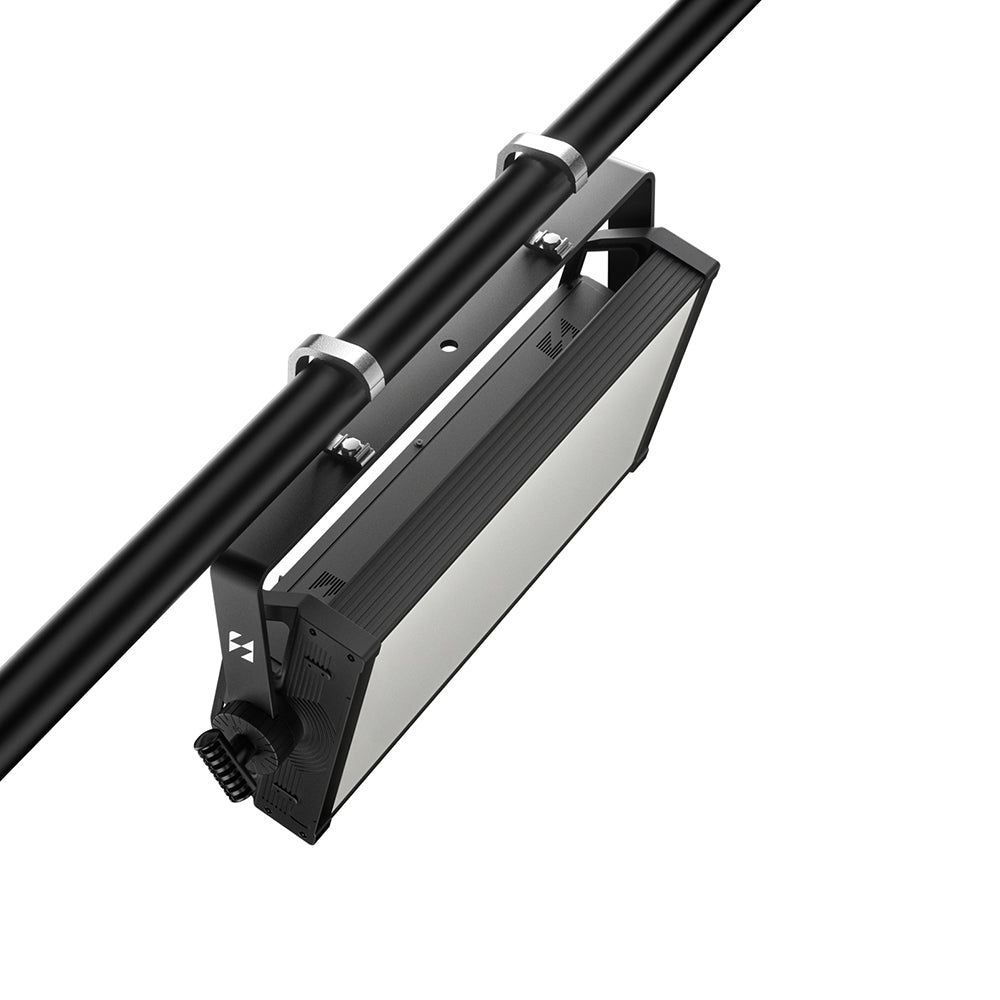

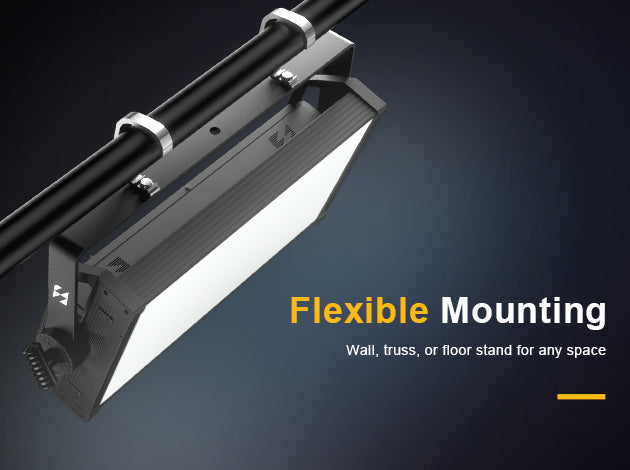

Flexible Mounting
Wall, truss, or floor stand for any space

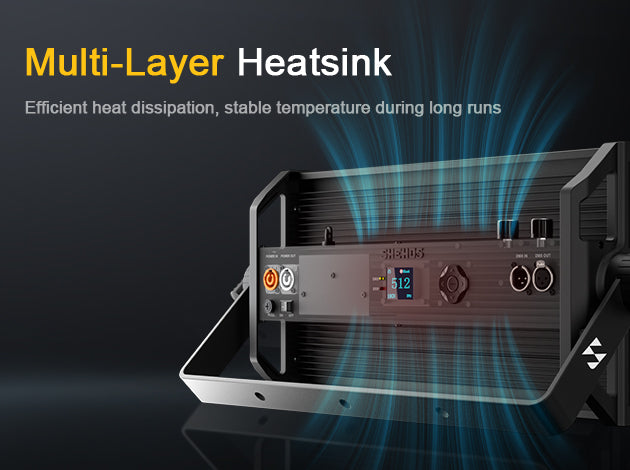

Multi-Layer Heatsink
Efficient heat dissipation, stable temperature during long runs

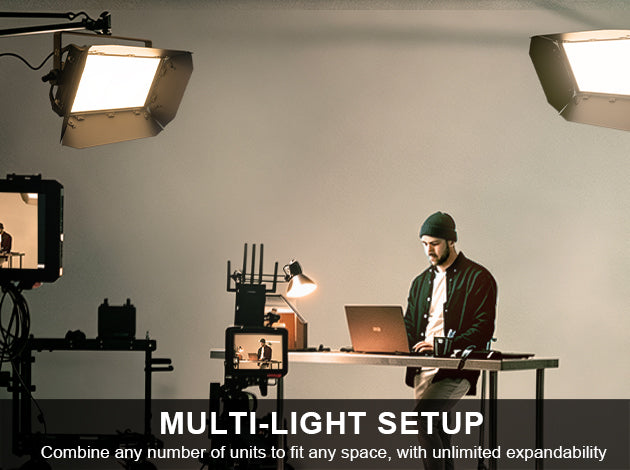

Multi-Light Setup
Combine any number of units to fit any space, with unlimited expandability

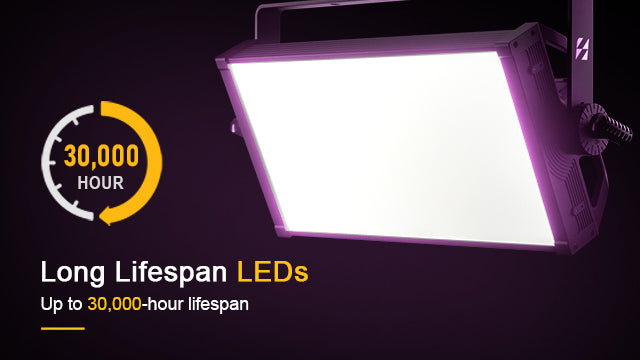

Long Lifespan LEDs
Up to 30,000-hour lifespan

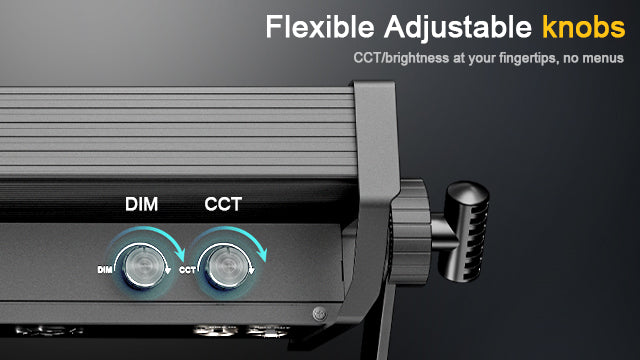

Flexible Adjustable knobs
CCT/brightness at your fingertips, no menus

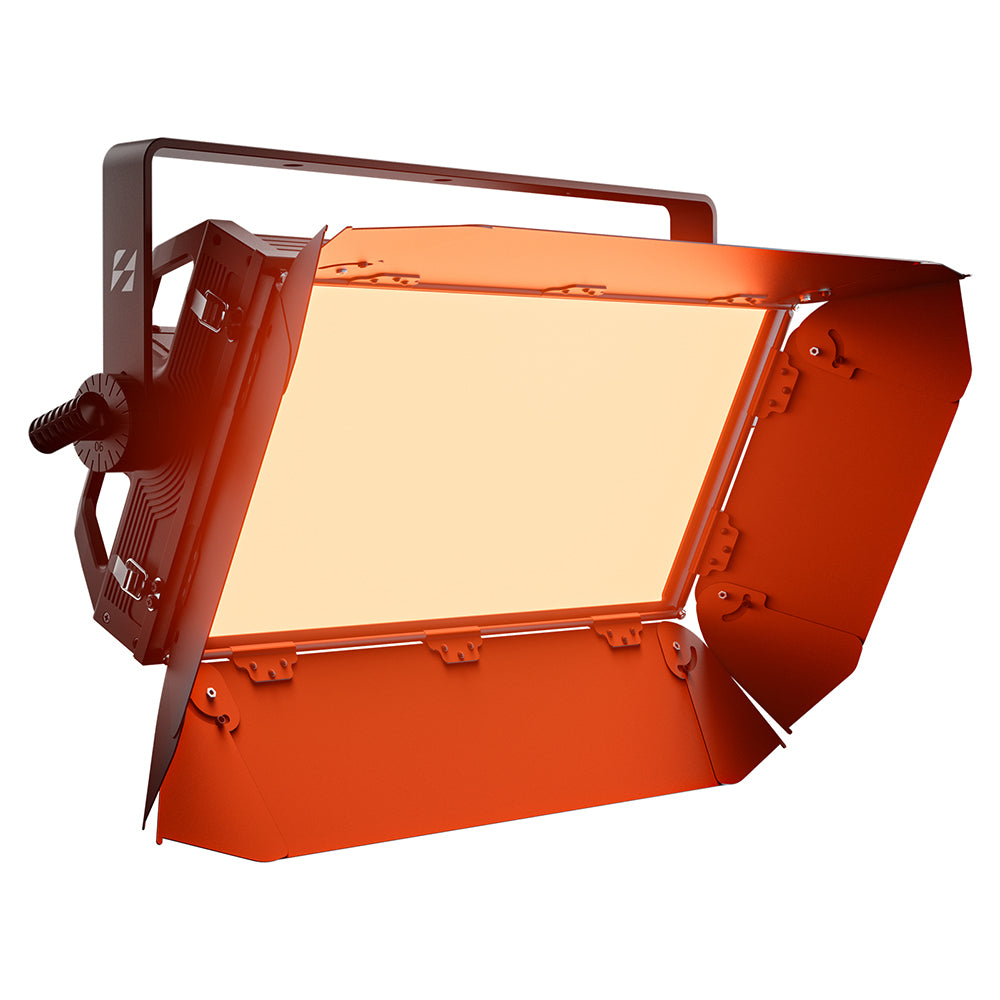

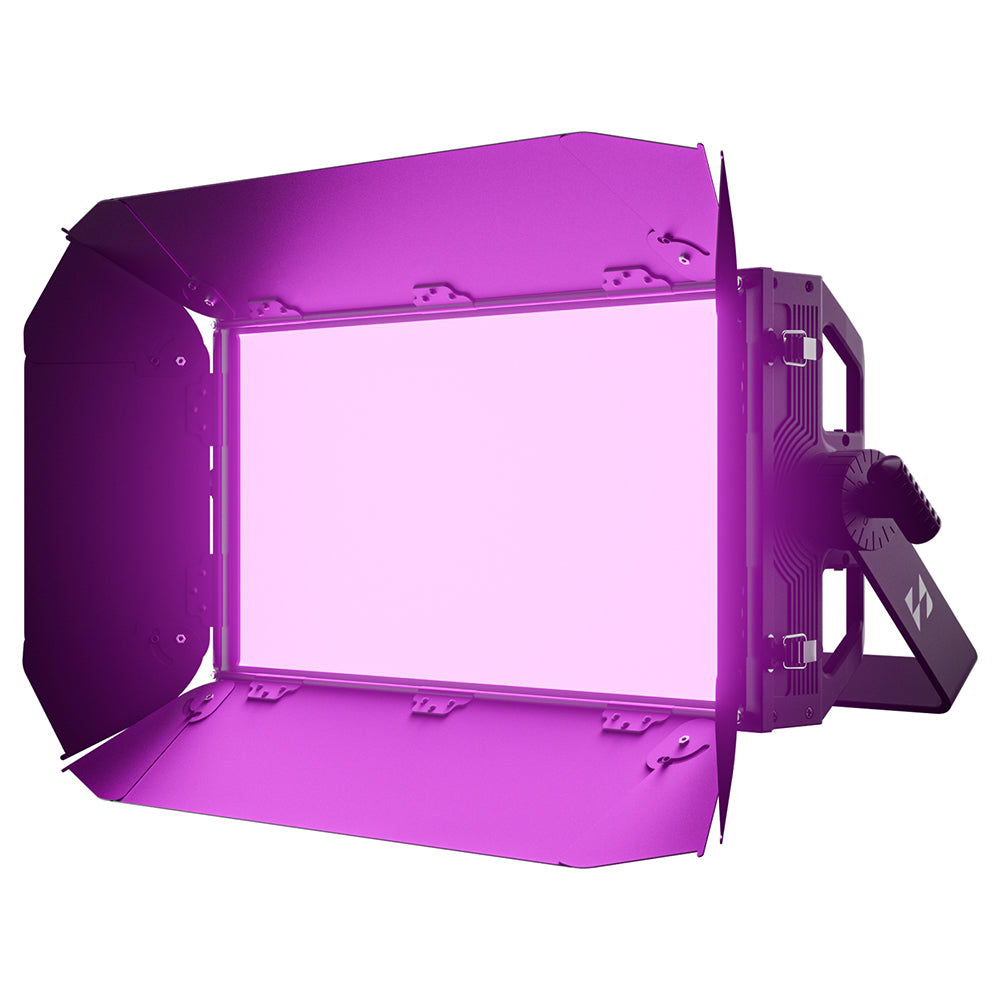

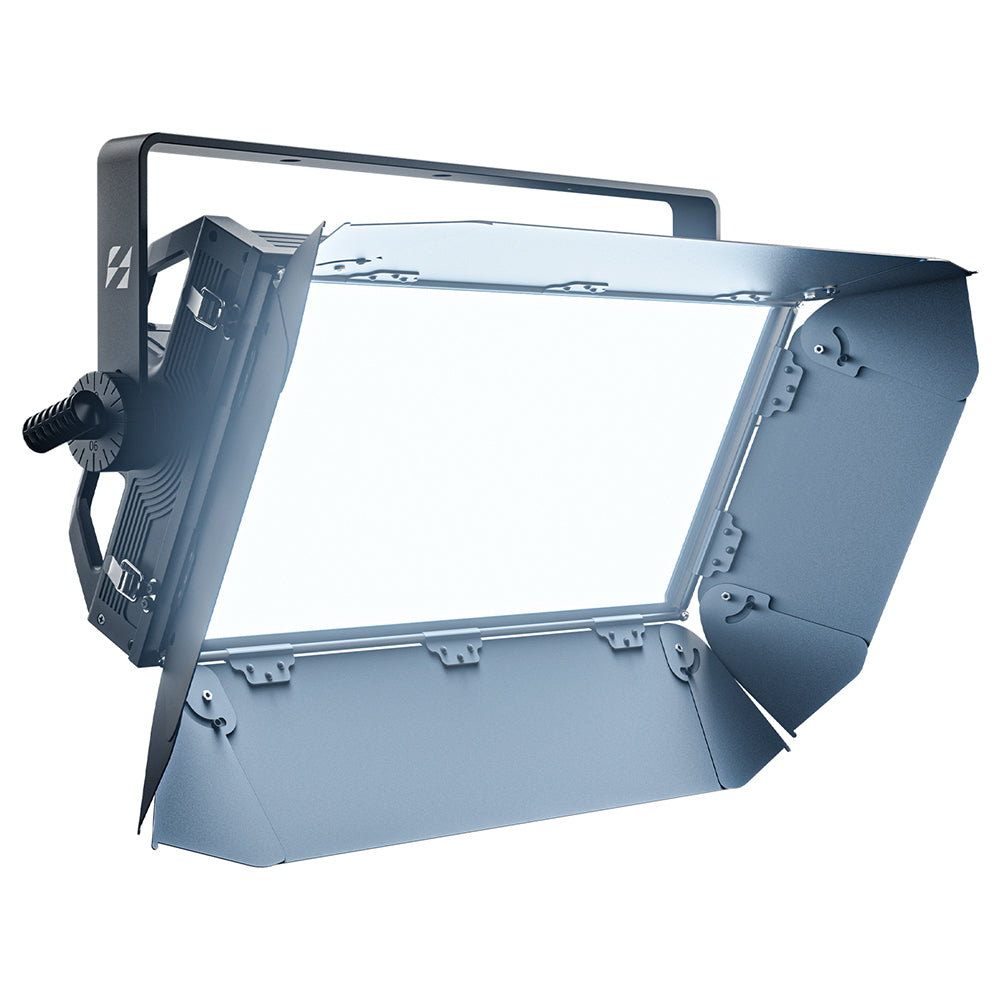

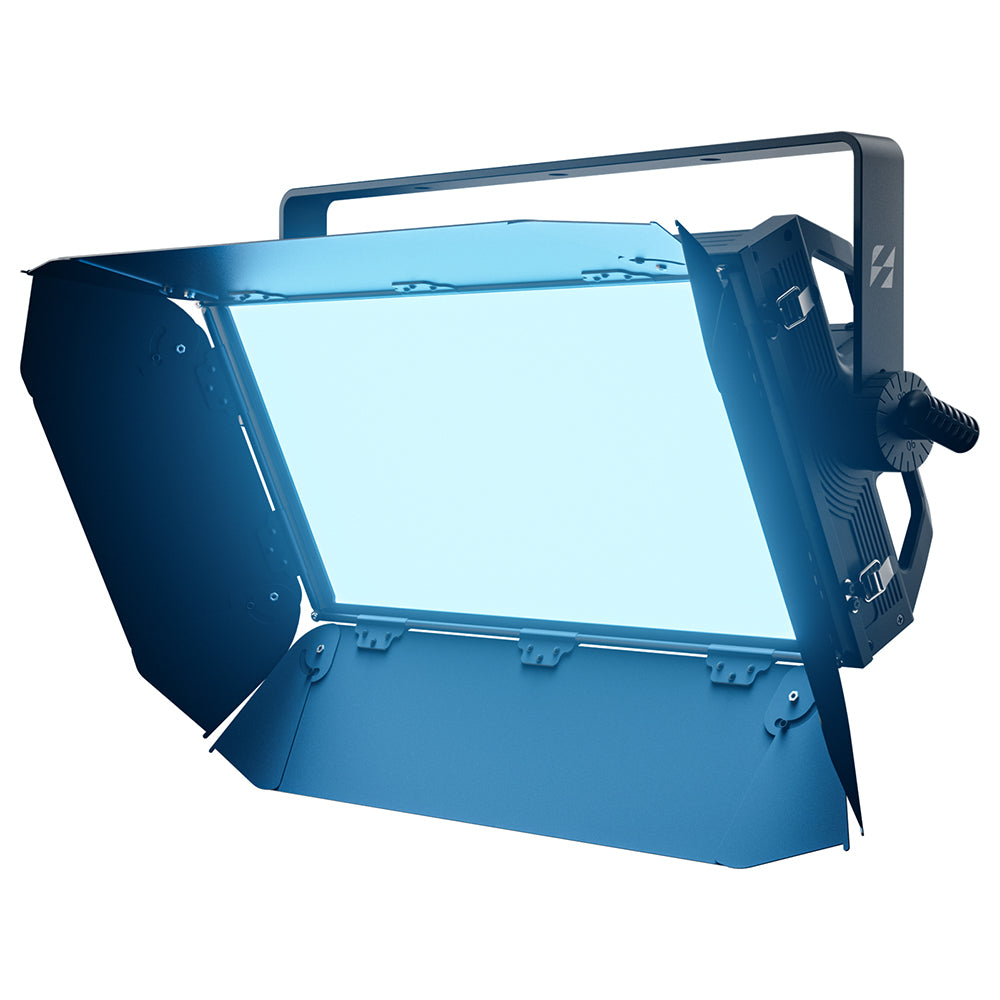

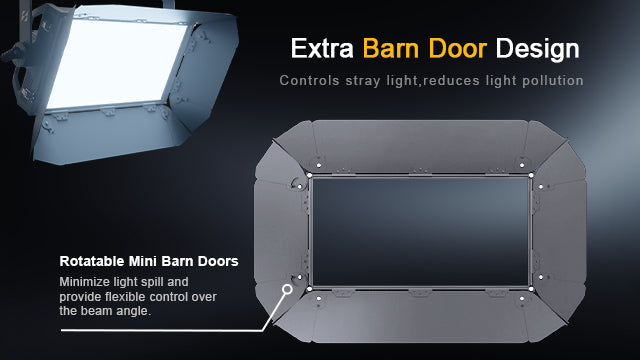

Extra Barn Door Design
Controls stray light, reduces light pollution

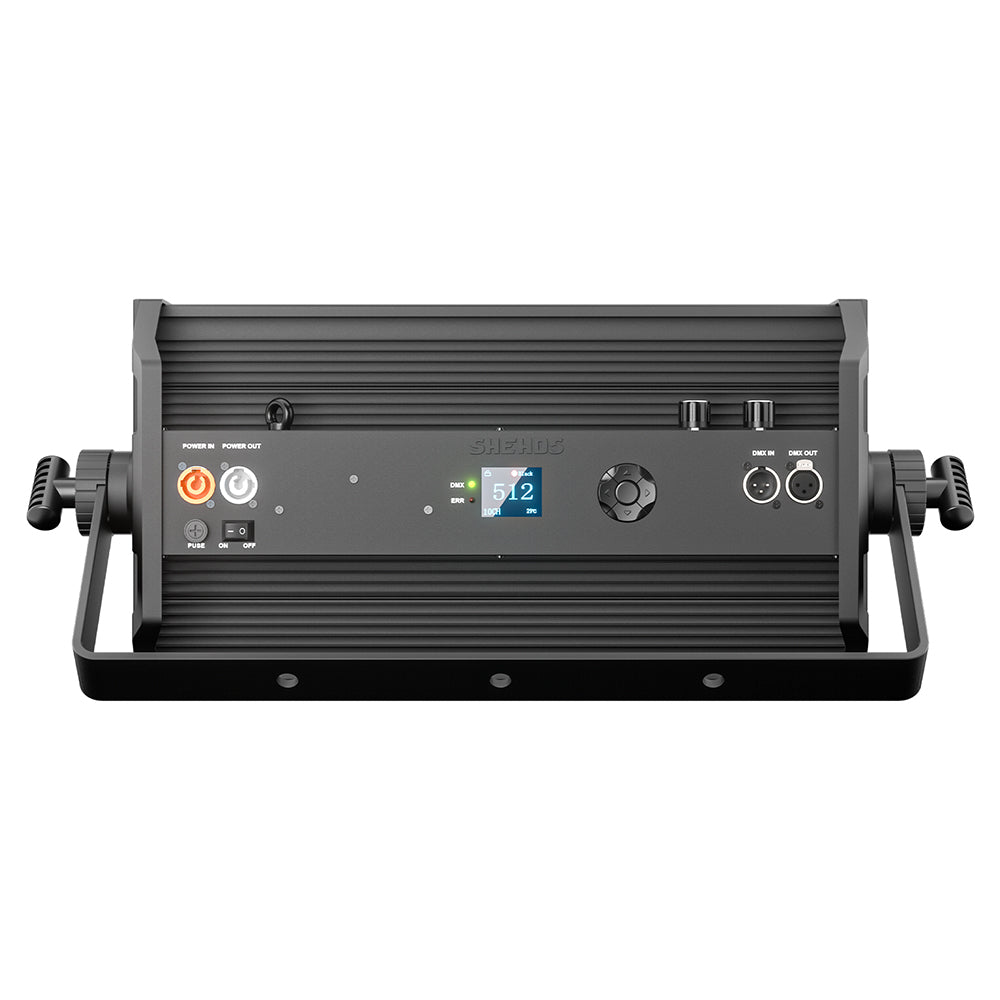

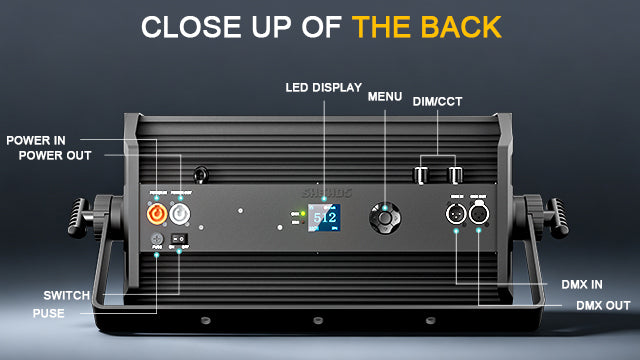

LED DISPLAY
MENU、 3-PIN DMX OUT、 3-PIN DMX IN、 POWER OUT、 POWER IN

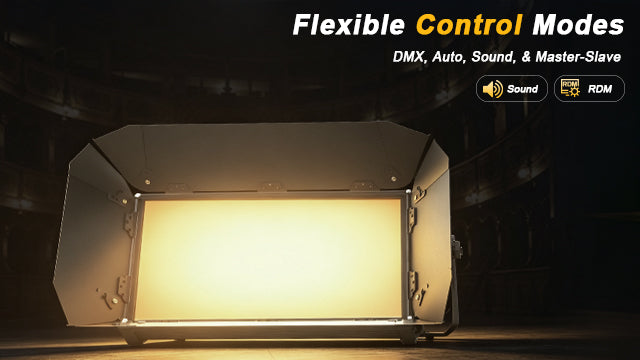

Flexible Control Modes
Wireless WiFi, DMX, Auto, Sound, & Master-Slave

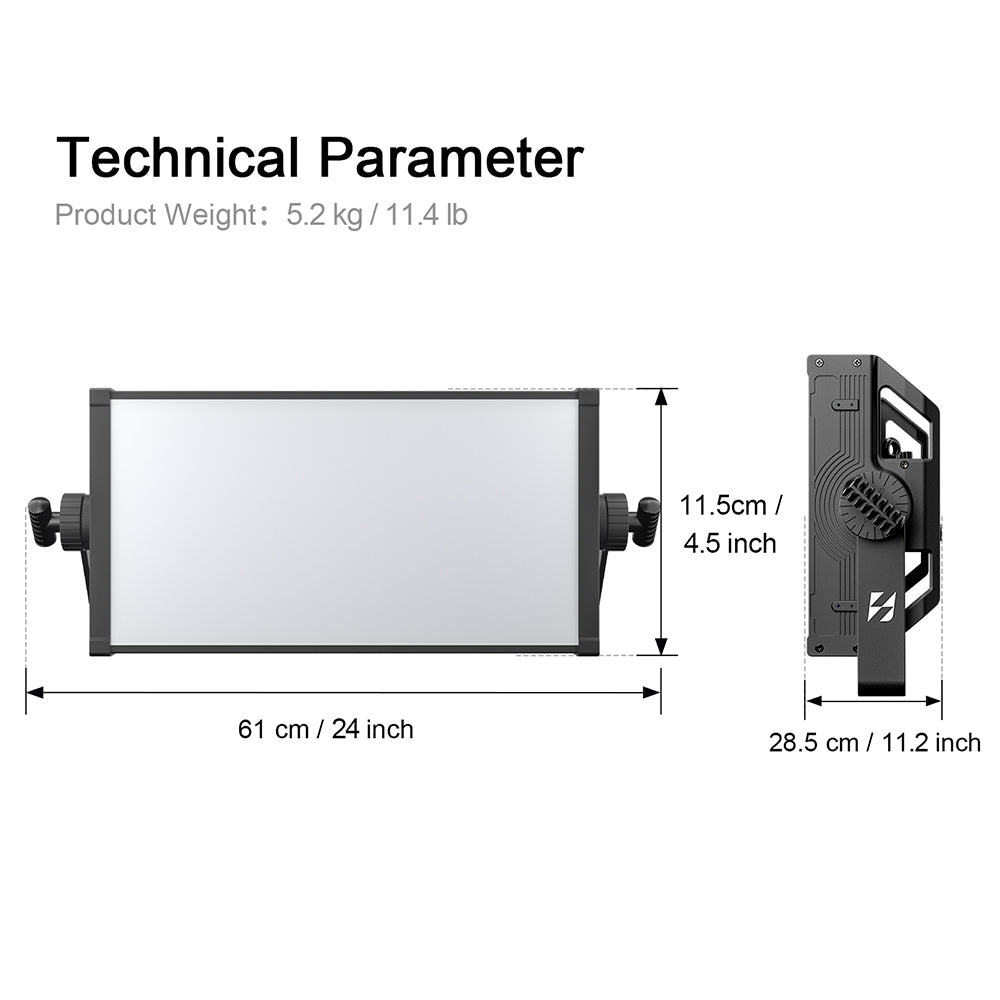

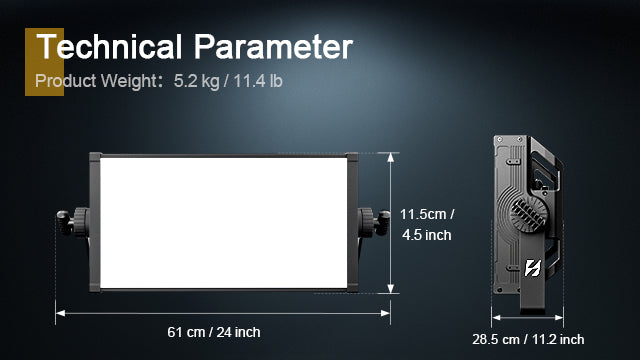

Product Information
Product Size：61*28.5*11.5in、 Product Weight: 5.2kg

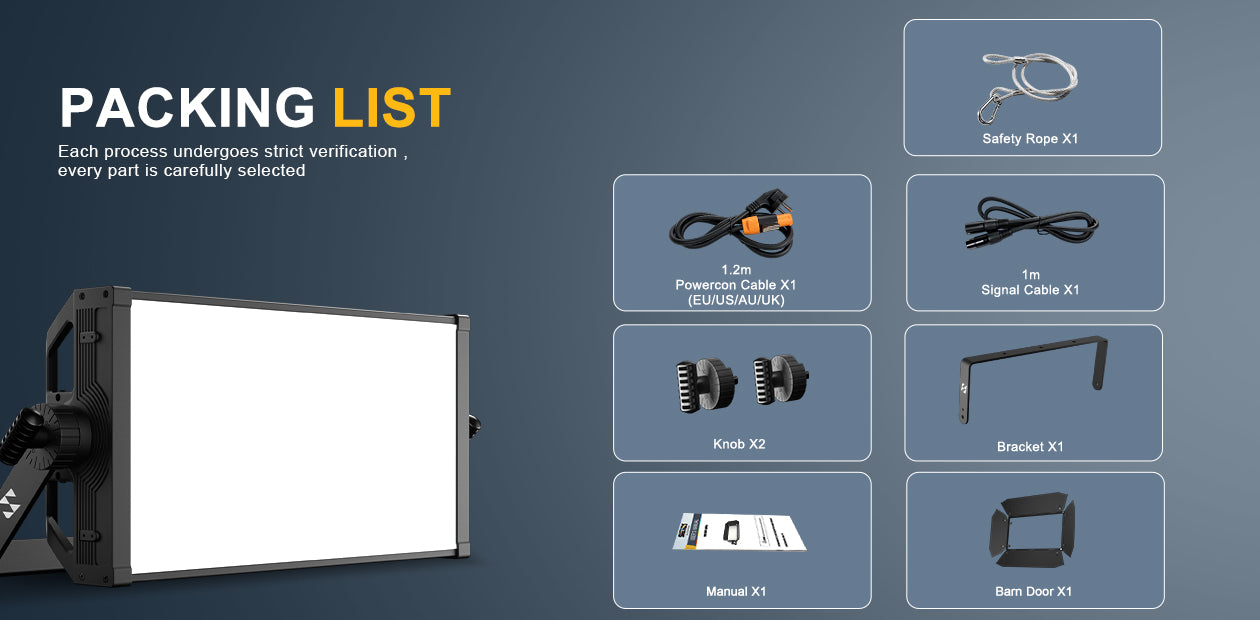

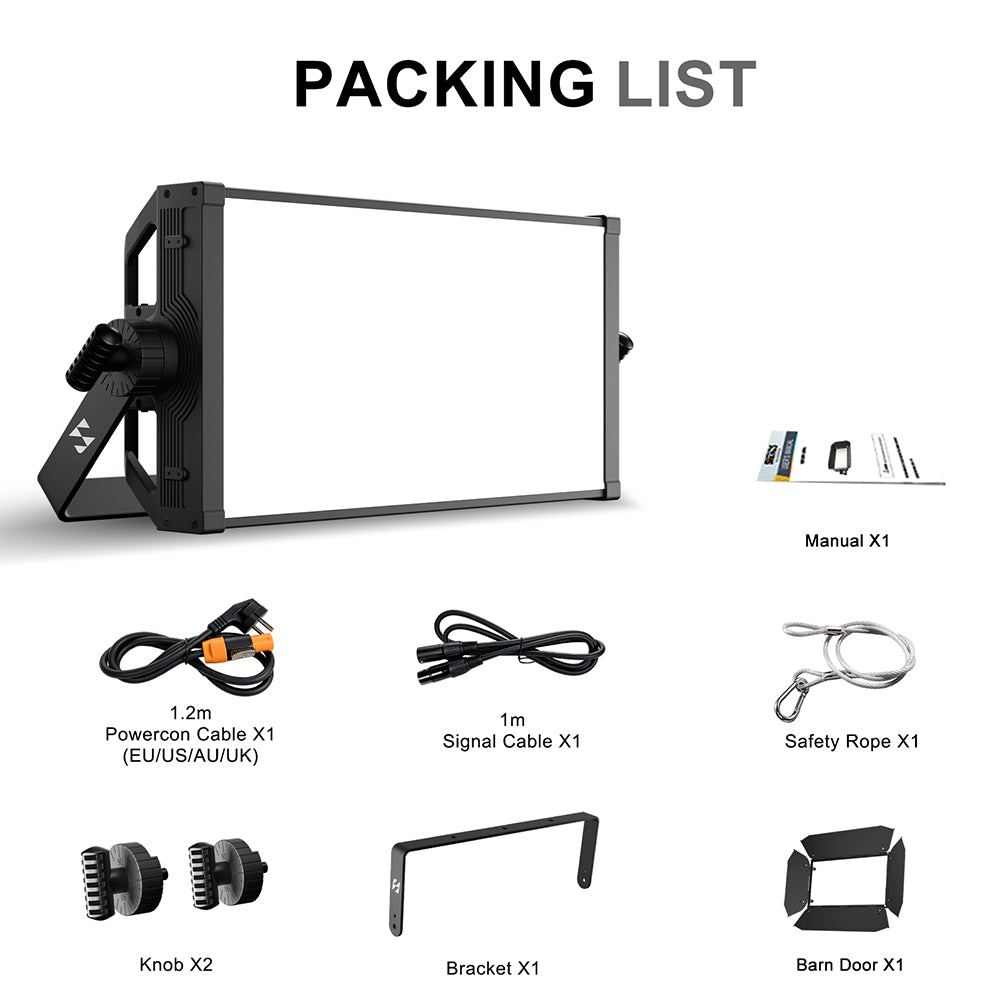

Packing List
Each process undergoes strict verificationEvery part is carefully selected

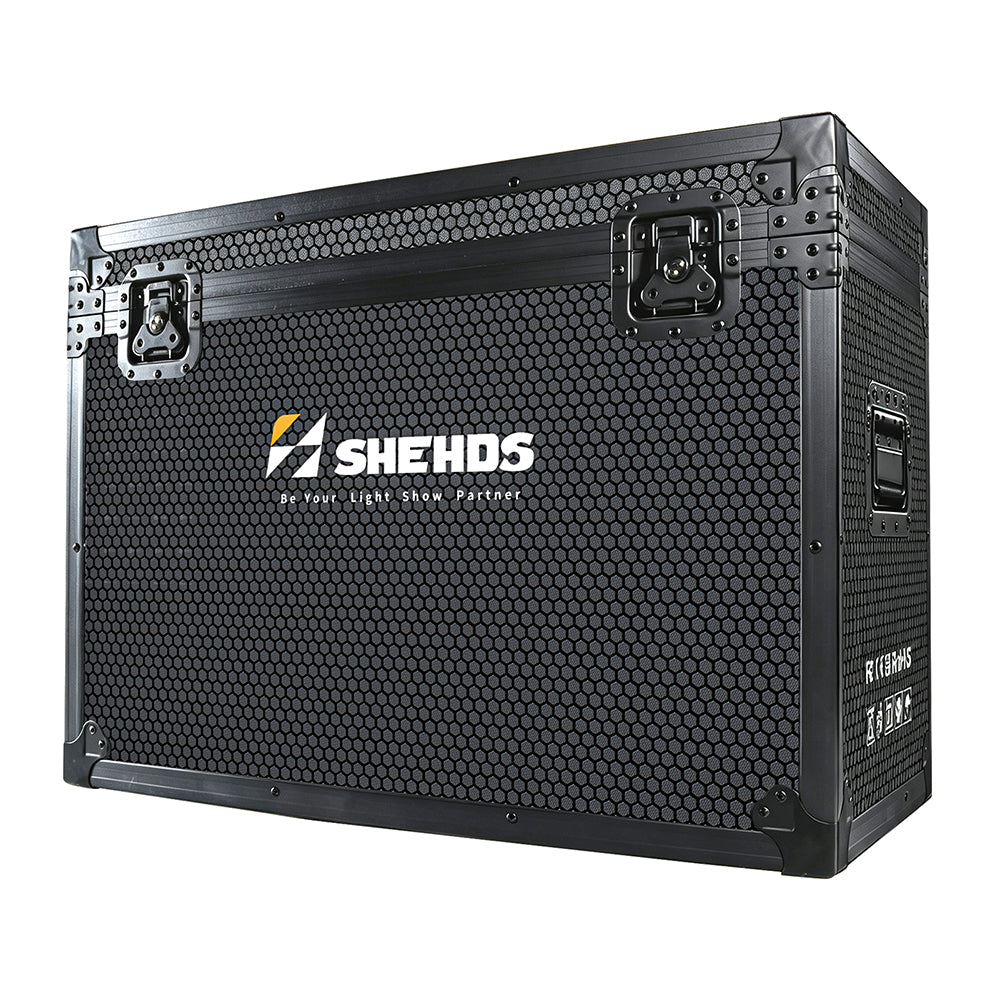

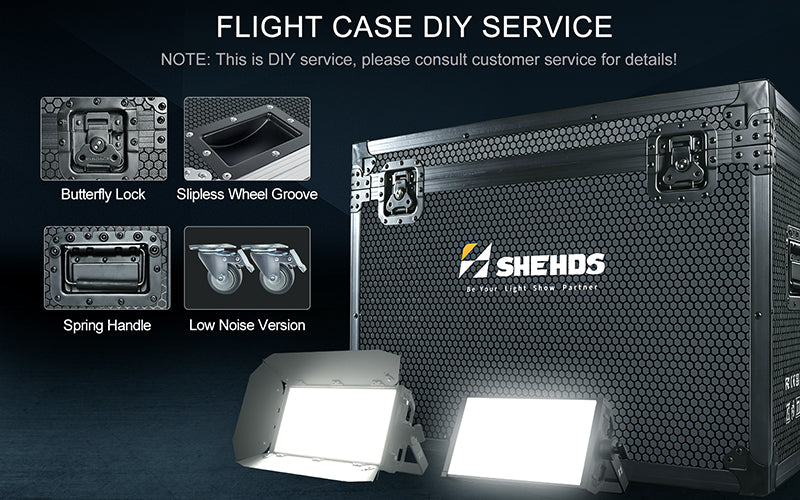

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
