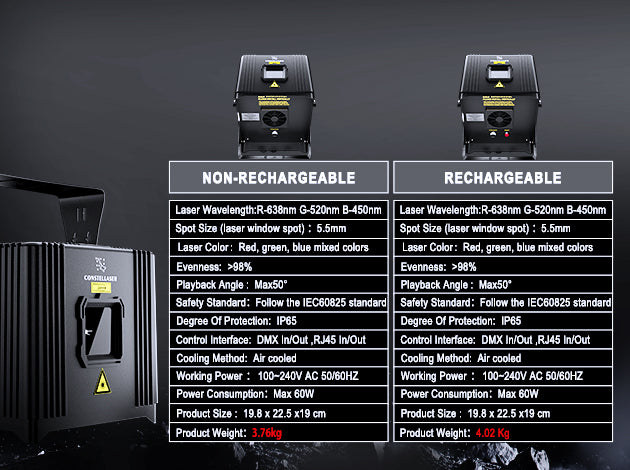

Laser Wavelength
R-638nm, G-520nm, B-450nm
Spot Size (laser window spot)
5.5mm
Light Source Divergence Angle
＜1.2mrad
Modulation Mode
0~5V analog, up to 25khz/TTL
Laser Class
Class IV
Laser Color
Red, green, blue mixed colors
Evenness
>98%
Lens Horizontal Offset
-25% to +25%
Lens Vertical Offset
-25% to +25%
Imaging Mode
3D/2D pattern and animation (with software)
Projection Distance
＜200M The best distance is 20~50M
Playback Rate
25 KPPS
Playback Angle
Max50°
Safety Standard
Follow the IEC60825 standard
Safety Item
Overcurrentand voltage protection
Degree Of Protection
IP65
Operating Temperature
-15℃~45℃

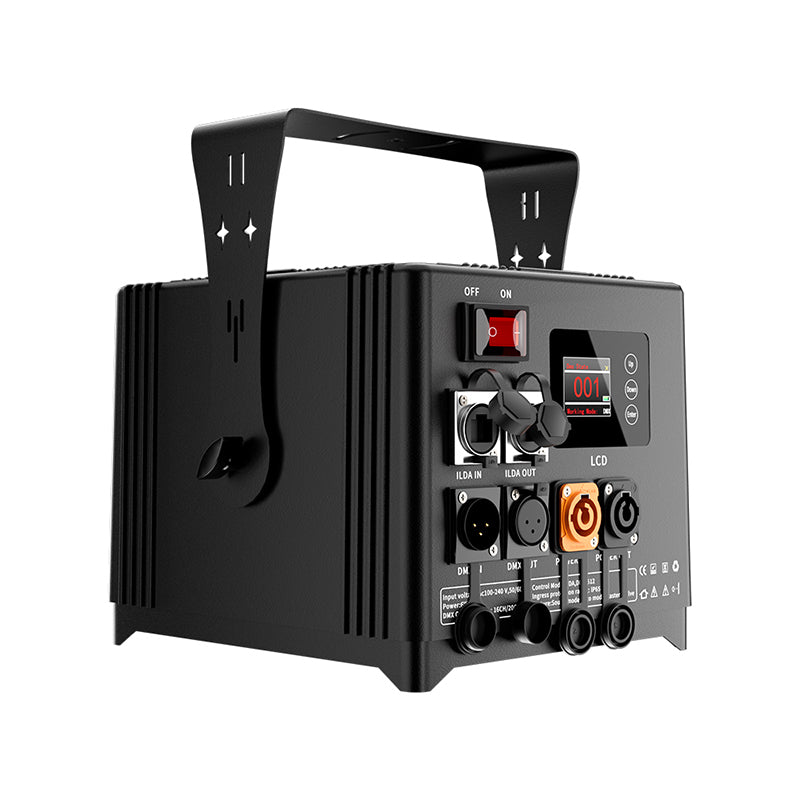

Control Interface
DMX In/Out ,RJ45 In/Out
DMX Channel
16/20CH
Power Interface
Neutrik PowerCon
Cooling Method
Air cooled
Structure
60mm plug-in heat dissipation layer
Bentilation Fan
60mm fan out* 1
Working Power
100~240V AC 50/60HZ
Power Consumption
Max 60W

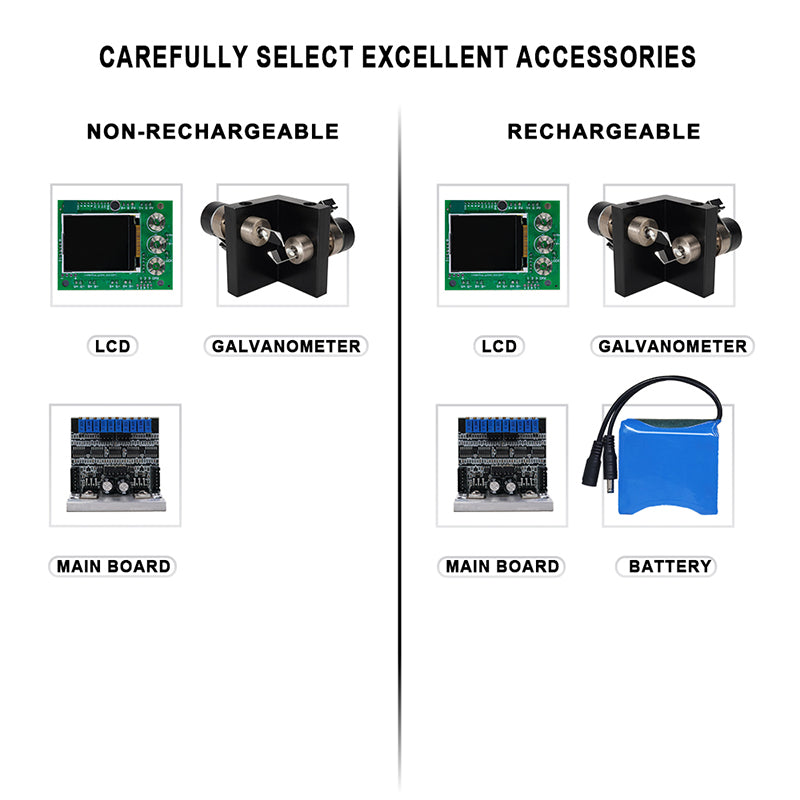

Battery
10000 mAh / 12V DC
Product Size
19.8 x 22.5 x19 cm/7.8 X8.7 X7.5 inch
Product Weight
Rechargeable 4.02 Kg / Non-rechargeable 3.76 Kg
Pack Size
34.5 x 30.5 x 20 cm/13.58 X12.00X7.87 inch
Package Weight
Rechargeable 4.74 kg / Non-rechargeable 4.48 kg

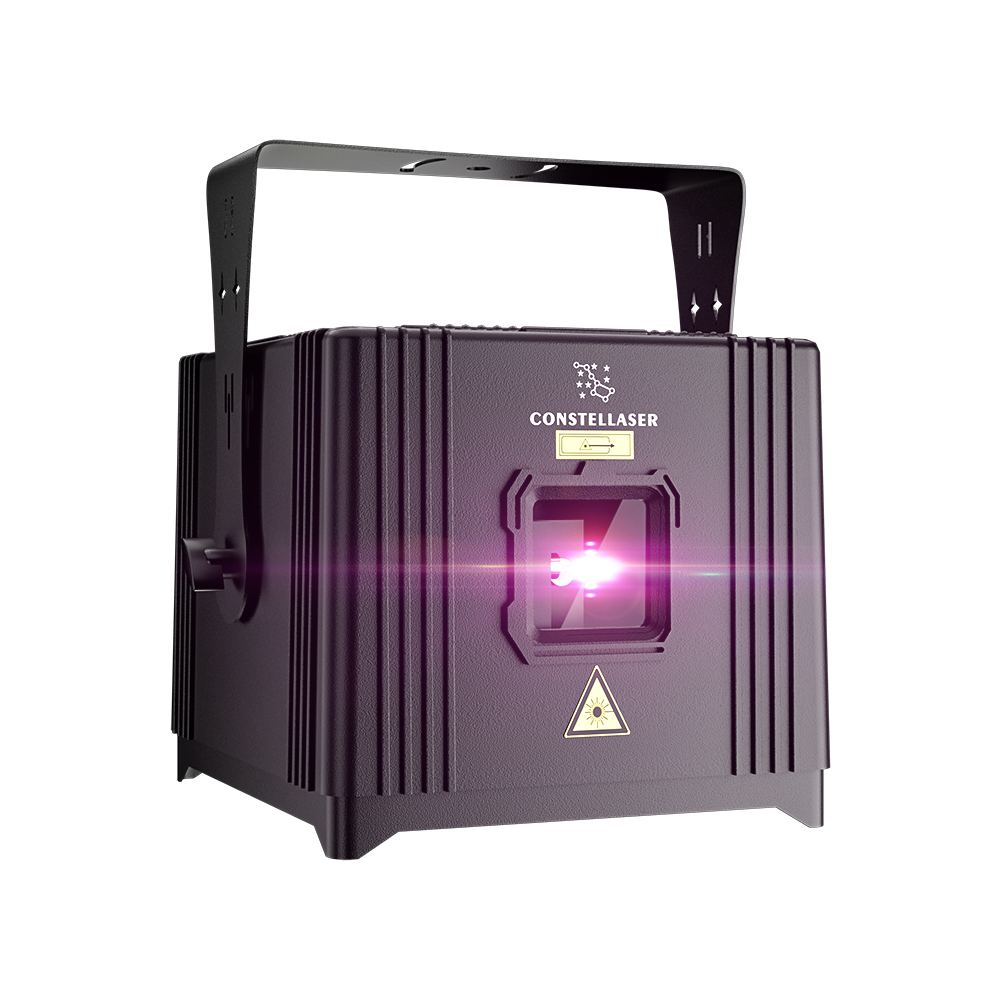

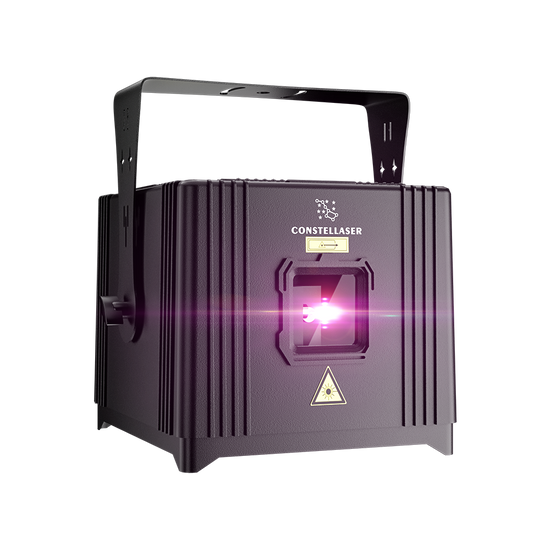

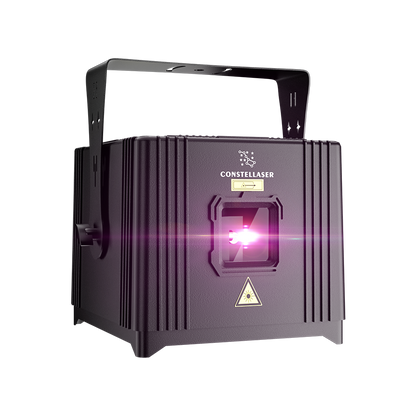

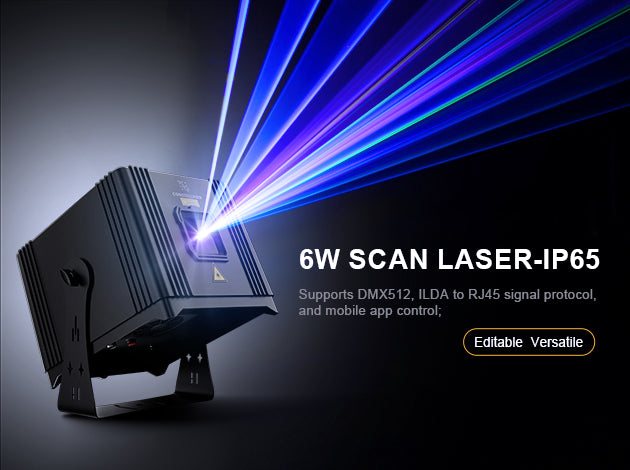

6W SCAN LASER-IP65
Supports DMX512, ILDA to RJ45 signal protocol, and mobile app control;
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

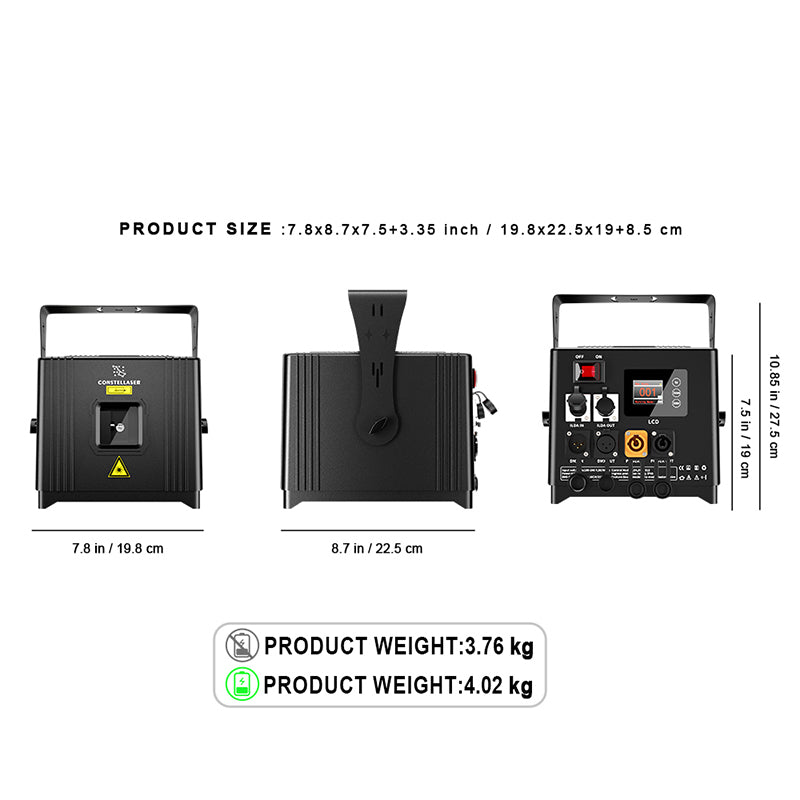

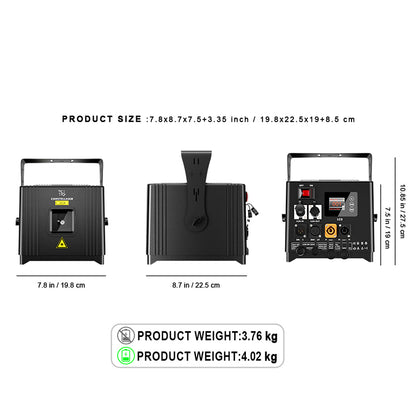

Product Size
Product Size： 19.8 x 22.5 x19 cm
Rechargeable 4.02 Kg / Non-rechargeable 3.76 Kg

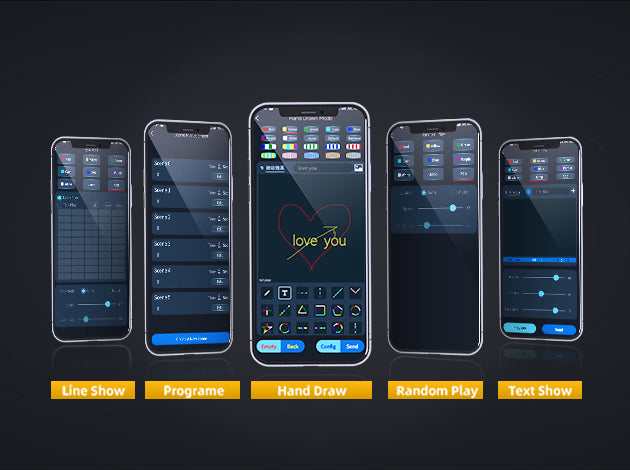

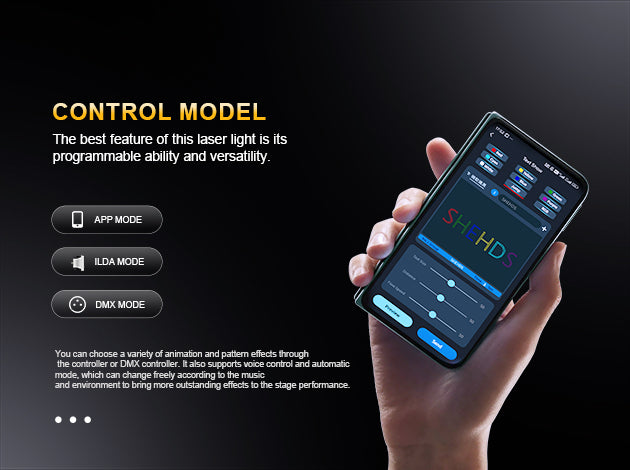

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.
Control Mode
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.

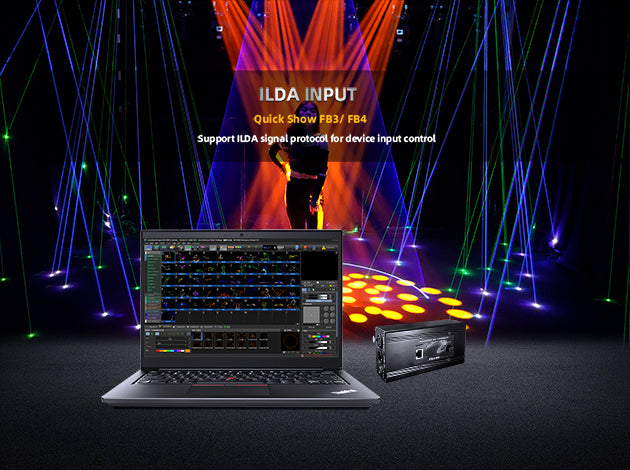

Compatible With ILDA Protocol
Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.
"Composed of three primary colors of red, green, and blue, it can produce seven gradient colors (red, green, blue, purple, yellow, light blue, and white)."

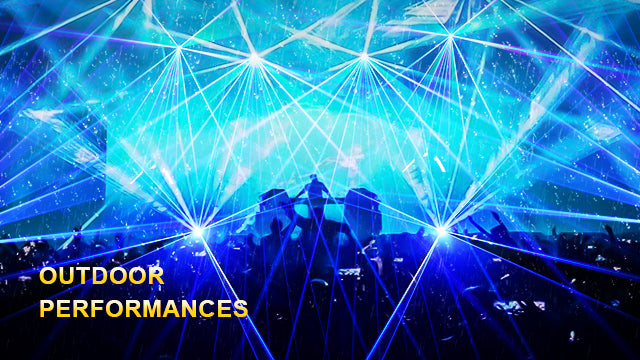

The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.

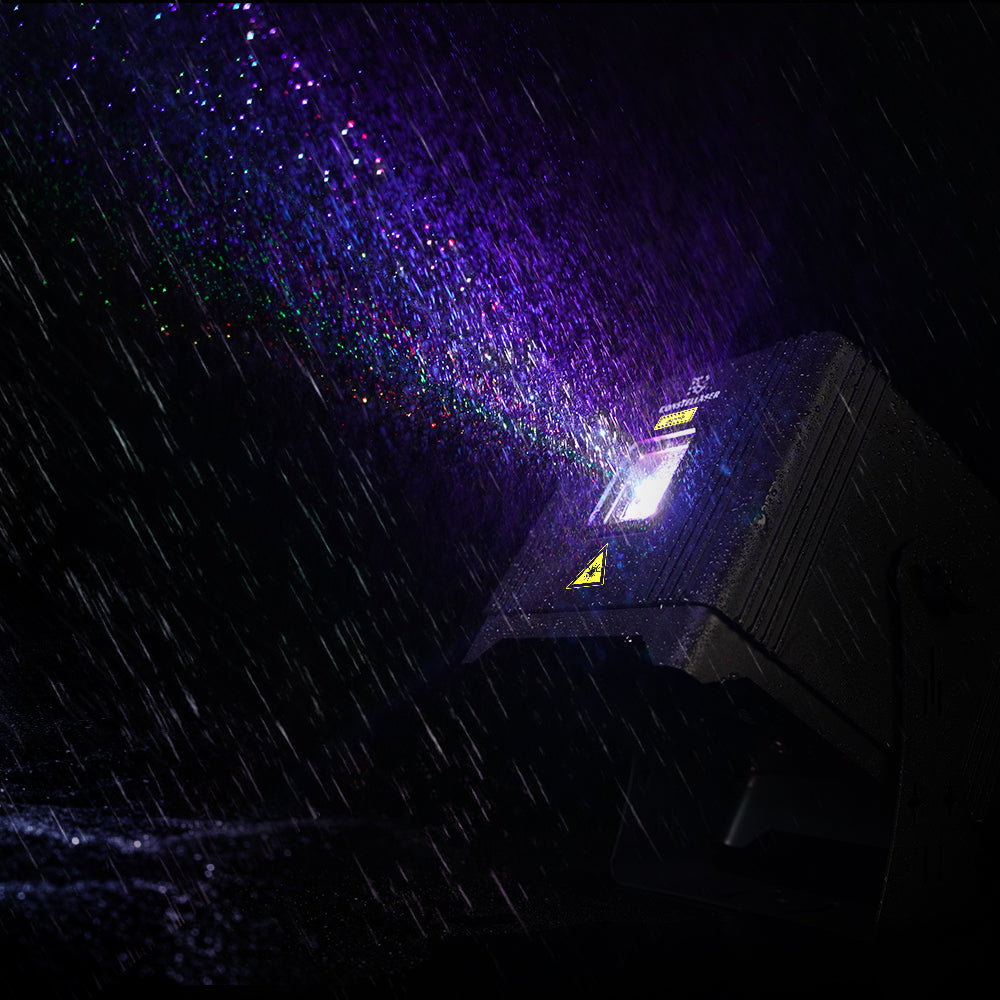

Even on rainy days, due to the scattering effect of water droplets on light, the laser beam can still maintain its concentration and form a bright beam.

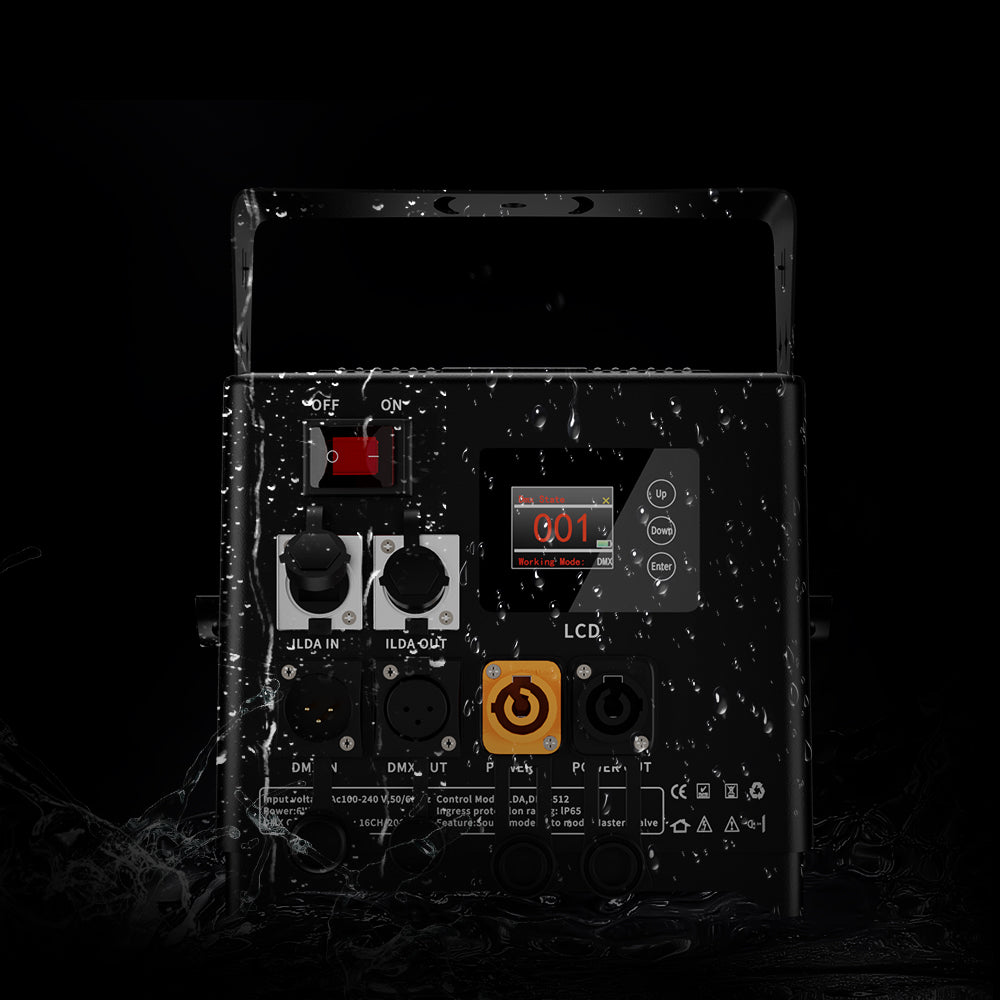

The shell is usually made of corrosion-resistant and weather resistant materials to ensure safe and reliable operation in humid or rainy environments.
Presenting a dreamy and colorful visual effect similar to the aurora
Partial pattern display, more pattern effects waiting for you
"The 12W laser lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue. "
Professional software that supports ILDA interface device input, multimedia display programming, and on-site improvisation performance output.

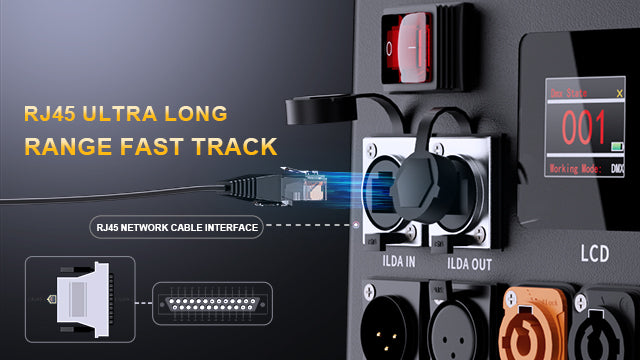

"The RJ45 network cable interface can help you quickly and stably transmit optical signals, as well as provide you with broader data transmission space and more efficient signal transmission speed, making your stage lighting, stage lighting, and theater more eye-catching."

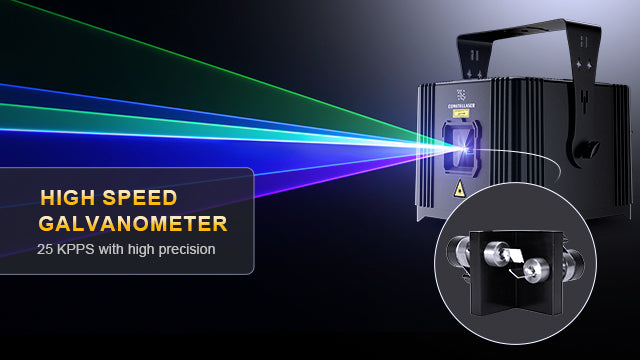

25 KPPS with high precision The high-frequency scanning technology ensures a smooth and seamless display of laser patterns, with sharp and precise movements that are sure to captivate any audience.
"During the use of a laser source, Do not look directly at the light source. The effect of stage laser lights is formed by high-speed scanning of the laser beam through high-speed galvanometers or low-speed stepper motors. The harm to the human body is mainly reflected in the harm to the eyes, and prolonged exposure can lead to blindness. "

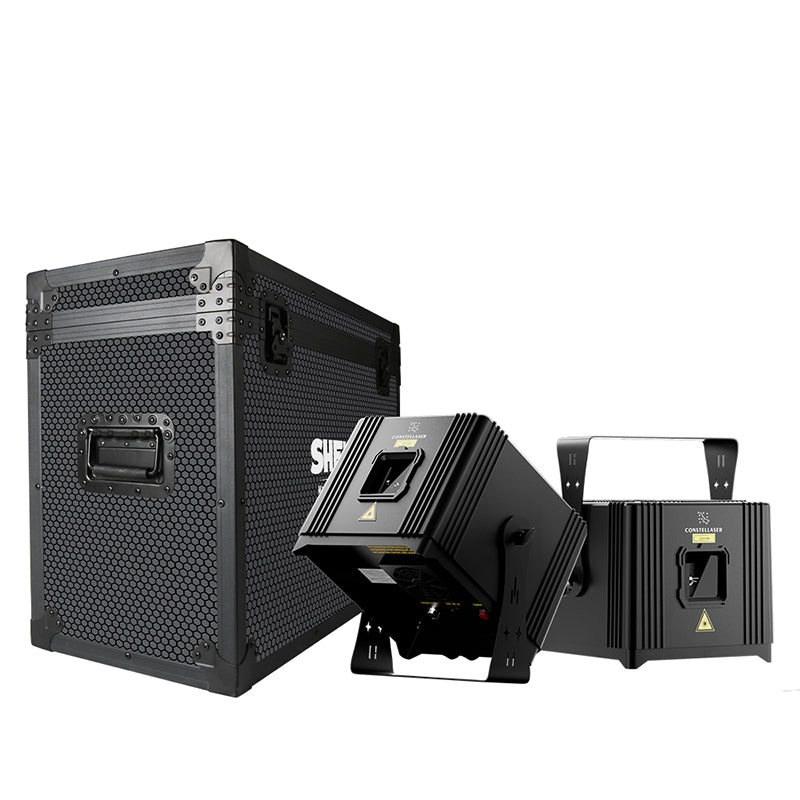

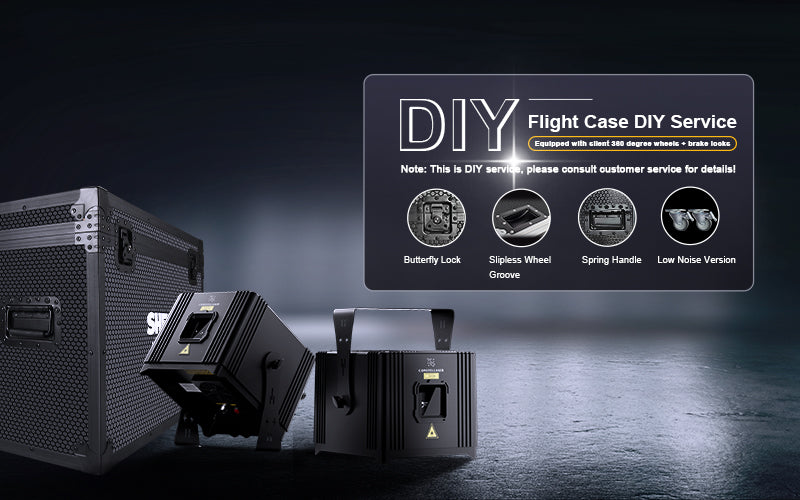

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
