SHEHDS effet 3D polychrome 3W RGB Laser Scanner lumières DJ fête Bar projecteur éclairage de scène

SHEHDS effet 3D polychrome 3W RGB Laser Scanner lumières DJ fête Bar projecteur éclairage de scène

Prix habituel $340.00 USD
Prix habituel Prix promotionnel $340.00 USD
En vente Épuisé

Accreditation:

1 Year Warranty

Free Shipping

Customer Service

Sku: SKU: SHE-NLa3WRGB-BPUS

Type: 3W RGB Laser
Envoyez à: US
Expédier de: United States

-

Make Money

Like this product?

Join Us to promote this product via an exclusive coupon!

Afficher tous les détails

Technical Parameter

Light source parameters

Laser Wavelength:

R-638nm, G-520nm, B-450nm

Laser Power:

R-0.8W, G-0.8mW, B-1.5W

Spot Size (laser window spot)

5.5mm

Light Source Divergence Angle

<1.2mrad

Modulation Mode

0~5V analog, up to 50khz/TTL

Laser Class

Class IV

Imaging system

Laser Color

Red, green, blue mixed colors

Evenness

>98%

Lens Horizontal Offset

-30% to +30%

Lens Vertical Offset

-30% to +30%

Imaging Mode

3D/2D pattern and animation (with software)

Projection Distance

<20M The best distance is 20~50M

Playback Rate

20 KPPS

Playback Angle

Max60°

Fail-safe system

Safety standards

Follow the IEC60825 standard

Security project

Over current and voltage protection

Class of protection

IP20

Operating temperature

-15℃~45℃

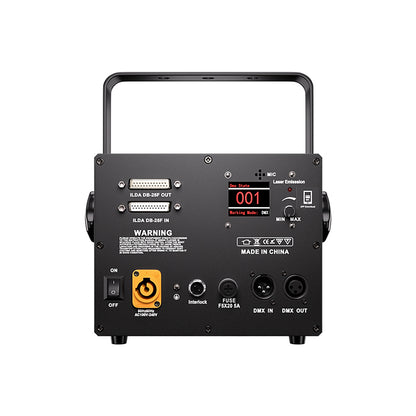

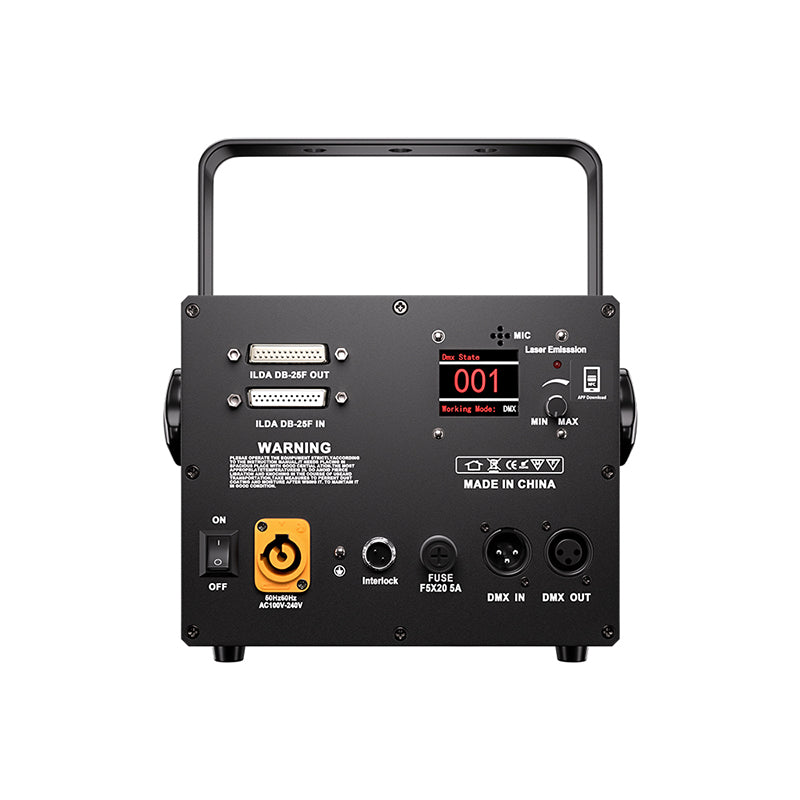

Interface and control systems

Control interface

DMX In/Out ,ILDA In/Out

DMX channel

16/20CH

Power supply interface

PowerCon

Power Consumption

Power of operation

100~240V AC 50/60HZ

Power supply

Max 42W

Physical property

Product size:

23.6*20*18cm

Product weight:

3.55kg

3W RGB Animation Laser Light

3W full-color laser is a low-power professional stage laser equipment that can be customized and edited for laser projection patterns through the 25 pin ILDA professional laser programming software Beyond Quick Show!
The 3W laser is equipped with multiple laser patterns and can also play laser shows through the DMX512 channel! Low noise operation, suitable for full-color lighting solutions in exhibitions, celebrations, nightclubs, and other scenes, attracting people to focus.

Constellation Laser Series

The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

Product Size

Product size :9.29x7.87x7.08 inch / 23.6x20x18 cm
Product weight: 3.55 Kg

APP Conctrol

Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.

Compatible With ILDA Protocol

Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.

Control Mode

The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.

Light Effect

Laser operation indicator light

The laser operation indicator light continuously lights up or flashes, reminding operators to pay attention to the presence of laser radiation and avoid direct exposure to the laser beam, thereby protecting the safety of operators.

RGB Laser Source

"Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue. Can mix multiple brilliant colors! For example, Magenta, Yellow,Cyan,White"

Laser Effect

The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.

The Northern Lights Canopy Effects

"Presenting a dreamy and colorful visual effect similar to the auroram, Providing more possibilities and creative space for various performance occasions."

Multiple Pattern Effects

"Multiple Pattern Effects Supporting multiple color blends and gradients, making local patterns more colorful and vibrant in color. Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing viewers a more vivid visual experience."

Applicable Scene

"The 6W laser lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue."

Features

High Speed Galvanometer

"High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning, achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects, but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine."

Compatible With ILDA Protocol

" Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4! With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects, as well as the ability to customize and create your own unique visuals. From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights."

SAFETY TIPS

"During the use of a laser source, Do not look directly at the light source. The effect of stage laser lights is formed by high-speed scanning of the laser beam through high-speed galvanometers or low-speed stepper motors. The harm to the human body is mainly reflected in the harm to the eyes, and prolonged exposure can lead to blindness. "

Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition before being shipped out. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail. Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

Flight Case
DIY Service

Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.

Note: This is DIY service,
please consult customer service for details!
