Technical Parameter
-Electrical Specification and Connections
Power Supply
144W Electronic Auto-Ranging
Input Voltage Range
100-240 V, 50/60 Hz
Power in Connector
Neutrik PowerCON
Signal input/output
3-pin XLR Head Socket
-Source
Light Source Type
LED 12×12W RGBW 4in1 Color Mixing
LED Life Expectancy
20000 Hours
Dimmer
0~100% Linear Dimming
LED Feature
Auto Mode ,Sound Mode,Manual Programming Scenarios
-Optical System
Beam Angle
8 Degrees
Strobe
0--25HZ
Dimmer
0~100% Linear Dimming
-Control and Programming
Protocols
DMX512
Running Mode
DMX512 Mode, Manual Mode
-Mechanical Specification
Pan/Tilt
540°/270° & Fine
Heat Dissipation Method
Overheat Protection, Efficient Heat Dissipation System
Product Size
25*15*31 cm
Product Weight
4.6 kg
Package Weight
5.05 kg
Ingress Protection Rating
IP20

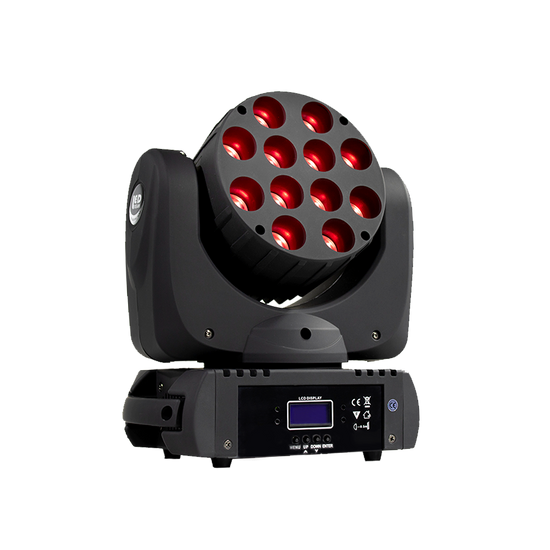

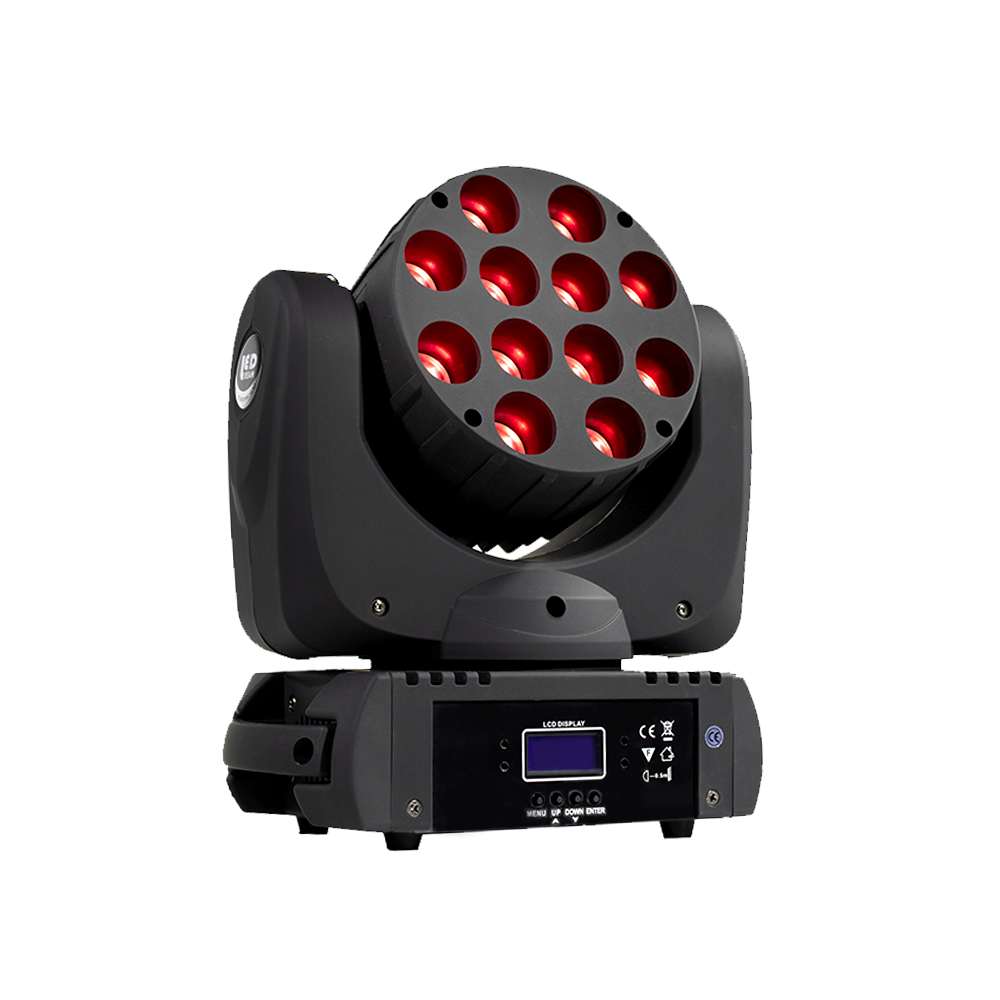

LED Beam 12x12W Moving Head Lighting
RGBW 4in1 Color Mixing
Add more visual impact and artistic sense to the performance, making the stage effect more stunning.
Create a unique atmosphere and enhance the entertainment experience of consumers.
Product Features
Suitable for various stage performances and film and television shooting,
with strong adaptability and the ability to meet the needs of different scenes.
Dimension
Product Size： 25*15*31 cm
Product Weight: 4.6 kg
Beam Angel
More concentrated lighting ensures the clarity and sharpness of the pattern on stage, maintaining excellent performance both at long and close distances.
12pcs LED RGBW Chip
Supports RGBW full-color color adjustment, which can change colors according to music, rhythm, or custom modes, adding infinite charm to performances.
Color Effect
Quick switching and smooth transitions of multiple colors. each color can accurately match the rhythm and emotions of the performance, creating a perfect stage atmosphere.
Control Interface and Power Interface
DMX512 and power input/output interface, supporting master-slave series mode
Efficient heat dissipation
Adopting a silent and efficient cooling mode fan to extend the lifespan of the lighting fixture and maintain stable performance for long-term operation
Stage Effect
In addition to color changes, the stage pattern light color palette can also create rich and diverse visual effects by overlaying different patterns
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
