Technical Parameter
Electrical Specification and Connections
Power supply
350W+12V+36V Electronic auto-ranging
Input voltage range
100-240 V, 50/60 Hz
Working power
280W
Source
Light source type
7*40W LED RGBW/ RGBL/ RGBLAC
Colour temperature
RGBW: 8000±500 K; RGBL: 3500±500 K; RGBLAC: 14000±500 K
CRI
RGBW: 73.9/ RGBWL: 55.5/ RGWBLAC: 63
Illuminance
RGBW: 196000lux @ 1m36230lux @ 3m12300 lux @ 5m
RGBL: 194600lux @ 1m41580lux @ 3m14300 lux @ 5m;
RGBWLAC: 100300lux @ 1m26370lux @ 3m9150 lux @ 5m
Life expectancy
min. 20000 hours
Optical system
Beam angle
RGBW: 5.8°--27.4°; RGBL: 5.8°--27.4° ; RGBLAC: 5.8°--31.4°
Control and programming
Protocols
DMX512, RDM
DMX Channel Mode
RGBW& RGBL: 24CH; 54CH/ RGBLAC: 26;70CH
Feature
Auto mode ,Sound mode,Manual programming scenarios
Mechanical specification
Housing
High temperature resistant and flame retardant plastic housing
Noise
Static (light on): 43.4 dB Dynamic (light in motion): 51.5 dB
Operating temperature
-20°-45°
Ingress protection rating
IP20
Product size
37.5*26*18.5 cm
Product weight
7kg
Package size
45 x 28 x 31.5cm
Package weight
8.4 kg
Choose Your Light Define Your Color
Compare all six models and pick your perfect match, from RGBW to RGBLAC, every color engine delivers distinct brilliance.
Unleash the Full Spectrum
The RGBLAC six-color system expands your creative palette, from deep reds to vivid cyan, every hue is under your command.
Dynamic Lighting Effects

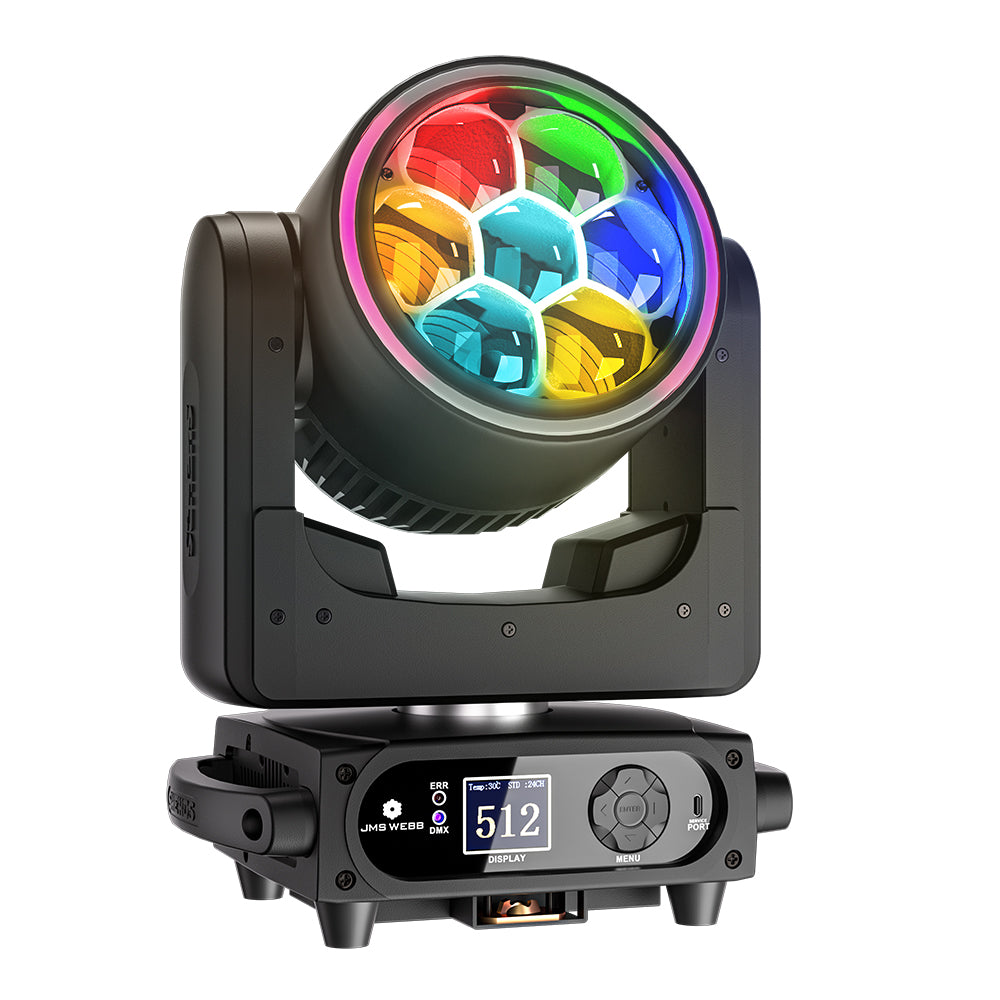

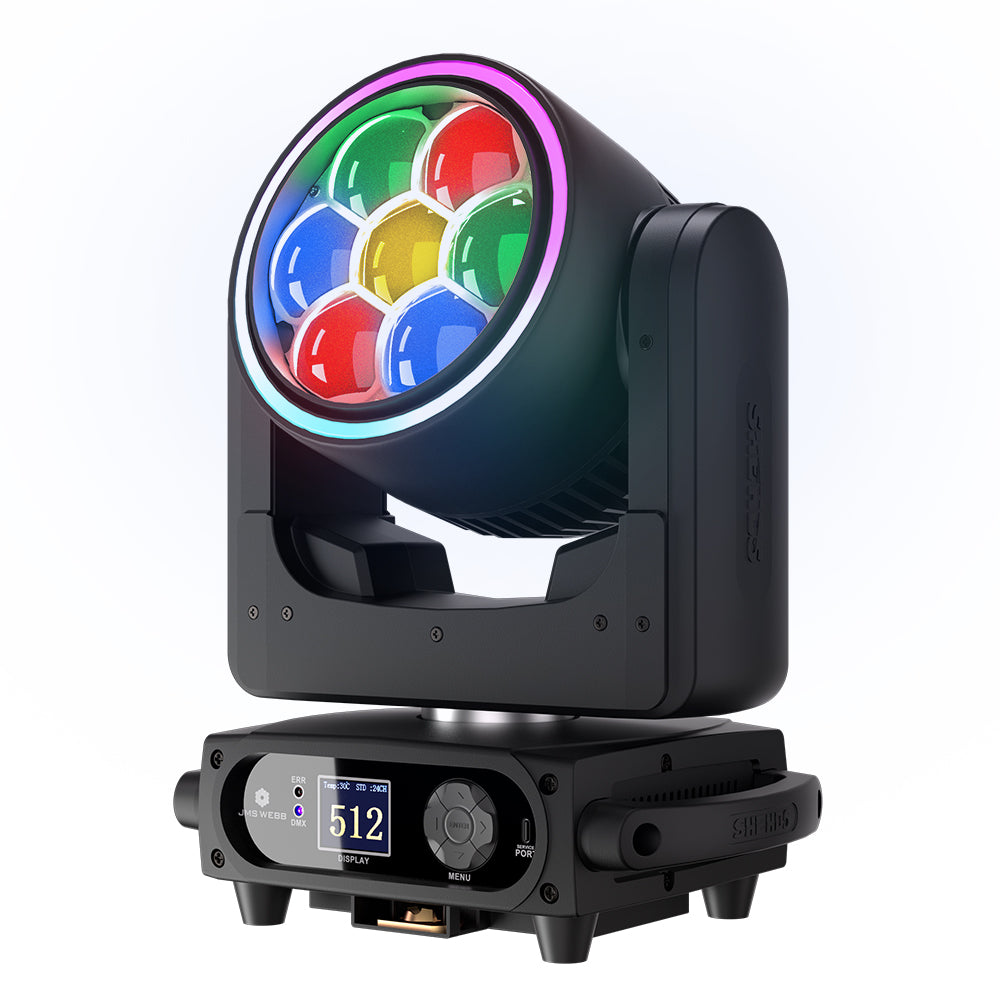

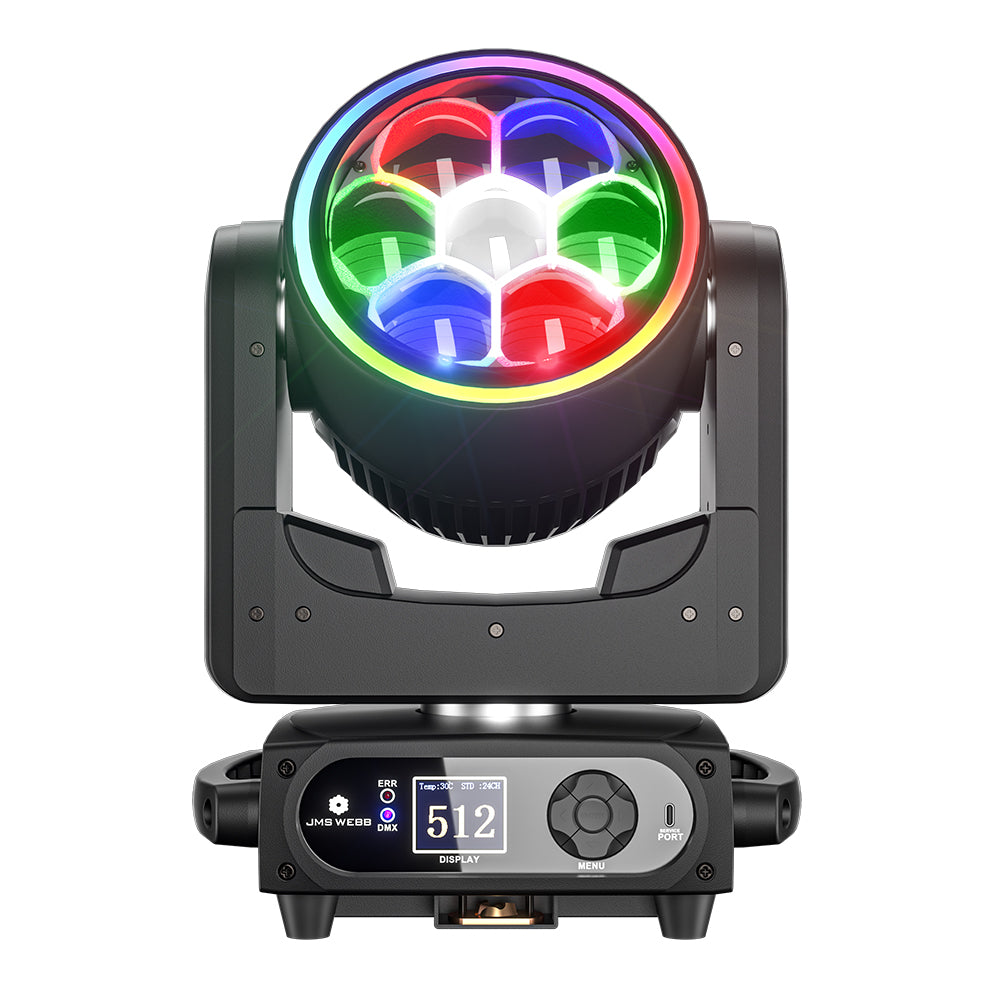

Enabling more dynamic lighting effects with the SHEHDS 7×40W Beam-Eye Moving Head, making stage lighting design more creative and expressive.
Designed To Cover An Entire Live Entertainment Stage
The SHEHDS 7×40W Moving Head delivers powerful, dynamic lighting effects, enabling more creative and expressive stage designs for any live performance.
Pixel Control, Endless Creativity
Individually controllable LEDs allow flowing chases, pixel art, and custom patterns that make your show come alive.
Dynamic Rotating Lens
Add motion and dimension to your light show — the rotating lens creates mesmerizing kaleidoscope-like visuals.
RGB Color Mixing
From vivid beams to immersive color wash — one fixture, endless expressions. The 7×40W Beam-Eye redefines dynamic lighting, giving every show a new level of creativity and visual depth.
Easy Setup Anywhere
Can be hung or floor-mounted with ease, offering 540° pan and 195° tilt movement for flexible, creative stage setups.
Made for Every Scene
From concerts to clubs, weddings to home parties, bring stunning light to every moment.
Interface Display
Compact Power, Anywhere You GoMini body, professional performance, versatile for all scenes.
37.5 × 26 × 18.5 cm 14.76 × 10.24 × 7.28 inches
Crystal Precision, Fiery Brilliance
Each glass lens captures and amplifies pure light, delivering stunning color intensity and beam clarity for your show.
Turn Light into Rhythm
RGB color mixing and strobe effects bring motion, energy, and life to every beam.
Powerful Heat Dissipation
Advanced all-round cooling system with high-performance fans ensures efficient heat control and stable operation for long-lasting brilliance.
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
