Technical Parameter
-Electrical Specification and Connections
Power Supply:
AC90-240V/50-60Hz
Power consumption:
300W
Lamp:
Module light source
Color Temperature:
7000-8000K
lens diameter :
16CM
Beam Angle:
2.5°
Control Modes:
DMX512、Auto mode、Sound mode、Master&Slave、RDM
DMX Channels:
17CH
Tilt & Pan:
X axis: 540 degrees (16 bits) Y axis: 190 degrees (16 bits)
Color Wheel:
11 colors + white light, half color change effect
Gobo Wheel:
13 Pattern Plates + Opening. Pattern Water Effect
Dimmer:
0-100% Linear Dimming System
Prism:
16 prism rotation effect
Frost:
1 atomizing tablet
Rainbow wheel:
7 colors
Shell Material:
High temperature plastic housing
Long Lifespan Lamp:
50000 hours
Product Size:
31CMX22CMX48CM
Product weight:
12.25KG
Packing Size:
51CMx38CMX36CM
Packing weight:
14.5kg
Led Beam Pattern Light
300W high power-HD lens
Brilliant stage effect
Gobo / 16Prism / 3-pin DMX / Auto run / 17/24/29CH
Scan / Silent fan / Focus / Voice Control / tcs
Applicable Scene
300w high brightness
Stable performance, clear display, long distance, more powerful
Bar DJ / Private Party / Outdoor Performance / Shopping Mall Activities
Individual Performance / Company elebration
Product Appearance
Individual lamp weight：12.25KG
Product Features
16CM aperture
with high transmittance optical system
Uniform brightness, strong penetration, clear imaging, bright long-distance projection
Range Of Motion
Intelligent photoelectric positioning system
540 degrees (16-bit) Y-axis: 190 degrees (16-bit) Automatic XY out-of-step correction
Heat Dissipation
Efficient Cooling System
Quiet fan + multi-sided cooling air outlet to ensure the internal temperature of the machine is suitable for work
Lighting Effect
"13 Pattern Plates + Openings 11 colors + white light can be realized. rainbow. Half color change. Focus. Fog effect Some color effects display"
Prism Effect
"single pattern effect Prism pattern effect"
Actual Effect
"Multi-light effect demonstration Pattern .Focus .Fog"
Packing List
Each process undergoes strict verificationEvery part is carefully selected

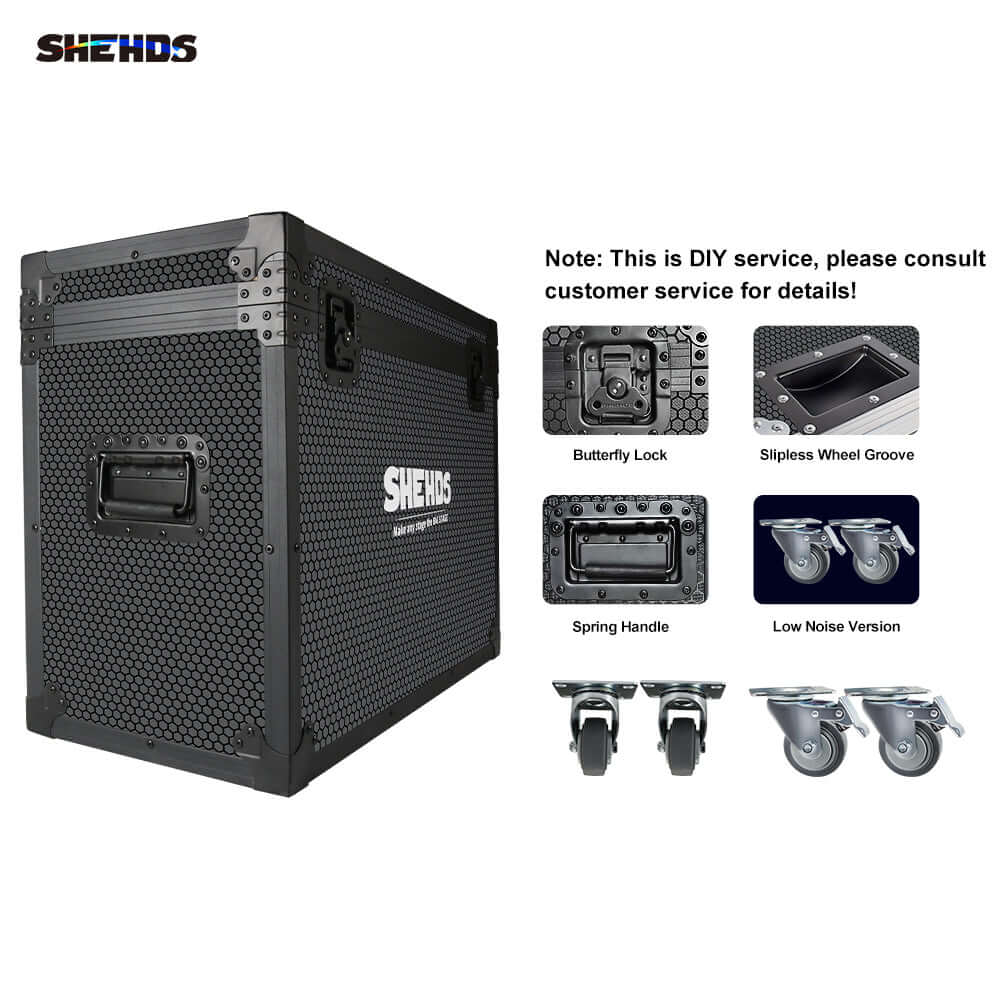

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
