Technical Parameter
-Electrical Specification and Connections
Power Supply:
200W Electronic Auto-Ranging
Input Voltage Range:
100-240 V, 50/60 Hz
Power in Connector:
Neutrik PowerCON
Signal input/output:
3-pin XLR Head Socket
-Source
Light Source Type:
200W RGBWAUV 6in1 COB
LED Life Expectancy:
20000 Hours
Dimmer:
0~100% Linear Dimming
LED Feature：
Auto Mode ,Sound Mode,Manual Programming Scenarios
-Optical System
Beam Angle:
69°
Strobe:
0--25HZ
Beam Lux:
260 Lux / 10m
Dimmer:
0~100% Linear Dimming
-Control and Programming
Protocols:
DMX512
Running Mode:
DMX512 Mode, Manual Mode
DMX Channel Mode：
6/10 CH
-Mechanical Specification
Housing :
High Strength Aluminum Alloy Body
Heat Dissipation Method:
Overheat Protection, Efficient Heat Dissipation System
Product Zize：
22x22x22 cm / 8.66x8.66x8.66 inch
Product Weight:
3.72 kg
Package Size:
26x26x37 cm / 10.23x10.23x14.5 inch
Package Weight:
4.62 kg
Ingress Protection Rating:
IP20
LED 200W COB Light
RGBACL 6in1 Color Mixing
The light source consists of 200W COB LEDs,
Linear adjustable color from RGBWAUV creates the most realistic stage scene environment,creates a strong visual impact for the performance.
Product Features
Dual modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.

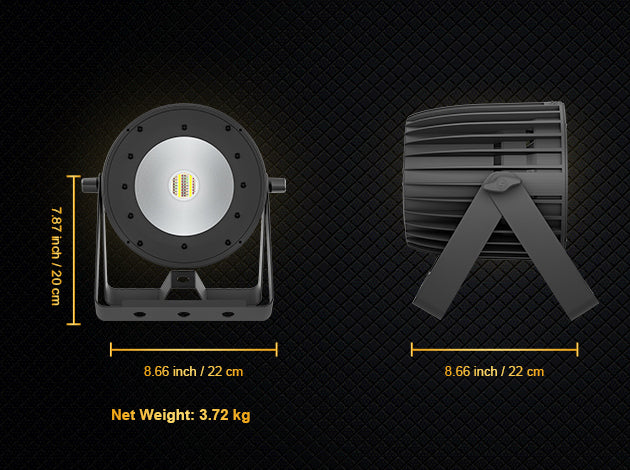

Dimension
Product size：Size: 22x22x22 cm / 8.66x8.66x8.66 inch
Product weight: 3.72 kg
Beam Angel
Max 69° Beam Angel Covering a wider area can illuminate a larger space. The lighting is more natural and comfortable. It is more natural and will not have overly stiff effects.

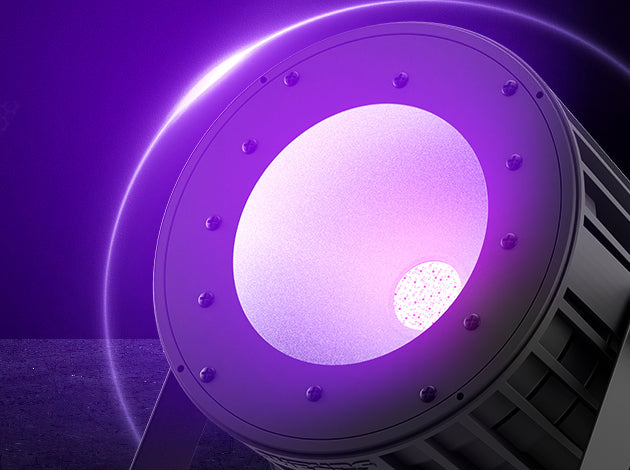

Optical Lens Display
Using frosted material reflector, achieving a reflection rate of 98% and higher lighting efficiency
More uniform color mixing effect
Integrating Powerful Beam And Wash Functions
ultra wide lighting range,
And 0-100% smooth dimming function,
It can generate various dynamic psychedelic lighting effects,
Fully adapt to the application needs of different stages.
Beam Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.
Not only does it add color and vitality to the stage, but it also brings us a brand new visual world.

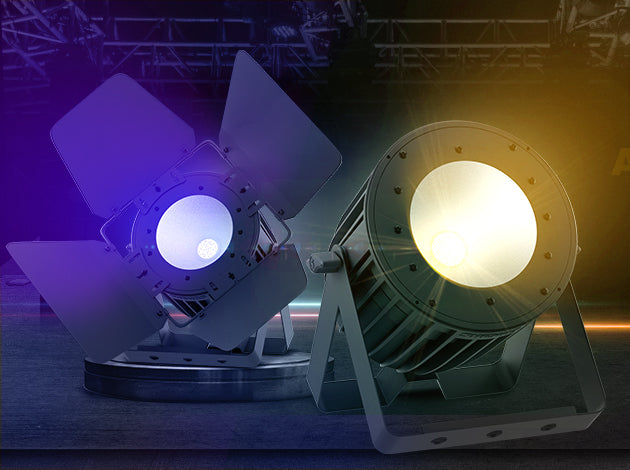

Light Barrier
"Adjust the lighting and shadow effects on the stage to create different atmospheres and visual effects. Highlight the key areas or characters on the stage, making the audience pay more attention to these areas or characters, and enhancing the visual effect of the stage."
LED Light Source
"Using ceramic substrate LED beads, Has properties such as high temperature resistance, oxidation resistance, and corrosion resistance So as to adapt to different lighting environments and customer needs."
Split Heat Dissipation
"Newly upgraded appearance, aluminum casing aluminum shell, high strength, low density, lightweight, convenient to carry; good corrosion resistance and less prone to rusting; good heat dissipation and excellent thermal conductivity."
Introduction To Panel Functions
"Diode display screen Built in adjustable Sound Mode sensitivity value New temperature control protection function added New real-time temperature feedback function added"
Foot Stand And Knob
"Our tripods can provide excellent stability and safety. The limit design can effectively prevent the tripod from slipping in unexpected situations, ensuring that your device remains stable at all times."

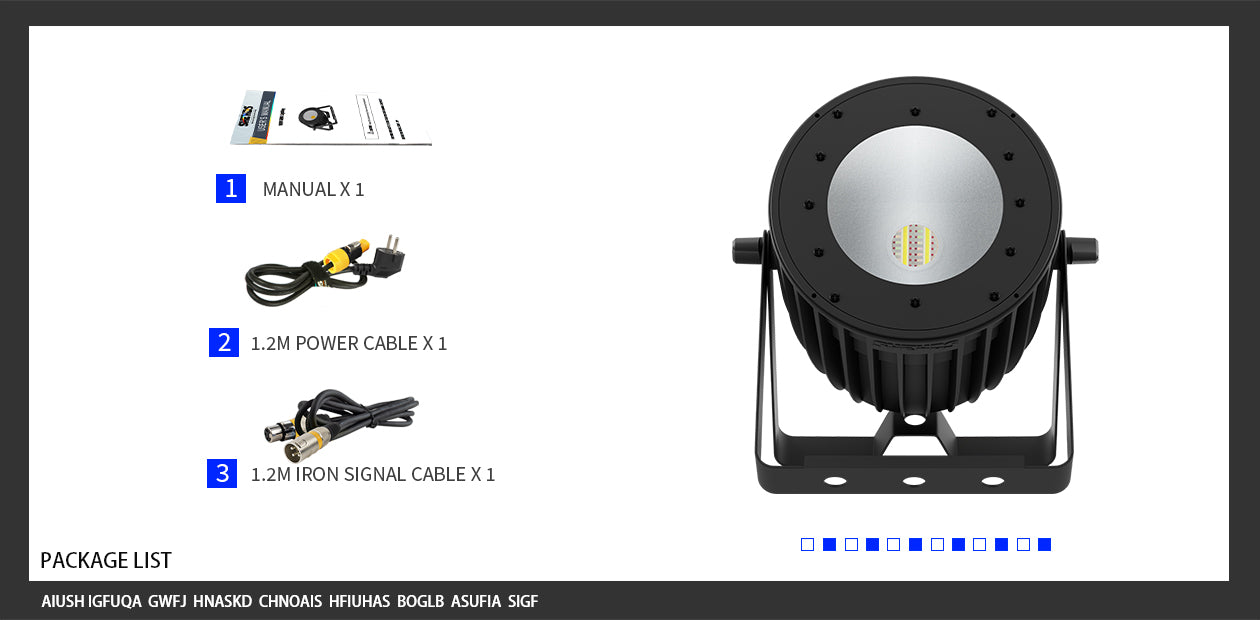

Packing List
Each process undergoes strict verificationEvery part is carefully selected

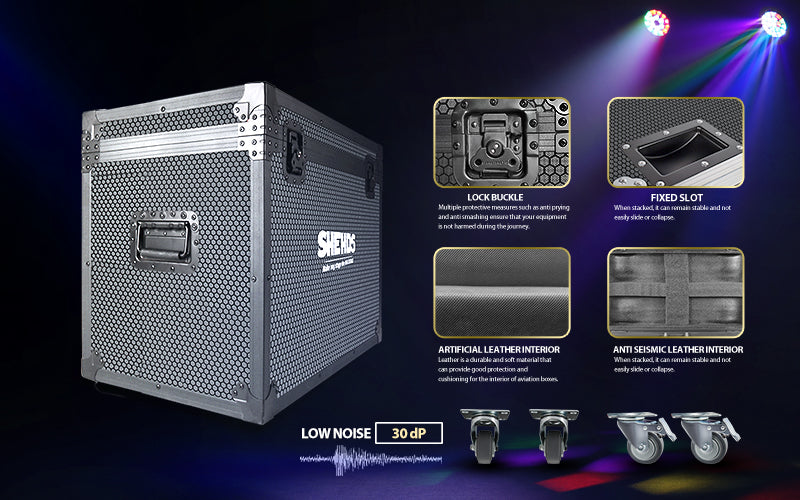

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
