Laser Wavelength:
R-638nm, G-520nm, B-450nm
Laser Power:
R-0.8W, G-0.8mW, B-1.5W
Spot Size (laser window spot)
5.5mm
Light Source Divergence Angle
＜1.2mrad
Modulation Mode
0~5V analog, up to 50khz/TTL
Laser Class
Class IV
Laser Color
Red, green, blue mixed colors
Evenness
>98%
Lens Horizontal Offset
-30% to +30%
Lens Vertical Offset
-30% to +30%
Imaging Mode
3D/2D pattern and animation (with software)
Projection Distance
＜20M The best distance is 20~50M
Playback Rate
15 KPPS
Playback Angle
Max60°
Security project
Over current and voltage protection
Class of protection
IP65
Operating temperature
-15℃~45℃
Control interface
DMX In/Out ,ILDA In/Out
DMX channel
16/20CH
Power supply interface
PowerCon
Power of operation
100~240V AC 50/60HZ
Power supply
Max 42W
Dimensions of products
22x19x8.5 cm
Weight of product
1.9 Kg
Dimensions of package
27.5x24x15.5 cm
Weight of package
2 kg
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

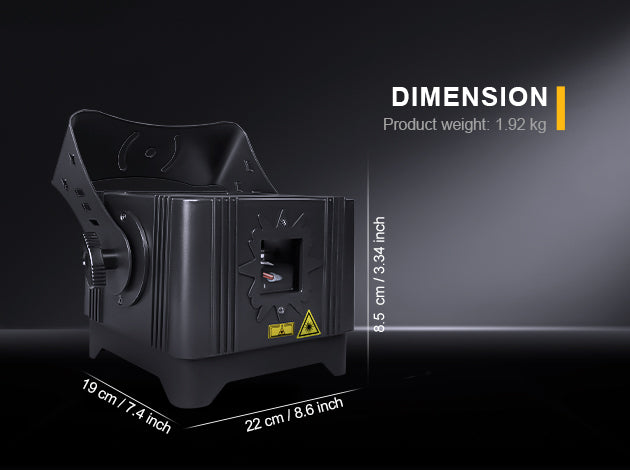

Product Size
Dimensions of products：22x19x8.5 cm
Weight of product：1.9 Kg
Dimensions of package：27.5x24x15.5 cm
Weight of package：2 kg

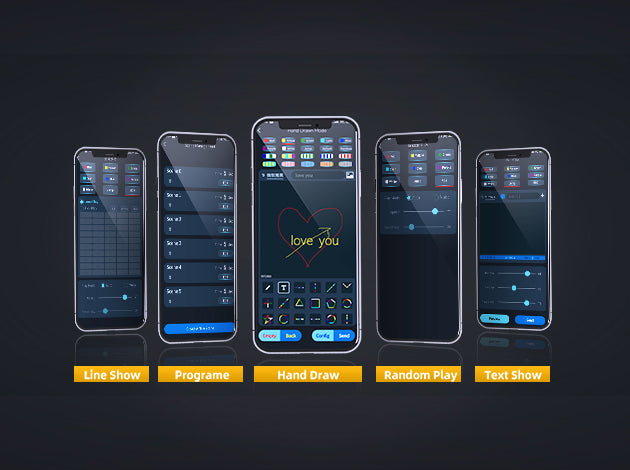

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.
Control Mode
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.

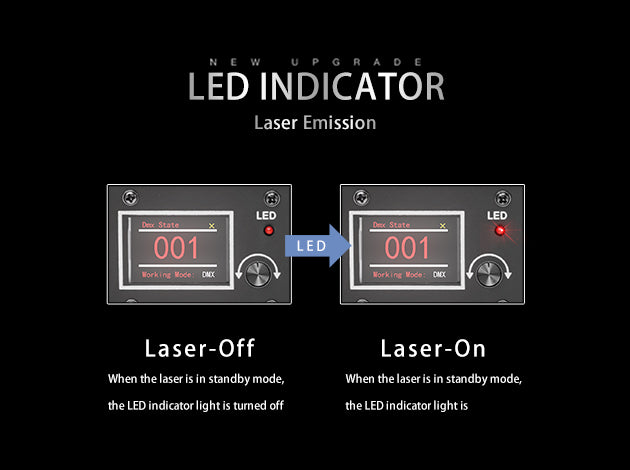

Laser operation indicator light
The laser operation indicator light continuously lights up or flashes, reminding operators to pay attention to the presence of laser radiation and avoid direct exposure to the laser beam, thereby protecting the safety of operators.
Laser RGB color mixing effect
Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue.
Can mix multiple brilliant colors!
For example, Magenta, Yellow，Cyan，White
The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.
"Presenting a dreamy and colorful visual effect similar to the auroram, Providing more possibilities and creative space for various performance occasions. "
Support multi-channel effect control, such as dynamic actions such as twisting, rotating, scaling, and color changing;
"With its excellent visual effects, intelligent control mode, and introduction of high-frequency scanning technology, it will undoubtedly become the focus of various activities. Whether it's a commercial performance, festival celebration, family gathering, or outdoor adventure, it can attract and retain the attention of every audience with its unique light and shadow charm, adding endless fun and surprises to the event."
"High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning, achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects, but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine."
"Tailored for rainy outdoor applications with its thick aluminum alloy casing and stunning outdoor lighting effects. The 12W waterproof laser not only perfectly resists the invasion of rainwater, ensuring stable operation in various humid environments, but also displays dazzling lighting effects in outdoor environments. Whether it's an event held on rainy days or an outdoor space decoration, it can bring you an unprecedented visual feast."
The laser equipment panel includes a high-definition display screen and simple menu buttons, which can intuitively display the interactive design of layered menus
"During the use of a laser source, Do not look directly at the light source. The effect of stage laser lights is formed by high-speed scanning of the laser beam through high-speed galvanometers or low-speed stepper motors. The harm to the human body is mainly reflected in the harm to the eyes, and prolonged exposure can lead to blindness."
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
