Warning:
▲The CO2 column squirt time cannot surpass for 3 seconds.
▲Two jet time intervals cannot be short in 5 seconds.
▲Before connect the power, please be sure each part of the CO2 column is connection already to operation ▲The high pressure tube, nozzle and steel wire are damageable, not in the range of maintenance.
Technical Parameter:
* Voltage: AC110V, 220V, 50/60Hz
* Power: 200W
* Control: DMX-512, manual (Power on/off)
* Spray Height:8-10meters
* Pressure: 15MPa.
* Gas Input: liquid CO2 gas
* Nozzle Materials: ABS

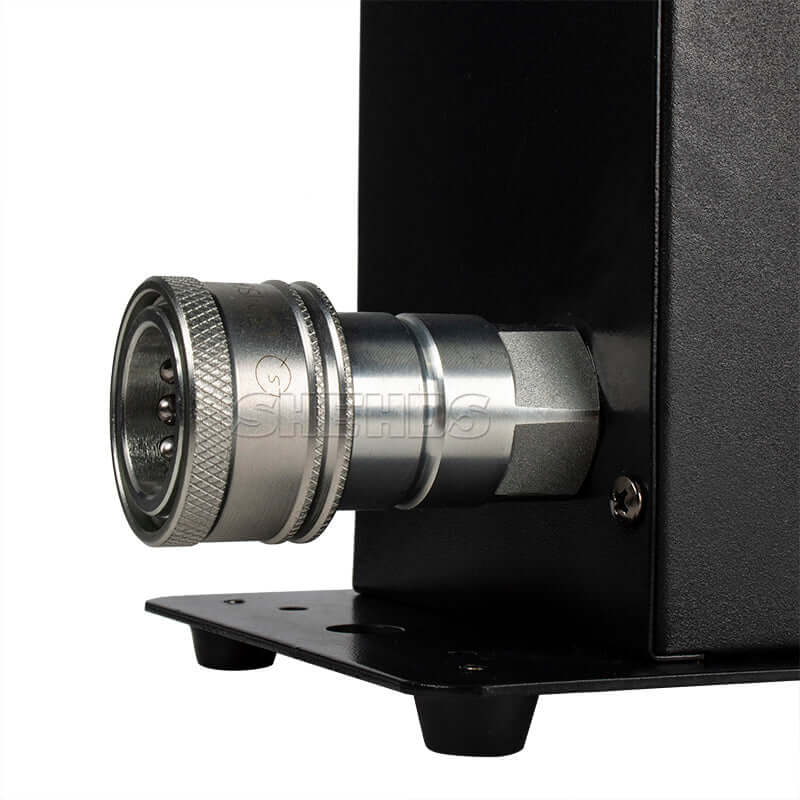

* Hose length: 6 meters with quick connector
* C02 Gas Shot Angle: adjustable 0-100 degree
* Size:31*28*28CM
* Weight:5.5KG
Install Explaination:
1.Places the large CO2 column on the corresponding position
2.Connects the gas meatus and the gas bottle
3.Turn on the valve of the gas bottle
4.Put down the bottle and keep it flat
5.The wire attached to the High-Pressure Pie. one end of which fastens firmly on the machine body, another fastens firmly on the bottleneck.
6.Connect the machine and the console.
7.Before disassembling, firstly turn off the bottle valve, let out the gas which remain in the pipe, then turn off the power, lastly separate the connector of the gas bottle.
Attention:
* The bottle must put down and keep flat. or else the gas column can’t up.
* The trachea connection must be sure link.
* When not use the machine, the nozzle, the steel bottle intake must be envelop, in order to prevent enter other thing.
Operation Method:
DMX512 signal control: Press to the “DMX” switch, there has two channels under the DMX512 signal environment. After connect the DMX512 console, push the first switch will continue for 1 second CO2 column; push the first and secondly switch together, will continue for 3 seconds C02 column.

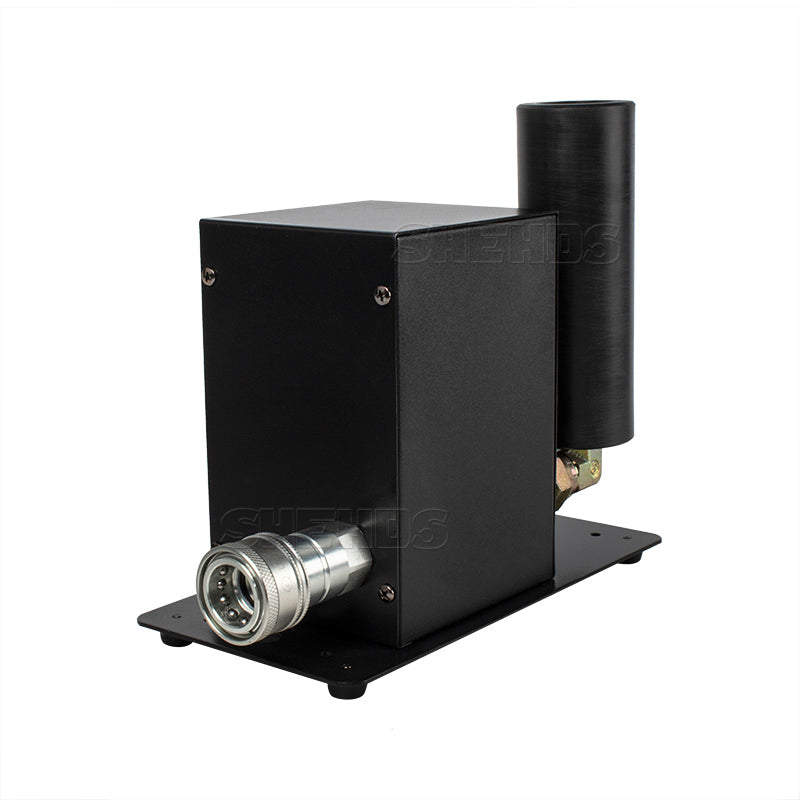

User's Manual: 200W CO2 Jet Machine
