Technical Parameter
-Electrical Specification and Connections
Power Supply:
200W Electronic Auto-Ranging
Input Voltage Range:
100-240 V, 50/60 Hz
Power in Connector:
Neutrik PowerCON
Signal input/output:
3-pin XLR Head Socket
-Source
Light Source Type:
LED 18x18W RGBWA UV 6in1 Color Mixing
LED Life Expectancy:
20000 Hours
Dimmer:
0~100% Linear Dimming
LED Feature：
Auto Mode ,Sound Mode,Manual Programming Scenarios
-Optical System
Beam Angle:
40 Degrees
Strobe:
0--25HZ
Dimmer:
0~100% Linear Dimming
-Control and Programming
Protocols:
DMX512
Running Mode:
DMX512 Mode, Manual Mode
DMX Channel Mode：
6/10 CH
-Mechanical Specification
Housing :
High Strength Aluminum Alloy Body
Heat Dissipation Method:
Overheat Protection, Efficient Heat Dissipation System
Product Zize：
20x20x8 cm
Product Weight:
2.6 kg
Package Size:
27x24x12 cm
Package Weight:
3.45 kg
Ingress Protection Rating:
IP20

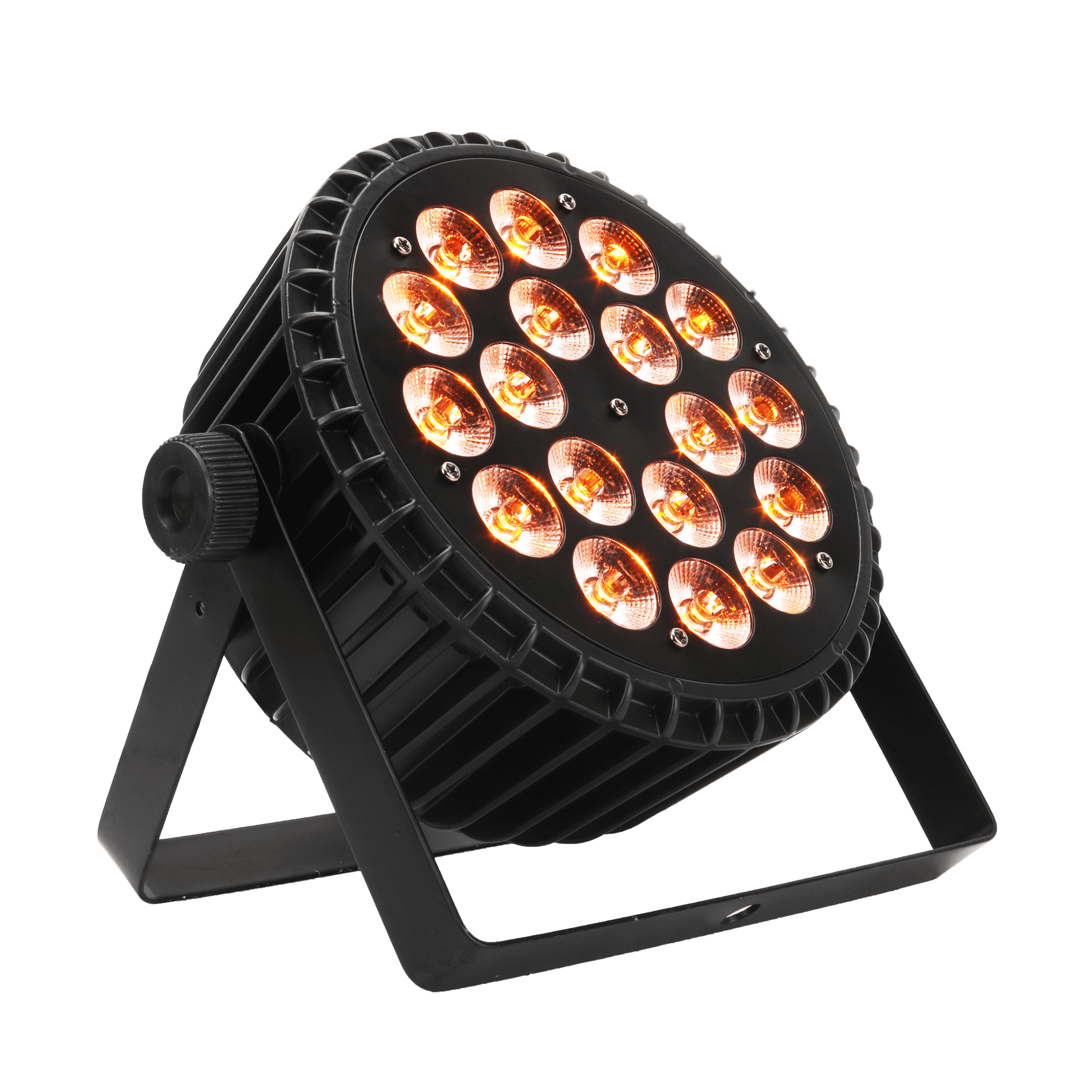

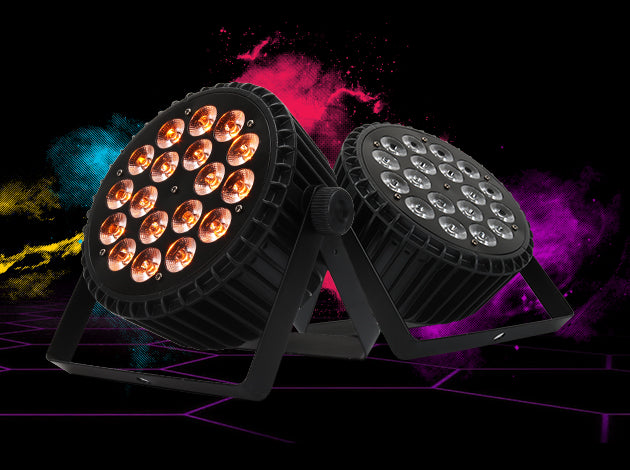

Aluminum Alloy LED Par 18x18W Light
RGBWA UV 6in1 Color Mixing
Dye the stage background to create a dreamy visual effect. At the same time, it can also create different atmospheres and emotions for performances through color changes and combinations.
Product Features
Suitable for various stage performances and film and television shooting,
with strong adaptability and the ability to meet the needs of different scenes.

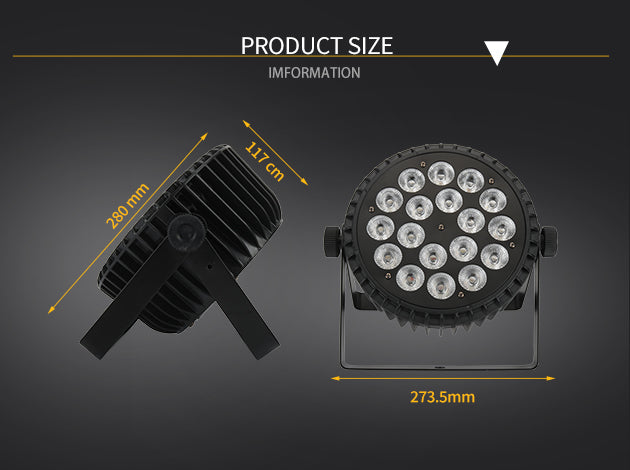

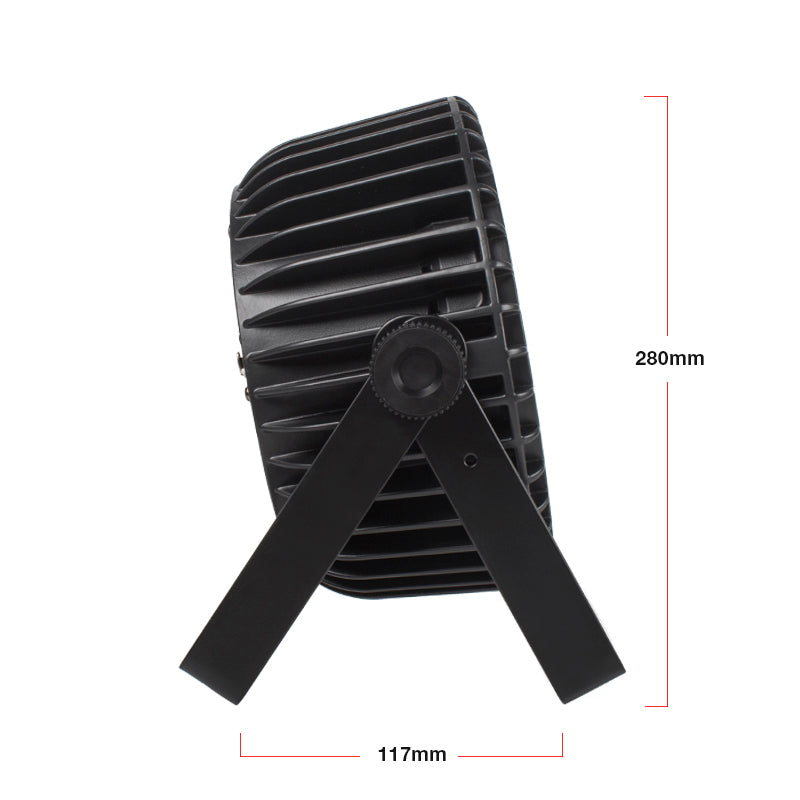

Dimension
Product size：Size: 20x20x8 cm
Product weight: 2.6 kg
Beam Angel
40° Beam Angel Covering a wider area can illuminate a larger space. The lighting is more natural and comfortable. It is more natural and will not have overly stiff effects.
RGBWA UV 6in1 Mixing Color
By changing and combining colors, different atmospheres and emotions are created for the performance.

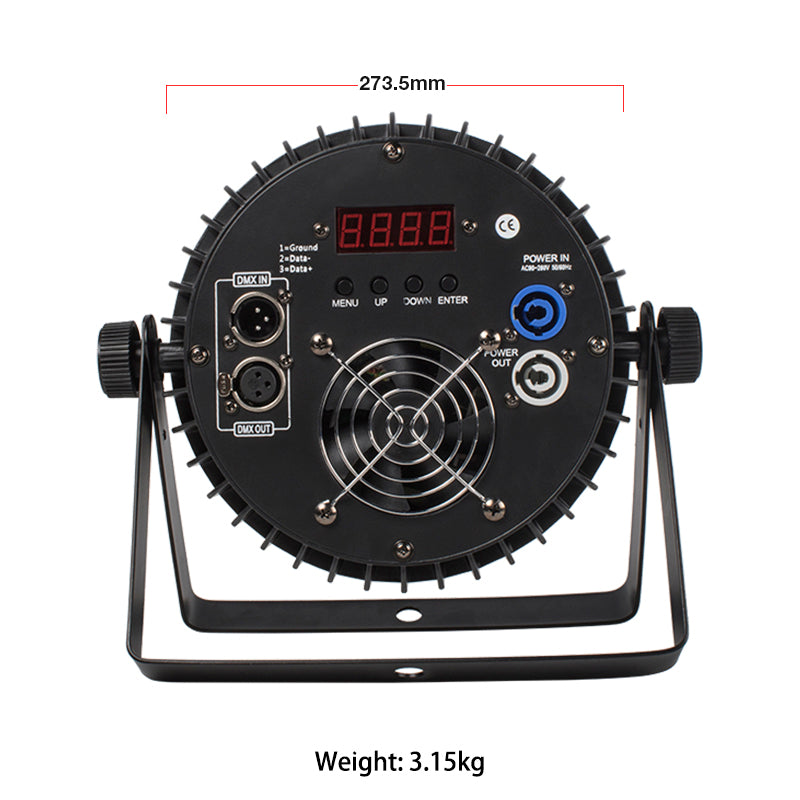

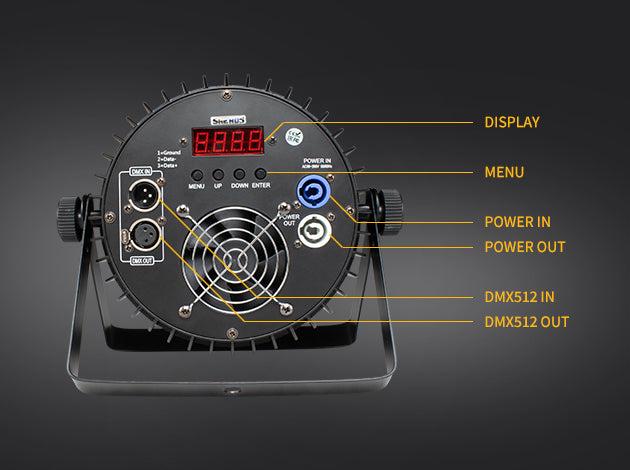

Control Interface and Power Interface
DMX512 and power input/output interface, supporting master-slave series mode
Integrated light source
The integrated design makes the structure of the lighting fixtures more compact, installation and maintenance more convenient, while also improving the stability and reliability of the lighting fixtures.
High brightness lens
Effectively refract and focus light while maintaining the transparency and clarity of the lens. Generate clear, bright, and brightly colored images to bring a more vibrant and stunning visual effect to the performance.

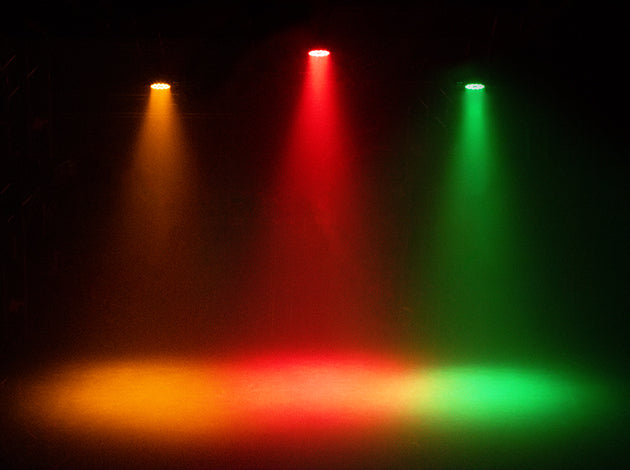

Applicable scenarios
In stage performances, dyed handkerchief lamps are usually used in conjunction with other stage lighting equipment, such as spotlights, spotlights, laser lights, etc., to create a stunning stage effect.
Create Detail
By controlling the speed of color, brightness, and angle changes, synchronize with music or other performance elements to create dynamic visual effects.

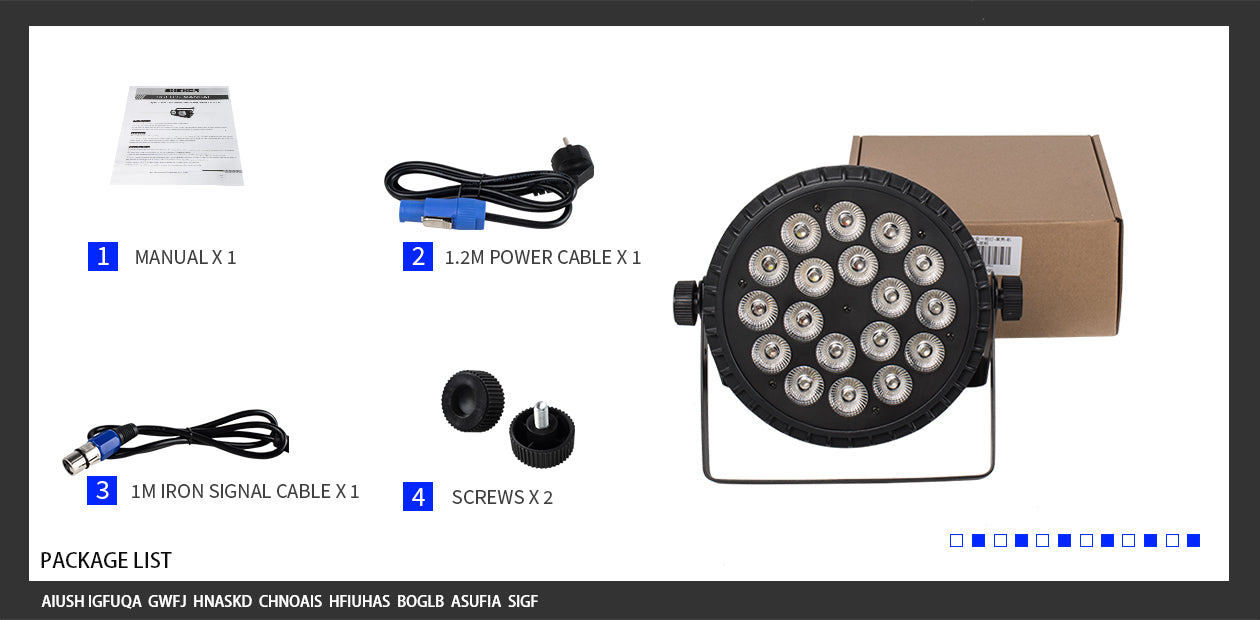

Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
What people are saying
Customer Reviews
Based on 163 reviews
93%
(152)
7%
(11)
0%
(0)
0%
(0)
0%
(0)
L
The light is very well made. Great color and very bright. Great price point. We do stage production. Great wash light.
B
These lights are an absolute versatile work horse! They are super bright when at full intensity. They cast a large wash and look amazing. The quality of the build is what I love the most! The metal housing and metal connectors make this much more road worthy than the plastic competitors.
M

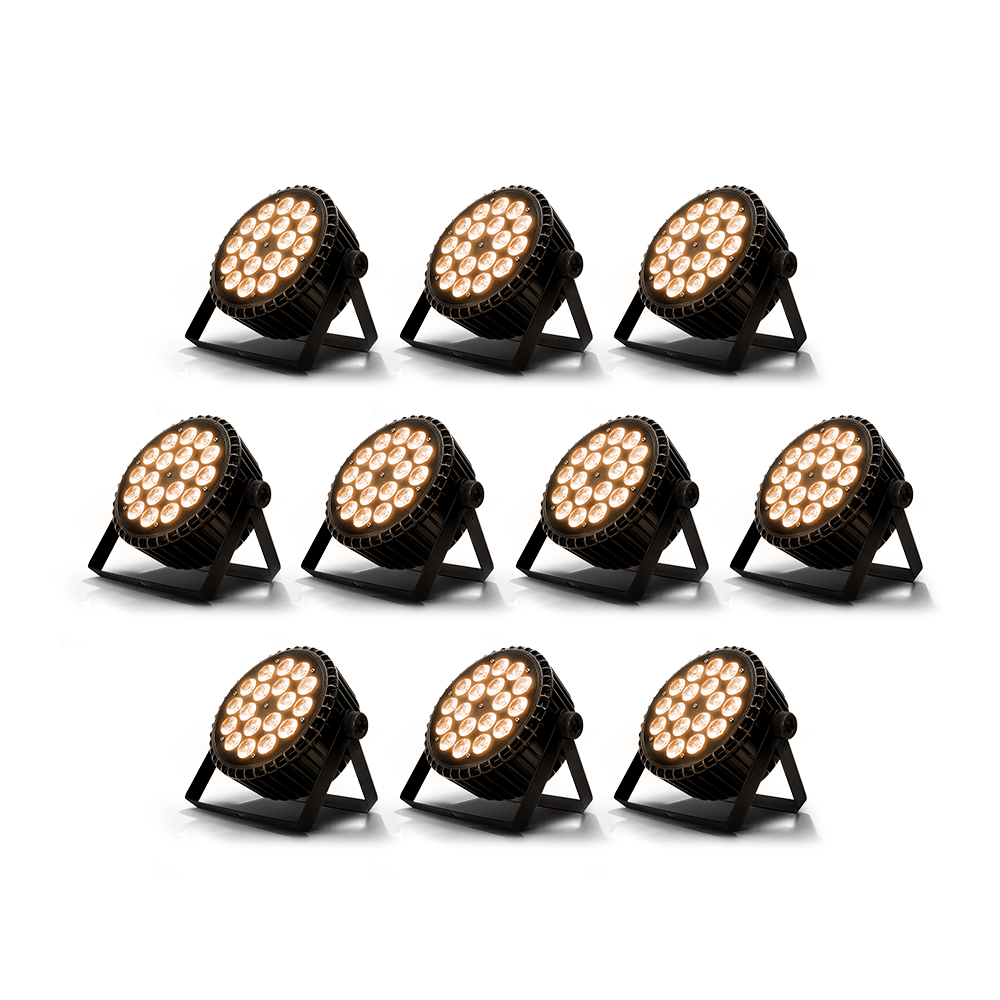

SHEHDS 18x18W Aluminum Alloy LED Flat Par DMX512 DJ Par Cans Wash Light
