Technical Parameter
Electrical Specification and Connections
Power supply:
250W/12V
Input voltage range:
AC100~240V 50/60HZ
Power in connector:
164w
Source
Light source type:
5050 RGB LEDs/0.3W each，3535 white LEDsX36 pcs /3W each
CRI
65
Lux
17410/1m，14590/2m，9290/3m
Life expectancy:
20000h
Optical system
Beam angle:
Incidence angle: 25 degrees
Dimmer:
32-bit 0 - 100% linear dimming
Control and programming
Protocols:
DMX512，RDM
DMX Channel Mode：
6/16/146CH
Feature：
DMX512, Auto-run, Master-Slave, Sound Control, with RDM function
Mechanical specification
Housing :
Iron–aluminum alloy structure / plastic housing

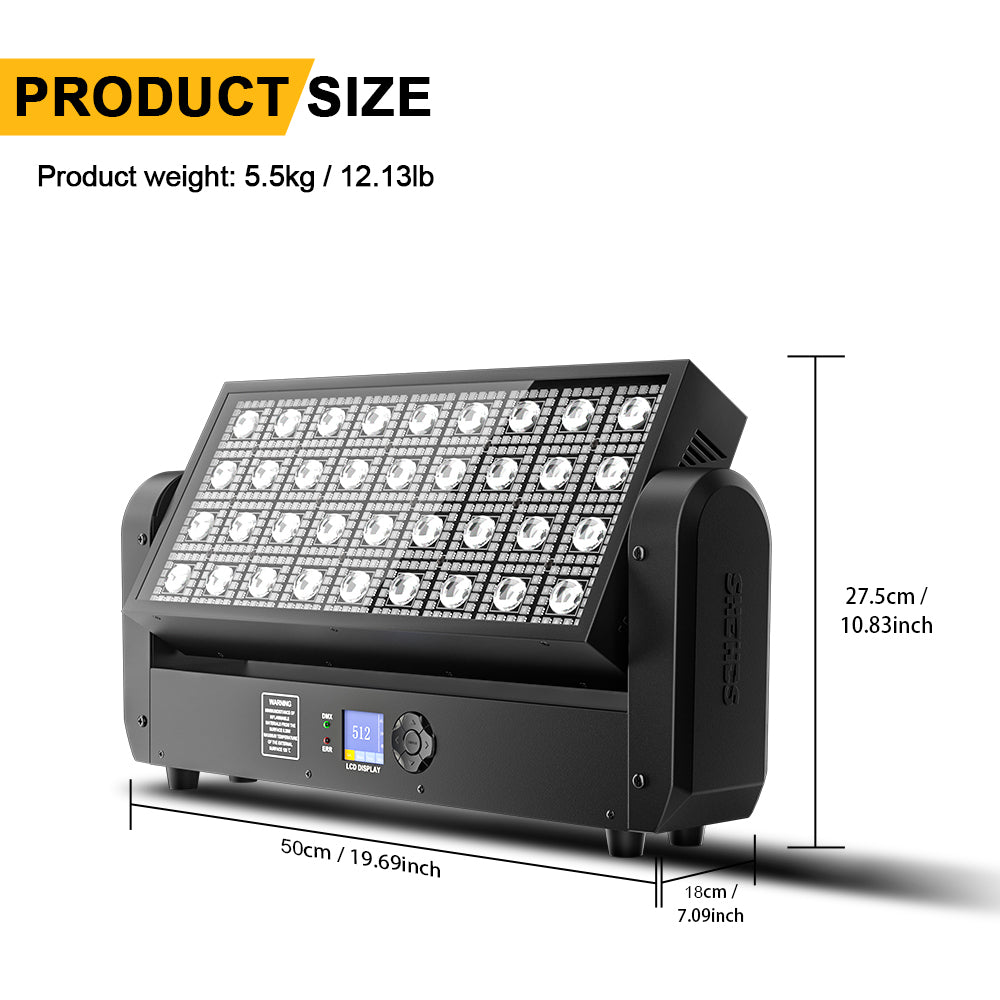

Product size：
50*18.3*27.5CM
Product size：
50*18.3*27.5CM
Product weight:
5.5KG
Package size:
58*16.5*33.7CM
Operating temperature:
-30 degrees to 40 degrees
Ingress protection rating:
IP20
Noise
Powered on: 47dB / Running: 50dB

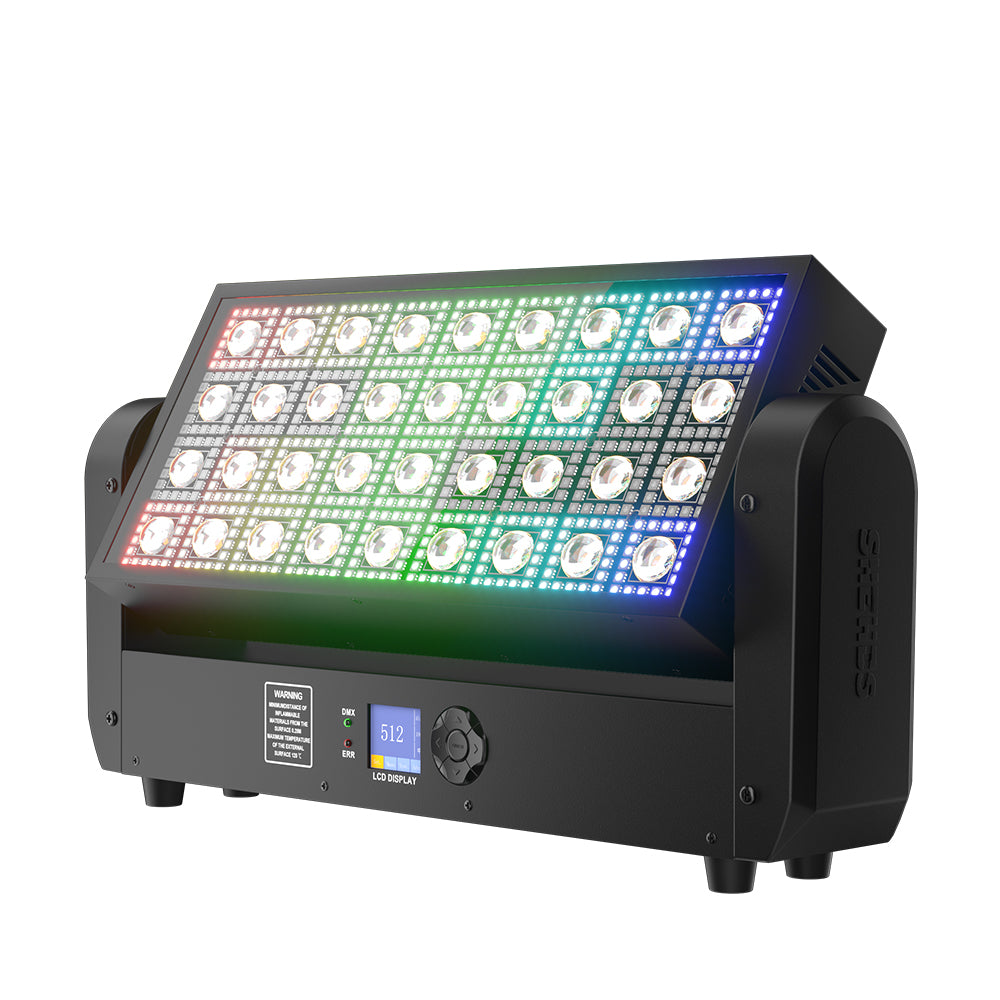

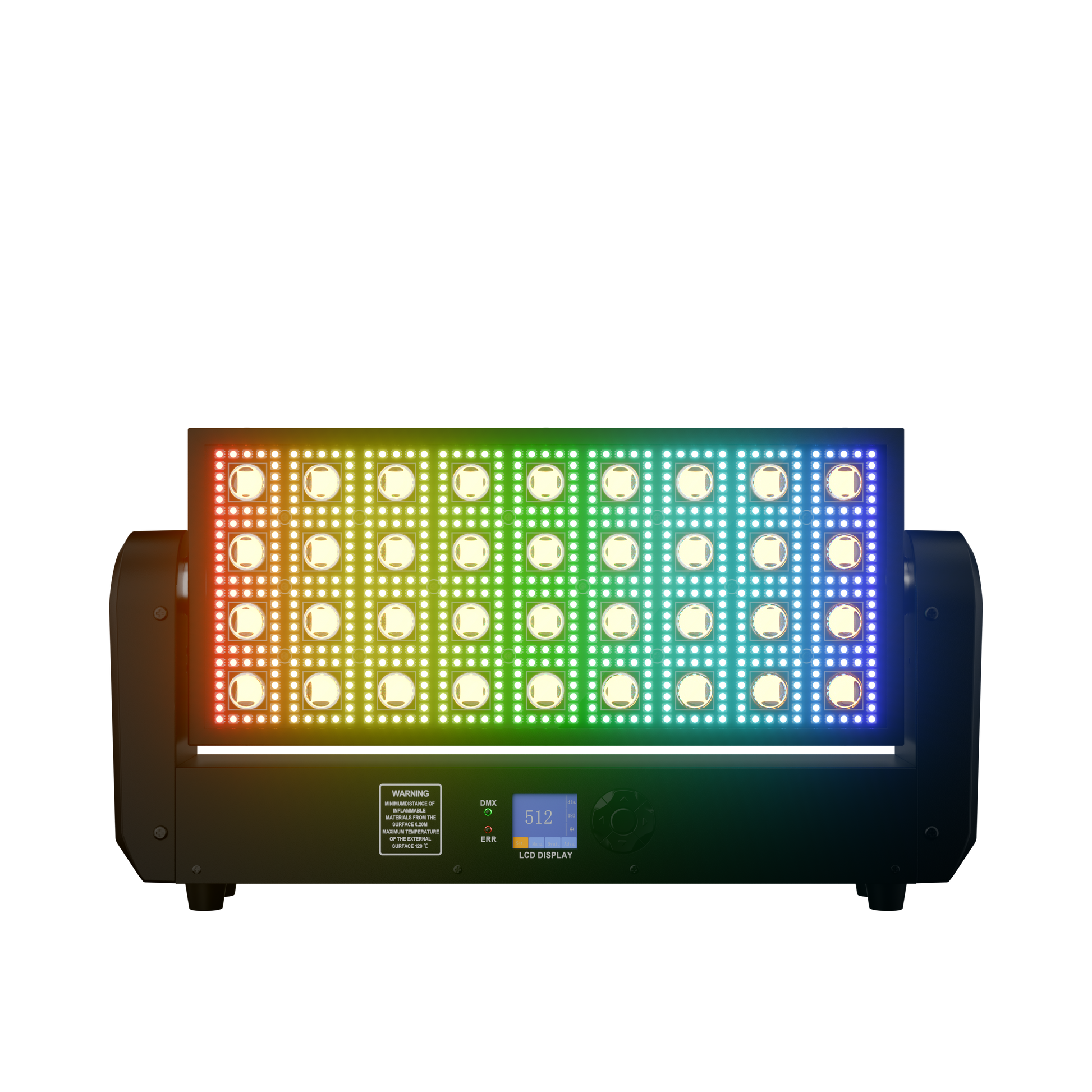

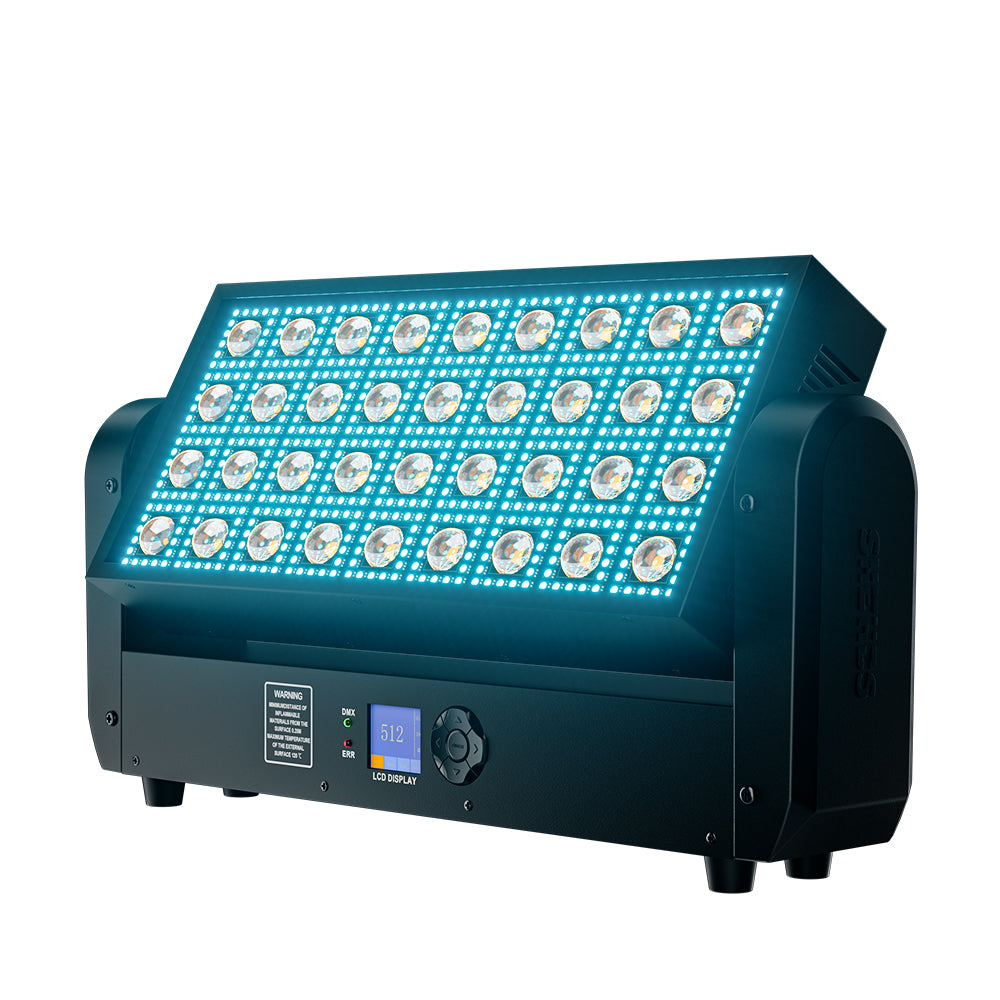

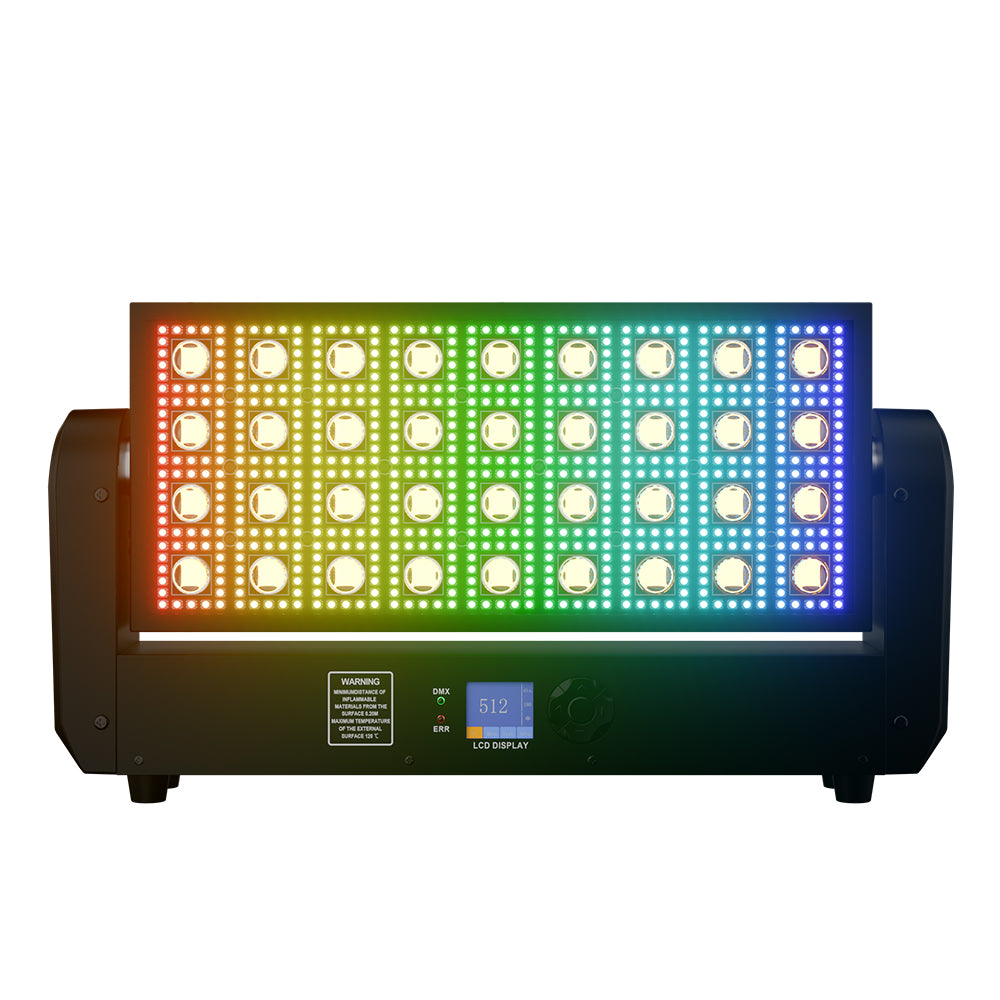

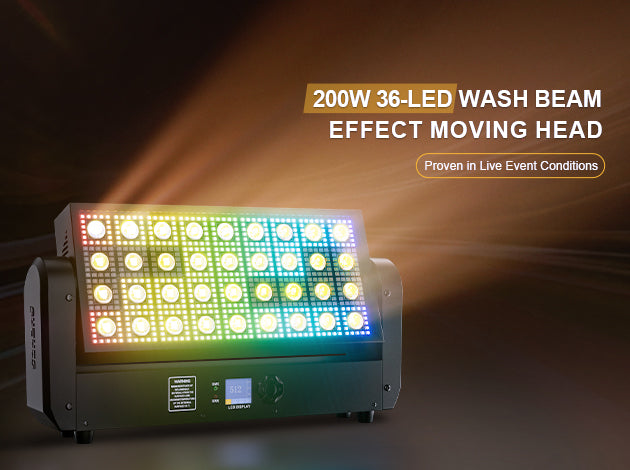

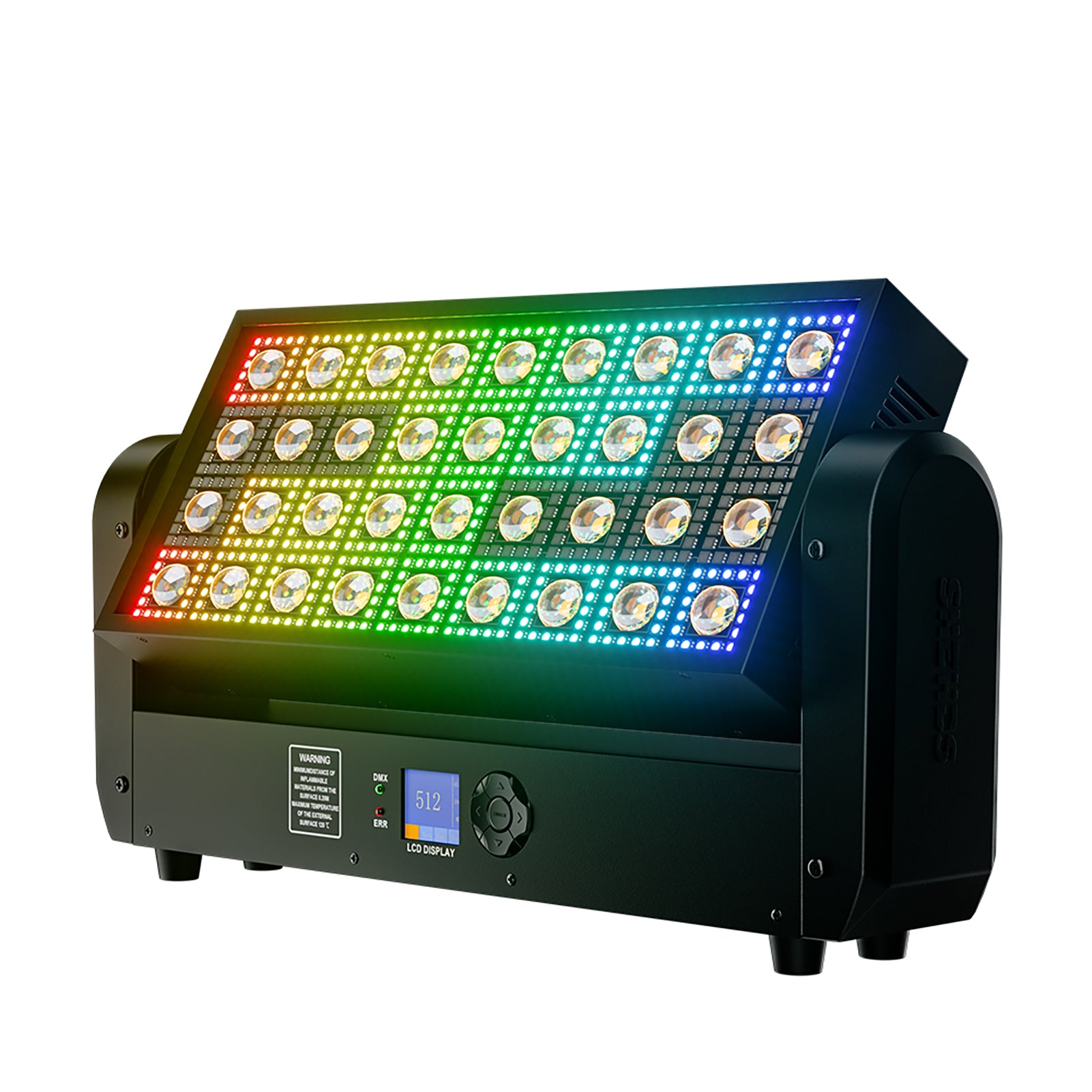

200W 36-LED Wash Beam Effect Moving Head
Compact powerhouse with RGB + White LEDs,
32-bit linear dimming, and DMX/RDM multi-mode control
Real Creators. Real Stage Impact.
See how influencers bring SHEHDS lighting to life--from unboxing to full performance setups. Trusted, tested, and ready for your next show.

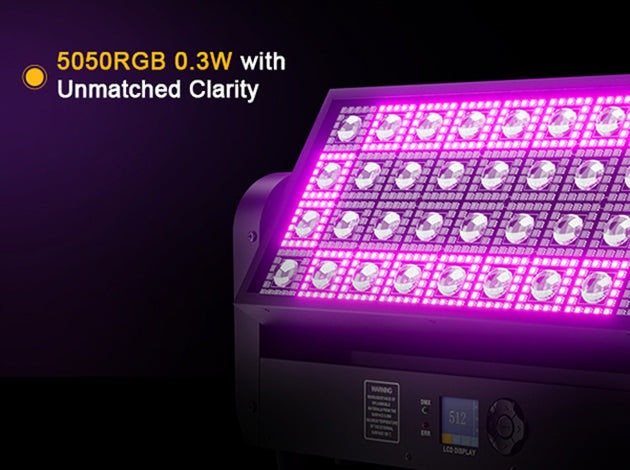

Pure RGB. Unmatched Clarity.
Powered by 5050 RGB 0.3W LEDs for vivid, sharp, and true-to-life colors.

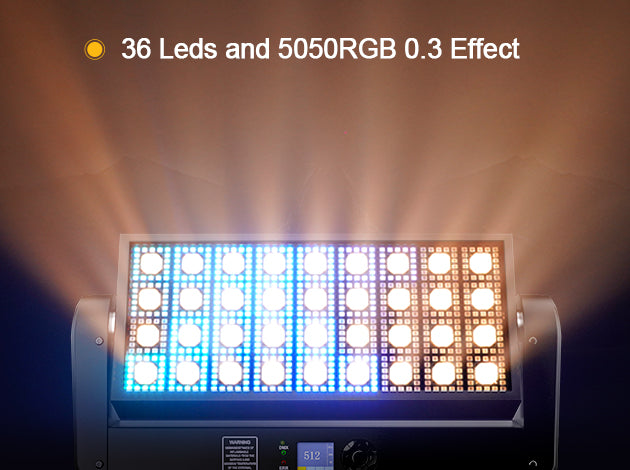

Brilliant Output from 36 RGB LEDs
Experience vivid color output and smooth, uniform lighting performance.
Dimmer : 32-bit 0 - 100% linear dimming
Brilliant Color Mixing for Every Event

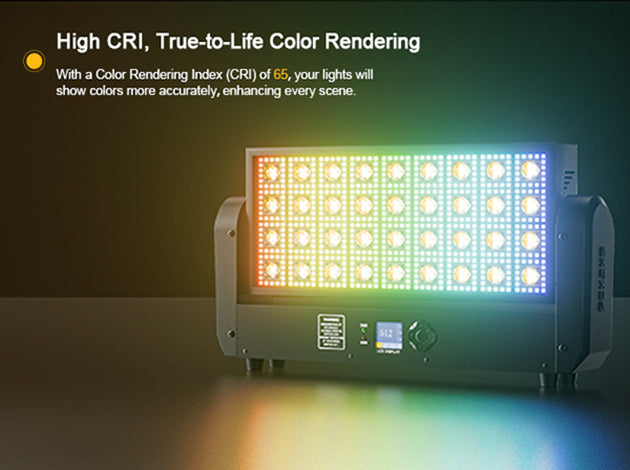

High CRI, True-to-Life Color Rendering
With a Color Rendering Index (CRI) of 65, your lights will show colors more accurately, enhancing every scene.
Marathon Effect
Ready to Perform
Built-in chase looks, perfect for DJs, bars, and parties with fast setup.

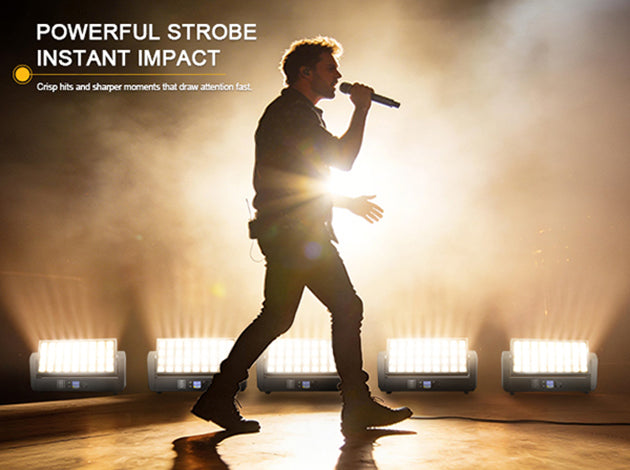

Powerful Strobe | Instant Impact
Crisp hits and sharper moments that draw attention fast.

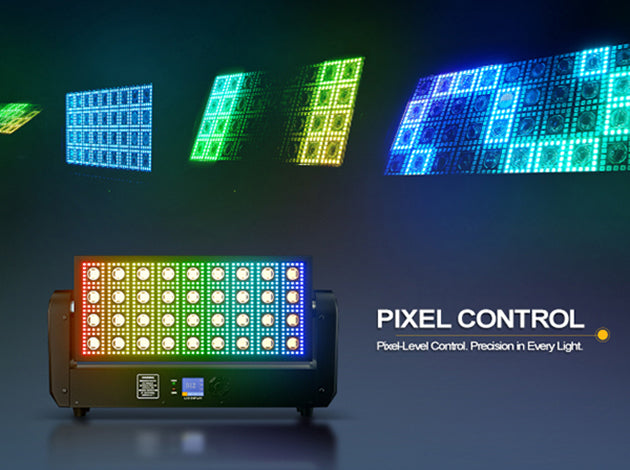

Pixel Control
Pixel-Level Control. Precision in Every Light.

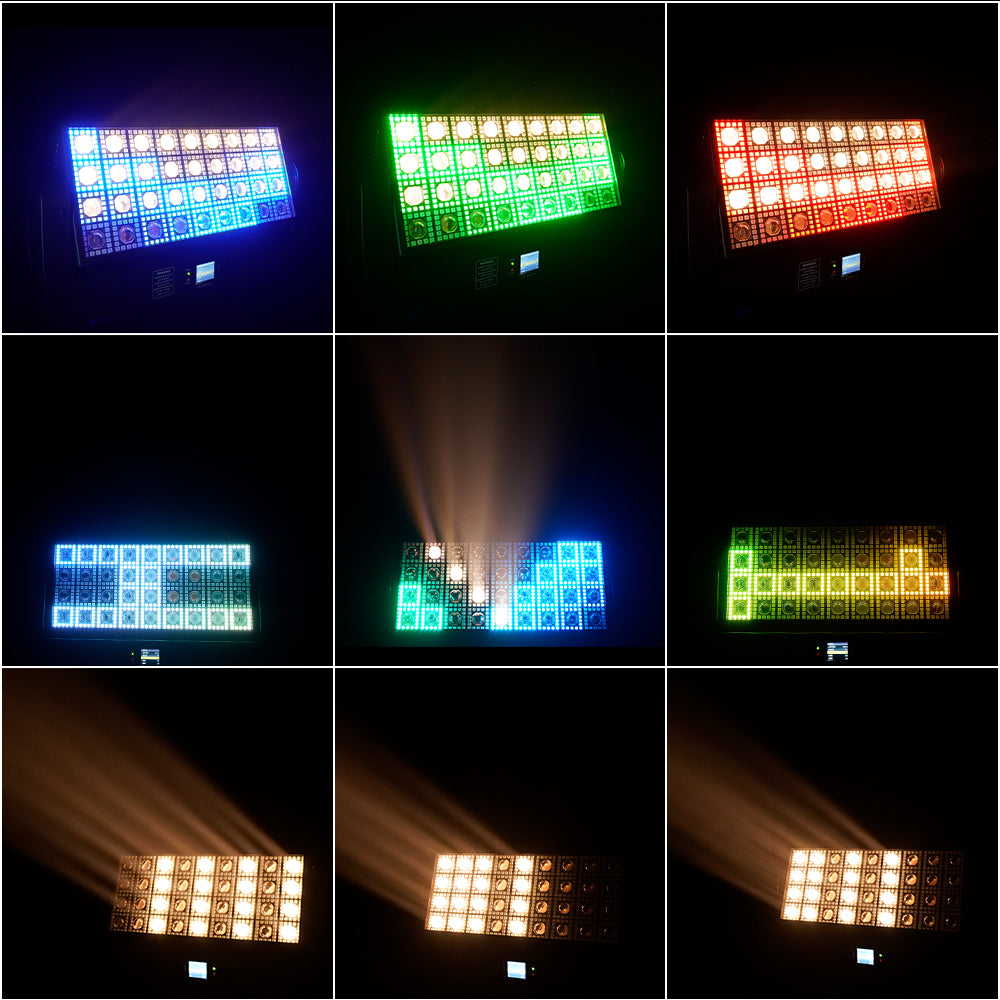

True Colors, Smooth Transitions
Natural shifts and clean changes for a more comfortable live look.
• Single color
• Mixed color
• Full wash
Designed for Professional Use
Ideal for DJs, events, and stage productions, offering unmatched performance in a compact, stylish package.

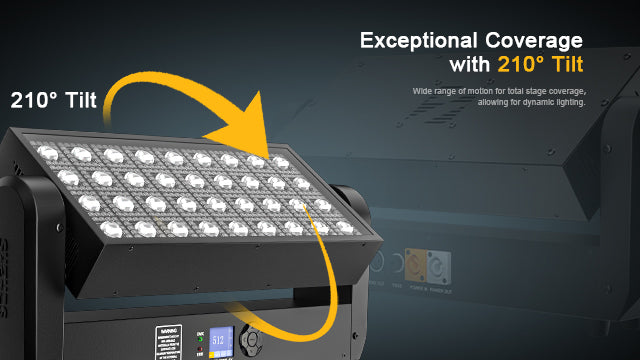

Exceptional Coverage with 210° Tilt
Wide range of motion for total stage coverage, allowing for dynamic lighting.

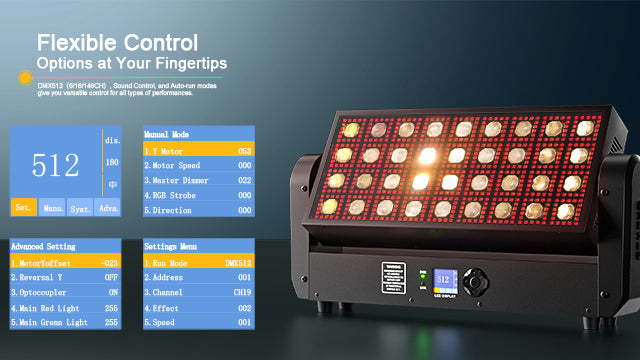

Flexible Control Options at Your Fingertips
DMX512（6/16/146CH）, Sound Control, and Auto-run modes give you versatile control for all types of performances.

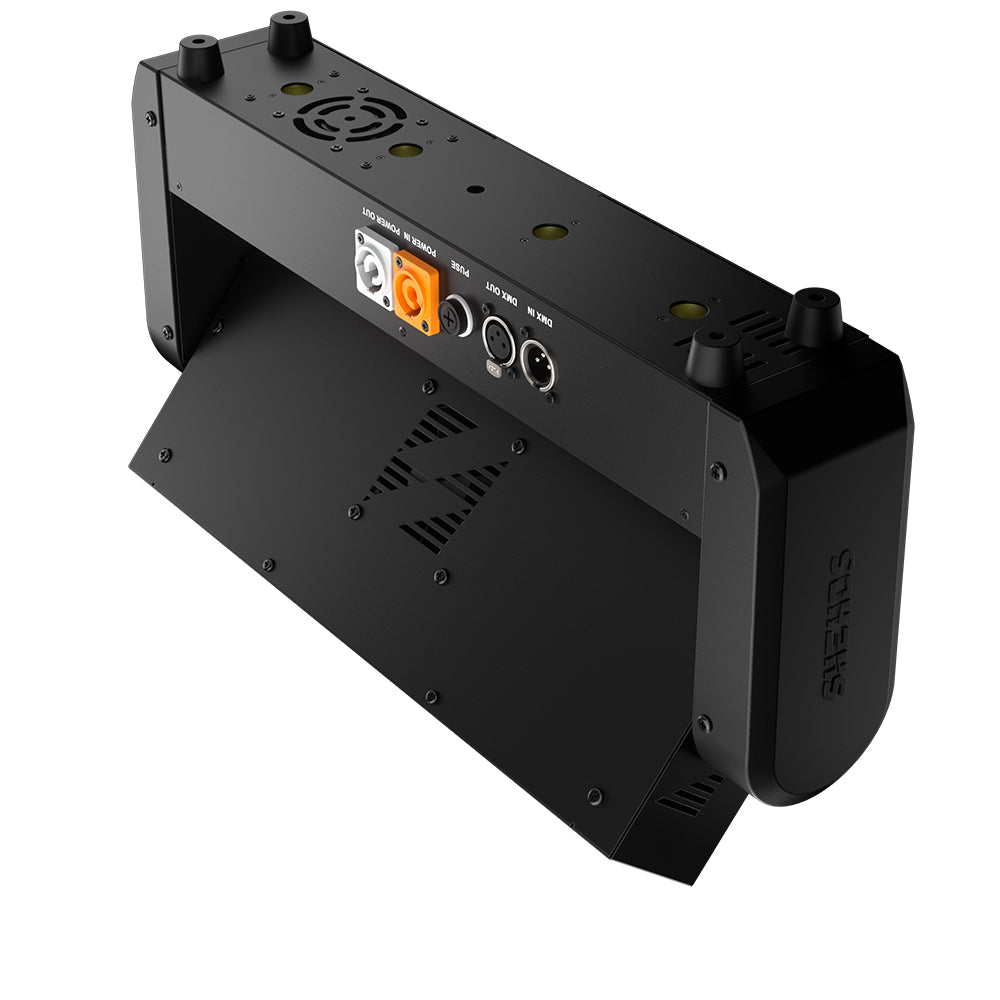

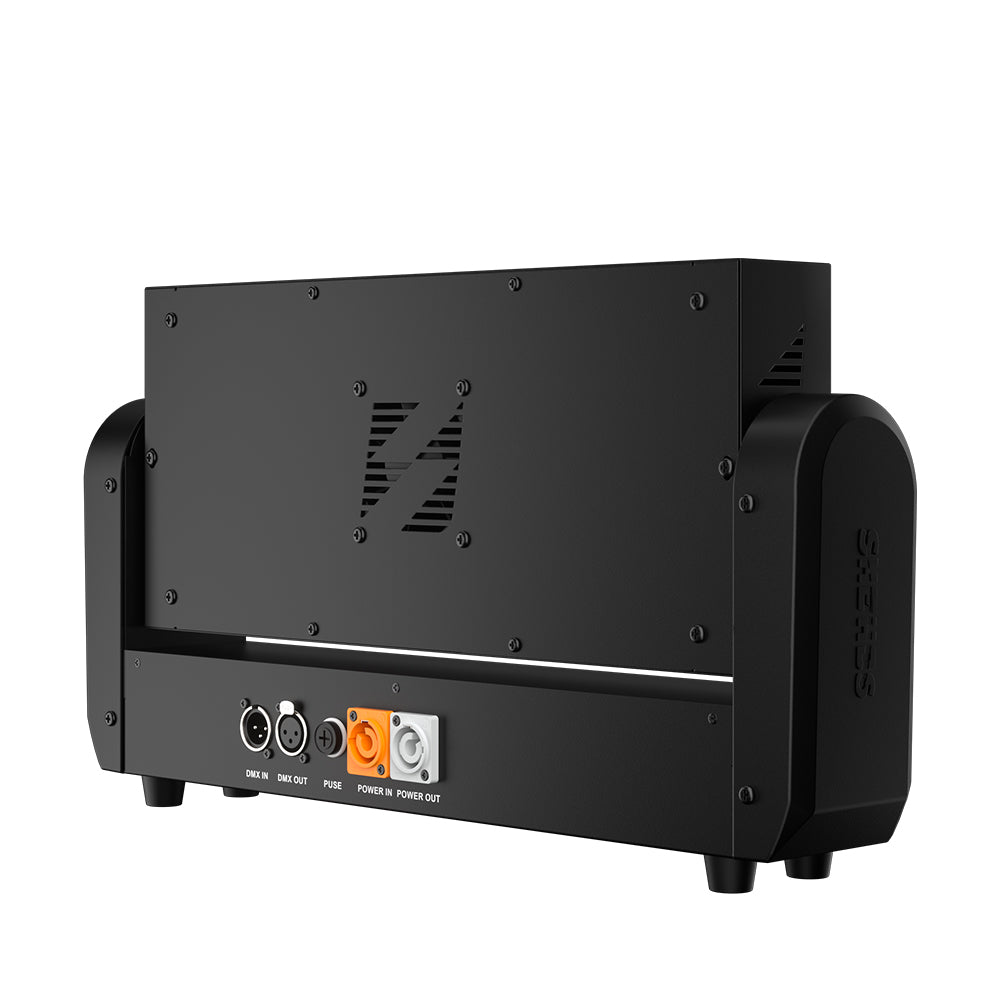

Rear View Close-Up
Designed for reliability, with intuitive controls and secure connectivity.

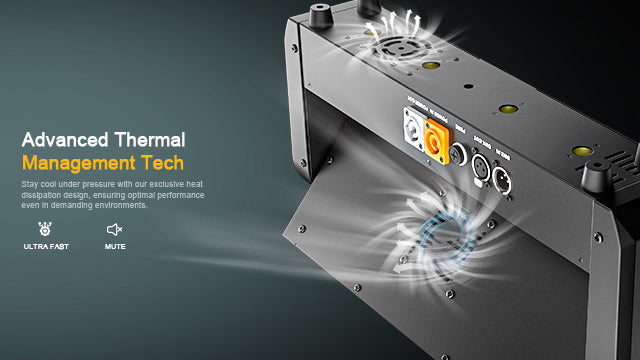

Advanced Thermal Management Tech
Stay cool under pressure with our exclusive heat dissipation design, ensuring optimal performance even in demanding environments.

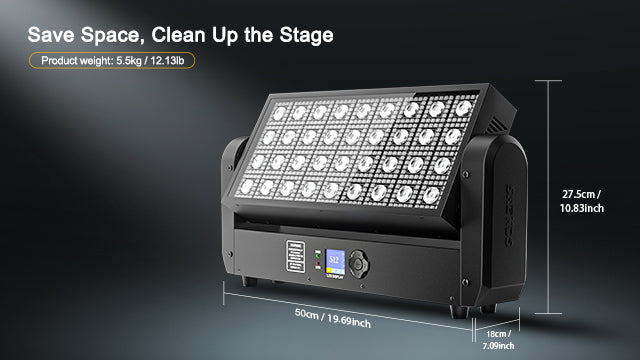

Save Space, Clean Up the Stage
Perfect for compact venues, DJ booths, and small stages.

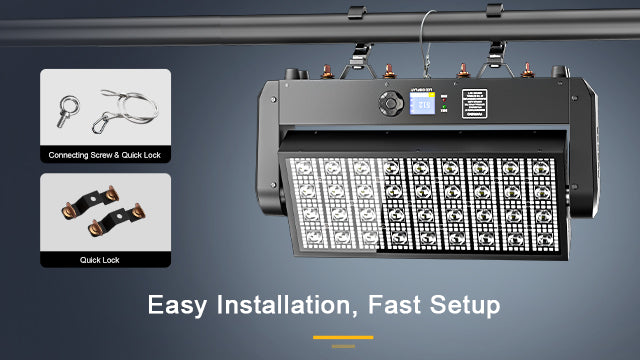

Easy Installation, Fast Setup
Quickly integrate with your lighting rig with the user-friendly design and flexible mounting options.

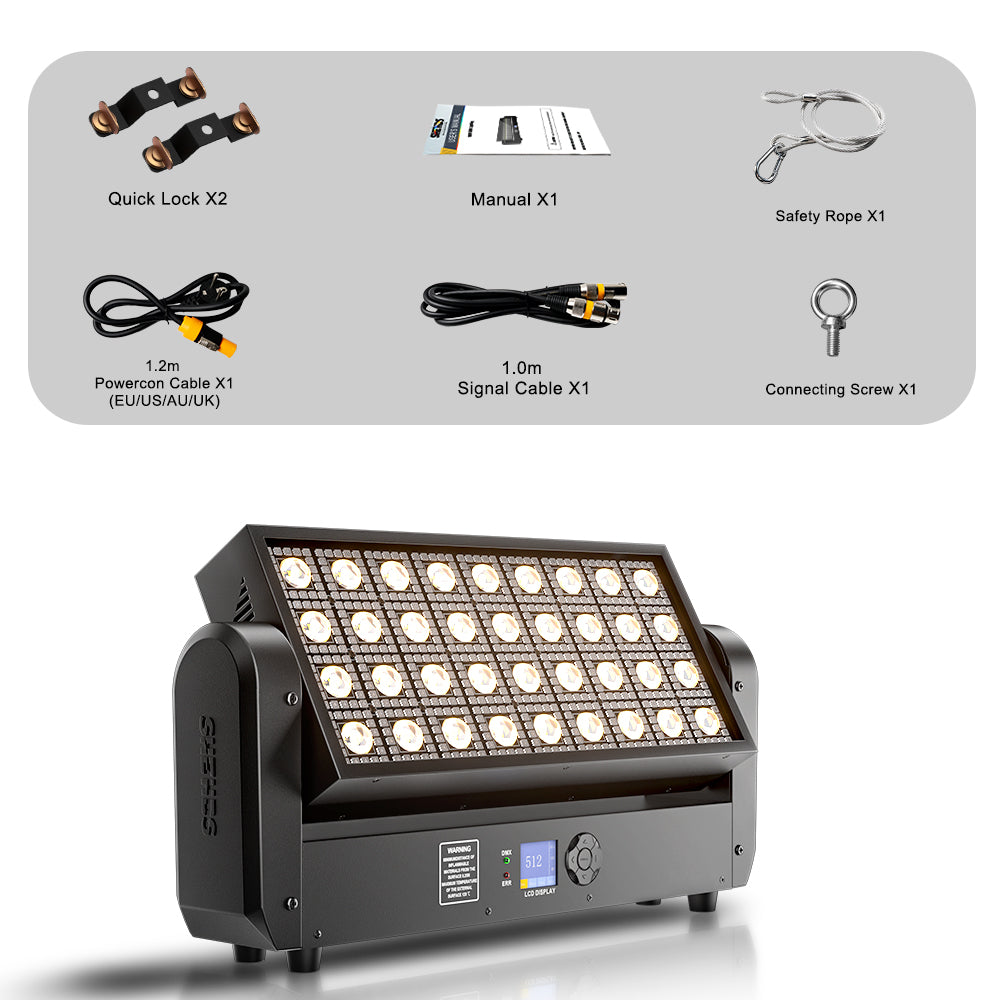

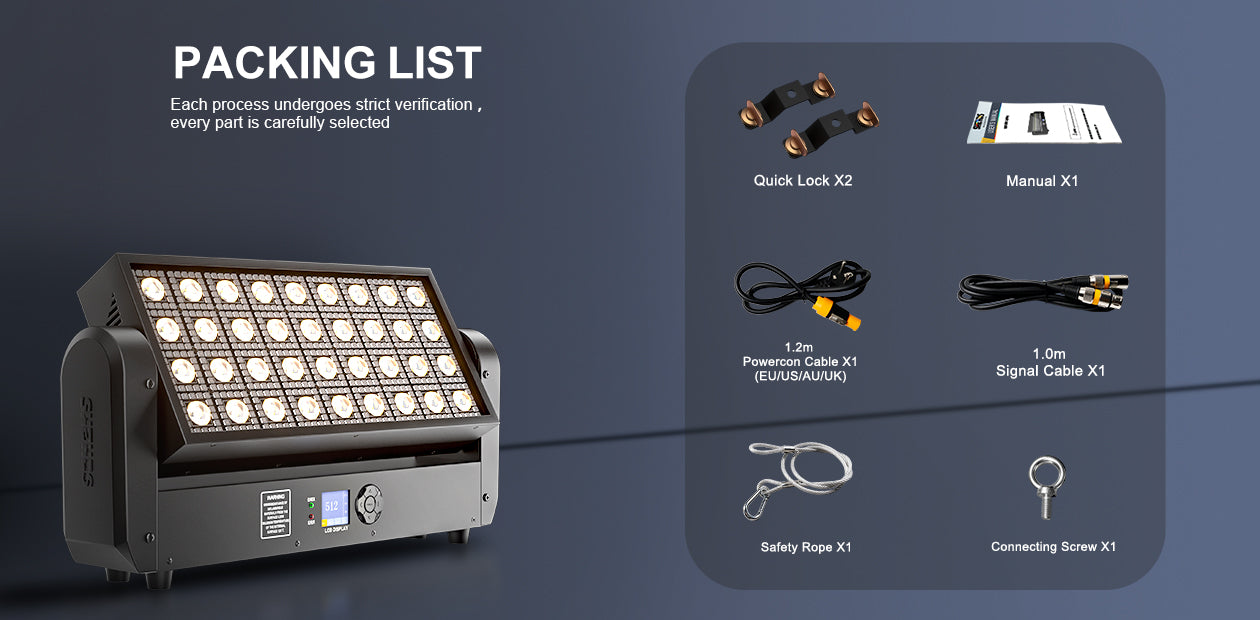

Packing List
Each process undergoes strict verificationEvery part is carefully selected

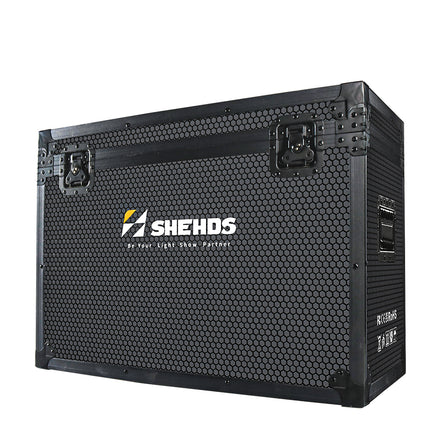

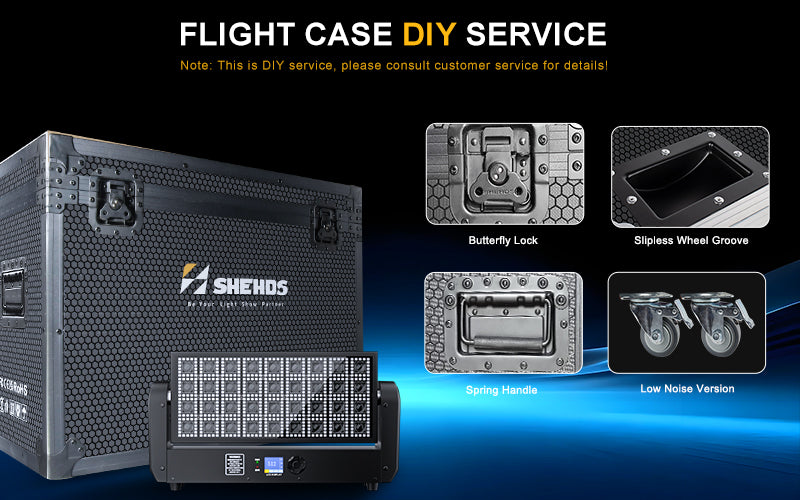

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
