Technical Parameter
Light source parameters
Dimmer
0-100% 16Bit mechanic
Light source
18x10W RGBWA UV 6in1 mixing
Beam Lux
3264 Lux / 2m
Beam angle
25° degrees
Strobe
Flash rate 0-25HZ
Color
RGBWA UV 6in1 mixing color
Security System
Safety Item
Over current and voltage protection
Degree Of Protection
IP65
Operating Temperature
-20℃~45℃
Interface And Control System
Control Interface
DMX In/Out
DMX Channel
12/108/120 CH
Power Interface
Neutrik PowerCon
Cooling System
Cooling Method
Passive heat dissipation
Power Consumption
Working Power
100-240V，50/60Hz
Physical Parameters
Material
Aluminum alloy
Product Size
104cmx9.5cmx11.4cm
Product Weight
4.9 kg
Package Size
109cm*15cm*17.5cm
Package Weight
0.48kg

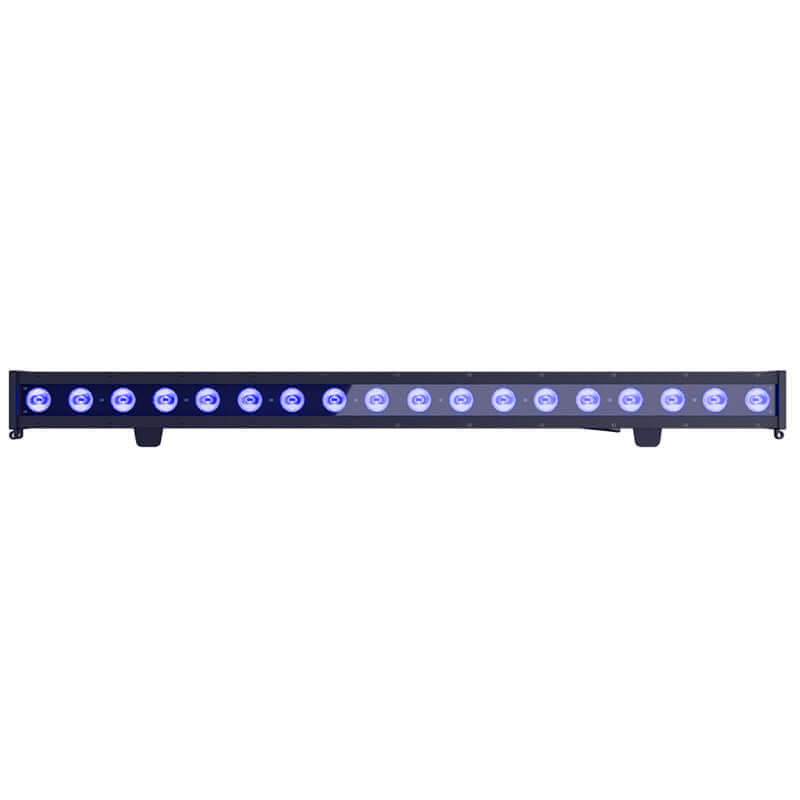

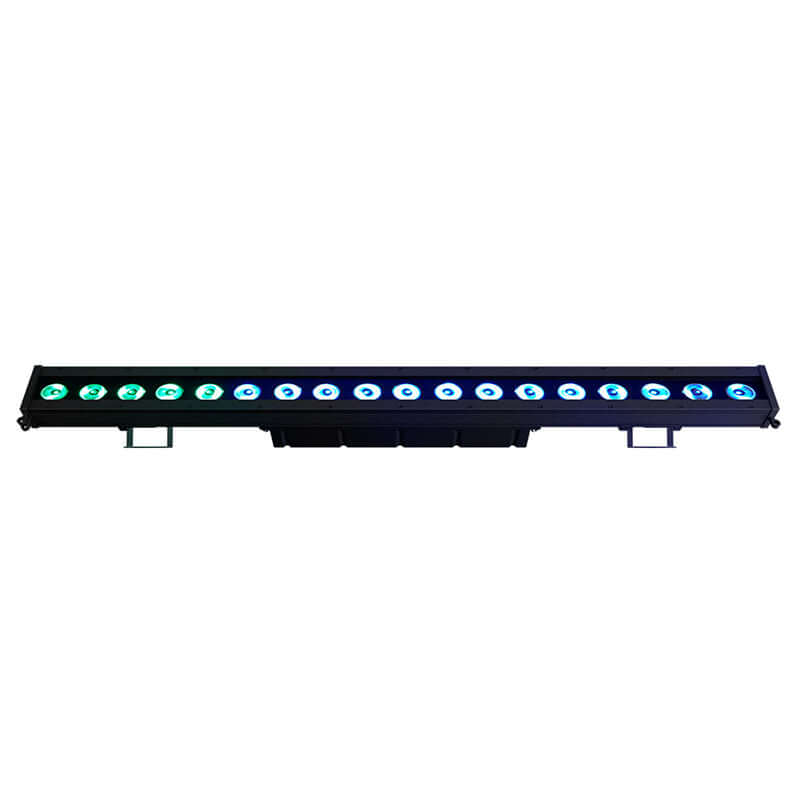

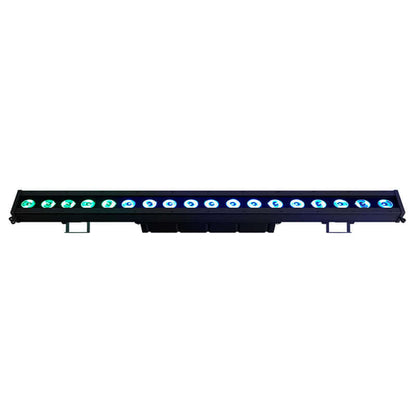

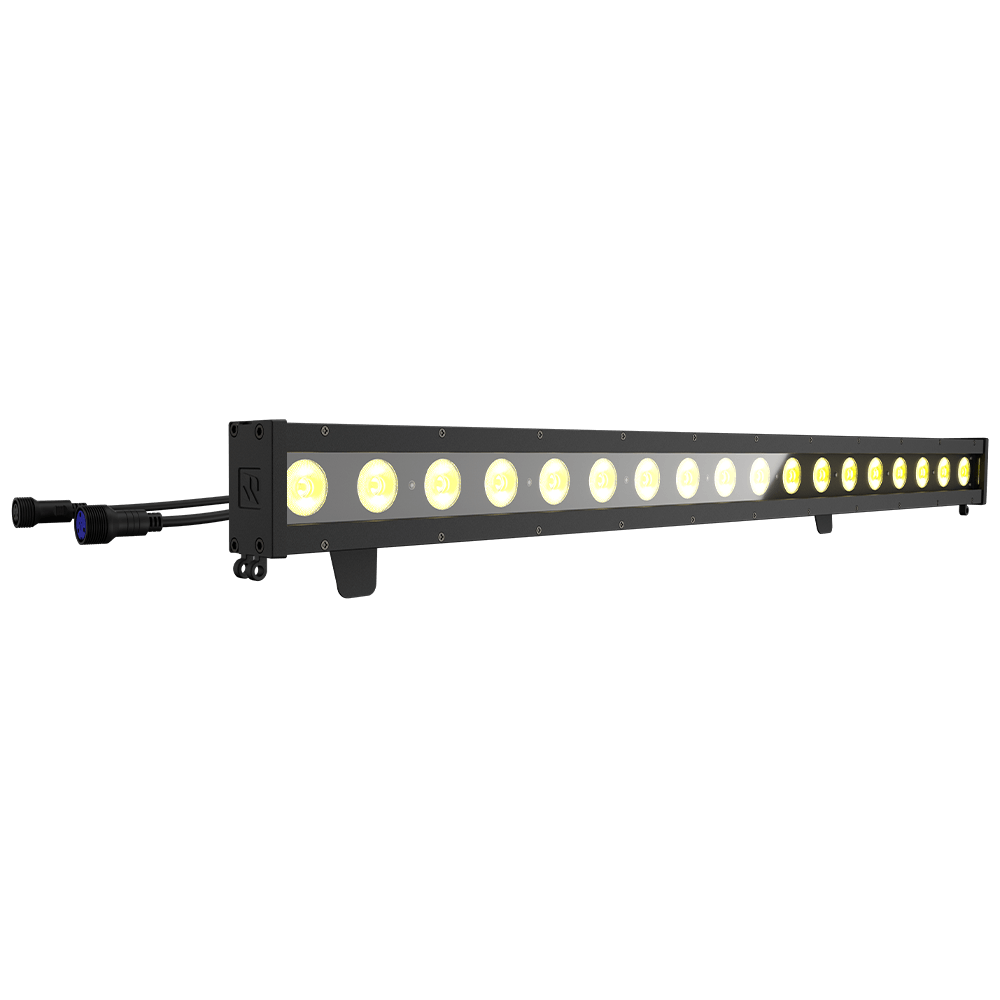

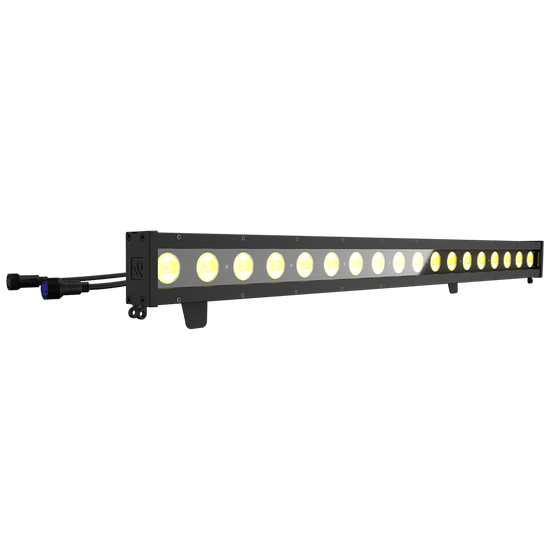

LED 18x10W RGBWA UV / RGBWLAC 6in1 Wash Wall Light
A new type of freely spliced wall washing lamp independently developed by SHEHDS, with a light source composed of 18x10W LED,
The linearly adjustable color temperature of RGBWA UV / RGBLAC creates the most realistic stage scene environment,
Bringing a strong visual impact to the performance.
Product Features
With excellent performance and user-friendly design, we will become your powerful assistant in stage lighting.

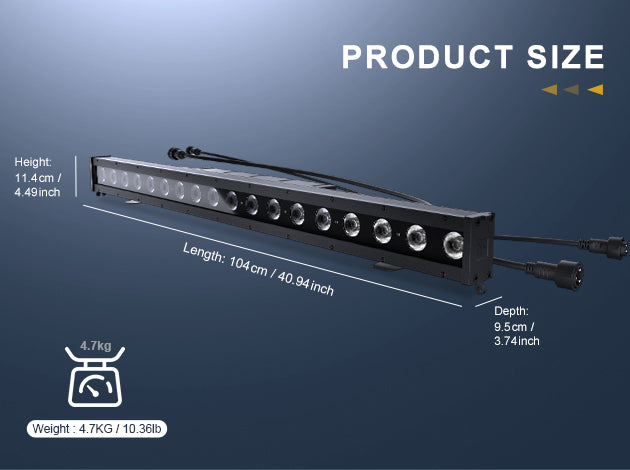

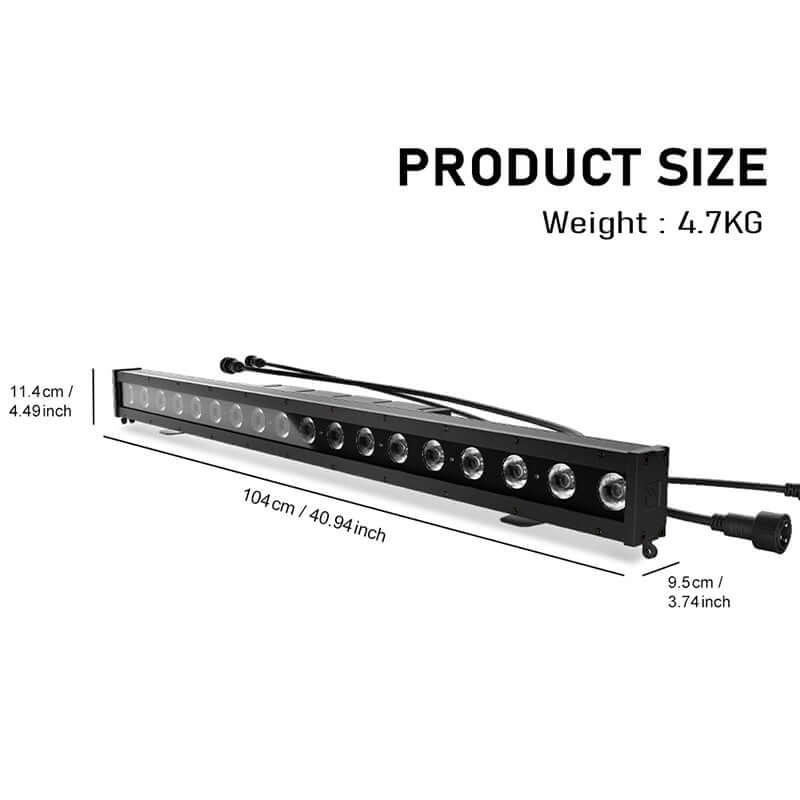

Product Size
Package Size 104.5cm x 12cm x 17cm
Package Weight 6.5kg

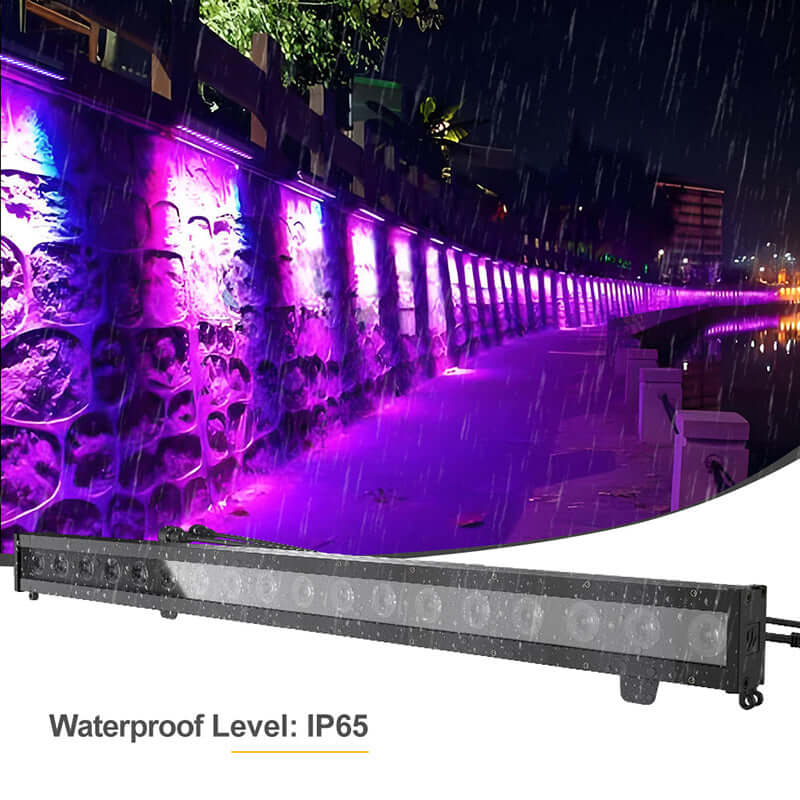

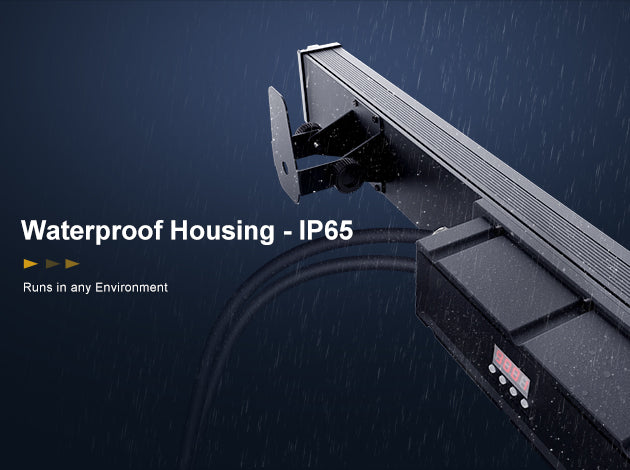

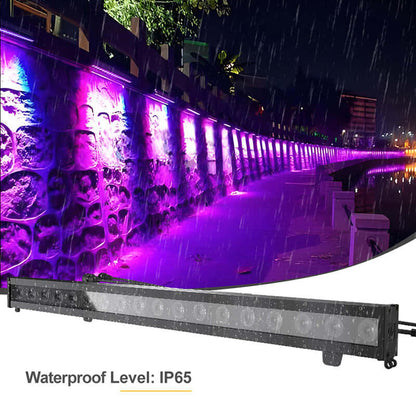

Waterproof performance
Through rigorous laboratory testing, it can work continuously in environments ranging from -20 ℃ to 50 ℃ and adapt to different climatic conditions in the north and south.Whether the outdoor music festival encounters rainstorm or the humid environment near the bar fountain, the lights can operate stably.

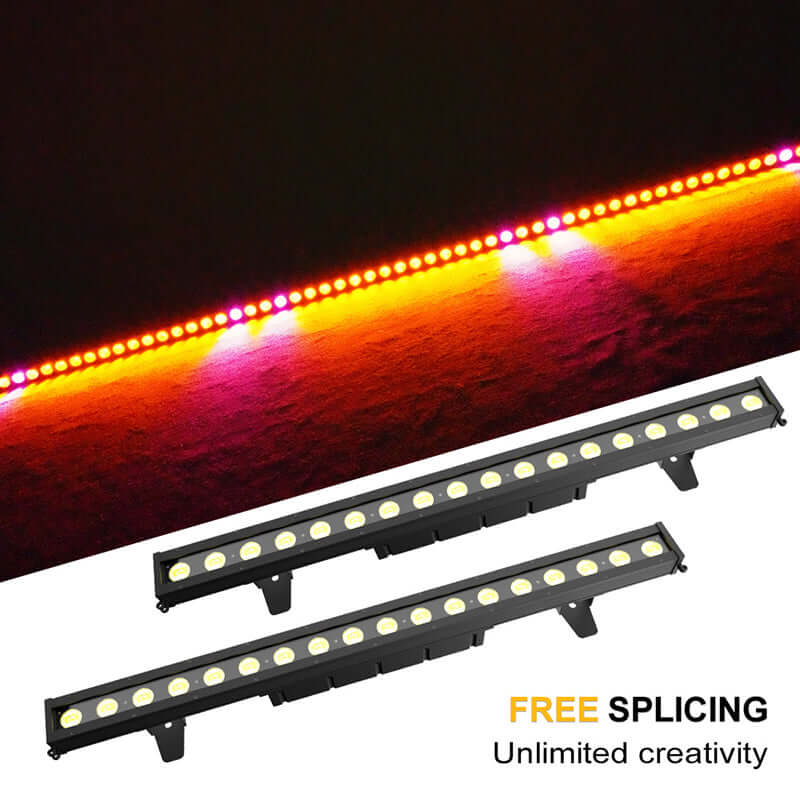

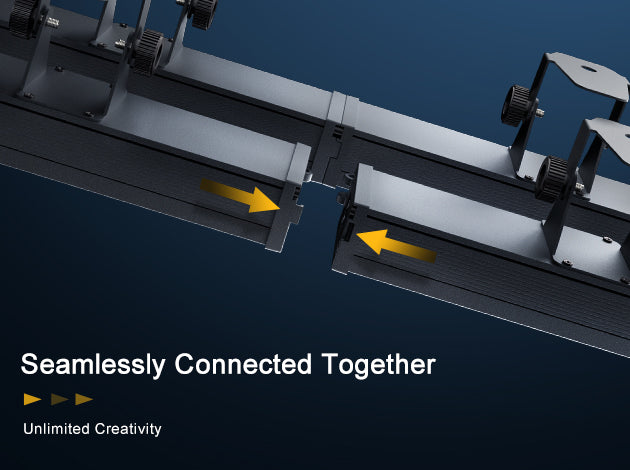

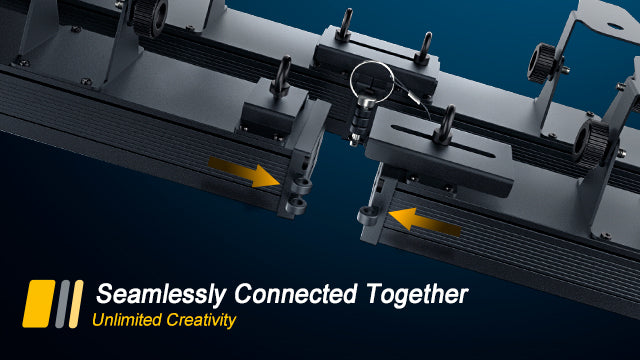

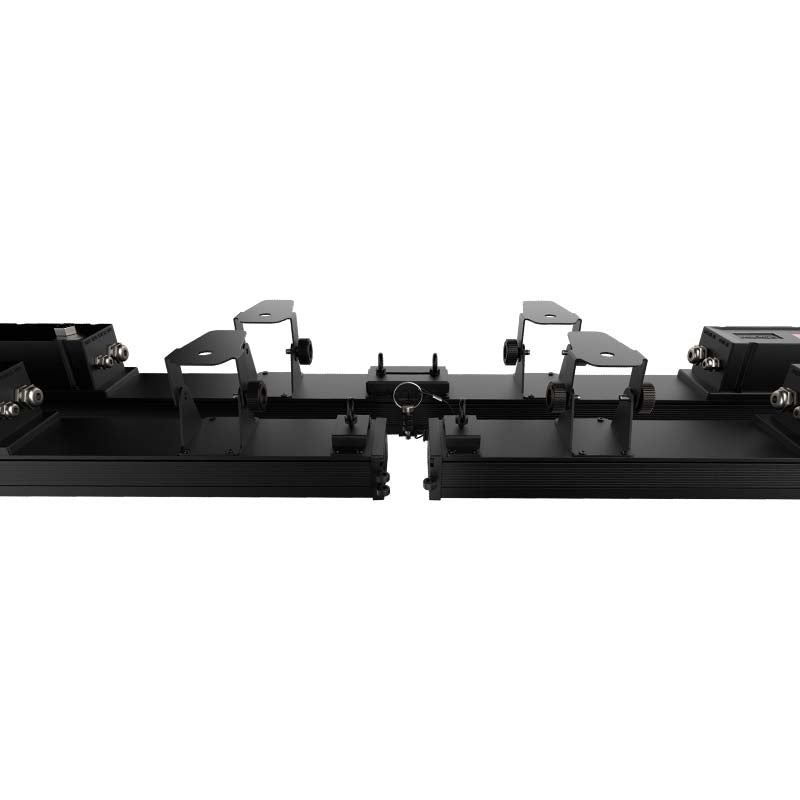

Free Splicing, Unlimited Creativity
The stage wall washing lamp supports horizontal or vertical splicing installation, making it more convenient for you to arrange the stage.
Whether it's a large theater or a small performance, you can easily handle it and create the ideal light and shadow effect in your mind.

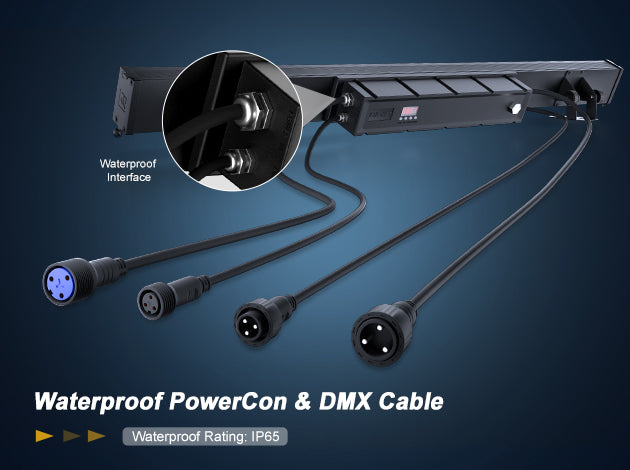

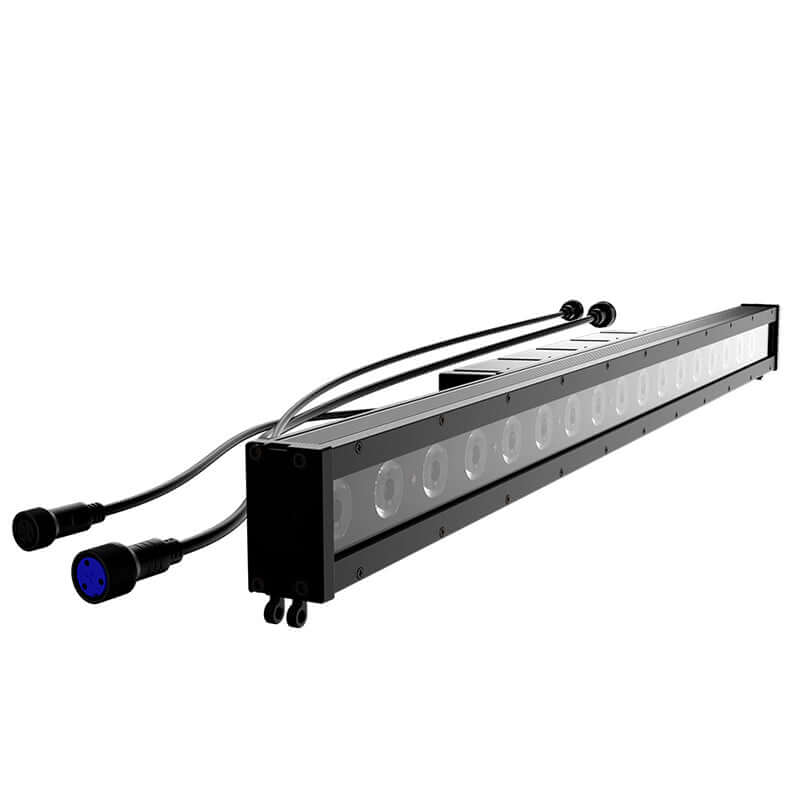

Waterproof Power Cord & Signal Line
IP65 waterproof rating ensures stable operation both outdoors and underwater

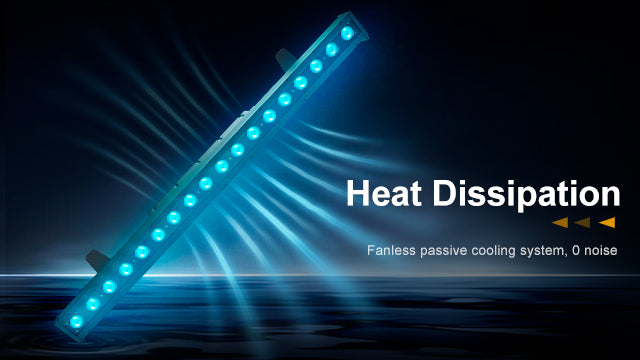

0 Noise Heat Dissipation
Aviation aluminum fin type heat dissipation structure, fanless passive heat dissipation, achieving zero noise operation and long service life! Eliminate fan noise interference in the original sound performance.

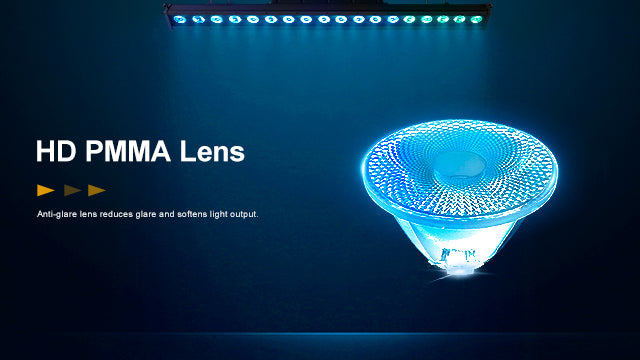

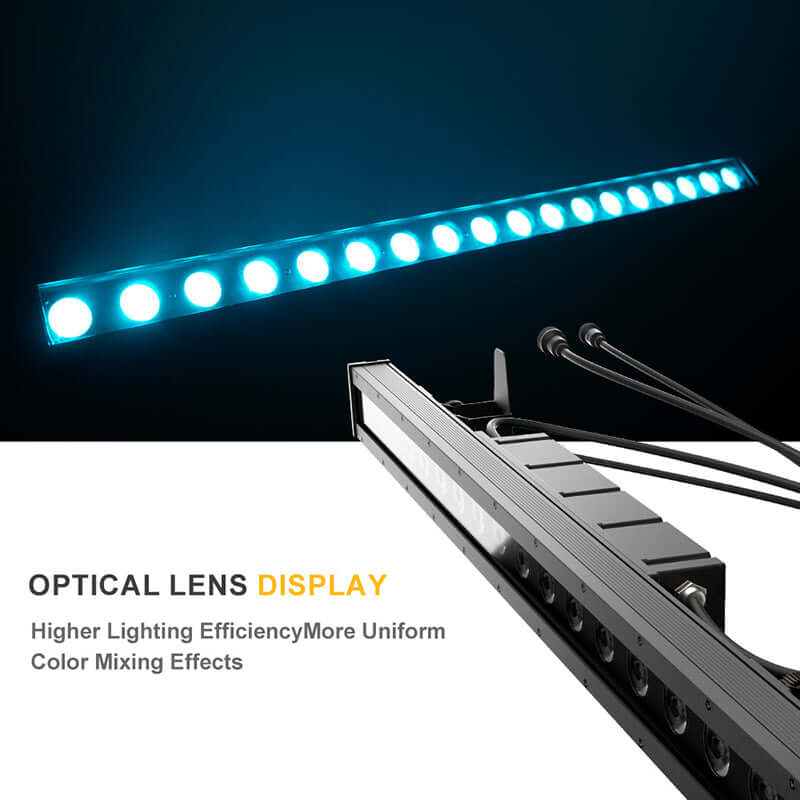

Optical Lens Display
Adopting customized PMMA acrylic material lenses to achieve a 98% reflectivity and higher lighting efficiency More uniform color mixing effect

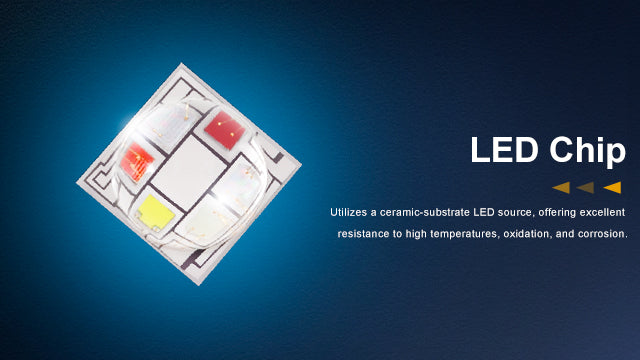

LED Light Source
Using ceramic substrate LED Source, Has properties such as high temperature resistance, oxidation resistance, and corrosion resistance So as to adapt to different lighting environments and customer needs.

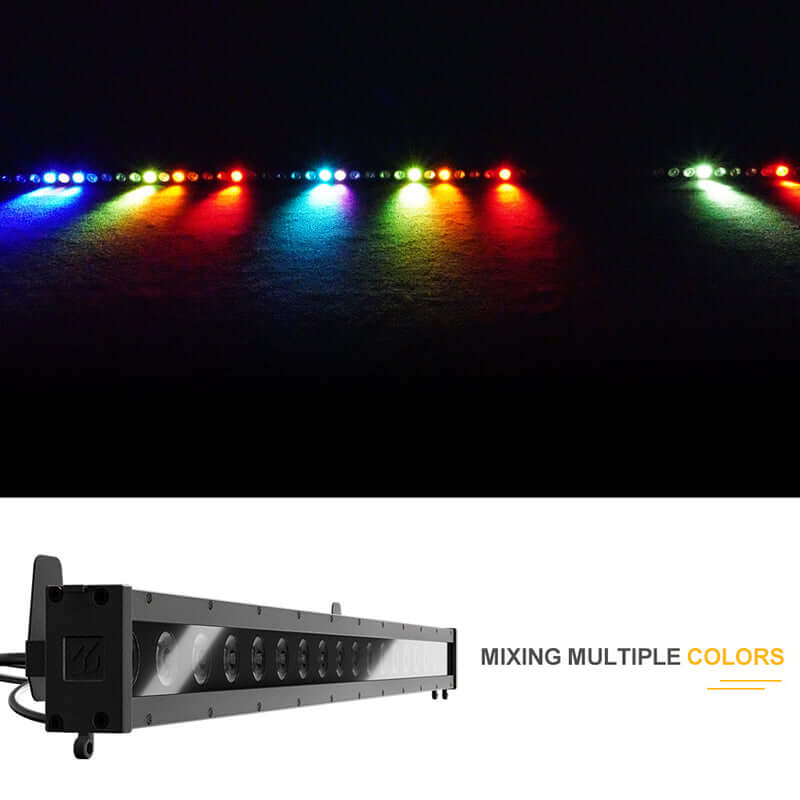

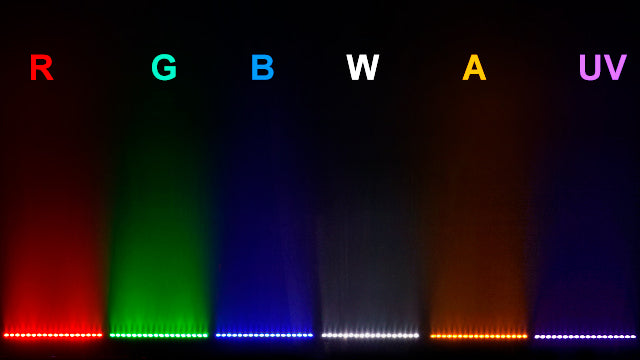

RGBWA UV 6in1 Color Mixing
Different colors of light can gradually transition or quickly switch over time, creating dynamic visual effects. Not only does it add color and vitality to the stage, but it also brings us a brand new visual world.
RGBWLAC 7in1 Color Mixing
Both lights have rich color effects and can be used in any environment

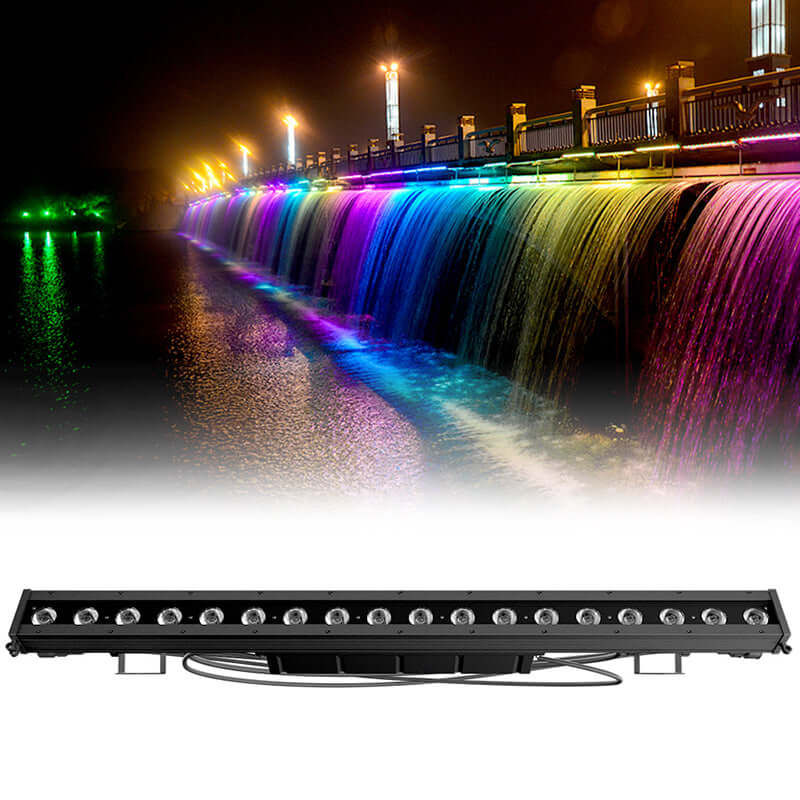

Applicable Scene
Both lamps have waterproof effect, with a waterproof rating of IP65，Whether the outdoor encounters rainstorm or the humid environment near the bar fountain, the lights can operate stably.

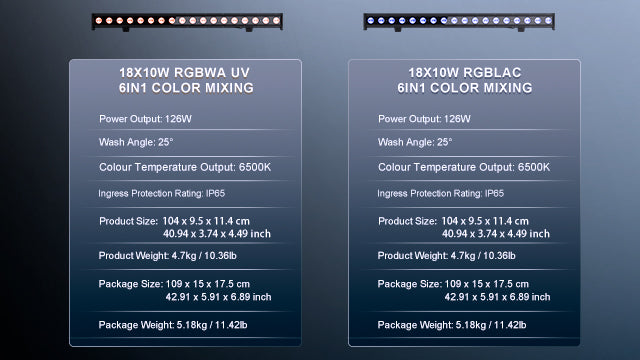

Parameter comparison
LED 18x6W RGBWA UV 6in1 Wash Wall Light LED 18x6W RGBWLAC 6in1 Wash Wall Light Both lamps have waterproof effect and support indoor and outdoor use. They have rich color mixing effects and are suitable for any scene
Applicable Scene

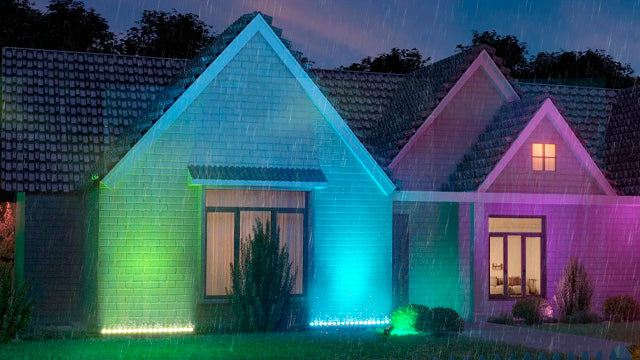

Stage performances - background lighting effects for dramas, dances, and concerts to enhance visual depth; Commercial space - retro themed decorative lighting for bars, restaurants, and cafes; Outdoor landscape - gardens, building facades, and night scenes of swimming pool areas illuminated;

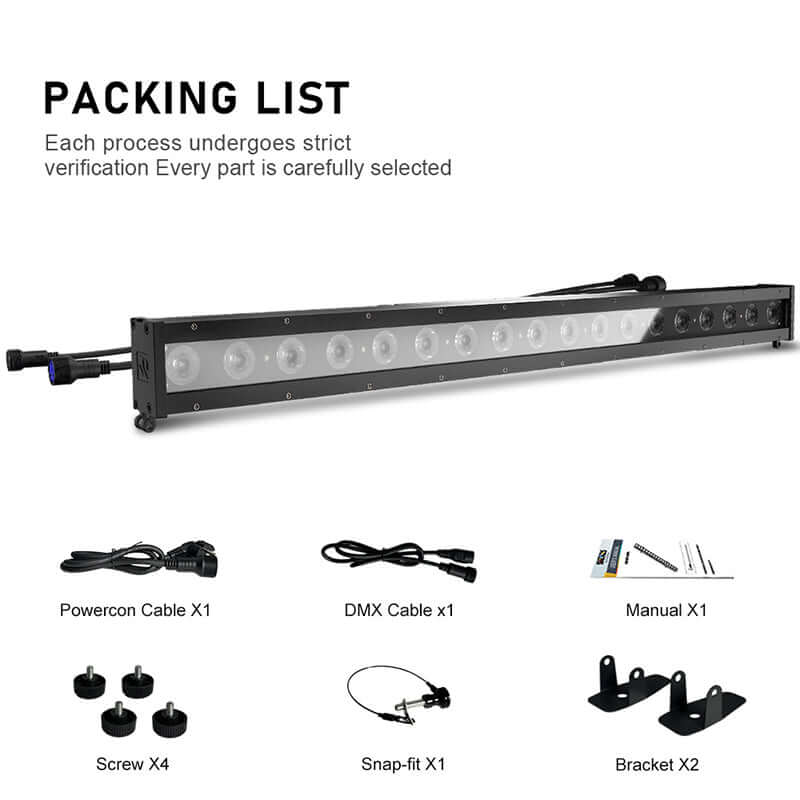

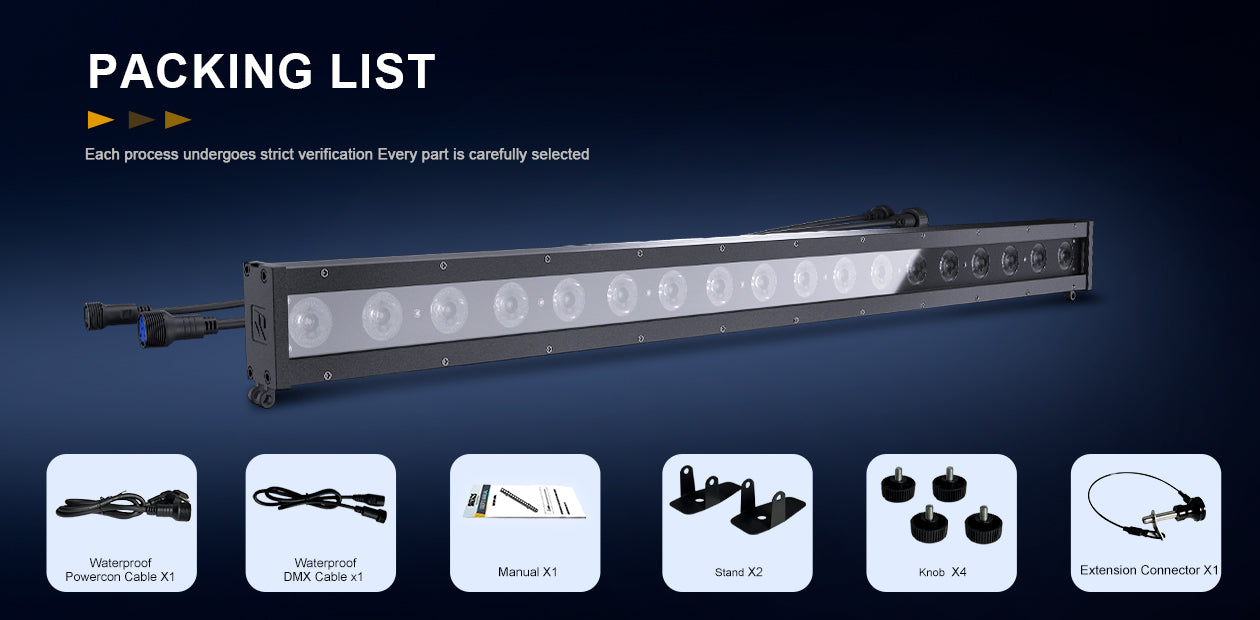

Packing List
Each process undergoes strict verificationEvery part is carefully selected

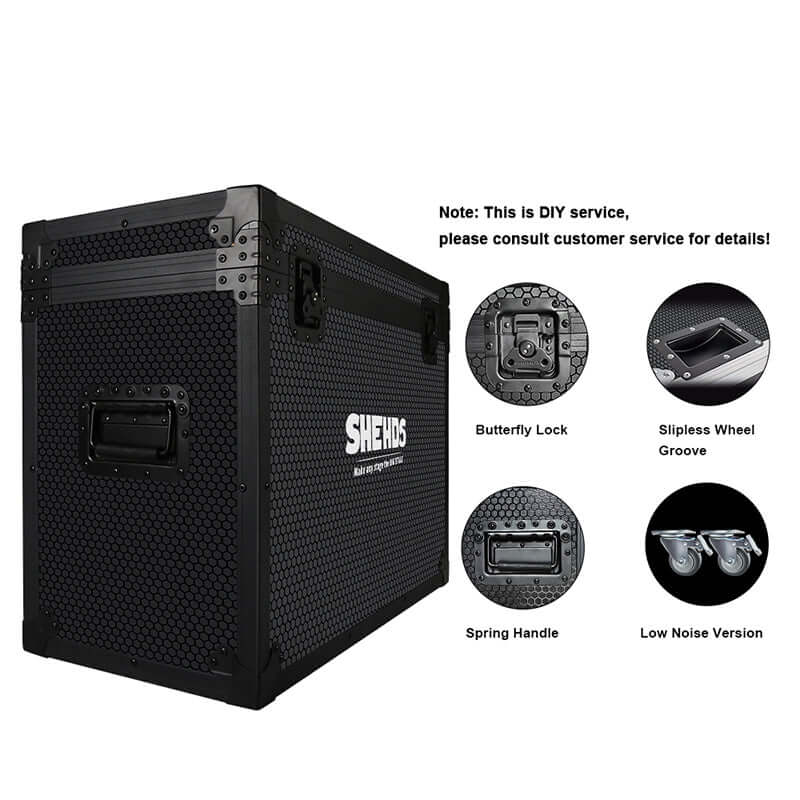

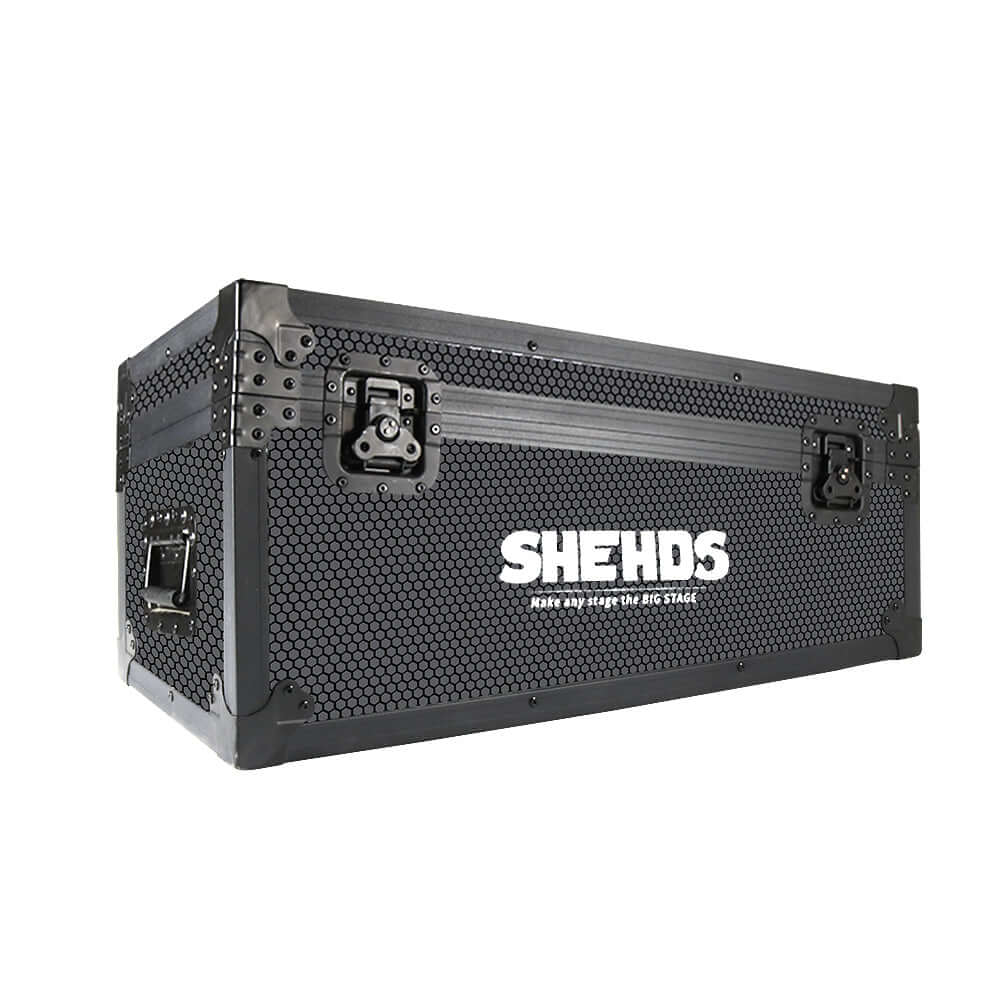

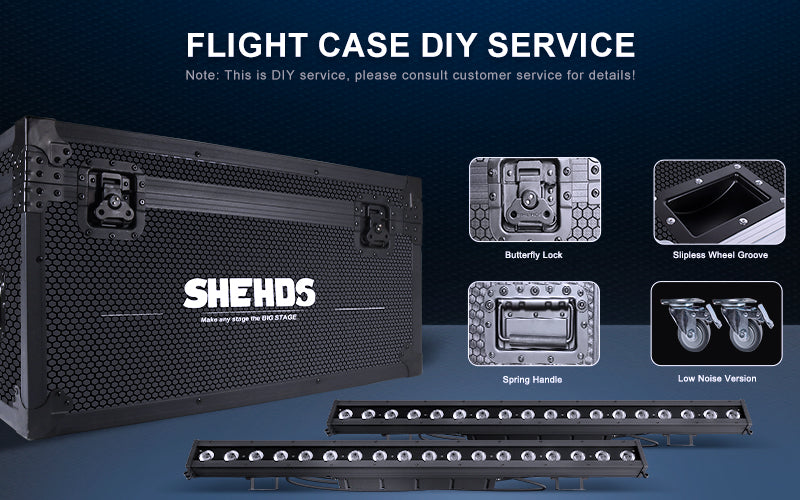

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
