Technical Parameter
-Electrical Specification and Connections
Power supply：
AC90--275V,50--60HZ
Power Rate:
160W
Lights Source:
160W LED
DMX channle:
17 CH
Pan/Tilt:
P:540°T:190°
Beam Angle:
Linear zoom 10-20 Degrees
Dimmer:
0-100% linear dimmer
Control mode:
DMX512、Master&Slave、Macro、Sound control
Gobo Rot wheel:
6 pcs + open and rotation
Color wheel:
9 pcs +open
Prism Rot:
6 face prism and rotating
Effect:
Frost wash
Function:
RDM、Intelligent temperature controlDMX monitor、 Manual control
Net Weight:
7.5 kg
Gross Weight:
8.95 kg
Product Size:
27x35x21 cm
Packing Size:
48x32x29 cm

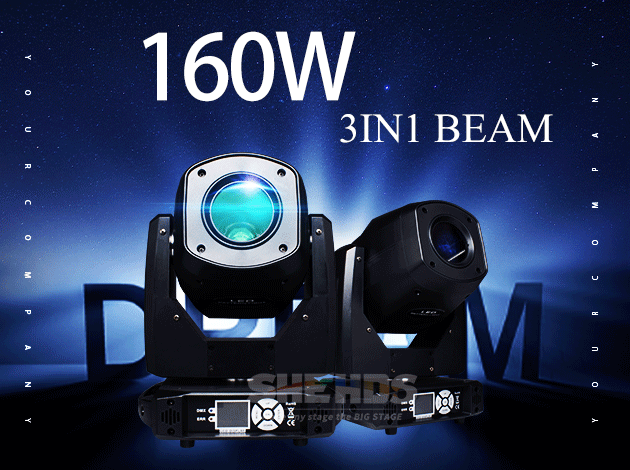

160W
3in1 Beam
GOBO-Wash-beamMoving head light
Speaking Vehicles With Four-Wheel Drive
Are Commonly Referred To As Cars

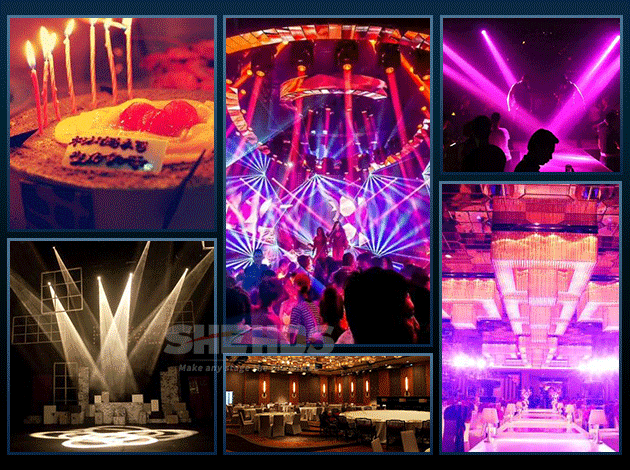

Stage Effects
Birthday Party/Theater/Wedding Hall
Concert/Bar Dance Hall/Hotel Decoration

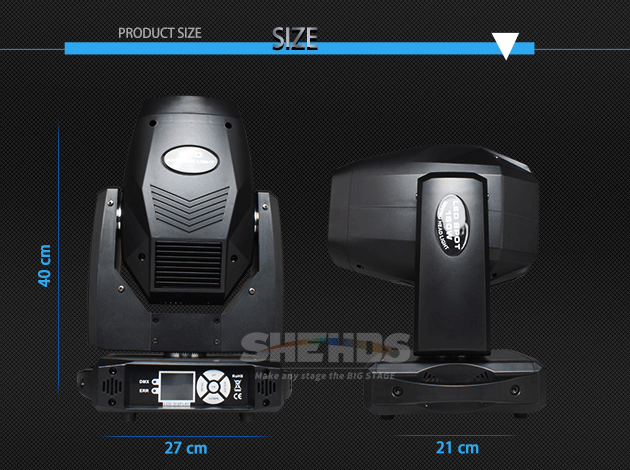

Details of Parameters
Product size：27x35x21 cm
Product weight: 7.5 kg
Product Features
The features on the left
are the advantages of the product
High saturation
color wheel
Half-color effect / Linear rotation
Full Color Professional Stage Par Lamp New
High Light Efficiency Up Grade

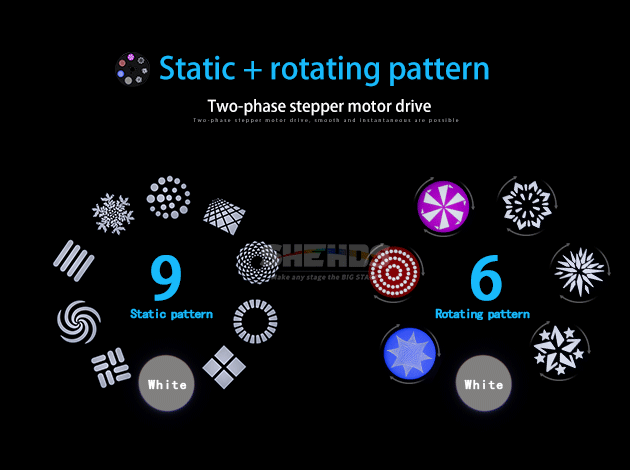

Static + rotating pattern
Two-Phase Stepper Motor Drive
Smooth And Instantaneous Are Possible

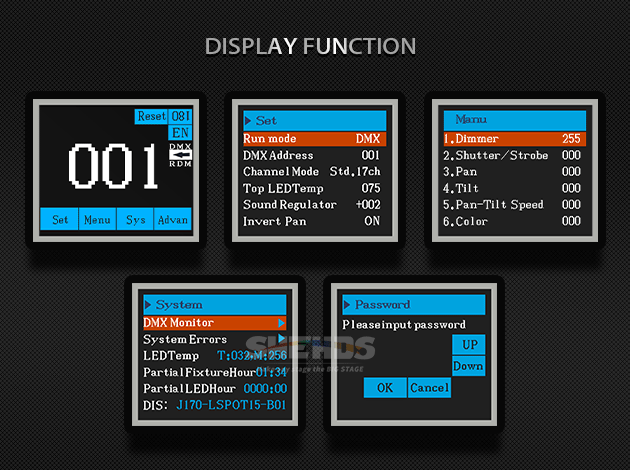

Display function
Simple and easy to operate interactive interface
Password：Prevent manual false triggering
Function intruction
Contains a variety of interactive function programs to visually display the operating status and operating mode of the fixture

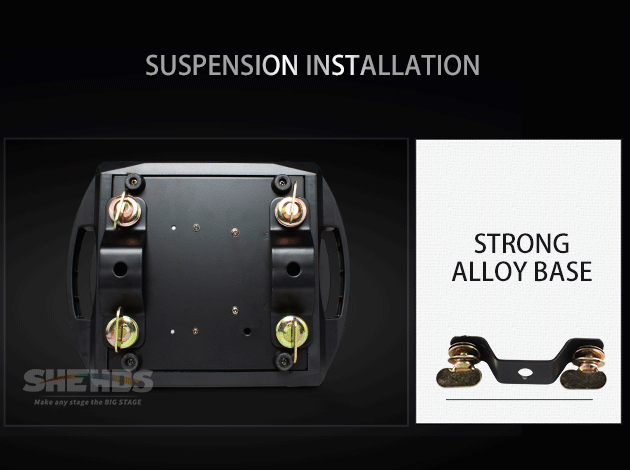

Suspension installation
Safety rope + quick lock
STRONG ALLOY BASE
Using aluminum alloy die-casting molding, tough, anti-oxidation
coating!
Beam Data
Lumens：Lux - DIstance Beam Degree:Linear Zoom And Focus
Stage Effect
9+6 GOBOS & 9+COLORS Let you feel the effect of lighting on the stage immersively
Frost Wash Effect
New Ｆrost Lens
Prism Beam Effect
Infinitely changing combined beam
Scene Effect
Infinitely changing combined beam
Full Beam Effect
It can flexibly shape the uniform and colorful pattern effect of the light spot, and easily show the wonderful phantom light effect.
Exquisite Craftsmanship
Every process has been strictly verified Every part is carefully selected
Back Details
HD large display:Chinese and English dual display,High quality sensitive mechanical key Interface:Metal anti-interference signal interface in put / out put Metal anti-interference signal interface power cord interface With fuse interface
Quality Of Attention To DetailWell-designed + preferred materials
Quiet cooling module/High power motor/Thickened heat sink Intelligent cooling system 3 sets of silent fans with semi-enclosed cooling Aerodynamics, with built-in overheating intelligent protection system
High Quality HardwarePower Board & Mainboard
Using wide voltage power supply Thickened copper wire, higher brightness Anti-current signal interference
Pure Copper Wick
The light beam also has a color change Solid material for copper pin wick Use high-quality copper, copper has high electrical conductivity and high thermal conductivity, fast heat dissipation, and not easy to rust

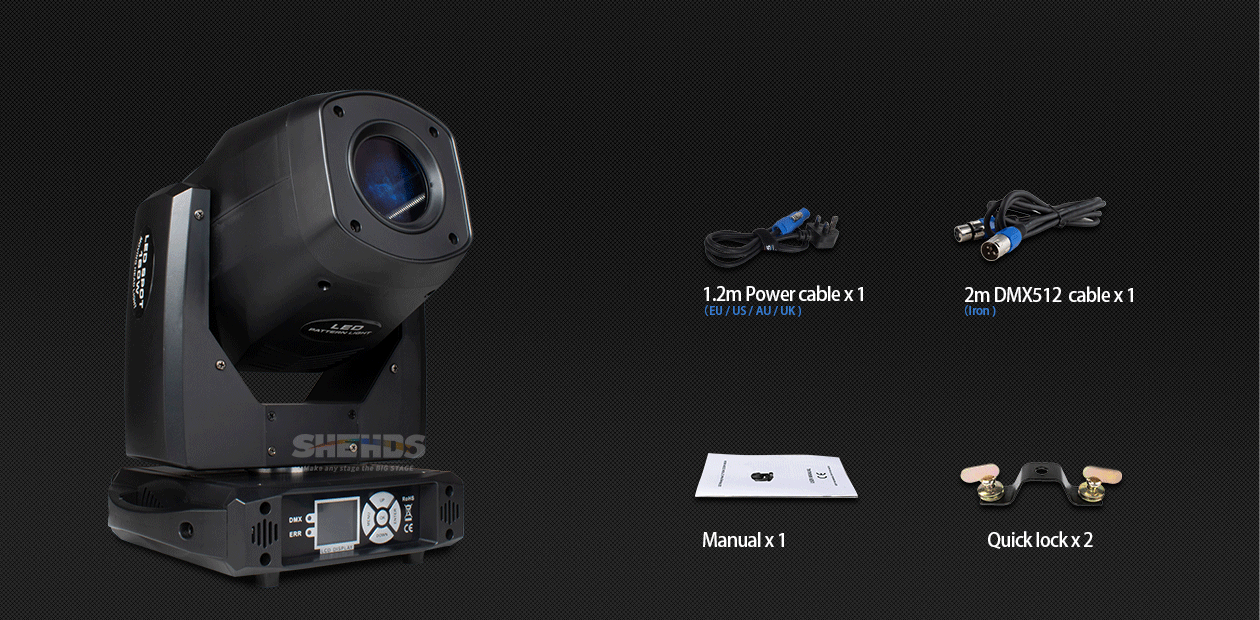

Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
