Beam angle and field angle describe two widths of the same light pattern. Beam angle marks the brighter part of the spread; field angle includes the dimmer outer area.
Use both when comparing a spotlight, planning a wash, or checking spill. A degree rating is only useful when you know what it measures and how far the fixture will throw.
Beam Angle vs Field Angle
In IES terminology, beam angle is the full spread at 50% of peak luminous intensity. Field angle is the full spread at 10%. When comparing Stage lights, check which number the spec sheet gives.
- Narrow angles help isolate a performer or a small area. Check how much light reaches the edges of the target.
- Medium angles can cover a group or part of a set. Compare the footprint at your actual throw before choosing a lens.
- Wide angles can spread light across a backdrop or larger area. Look at the intensity profile and overlap before assuming the wash will be even.
At a 20-ft throw, a 20° beam spans about 7.1 ft and a 30° field about 10.7 ft. Assume a symmetric pattern aimed squarely at a flat target. These widths are not hard edges.
Why Beam Angles Matter for Different Stages
Plan what to light and what to leave dark:
1. Direct Attention: Narrow beams focus the audience’s eyes on key performers or areas of action.
2. Set the Mood: Wide beams help establish atmosphere and can wash a stage with color.
3. Control Depth: Combining narrow and wide beams adds layers, separating foreground action from background scenery.
4. Enhance Effects: Beam angles influence shadows, highlights, and color blending, making lighting cues more dynamic.
A narrow beam can draw attention. Before setting the aim, check whether its dimmer field reaches scenery that should stay dark.
Spotlights: Narrow Beam Angles for Focused Drama
A narrow spotlight can isolate a performer or prop. A small angle tells you about spread, though; a crisp edge depends on the fixture’s optics, focus and any framing tools.
The Optical Zoom LEKO 250W/350W is a profile spotlight example. Use its shutters to frame the target, then check the edge at the actual throw. Treat the shutter cut and the published optical angle as separate details.
Narrow beams are ideal for:
- Solo performances or monologues
- Highlighting specific props or stage elements
- Creating dramatic contrasts between lit and shadowed areas
By controlling intensity and spread, designers can use spotlights to enhance emotion and direct audience focus.
Wash Lights: Wide Beam Angles for Mood and Coverage
A wide wash can cover more area. Check how intensity falls off and how fixtures overlap before assuming the wash will look even.
The 18x18W Par Lighting is one PAR option for a color wash. Use the chosen variant’s photometric data, then check how the color and brightness blend where adjacent fixtures meet.
The 6IN1 RGBAW+UV Par Light is another color-mixing option. Compare it in the color and operating mode you plan to use, not just by the degree number in the listing.
Wash lights are best for:
- Illuminating stage backgrounds
- Blending colors for mood creation
- Filling gaps between spotlights to prevent uneven lighting
During focus, compare the light at each beam center with the light between those centers on the target. Adjust aim, spacing or output if the joins stand out.
Moving Head Lights: Adjustable Beam Angles for Dynamic Effects
Pan and tilt change where a moving head points. Optical zoom, on models that have it, changes how wide the light spreads. Check both functions separately when planning cues.
The 19×15W Zoom Wash Moving Head illustrates a zoom-wash design. The 275W 10R DJ Light serves a different job as a beam effect. Do not assume two moving heads have the same zoom range or coverage because they can both move.
Moving heads can serve different cue jobs:
- Highlight shifting performers or props
- Sweep light across large areas for dynamic effects
- Integrate with automated cues for concerts or musicals
Check both ends of a zoom cue so the wider setting stays off scenery or screens that need to remain dark.
Wall Wash Lighting: Depth and Texture Behind the Scenes
Wall washes light scenery and backdrops. Aim, setback and overlap affect the result. For asymmetric patterns, check the spread in both axes.
When planning with the LED 18x18W RGBWA+UV Wall Wash Lighting, review the spread in both axes if the data is available. Check the actual wall for dark bands or hot spots before settling the spacing.
Wall washes are essential for:
- Creating spatial separation
- Highlighting textures and scenery
- Supporting color moods set by wash and spotlight layers
Combining wall wash lighting with spotlights and moving heads adds visual complexity and helps the audience focus where it matters most.

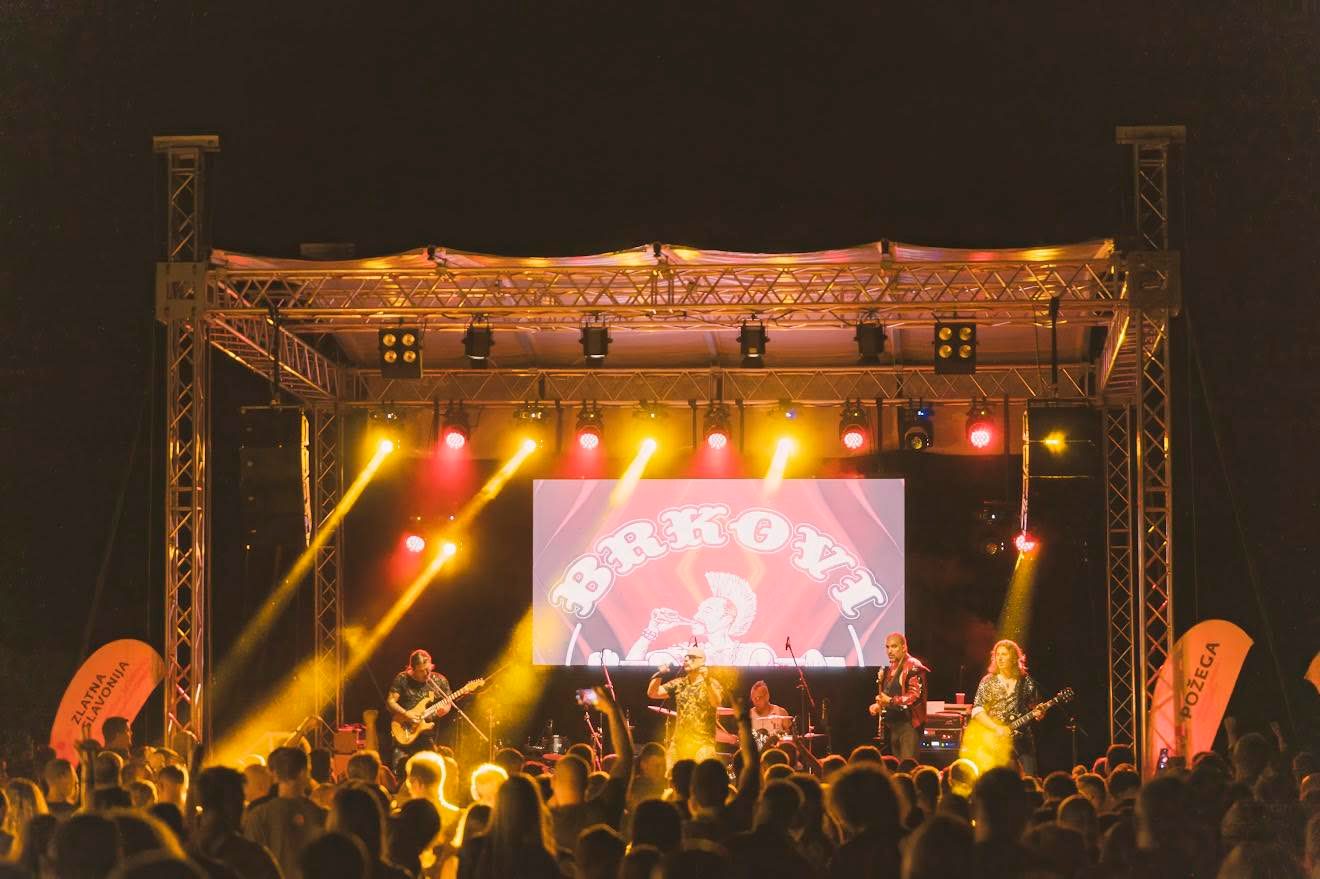

Beam Angle and Outdoor Performances
Outdoors, check the target width and light level at the actual throw and in the expected ambient light.
Browse waterproof party light for fixtures intended for outdoor applications, then verify the exact model’s use limits. An enclosure rating does not tell you the beam width, field width or light level at the stage.
Use the optical data and a site check to:
- Check light level at the actual throw.
- Aim spill away from nearby screens.
- Test the cue in expected ambient light.
Check outdoor suitability separately from beam shape and coverage.
Combining Beam Angles for Effective Stage Design
A successful stage lighting setup balances multiple beam angles. Designers often layer narrow spotlights over wide washes and textured wall lighting to create:
Focus and clarity: Using narrow beams on key actors
Atmosphere and mood: Using wide washes to support scenes
Depth and dimension: Combining wall washes and moving heads for layered lighting
Check each layer on its own before running the combined cue. Use the brighter beam area for the subject and inspect the outer field against any scenery you want to keep dark.
Beam Angle in Different Lighting Styles
Different theatrical styles and genres demand distinct approaches to beam angle selection.
In traditional drama, designers typically use medium beam angles to create natural-looking illumination that does not draw attention to the fixtures themselves. The lighting remains even and subtle, supporting the story without calling attention to theatrical techniques.
Musical theater, on the other hand, often requires a mix of beam angles. Narrow beams highlight featured performers, while wider washes cover ensemble numbers, supporting the dynamic staging and frequent focus changes common in musicals.
Dance performances rely heavily on strong side lighting with medium to wide beams, which reveal body form and movement.
Backlighting separates dancers from the background, and front lighting ensures facial visibility without flattening the three-dimensional sculpting achieved by side and back lights.

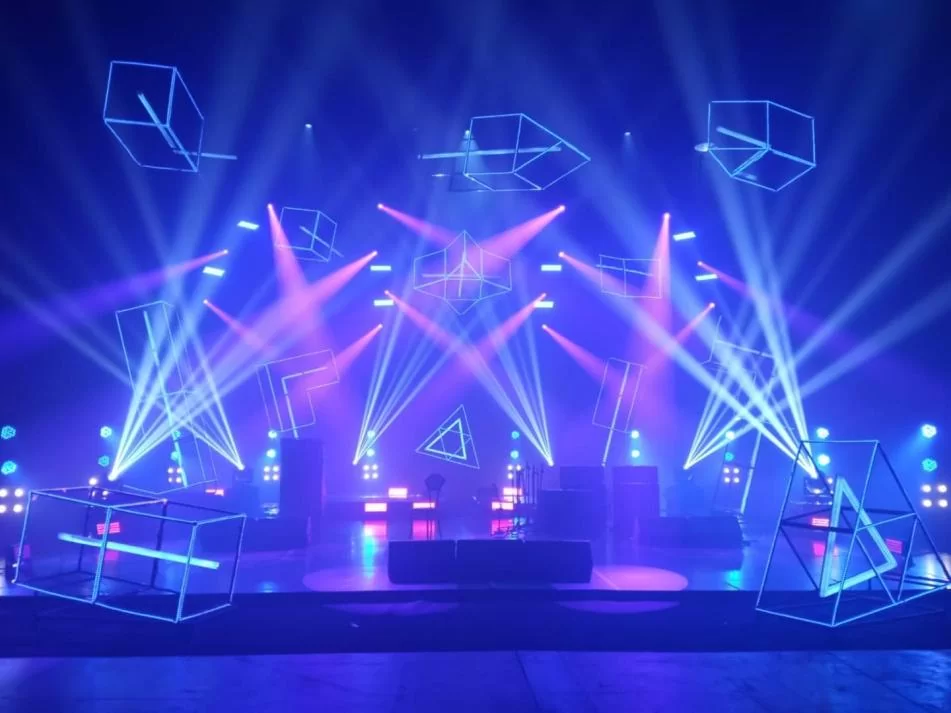

Concert lighting takes advantage of the full range of beam angles, from very narrow effects for dramatic aerial beams that cut through haze to wide washes that provide color and atmosphere for the audience.
On a large stage, compare the light level at the performer’s actual throw. A narrower option may fit the target better, but the angle alone does not establish that enough light will arrive.
Beam Shaping and Modification
Lenses and zoom change spread. Shaping tools crop light or project patterns. Check how each tool affects the target.
Barn Doors: Adjustable flaps can block light from reaching selected areas. Use them to control spill, not to infer a new published beam angle.
Iris Mechanisms: An iris closes down the projected opening on a compatible fixture. It blocks part of the light rather than creating a narrower optical zoom setting.
Gobo Patterns: A gobo projects a pattern. Judge the resulting shape and edge on the target instead of describing the pattern with a single beam angle.
Common Beam Angle Mistakes
Compare the same threshold. A 30° field rating on one fixture is not equivalent to a 30° beam rating on another. If a sheet only says “30°,” ask what the number represents before comparing coverage.
Match the optic, zoom or frost setting, and measurement plane. For an oval or asymmetric pattern, check the published horizontal and vertical data separately instead of assuming a circle.
For a symmetric spread on a flat target square to the beam, estimate width as 2 × throw × tan(full angle ÷ 2). Measure throw along the aim line. Use the beam angle for beam width or the field angle for field width, keeping the same distance units throughout.
The field angle is not where light stops. Check the full intensity curve for spill, and use photometric data or a site test for brightness and overlap. Keep those checks separate when planning stage lighting fixtures.
Conclusion
Use the beam angle to size the brighter portion of a cue and the field angle to account for lower-intensity spread. Keep both figures tied to the same optic, setting and throw.
A lens label may omit the threshold. Matching angles do not prove matching brightness or falloff.
Before you compare spotlights, washes or moving heads, write down the target width, throw distance, spill limit and required light level. Compare the exact fixture data against that list.
FAQ
How do moving head lights work with beam angles?
Pan and tilt aim the light. Optical zoom changes its spread on models that support it.
For an automated cue, check the beam and field at the zoom settings you plan to use. Pointing a fixture at a new target does not change its optical angle.
How do beam angles impact outdoor performances?
The angles help estimate the brighter area and the outer spread at the planned throw. Check light level, spill and the exact fixture’s outdoor use limits separately.
What are common mistakes when selecting beam angles for stage lighting?
- Comparing a beam angle with a field angle: Match the measurement threshold first.
- Assuming a wide angle gives an even wash: Check the intensity profile and overlap.
- Using mounting height as throw: Measure along the aim line to the target.
- Treating the field as a hard edge: Inspect spill beyond the 10% boundary.
Can beam angles be modified?
Yes. Distinguish changing the optical spread from shaping the projected light:
1. Barn doors: Block selected spill outside the area you want lit.
2. Iris mechanisms: Reduce the projected opening on a compatible fixture.
3. Gobo patterns: Shape the projection; judge the result on the target.
How do I combine different beam angles for an effective stage lighting design?
Layer a broad wash with a narrower special. Check wash overlap and spill from the special before combining cues.
Watch the combined cue from the audience position. Refine aim and levels if light reaches unwanted scenery.
