Laser wavelength:
R-638nm, G-520nm, B-450nm
Spot size (laser window spot):
5.5mm
Light source divergence angle :
＜1.2mrad
Modulation Mode:
0~5V analog, up to 50khz/TTL
Laser class:
Class IV
Imaging Color:
Red, green, blue, yellow, purple, cyan, white mixed colors
Evenness:
>98%
Lens Horizontal Offset:
-30% to +30%
Lens Vertical Offset:
-30% to +30%
Imaging mode:
3D/2D pattern and animation (with software)
Playback Rate:
25 KPPS
Playback Angle:
Max60°
Safety standard:
Follow the IEC60825 standard
Safety item:
Over current and voltage protection
Operating temperature:
15℃~45℃
Power interface:
PowerCon
Cooling method:
Air cooled
Structure:
60mm plug-in heat dissipation layer
Working power:
100~240V AC 50/60HZ

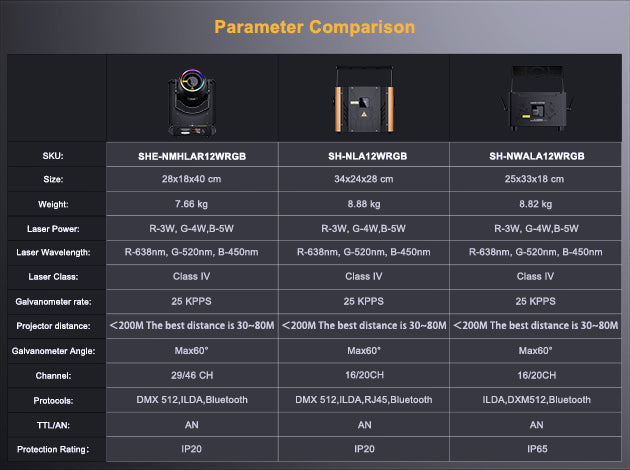

Technical Parameter Comparison

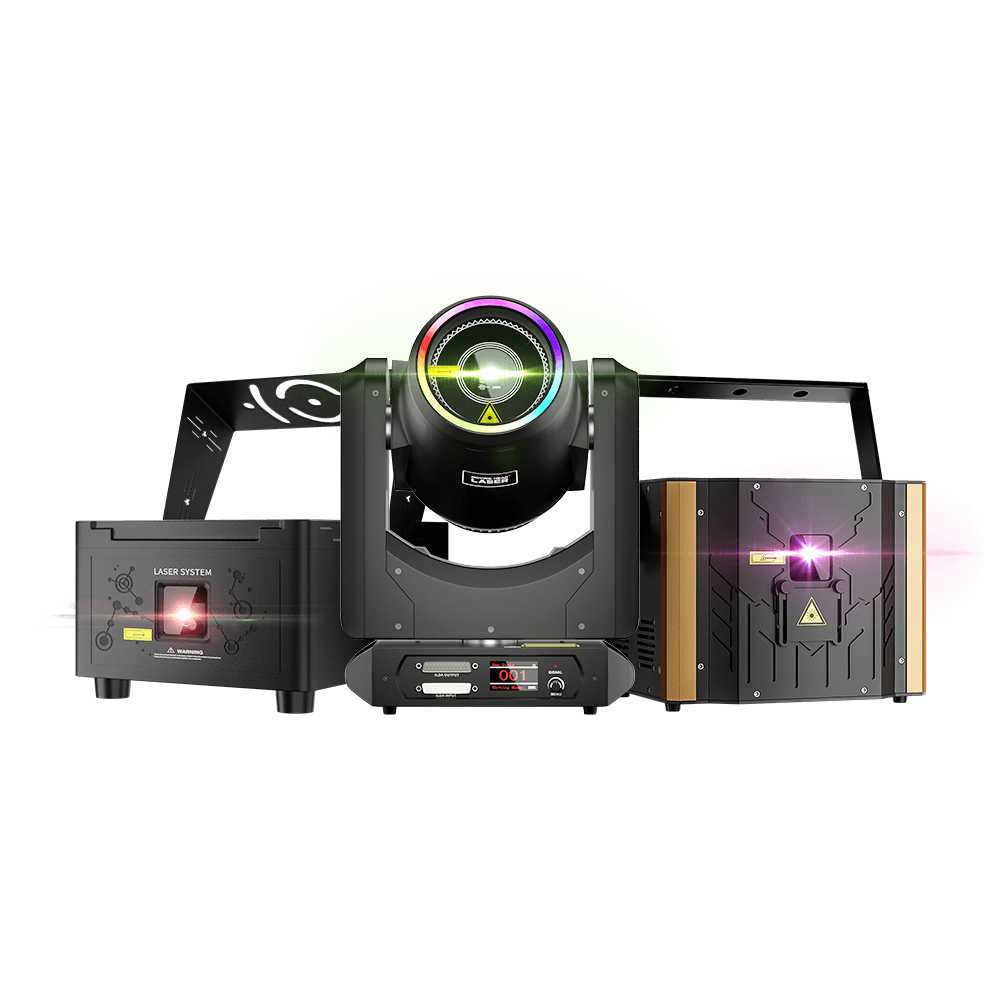

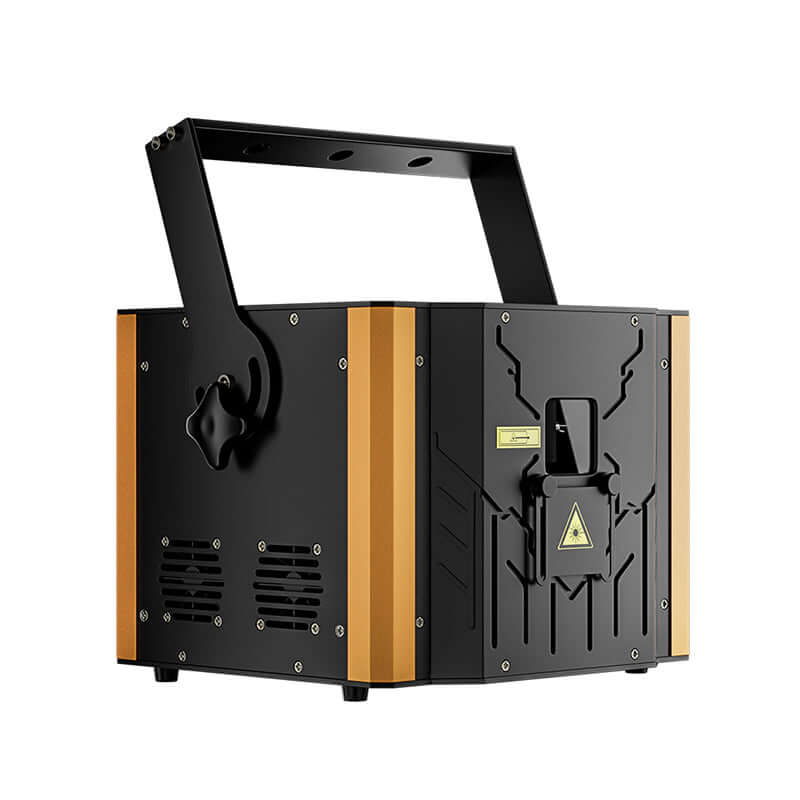

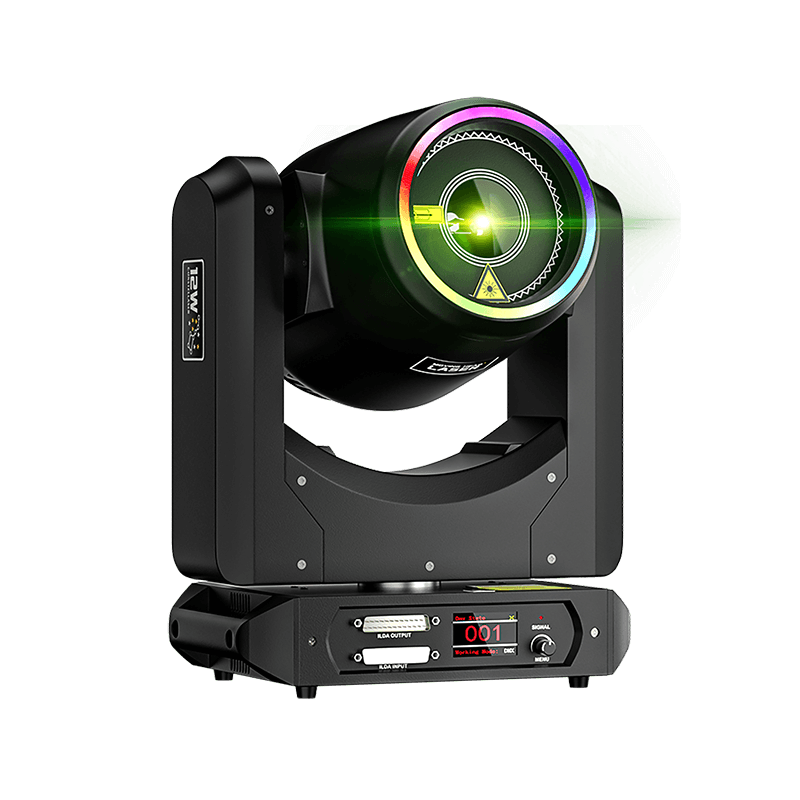

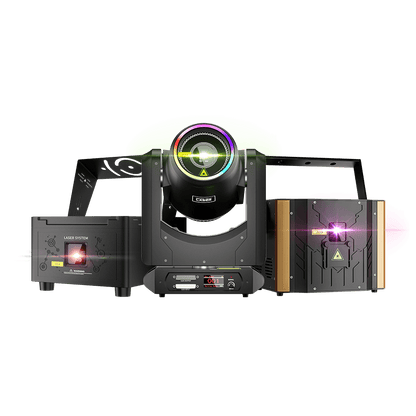

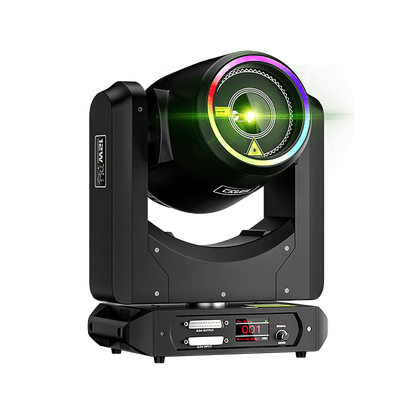

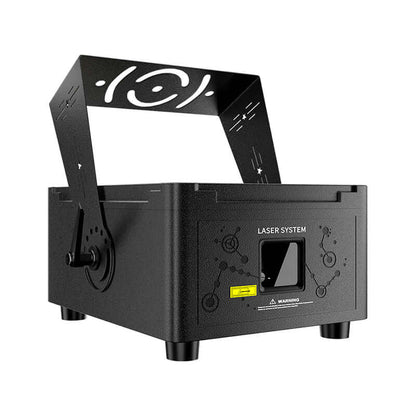

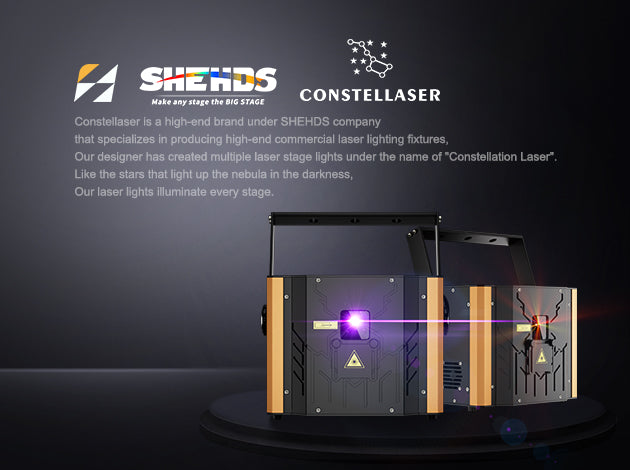

Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

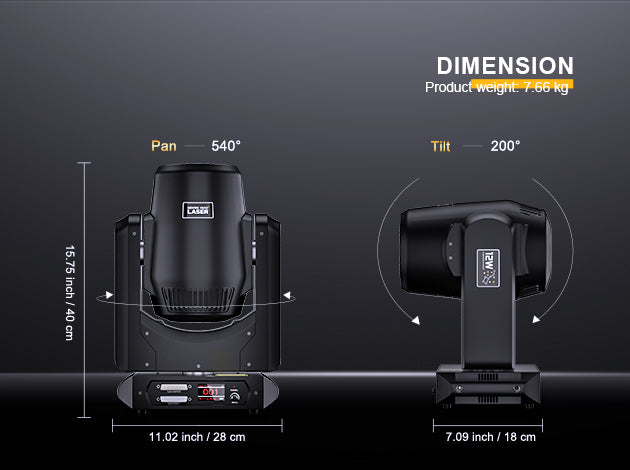

Product Size
Product size :11.02x15.75x7.09 inch /28x40x18 cm
Product weight: 7.66Kg
Pack size: 14.17x14.96x8.27 inch / 36x38x21 cm
Package weight: 10.5 Kg

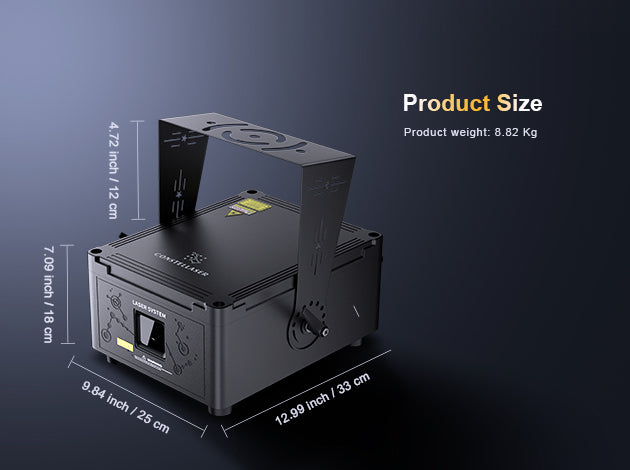

Product Size
Product size : 9.84x12.99x7.09 inch / 25x33x18 cm
Product weight: 8.82 Kg
Pack size: 14.17x14.96x8.27 inch / 36x38x21 cm
Package weight: 10.5 Kg

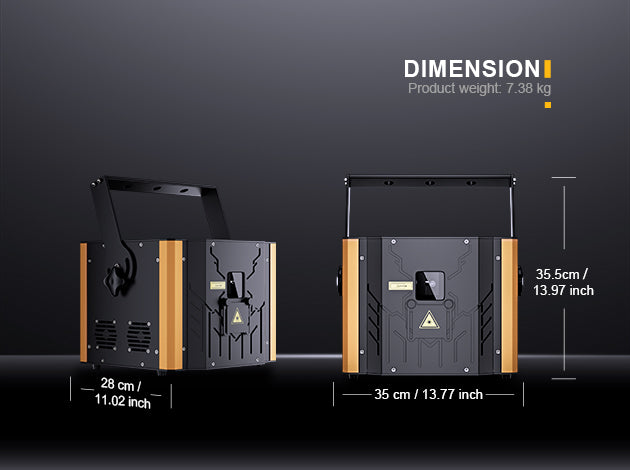

Product Size
Product size : 13.97x11.02x13.77 inch / 35.5x28x35 cm
Product weight: 7.38 Kg
Pack size: 15.75x10.24x13.39 inch / 40x26x34 cm
Package weight: 9 Kg

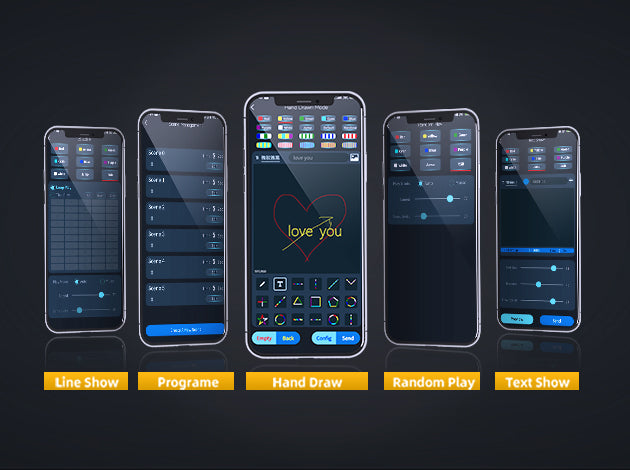

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.
Control Model
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.

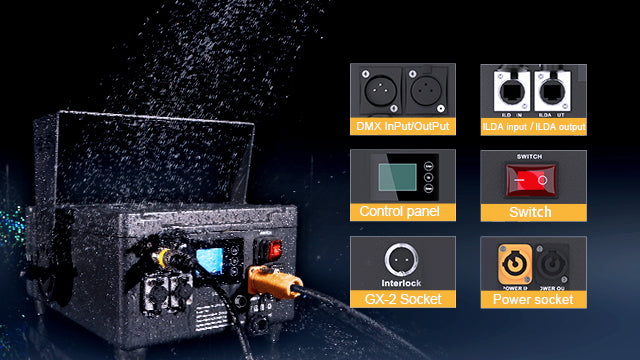

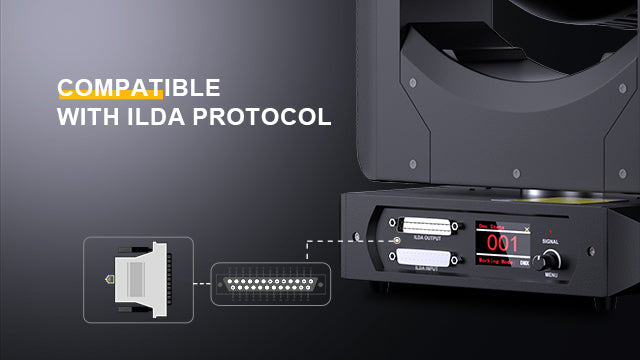

Compatible With ILDA Protocol
Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.
Simulated modulation supports linear adjustment of brightness, which can achieve gradient effects and provide richer visual effects for laser performances.

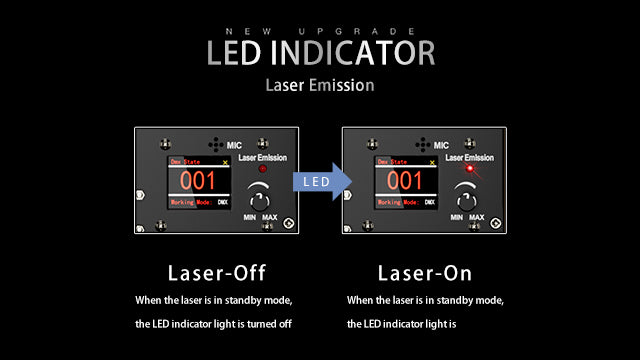

The laser operation indicator light continuously lights up or flashes, reminding operators to pay attention to the presence of laser radiation and avoid direct exposure to the laser beam, thereby protecting the safety of operators.
"Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue. Can mix multiple brilliant colors! For example, Magenta, Yellow，Cyan，White"
The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.
"Supporting multiple color blends and gradients, making local patterns more colorful and vibrant in color. Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing viewers a more vivid visual experience."
"The 12W laser lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue. "

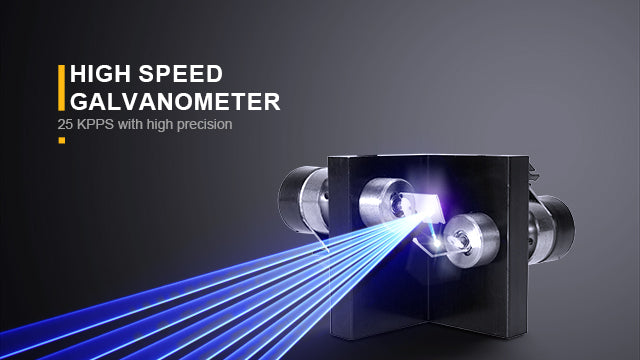

"High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning, achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects, but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine."
"Presenting a dreamy and colorful visual effect similar to the auroram, Providing more possibilities and creative space for various performance occasions."
" Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4! With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects, as well as the ability to customize and create your own unique visuals. From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights."
" Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4! With Beyond QuickShow FB3/FB4, you'll have access to a vast library of pre-programmed laser effects, as well as the ability to customize and create your own unique visuals. From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights."

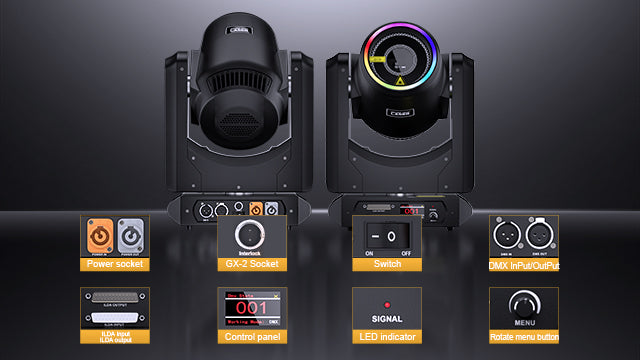

The laser equipment panel includes a high-definition display screen and simple menu buttons, which can intuitively display the interactive design of layered menus
The laser equipment panel includes a high-definition display screen and simple menu buttons, which can intuitively display the interactive design of layered menus
The laser equipment panel includes a high-definition display screen and simple menu buttons, which can intuitively display the interactive design of layered menus
"During the use of a laser source, Do not look directly at the light source. The effect of stage laser lights is formed by high-speed scanning of the laser beam through high-speed galvanometers or low-speed stepper motors. The harm to the human body is mainly reflected in the harm to the eyes, and prolonged exposure can lead to blindness. "

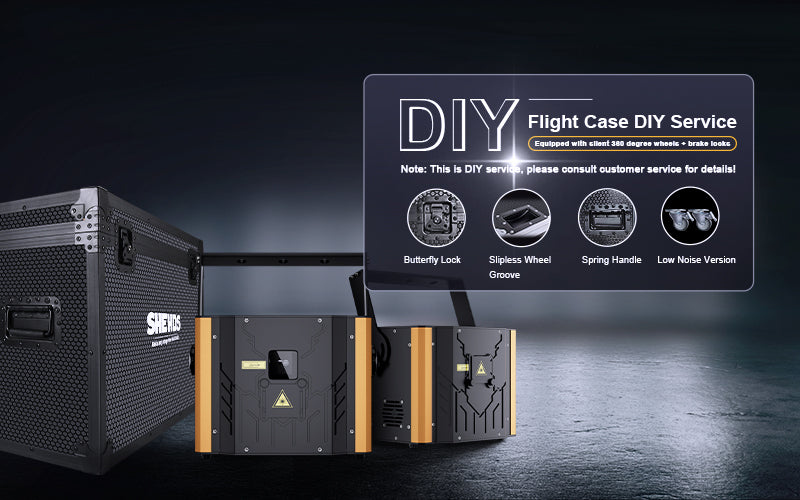

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
