Laser wavelength:
R-638nm, G-520nm, B-450nm
Spot size (laser spot)
5.5mm
Angle of divergence of light source
＜1.2mrad
Modulation mode
0~5V analog, up to 25khz/TTL
Laser Class
Class 3B
Laser color
Red, green, blue mixed colors
Evenness
>98%
The camera is offset horizontally
-30% to +30%
The lens is offset vertically
-30% to +30%
Imaging mode
3D/2D pattern and animation (with software)
Projector distance
＜20M The best distance is 5~10M
Galvanometer rate
20 KPPS
Galvanometer Angle
Max30°
Safety standards
Follow the IEC60825 standard
Security project
Over current and voltage protection
Ingress Protection Rating
IP20
Operating temperature
-20℃~40℃
Control interface
DMX In/Out
DMX channel
34/5CH
Power of operation
100~240V AC 50/60HZ
Power supply
Max 10W
Dimensions of products
34x16.8x10.3 cm
Weight of product
1.9 Kg

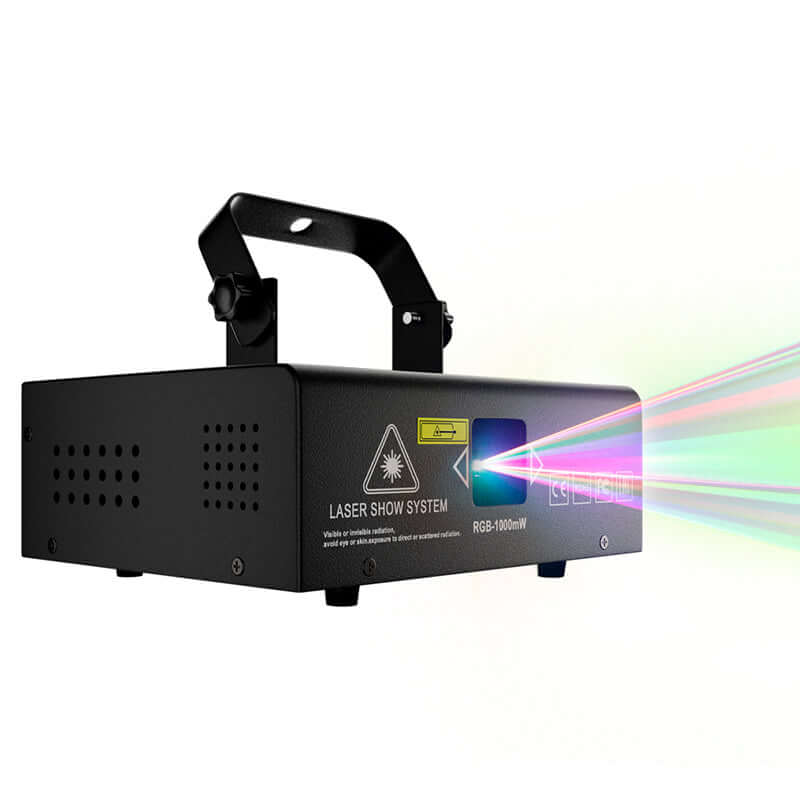

1W RGB Animation Laser Light
All the laser equipment produced by our company are complied with IEC 60825-1 and U S. FDA standards which are used to ensure the safty use!
These products have obtained a deviation application from the performance standards for laser products in accordance with 21 CFR 1010.4 (c) (1) from the United States (CDRH)
which grant our company the assembly and production of Class IIIb (3B) and Class IV (4) laser lamps, and allow them to legally enter the commercial market.
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

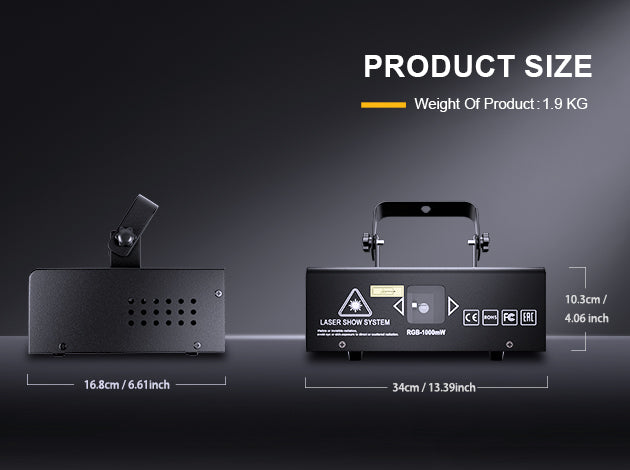

Product Size
imensions of products：34x16.8x10.3 cm
Weight of product：1.9 Kg

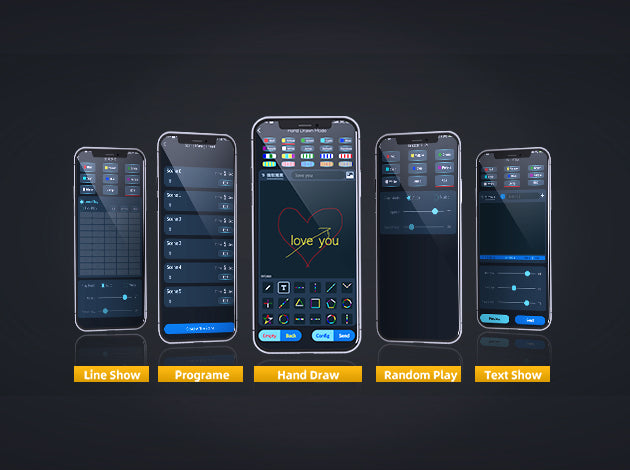

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.

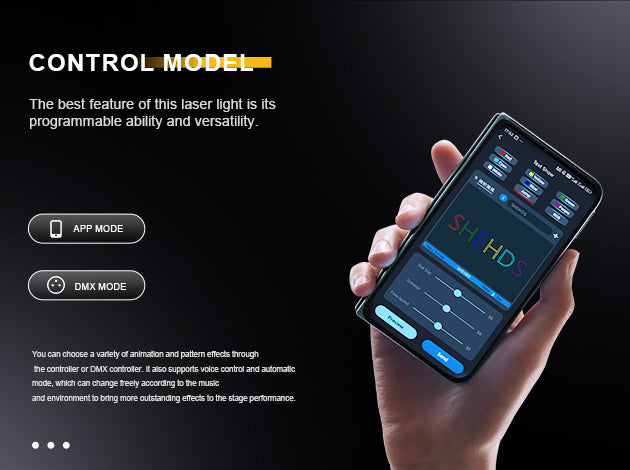

Control Mode
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.
RGB Laser Source
Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue.
The RGB can be mixed to create multiple brilliant colors,
like Magenta, Yellow，Cyan，White!
Laser Effect
The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity.
These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow.
Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact,
enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.
Presenting a dreamy and colorful visual effect similar to the auroram, Providing more possibilities and creative space for various performance occasions.
Supporting multiple color blends and gradients, making local patterns more colorful and vibrant in color. Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing viewers a more vivid visual experience.
The 6W laser lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue.
During the use of a laser source, Do not look directly at the light source. The effect of stage laser lights is formed by high-speed scanning of the laser beam through high-speed galvanometers or low-speed stepper motors. The harm to the human body is mainly reflected in the harm to the eyes, and prolonged exposure can lead to blindness.
High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning, achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects, but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine.
The laser equipment panel includes a high-definition display screen and simple menu buttons, which can intuitively display the interactive design of layered menus.
The remote interlocking switch interface is connected to the GX-2 signal line of the laser equipment. When the emergency stop button is pressed, the laser emission will be immediately cut off to prevent laser leakage from causing harm to personnel. Users can control the emission and stop of lasers from a distance away from the laser equipment, improving the flexibility and safety of operations.

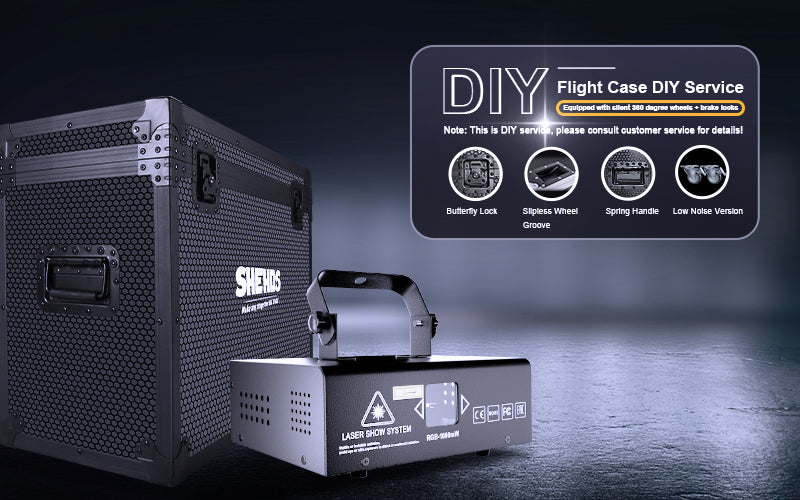

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
