Moving head lights add motion, focus, color and aerial effects, but the result depends on setup. Position each unit for a defined job, set the DMX mode before addressing, program static scenes before movement and inspect optics, cooling and cables on a schedule. These moving head light tips cover the complete workflow from placement to the pre-show check.

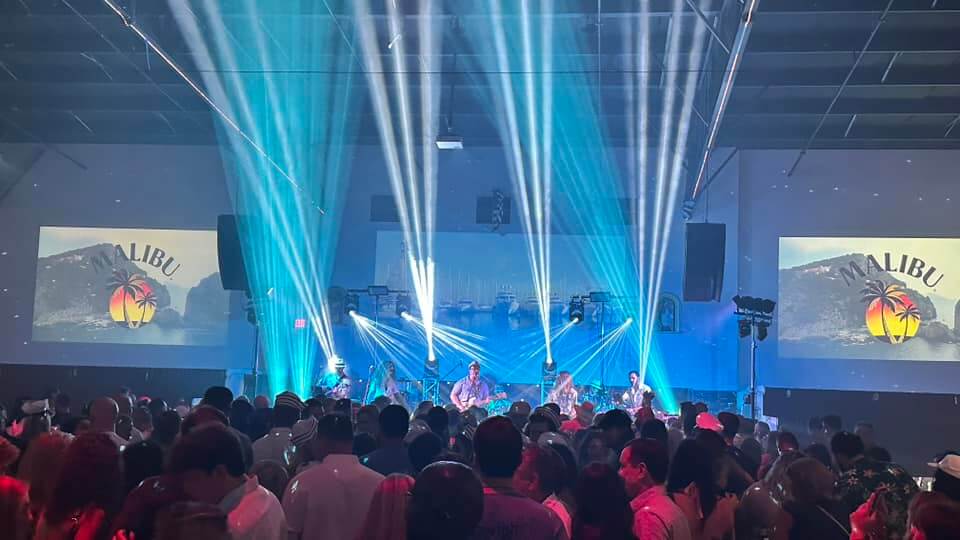

Moving head lights positioned for a live stage setup
How Should You Position Moving Head Lights?
Position each moving head by its optical role. Wash fixtures need angles that cover performers or architecture. Beam fixtures need open air for visible aerial paths. Spot fixtures need a clear path to a performer, backdrop or gobo surface.
| Venue setup | Starting layout | Main goal |
|---|---|---|
| Mobile DJ or wedding | 2 fixtures on rated totems behind or beside the DJ | Crossed movement above the dance floor |
| Small stage or bar | 2 front wash positions plus 2 rear beam or spot positions | Performer visibility with a separate effect layer |
| Church or fixed stage | 4 wash positions across the stage plus optional spots | Even coverage for speakers and musicians |
| Club or concert room | Front, rear and side positions on truss or rated stands | Depth, aerial effects and audience movement |
Check Mounting Height and Clearance
Mounting height affects coverage, beam path and safety. In a low-ceiling room, floor or totem positions may give more usable movement than an overhead beam fixture. In a taller venue, a higher position can cross above the audience and cover more stage width.
Before programming, run each fixture through the pan and tilt range at low intensity. Confirm that the head, beam and cables clear ceilings, drape, speakers, video panels and truss.
Build a Coverage Layer and an Effect Layer
Coverage keeps performers and key surfaces visible. Effects add beams, gobos, prisms and movement. Separating those jobs means the show does not lose visibility when the moving cue stops.
For example:
- Use wash fixtures for the band or dance floor.
- Use rear beam fixtures for aerial texture.
- Use spot fixtures for gobos on the stage or backdrop.
- Keep one stable front-light state available for announcements.
Use Rated Rigging Hardware
Use clamps, secondary attachments and support structures rated for the load and installation method. Follow the fixture manual, venue requirements and local rules. Decorative pipe-and-drape hardware and speaker stands are not moving-head rigging points.
Overhead rigging and permanent installation require qualified people. ESTA publishes event and rigging standards through its Technical Standards Program, but the applicable local rules and engineered plan govern the job.
Check Audience Sight Lines
Stand in the front row, center of the room and operator position. If a beam lands at eye level, change the position or aim before relying on a low dimmer value. Also check camera positions, projection screens and reflective surfaces.
How Should You Address Moving Heads With DMX?
Each independently controlled fixture needs a start address, the correct channel mode and a matching fixture profile in the controller.
Set the Channel Mode First
A compact mode may provide pan, tilt, dimmer, color and basic effects. An extended mode may add fine movement, separate LED zones, detailed gobo functions or more effect parameters. Mode determines the channel footprint, so choose it before addresses.
Use the same mode for matching fixtures when you want consistent group programming.
Calculate Start Addresses
The next non-overlapping start address equals the previous address plus that fixture's channel count. Four fixtures in a 16-channel mode can use:
| Fixture | Start address | Slots used |
|---|---|---|
| Moving head 1 | 001 | 1 to 16 |
| Moving head 2 | 017 | 17 to 32 |
| Moving head 3 | 033 | 33 to 48 |
| Moving head 4 | 049 | 49 to 64 |
Write fixture number, position, mode, start and end slot on a patch sheet before load-in.
Build the Data Line
Run DMX from the controller output to the first fixture input, then from each output to the next input. Use data cable intended for DMX, place a terminator at the final fixture and use an isolated DMX splitter when branches are needed. Passive Y cables are not a proper distribution plan.
The current DMX512-A standard is ANSI E1.11-2024. A separate SHEHDS guide explains DMX addressing in more detail.
Test Each Fixture Alone
Before building groups, test:
- Pan and fine pan.
- Tilt and fine tilt.
- Dimmer and shutter.
- Color and gobo wheels.
- Zoom, focus and frost where fitted.
- Prism, rotation and strobe.
This catches a wrong profile, wrong mode or address overlap while the system is still small.
Which Programming Habits Produce Cleaner Looks?
Start with the event structure: arrivals, speech, performance, dance section and closing. Then build looks for those moments.
| Programming tool | What it controls | Useful application |
|---|---|---|
| Fixture groups | Front, rear, left, right or fixture type | Symmetry and faster edits |
| Position presets | Saved pan and tilt targets | Stage, backdrop, audience and aerial positions |
| Color palettes | Shared color values | Consistent event colors across fixture types |
| Beam palettes | Gobos, prisms, zoom and focus | Reusable texture and aerial looks |
| Movement effects | Pan and tilt shape, size, phase and speed | Music sections and transitions |
Blue and red moving head lights creating a stage background
Start With Static Scenes
Build a base scene with fixtures parked, colors selected and dimmer levels balanced. Confirm that performers are visible before adding movement.
Save at least:
1. A white or warm coverage scene.
2. A main event color scene.
3. A speech or announcement scene.
4. A blackout with movement stopped.
5. A recovery scene with effects disabled.
Use Movement in Defined Windows
Fast pan and tilt has more impact when it appears for a chorus, drop or finale. Use slower movement for transitions and reserve prisms or strobe for selected moments. Keep the beam path above audience sight lines.
Build Position Presets Before Chases
Save useful positions for the stage, backdrop, ceiling and aerial crossing. Then program chases and effects from those presets. If the venue changes, updating the preset is faster than editing every cue.
Save a Recovery Scene
The recovery scene should provide stable white or warm coverage, stop movement and disable strobes or prisms. It gives the operator one known state for an unexpected announcement or programming error.
Tech 360 Dallas demonstrates the GalaxyJet 300W moving head's effects and DMX control in a full walkthrough. YouTube labels the video as containing paid promotion, so use it as a product and control demonstration rather than an independent performance benchmark.
Related video: Watch on YouTube
What Maintenance Should Moving Head Lights Receive?
Maintenance protects output, cooling and movement accuracy. The fixture manual should set the model-specific method and service interval.
| When | What to check | Action |
|---|---|---|
| Before each event | Power cable, DMX cable, clamps, secondary attachment, menu, pan and tilt reset | Remove damaged equipment from service |
| After dusty or outdoor work | Lens, vents, fans, connectors and housing | Clean external surfaces by the manual |
| Scheduled service | Movement, fan condition, belts, mounting points and error logs | Use qualified support for internal repair |
Clean External Optics
Use a soft, lint-free cloth when haze residue, dust or fingerprints are visible. Do not use abrasive material or spray cleaner into the fixture. Confirm any cleaning fluid in the manual.
Keep Cooling Paths Clear
Leave the required space around air inlets and outlets. Do not operate the fixture inside a case, behind blocked drape or against a surface that covers a vent.
Record Mechanical Changes
Grinding, repeated reset cycles, position drift or jerky movement should be checked before the next event. Record the fixture ID, firmware, operating time and symptom. Do not open the housing without the correct service procedure.
Transport the Head in Its Protected State
Power down normally, let the fixture complete its shutdown process if specified and use transport locks where fitted. A fitted case protects the head, lens and yoke better than loose packing.
Which Moving Head Type Fits the Job?
Choose by optical role and environment before comparing product names.
Moving head lights used with a live band
| Fixture type | Good fit | Check before purchase |
|---|---|---|
| Beam | Clubs, concerts and long aerial paths | Beam angle, output at distance, lamp or LED source, effects and haze use |
| Spot | Gobos, defined positions and performer accents | Focus, gobo system, zoom, framing or frost |
| Wash | Bands, dance floors, stages and scenic coverage | Zoom range, color engine, edge quality and camera behavior |
| Hybrid | Positions that must change between beam, spot and wash jobs | Mode change, optical compromise, weight and channel footprint |
| Outdoor-rated | Exposed stages and recurring exterior work | Exact IP rating, connector protection, operating limits and upkeep |
For a direct optical comparison, read Wash vs. Beam vs. Spot Moving Head Lights.
Current SHEHDS Examples
These examples show how the job-first method applies. Verify the selected product variant because specifications differ within each family.
- GalaxyJet LED 200W/300W beam or 3-in-1 moving head: The beam configuration lists a 2° beam and 19 DMX channels; the 3-in-1 configuration lists a 2° to 22° range and different modes.
- SHEHDS 19 x 15W/20W/25W beam-wash zoom moving head: An indoor IP20 family with several LED engines and channel modes.
- Waterproof 19 x 15W/20W/25W beam-wash zoom moving head: An IP66 family for positions that need environmental protection, with variant-specific zoom and channel ranges.
Do not copy one variant's beam angle or channel count to the complete family. Check the live selection, manual and console profile before patching.
What Should You Check Before a Show?
Use this sequence after the rig is installed.
Physical Check
- Support structure, clamps and secondary attachments inspected.
- Pan and tilt path clear.
- Power and data connectors fully seated.
- Cables strain-relieved and away from moving parts.
- Indoor or outdoor rating matched to conditions.
Control Check
- Fixture mode matches the patch.
- Start addresses and universe assignments documented.
- Terminator installed at the end of each wired line.
- Each fixture tested alone, then as a group.
- Show file backed up and a recovery scene available.
Show Check
- Positions checked from audience and camera locations.
- Beam paths kept away from direct eye-level exposure.
- Movement speed fits the event.
- Blackout stops unwanted movement and effects.
- An operator can recall stable coverage without editing cues.
For fixture-count and placement planning, use the SHEHDS stage lighting setup guide for different venue sizes and event types.
Moving Head Lights FAQ
Do moving head lights need a DMX controller?
No. Many fixtures offer auto, sound-active or master/slave modes. DMX is better when you need repeatable scenes, controlled dimming and programmed movement.
How many moving head lights do I need for a small event?
Two can create basic movement and highlights. Four allow more balanced left-right looks and separate coverage from effects. Room width, ceiling height and stage zones set the final count.
Can moving head lights be used outdoors?
Use only a fixture rated for the exposure. Outdoor work also needs protected power, data, rigging and cable routes. An IP rating on the fixture does not protect the rest of the system.
Why do moving heads flicker or move randomly?
Check the DMX path first. Look for damaged data cable, address overlap, incorrect mode, a wrong fixture profile or missing termination. Test one fixture directly from the controller to isolate the fault.
Should beam lights point at the audience?
Avoid direct eye-level hits. Program beam paths above sight lines and review them from several audience positions before doors open.
Build a Repeatable Moving Head Workflow
Moving heads perform better when placement, addressing, programming, cleaning and fault checks form one process. Build coverage first, assign each fixture a role, document the patch and test the system before guests arrive. Compare the wider stage lighting fixtures range when planning a mixed rig, then browse SHEHDS moving head lights after defining the venue, optical jobs and environmental conditions your rig must handle.
