A 3-pin DMX device can often share a control line with 5-pin DMX equipment, but the adapter is only one part of the answer. Before connecting them, verify the port genders, the functions of pins 1 through 3, the cable type, the device manuals, and the complete signal path. A passive 3-to-5-pin adapter maps conductors between two connector shells. It does not change the DMX protocol or repair another fault in the line.
For example, a 5-pin controller may feed a documented 3-pin fixture chain through one verified adapter. That layout is reasonable when both endpoints use the same primary DMX data mapping and the cable path is suitable for DMX. If an older device reverses pins 2 and 3, or another device assigns a special function to pins 4 and 5, connector fit alone is not enough.
The useful way to compare 3-pin vs 5-pin DMX is to inspect three layers: the connector, the data cable, and the network behavior. Keeping those layers separate makes a mixed rig easier to plan and diagnose.

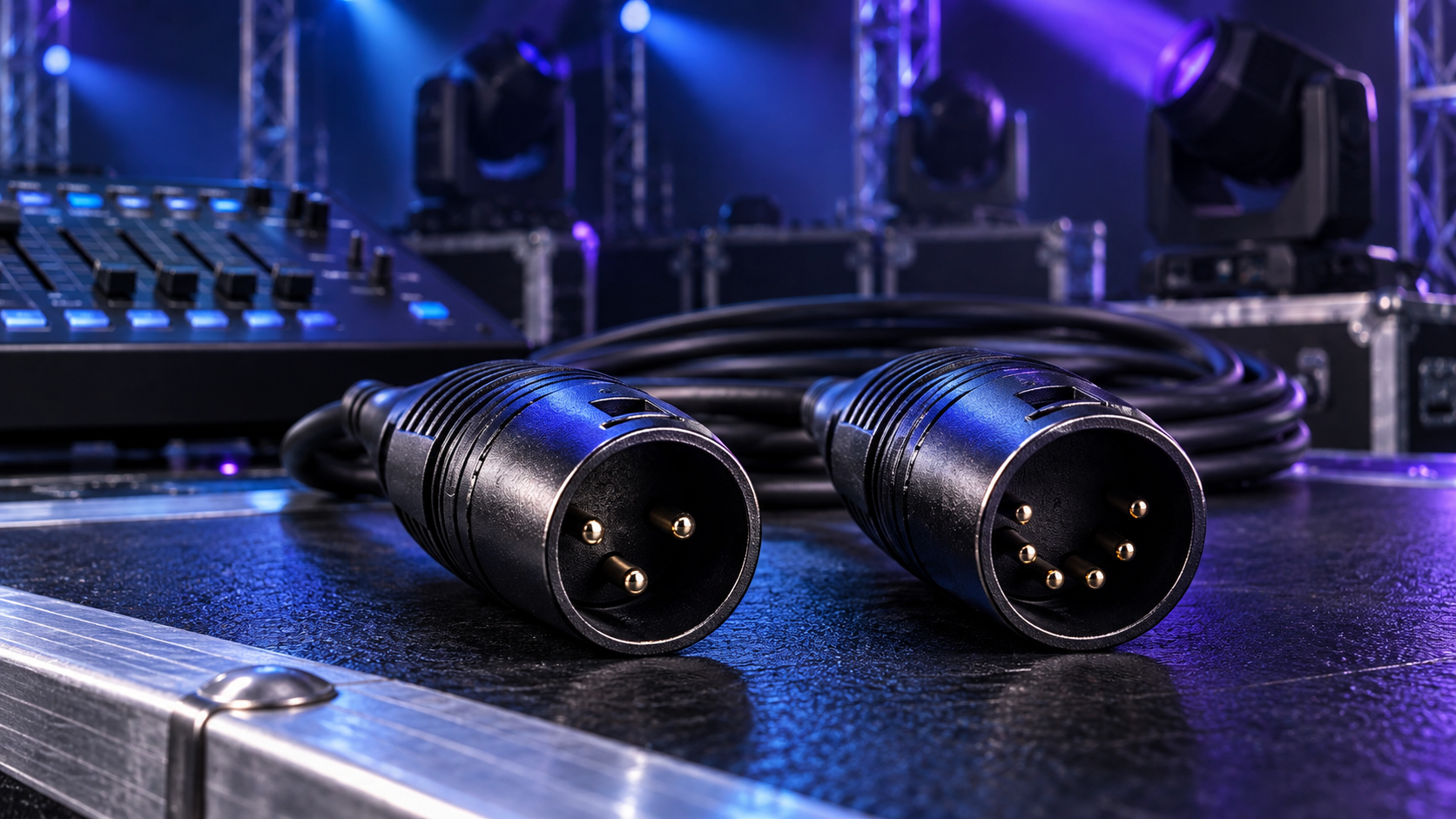

3-Pin vs 5-Pin DMX at a Glance
Both formats can carry the main DMX data pair. A 5-pin XLR has two extra contacts. Those contacts do not make the signal better on their own. They also do not prove that a device supports Remote Device Management, or RDM.
| Decision | 3-Pin DMX Path | 5-Pin DMX Path | What to Verify |
|---|---|---|---|
| Connector baseline | Many lights use it as an alternate DMX port. | It is the normal DMX512-A connection. | Check the manual, port label, and gender. |
| Main DMX wires | It often uses pins 1, 2, and 3. | It uses pins 1, 2, and 3. | Check the pin 2 and pin 3 map at both ends. |
| Extra wires | The plug has no extra contacts. | Pins 4 and 5 may form an optional pair. | Check whether either device uses these contacts. |
| Cable | Use cable made for a DMX data link. | Use cable made for a DMX data link. | Check the cable, not just its XLR shell. |
| Adapter | You may need one at a 5-pin boundary. | You may need one at a 3-pin boundary. | Check gender, direction, wiring, and unused pins. |
| RDM | Pin count does not prove support. | Pin count does not prove support. | Check each device in the path. |
| Rig policy | It can fit a documented mobile rig. | It can fit a touring or venue backbone. | Check gear, labels, spares, and service needs. |
The ANSI E1.11 DMX512-A standard names 5-pin XLR as the normal connection between products. It allows limited cases for other connector types. This common format helps when gear moves between venues. It does not mean a 3-pin rig cannot pass the main DMX data.
What the Five DMX Pins Actually Do
On a standard 5-pin DMX connection, pin 1 is Data Link Common, pin 2 is Data 1-, and pin 3 is Data 1+. Pins 4 and 5 form an optional secondary data pair. Many 3-pin DMX products put the same primary link on pins 1 through 3, but you should confirm the exact manual instead of assuming the map from the connector shape.
| Pin | Standard 5-Pin Function | Typical 3-Pin DMX Use |
|---|---|---|
| 1 | Data Link Common | Data Link Common |
| 2 | Data 1- | Commonly Data 1-, subject to device verification |
| 3 | Data 1+ | Commonly Data 1+, subject to device verification |
| 4 | Optional secondary data pair | Not present |
| 5 | Optional secondary data pair | Not present |
Do not treat pins 4 and 5 as a universal second universe, an RDM connection, or a source of power. Their actual use depends on the equipment. ESTA's ANSI E1.27-1 portable-control-cable standard also records a risk from some legacy second-pair uses. Leave those contacts isolated unless both device records clearly support another arrangement.
Why Legacy Polarity Still Needs a Check
Some older or nonconforming equipment may reverse the usual functions of pins 2 and 3. A straight-through adapter will preserve that difference rather than correct it. This is one reason to compare the controller and fixture manuals before changing connector formats.
The issue is not theoretical. A Chauvet controller manual, for example, documents a polarity switch for two different pin 2 and pin 3 arrangements. That product example shows why the manual and pin labels should decide the next step. Do not rewire a cable or add a polarity reverser unless the exact equipment documents the need.
Connector, Cable, and Protocol Are Three Separate Layers
A plug that fits proves only that the two shells mate. It does not prove that the cable is right. It also does not prove the pin map or the full data path.
| Layer | What It Controls | What a Matching Plug Cannot Prove |
|---|---|---|
| Connector | It sets pin count, gender, and fit. | It cannot prove polarity or each pin's purpose. |
| Cable and data pair | They carry the DMX data. | They cannot prove layout, termination, or device behavior. |
| Network behavior | It covers the chain, termination, DMX, and RDM. | A matching plug cannot prove each feature will pass. |
This split is useful with 3-pin XLR. Its shell looks like a common microphone plug. Even so, normal audio cable is not the right default for a DMX run. Use cable made for the DMX/EIA-485-style link. A short microphone cable may seem to work in one rig. That test does not prove the cable has the right impedance for a stable rig policy.
If you need a refresher on addresses, channels, and universes, read how DMX works. Those protocol concepts are separate from choosing the connector and cable at each boundary.
Run These Five Checks Before Using a 3-to-5-Pin Adapter
A passive adapter is appropriate only when it maps a verified primary DMX link between the required connector formats. Run these checks before you buy or patch one.
- Confirm Both Port Genders and the Signal Direction: Record the controller output, the receiving input, and the adapter ends needed between them. “3-pin to 5-pin” does not describe whether you need male-to-female, female-to-male, or another arrangement.
- Compare the Primary Pin Map: Check both device manuals and labels. Pin 1 should serve the documented common function, while pins 2 and 3 must carry matching negative and positive primary-data functions. If the documents show different polarity, a straight-through adapter is not the full solution.
- Identify Any Use of Pins 4 and 5: Check whether the 5-pin device or any cable in the path assigns a purpose to the optional pair. Keep those contacts isolated in a normal three-conductor adaptation unless the equipment documentation says otherwise.
- Look for Special Connector Requirements: Legacy wiring, proprietary pinouts, active electronics, and weather-sealed connector systems need their own parts and instructions. An ordinary passive adapter should not be treated as a substitute for any of them.
- Verify the Whole Data Path: Confirm DMX-rated cable, a daisy-chain layout or suitable distribution equipment, termination at the last receiver, and the RDM behavior you need. The adapter changes the shell boundary, not those conditions.
A useful field habit is to label the adapter with its gender and wiring purpose. Place it at one clear boundary when possible. Several connector changes scattered through a chain make inspection and fault isolation harder.
What a Passive Adapter Cannot Fix
If a light flickers or stops after you add an adapter, do not blame the pin count at once. Trace the full path. One symptom can have several causes.
| Problem | Why the Adapter Does Not Solve It | Next Check |
|---|---|---|
| Audio cable in the run | The adapter cannot change the cable build. | Test with a known DMX-rated cable. |
| Reversed or special pinout | A straight adapter keeps the wire map it was given. | Compare both manuals and the adapter map. |
| Passive Y split | An adapter cannot split DMX data in a controlled way. | Use the right DMX distribution device. |
| Wrong termination | An adapter cannot set the final load. | Check the last device and its instructions. |
| Damaged cable or plug | An adapter cannot repair a loose wire. | Swap one known part at a time. |
| Art-Net, sACN, or USB | A passive XLR part cannot change these signals to DMX. | Use the right active interface or gateway. |
| Blocked RDM reply | One-way DMX does not prove that replies can pass. | Test the full RDM path. |
| Power confusion | A DMX adapter does not power the light. | Follow the product's power guide. |
Check termination with care. ETC's DMX512 cabling guidance shows a daisy chain with a terminator at the final device. The terminator must fit the last output. A device may instead have a built-in option. Follow its guide when that feature is automatic or has a switch.
Choose a Connector Policy by Rig Type
Choose a connector policy that makes the path easy to document and service. More contacts are not a substitute for correct cable or good topology.
A Native 3-Pin Island: A mobile rig can stay on documented 3-pin DMX when its controller, fixtures, cables, and spares use that format. The benefit is fewer transition points. Keep the data cables clearly identified so they are not confused with audio leads.
A 5-Pin Backbone With Edge Adaptation: A theater, rental shop, touring package, or venue that exchanges equipment may prefer a clearly labeled 5-pin backbone because it follows the normal DMX512-A interoperability connector. Adapt once near a documented 3-pin equipment group instead of alternating formats at several fixtures.
A Dual-Port Inventory: Some fixtures provide both port formats. Select one path for the show, record it on the plot or patch sheet, and label any transition. Two connector types on a product do not prove that both paths support every optional feature in the same way, so the manual still controls.
RDM should be a separate line item in this choice. The RDM protocol overview explains that RDM adds bidirectional communication to the primary DMX data link. Pin count alone does not establish support. Check the controller, responders, splitters, adapters, and the rest of the active path.
After you settle the connector policy, the SHEHDS DMX controller collection can help you compare current controller options. Verify the exact output ports and control features on each current page.
Build and Troubleshoot a Mixed DMX Chain
A mixed chain is easier to diagnose when you can see every boundary. Draw the path before you connect it: controller, any splitter, the adapter point, each fixture, and the last receiver.
Use this sequence for setup and fault isolation:
- Record the Ports: Note each input and output gender, the documented pinout, cable type, and selected fixture mode.
- Begin With One Known Link: Connect the controller to one documented receiver through known DMX cable and only the adapter that the connector boundary requires.
- Add Devices in Order: Add one fixture or cable at a time. Test after each change so a failure has a clear location.
- Preserve the Data Topology: Daisy-chain the receivers. Create branches only through distribution equipment intended for that role rather than a passive Y cable.
- Terminate the Last Receiver: Follow the final device's instructions. If it provides switchable or automatic internal termination, use that method as documented instead of adding another load by habit.
- Test RDM Separately: First confirm the basic DMX control path. If RDM is required, test discovery and responses across the full path rather than inferring support from the connector.
- Change One Variable at a Time: Swap one cable, adapter, or device, then log the result. Several simultaneous changes can hide the actual fault.
This process does not need a universal cable-length or fixture-count promise. Use the manufacturer's documentation and the real path conditions for those limits. The practical goal is to keep the test controlled.
Current SHEHDS Port Examples
Current SHEHDS pages show why you should check each product. Do not assume one port type across the whole catalog.
| Exact Page | Listed Port Wording | What Still Needs Verification |
|---|---|---|
| SHEHDS DMX Console 240A | The page lists a 3-core XLR DMX512 output. | Check the pinout, cable, receiver, termination, and RDM needs. |
| SHEHDS COB 400W Moving Head Light | The page lists 3-pin and 5-pin DMX input and output ports. | Check the chosen path, manual, pinout, cable, and RDM needs. |
These port examples come from pages checked on September 15, 2026. They apply to the two named pages. Use the manuals for the full rig.
Final Inspection Checklist
Before selecting a cable, adapter, controller, or fixture, prepare a short connection brief. It will help you compare parts and explain the system to another technician.
- Controller Output: Record the connector gender, pin count, pinout, and required control features.
- First and Last Receivers: Identify their inputs, outputs, manuals, and any internal termination settings.
- Primary Data Map: Confirm the documented functions of pins 1, 2, and 3 at every format change.
- Optional Contacts: Record any stated use of pins 4 and 5 and leave them isolated when no compatible use is documented.
- Cable Path: List cable type, each run length, fixture order, connector changes, and any splitter.
- Termination: Mark the last receiver and the documented termination method.
- RDM Requirement: State whether basic DMX is enough or the complete path must support bidirectional RDM traffic.
- Operating Environment: Note any connector sealing or installation requirement that affects the hardware choice.
- Evidence for Handoff: Keep clear port photos, product names, and the relevant manual pages with the connection brief.
Choose the documented signal path, not the plug with more or fewer contacts. Once you have this brief, compare the exact SHEHDS controller and fixture pages that match your ports. The recorded details will show which cable or adapter boundary still needs confirmation before the rig is patched.
