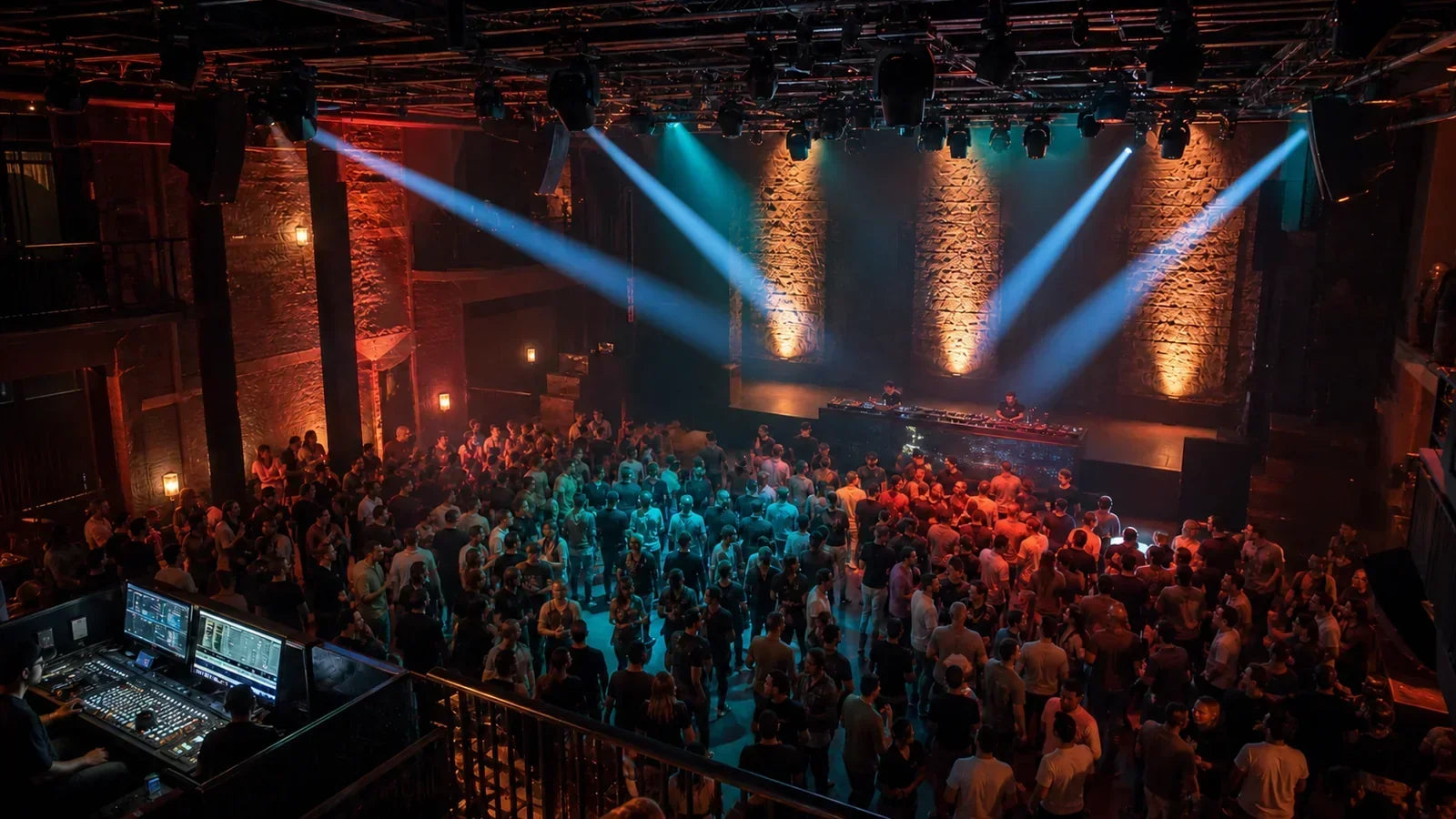

Choose beam lights for nightclubs from the room outward. Measure each proposed fixture-to-target path, define where the effect should land or terminate, test every relevant viewpoint, confirm the venue's atmosphere status, and record control and service access before approving a model.
Tight, punchy, and long throw are project goals. Lamp power, a category label, or one beam-angle value cannot guarantee them. The accepted result depends on the exact fixture, optics, path, ambient conditions, target, atmosphere, cue, and onsite test. There is no universal fixture count, mounting height, beam angle, throw distance, or room-size formula.
How this guide selects nightclub beam lights
This is a SHEHDS-owned guide based on current first-party product records and authoritative boundary sources. It is not independent photometric, installation, reliability, or safety testing.
| Step | Project rule |
|---|---|
| Include | Require an exact model and variant, documented optical and control fields, a measured path, intended target or termination, atmosphere fit, approved position, access plan, maintenance owner, and onsite acceptance test. |
| Exclude | Remove candidates supported only by wattage, marketing labels, popularity, capacity formulas, or dramatic footage, and candidates with unresolved identity, optics, path, control, access, or atmosphere dependency. |
| Verify | Map each candidate to its measured geometry, visual job, viewpoint results, cue limits, wash support, nightly check, service access, owner, and exclusion trigger. |
The candidate universe covers current SHEHDS bulb-beam and LED-beam moving heads plus supporting wash and control categories. Evaluation fields are room geometry, exact-model optical evidence, target and termination control, venue-defined no-fly zones, atmosphere dependency, cue fit, wash support, access, documentation quality, and test uncertainty. Evidence is current through August 17, 2026. Verify regional price, stock, delivery, warranty, and the exact variant at purchase time; they are not ranking inputs.
Define the beam job before choosing a fixture
A beam layer creates a directional effect. A wash layer provides broader coverage, while ambient lighting shapes the room's general visual state. Give each layer its own job and acceptance test instead of asking a narrow beam to cover every surface or person.
| Visual job | Beam layer | Wash or ambient layer | Do not substitute |
| Directional accent or aerial path | A documented narrow path with a target and movement limit | Supports the surrounding room state | Beam width alone does not prove contrast or usable reach |
| Performer or dance-floor coverage | Optional accent only when tested | Documented broad coverage role | A tight shaft is not broad coverage |
| Room ambience | Short texture or movement cue | Stable color and brightness state | A dramatic cue is not a complete room plan |
| Theatrical blackout cue | A programmed show-light state | A separately documented venue state | The cue describes programmed show fixtures only |
Use club lighting to compare room-level categories after these jobs are separated. A conventional discharge-lamp beam mover is not a laser merely because its path appears tight. If a fixture includes an actual laser or hybrid function, identify it separately. For United States laser scope, consult the FDA laser light-show guidance; the exact product and local jurisdiction still govern.
Measure the room and every intended beam path
Build the worksheet from the actual venue rather than a generic plan. Use only the approved candidate position, and give every measurement and unresolved condition an owner.
| From | To | Horizontal | Vertical | Total path | Obstruction or reflection | Viewpoint | Owner | Status |
| Exact fixture position | Intended surface or volume | Measured | Measured | Measured |
Column, balcony, screen, mirror, finish, or none seen
|
Patron, staff, performer, booth, or camera | Named role | Open, test, accepted, or excluded |
Add ceiling or trim constraints, ambient light, fixture clearance, the intended pan and tilt range, booth and camera views, and any room condition that can alter the result. A diagonal-path calculation can organize the record, but it does not approve the position or predict usable contrast.
The physical room test must use the exact candidate, optics, cue state, atmosphere condition, and relevant viewpoints. This worksheet does not calculate rigging capacity, electrical service, mounting approval, or audience exposure. Current instructions, venue decisions, and the responsible technical parties govern those fields.
Draw target, termination, sightline, and no-fly zones
Give every programmed beam state an intended target surface or venue-approved termination volume. Then review the full path from the viewpoints the venue defines for this project. The exit field below is only a venue-defined planning viewpoint.
| Zone or viewpoint | Effect state | Limit to record | Owner | Test | Status |
| Target surface or termination volume | Static beam, movement, prism, or gobo | Permitted landing and boundaries | Programmer and venue owner | Exact cue in room | Accepted, limited, or excluded |
| Patron, staff, performer, or booth viewpoint | Full movement path | Pan, tilt, intensity, and timing limits | Venue-designated owner | Observe from position | Recorded result |
| Camera, screen, mirror, or reflective finish | Every relevant state | Unwanted glare, reflection, or image effect | Production owner | Camera and visual check | Recorded result |
| Venue-defined exit viewpoint | Venue-selected show states | Viewpoint note supplied by the venue | Venue-designated owner | Venue-defined review | Open or recorded |
| Service route or access position | Homing, operation, and service state | Access and stop condition | Operations owner | Workflow test | Open or accepted |
Record permitted, limited, and excluded pan, tilt, prism, and gobo states, plus the cue version and retest trigger. ICOPER industry guidance calls for competent rigging preplanning, site and point-capacity information, maintenance schedules and records, and assigned responsibilities. Applicable law, venue rules, current manuals, and qualified parties govern the installation. This map is conservative commissioning guidance, not an exposure calculation or installation approval.
Apply the atmosphere-policy gate
Atmosphere can make an aerial path visible, but it is a conditional venue input, not a default fixture feature. Give the intended state one of three labels: permitted, not permitted, or unknown.
| Field | Record before approval |
| Machine and fluid | Exact product, current instructions, and owner |
| Venue process | Atmosphere policy, alarm procedure, approval status, and recheck date |
| Room conditions | Ventilation, occupied areas, surfaces, cleaning implications, and operating window |
| People | Venue-defined worker and patron considerations and responsible decision owner |
| Fallback | Cue and visual state used when atmosphere is unavailable |
Do not prescribe fluid, density, alarm bypass, detector disabling, or universal permission. An older NIOSH theatre investigation discussed incomplete exposure information and could not determine whether measured substances caused reported effects. It is not a nightclub exposure limit, causal finding, or haze recommendation. Use current venue procedures, product instructions, local requirements, and responsible approval for the actual club.
Verify beam angle and usable throw for the exact model
Treat product-page values as screening evidence tied to the named listing, not as a ranking. The current bulb beam moving head category defines one candidate route; LED beam moving head lights are a separate route that still requires exact optical and operating evidence.
| Named listing | Manufacturer-listed fields captured August 17, 2026 | Missing before approval | Room test and exclusion trigger |
| 275W 10R | 275 W, 2.8-degree beam angle, 16 DMX channels, 13.15 kg net weight, 29 x 23 x 50 cm product size | Exact variant, method, current manual, package, position, service and acceptance criteria | Test the measured path and exclude if the intended target or control state cannot be achieved |
| GalaxyJet 311W 14R | 311 W bulb, 1.9-degree beam angle, listed 365,800 lux at 5 m, DMX512/RDM with 16 channels, 12.88 kg product and 17.1 kg package weight, IP20 | Independent method for the listed illuminance, exact conditions, current variant, position and access | Do not extrapolate the lux point; exclude if the onsite result or operating evidence remains unresolved |
| EU 17R 350W | 350 W, listed 0.2-degree parallel beam, 16 DMX channels, 13.4 kg net, 15 kg gross, 63 x 43 x 39 cm package | Exact EU listing and variant, method, regional status, path, control and service | Do not transfer fields to another region; exclude when exact identity or room result is unresolved |
Beam angle, lamp power, and one listed illuminance point cannot prove usable throw, contrast, impact, or equivalence in this nightclub. Record the optics or focus state, test distance, atmosphere, ambient conditions, target surface, cue state, viewpoints, acceptance threshold, observer, date, and uncertainty. Keep every number attached to its exact listing rather than normalizing heterogeneous first-party fields.
Test conditional positions and keep a separate wash layer
Front, rear, side, and floor placements are test candidates, not universal prescriptions. Each must pass the measured map, the approved-position record, the complete movement-path test, every relevant viewpoint, the termination plan, and the maintenance-access check.
| Position option | Visual path | Viewpoint and termination test | Wash support | Access and fallback | Status |
| Front candidate | Toward a defined target | Review patron, performer, booth, camera, and reflection results | Separate broad layer | Record service path and limited cue | Test or exclude |
| Rear candidate | Across or toward the room | Check the full path and termination volume | Separate performer or floor coverage | Record access and reduced state | Test or exclude |
| Side candidate | Cross-room texture | Check near and far viewpoints, surfaces, and cameras | Separate ambient support | Record clearance and fallback | Test or exclude |
| Floor candidate | Upward or scenic accent | Test the complete path, stability, access, and obstruction changes | Separate coverage role | Record stop condition | Test or exclude |
Use moving head wash lights only for a documented complementary coverage role. Do not infer a universal mounting position, orientation, clearance, hardware, or coverage result from this table.
Build the control register and cue-state matrix
Repeatable effects require exact identities and boundaries. Record the model and variant, fixture mode, channel count, profile source, address, connectors, protocol, controller, software, firmware, signal-loss behavior, target and termination limits, group, owner, and tested recovery state.
| State | Group | Position or movement limit | Intensity behavior | Atmosphere | Operator and fallback | Restore test |
| Opening | Beam and wash groups | Restricted documented paths | Stable venue-selected level | Label current status | Named operator; stable fallback | Recall and compare |
| Build | Approved effect groups | Expanded only within accepted map | Versioned transition | Dependency recorded | Remove unsupported group | Return to opening |
| Peak | Exact tested groups | Full accepted limits only | Programmed cue behavior | Dependency recorded | Reduced peak state | Recover and retest |
| Transition or announcement | Minimal movement | Fixed or venue-selected limits | Stable readable show state | Optional | Use wash-supported state | Recall next cue |
| Theatrical blackout | Programmed show-light groups | No movement unless specifically tested | Programmed show-fixture state | Not relied upon | Manual operator action | Restore accepted look |
| Close or fallback | Stable accepted groups | Simplified positions | Documented low-complexity state | Not relied upon | Isolate failed group | Recovery test |
Here, theatrical blackout is only a programmed cue for the listed show-light groups; it does not define any other venue system. Compare DMX controllers only after the register fields are known. No cross-model, profile, connector, protocol, software, firmware, or controller compatibility is assumed.
In its narrow United States construction scope, OSHA identifies flexible-cord hazards such as damage, wet connectors, abrasion, and loss of grounding. That page is not a complete nightclub electrical standard. Exact venue service and cord routing remain with qualified responsible parties and applicable requirements.
Run the nightclub pre-open beam check
Use the current fixture and venue procedures, and stop when an expected result is not met.
| Check | Expected result | Owner | Pass or stop | Fallback and change record |
| Startup and homing | Matches accepted behavior without a new obstruction | Operator | Pass or stop | Isolate group and log change |
| Position, movement, target and termination | Matches the current map | Programmer | Pass or stop | Use limited or fixed cue |
| Dimmer and theatrical blackout cue | Matches the accepted show-file version | Operator | Pass or stop | Recall stable show state |
| Atmosphere | Current status matches the cue dependency | Venue owner | Pass or stop | Use no-atmosphere cues |
| Control, cameras and screens | Response and viewpoints match acceptance record | Production owner | Pass or stop | Disable affected state |
| Fault and restore | Fallback recalls and recovery test passes | Named technical owner | Pass or stop | Keep group isolated |
This runbook releases the documented show configuration only. It is not universal movement, electrical, rigging, or exposure approval.
Plan maintenance access and revalidation
Preserve access for inspection, cleaning, source service, fault isolation, record review, and the approved maintenance process. Do not hide a fixture behind a design that cannot be reached under the venue's current plan.
| Asset | Manual or schedule | Access | Owner | Fault or change | Retest | Record date |
| Exact fixture and optics | Current model-specific source | Approved access method | Named responsible role | Condition and action | Path, cue and control | Date and version |
| Position or rigging record | Venue-approved documentation | Approved inspection access | Qualified owner | Movement or component change | Position and target map | Date and approver |
| Control and atmosphere record | Current show file and policy | Operator and service access | Programmer and venue owner | Software, profile, rule or room change | Modes, cues and fallback | Date and version |
Revalidate after moving a fixture, changing optics, updating control, changing atmosphere status, altering a target or reflective surface, or modifying access. No universal service interval, lamp life, repairability, downtime, or reliability claim is made; current manuals, venue procedures, applicable law, and qualified parties govern.
Build your SHEHDS nightclub beam comparison brief
Record the room map, measured paths, targets, terminations, venue-defined no-fly zones, atmosphere status, approved positions, wash layer, exact optical evidence, control register, cue matrix, nightly runbook, maintenance access, jurisdiction, market, and budget. SHEHDS can use that brief to narrow current categories or documented models and identify the evidence and onsite tests that remain open. It does not promise measured output, usable throw, compatibility, commerce terms, or a particular visual result.
Frequently Asked Questions
What beam angle works best in a nightclub?
No angle is universally best. Compare exact-model evidence against the measured path, target, termination, atmosphere state, viewpoints, and accepted onsite result.
How far can a nightclub beam light project?
The usable distance is the distance at which the exact fixture passes the club's documented room test. Do not infer it from wattage, angle, or an extrapolated illuminance point.
Do beam lights need haze to be visible?
Atmosphere can reveal an aerial path, but it is not mandatory. Follow the venue's current status and keep a tested no-atmosphere cue fallback.
How many beam lights does a club need?
Use only the number of documented paths and cue groups that pass the geometry, viewpoint, control, access, and operating tests. There is no capacity formula.
Can beam lights replace wash lights?
Do not assume so. Beams serve directional effects, while a documented wash layer handles broader coverage where the club's design calls for it.
What should staff check before opening each night?
Check homing, movement limits, targets, terminations, cue and control response, atmosphere status, new obstructions, camera views, fallback recall, fault records, and the named stop condition.
Turn dramatic beams into a documented club system
Measure the room, approve each path, keep atmosphere conditional, separate beams from wash, version the cues, and preserve nightly and maintenance records. Complete the comparison brief so SHEHDS can help narrow current options and list the remaining evidence and tests.
