Learning how to choose stage lights by venue size starts with one limit: venue size narrows the field, but it does not choose the fixtures. A useful decision starts with measured geometry, visual jobs, throw, ambient light, cameras, mounting, power, control, crew, portability, environment, and the next capabilities the venue expects to add.
Use this process:
- Measure the room, stage, positions, and target zones.
- Assign a visual job to every required area.
- Apply room, infrastructure, and operating constraints.
- Verify the exact model and variant.
- Test it in the intended position and show states.
- Separate the core purchase from later additions.
No room label establishes a universal fixture count, wattage band, throw, beam angle, power load, crew size, or budget.
What Should You Check Before Choosing Stage Lights?
This SHEHDS-owned guide uses first-party category and product records; it is not an independent market ranking. Recommendations follow this seven-part method before any category is shortlisted.
Candidate scope: Current SHEHDS PAR and wash, profile and spot, beam, moving-head wash or spot, wall-wash, waterproof, and controller categories. The LEKO and flat PAR records below illustrate data fields; they are not winners.
Inputs: Geometry, throws, visual jobs, ambient light, cameras and screens, mounting, power, control, crew, logistics, weather, schedule, budget, and growth.
Weighted criteria: Geometry and position fit 20%; optics and photometric evidence 20%; visual job and zones 15%; camera and screen acceptance 12%; control and growth 10%; power, mounting, and venue fit 10%; operations and logistics 8%; weather, budget, and commercial fit 5%.
Exclusions: Remove choices based only on capacity, room label, or wattage. Exclude named models with unresolved identity, evidence, or project fit.
Evidence cutoff: Approved corpus and registered sources through August 11, 2026. Refresh changed facts.
Commercial facts: Price, stock, warranty, and delivery are not ranking inputs and require purchase-date confirmation.
Mapping: Every suggestion must name its job, inclusion condition, evidence, remaining test, approval owner, and exclusion condition.
What Belongs in a Venue-Fit Scorecard?
Collect one shared record before forming a shopping list. Capacity belongs in the brief, but geometry and operating conditions drive the comparison.
| Input | Current value | Source | Unknown | Effect on choice | Decision owner | Due date | Status |
|---|---|---|---|---|---|---|---|
| Room and stage width/depth | Measure | Venue plan or site check | Record gap | Defines target areas and positions | Venue contact | Project date | Open or verified |
| Usable height, trim, throws, obstructions | Measure | Approved plot | Record gap | Changes optics, aiming, clearance, spill | Lighting and venue leads | Project date | Open or verified |
| Visual zones and simultaneous states | List subjects, scenic, audience, screens | Run of show | Record gap | Defines required jobs and coexistence | Producer | Project date | Open or verified |
| Ambient light, reflective surfaces, haze | Describe actual conditions | Venue and show policy | Record gap | Changes observation and category fit | Venue and lighting leads | Project date | Open or verified |
| Cameras, screens, and photo positions | List equipment, frames, content | Video plan | Record gap | Adds capture and spill tests | Video lead | Project date | Open or verified |
| Power, positions, mounting, rigging | Approved documents and contacts | Venue records | Record gap | Can remove a candidate | Venue and qualified reviewer | Project date | Open or verified |
| Control, operator, cues, rehearsal | Current method and skill | Production plan | Record gap | Sets operating burden | Show and lighting leads | Project date | Open or verified |
| Logistics, weather, existing gear, growth, budget | Record limits and future jobs | Buyer brief | Record gap | Shapes core and expansion stages | Buyer | Project date | Open or verified |
The scorecard supports selection and handoff. It is not an engineered lighting, electrical, network, mounting, rigging, safety, or compliance design.
Which Lighting Roles Should Be Solved First?
Fund usable subject and general coverage before decorative effects. Then add depth, focus, movement, scenic treatment, or audience moments only when the program defines the need.
| Job | Subject or zone | Required state | Category to inspect | Room constraints | Model data | Project test | Owner | Priority |
| Subject visibility | Presenter, performer, panel, product | Formal program | Wash, profile, or spot role | Position, angles, glare, cameras | Optics, photometrics, dimming, color | Every subject position and frame | Producer and video lead | Core |
| General coverage | Stage, backdrop, or task area | Stable base look | LED PAR lights or wash role | Coverage, spill, height, ambient light | Beam or field data, color, control | Actual target surface | Lighting lead | Core |
| Separation and scenic state | Backdrop, architecture, subject edge | Approved color state | Wash or wall-wash role | Screens, reflections, sightlines | Optics, color, dimming | Actual surface and camera | Client and lighting lead | Core when required |
| Controlled emphasis | Lectern, product, photo, scenic feature | Named program state | Profile or spot role | Throw, framing, aiming | Photometrics, zoom, framing | Planned position and target | Lighting and video leads | Conditional |
| Repositionable look | Multiple zones | Repeatable cues | Moving wash or spot role | Clearance, noise, paths | Movement, optics, control | Each approved position | Operator | Conditional |
| Beam or effect moment | Air, entrance, audience, scenic cue | Approved event moment | Beam, gobo, strobe, or effect role | Haze policy, sightlines, cameras | Exact model and control data | Full cue and final state | Producer and operator | Deferred unless required |
A category role does not prove model fit, quantity, output, throw, camera behavior, noise, power, mounting, or compatibility.

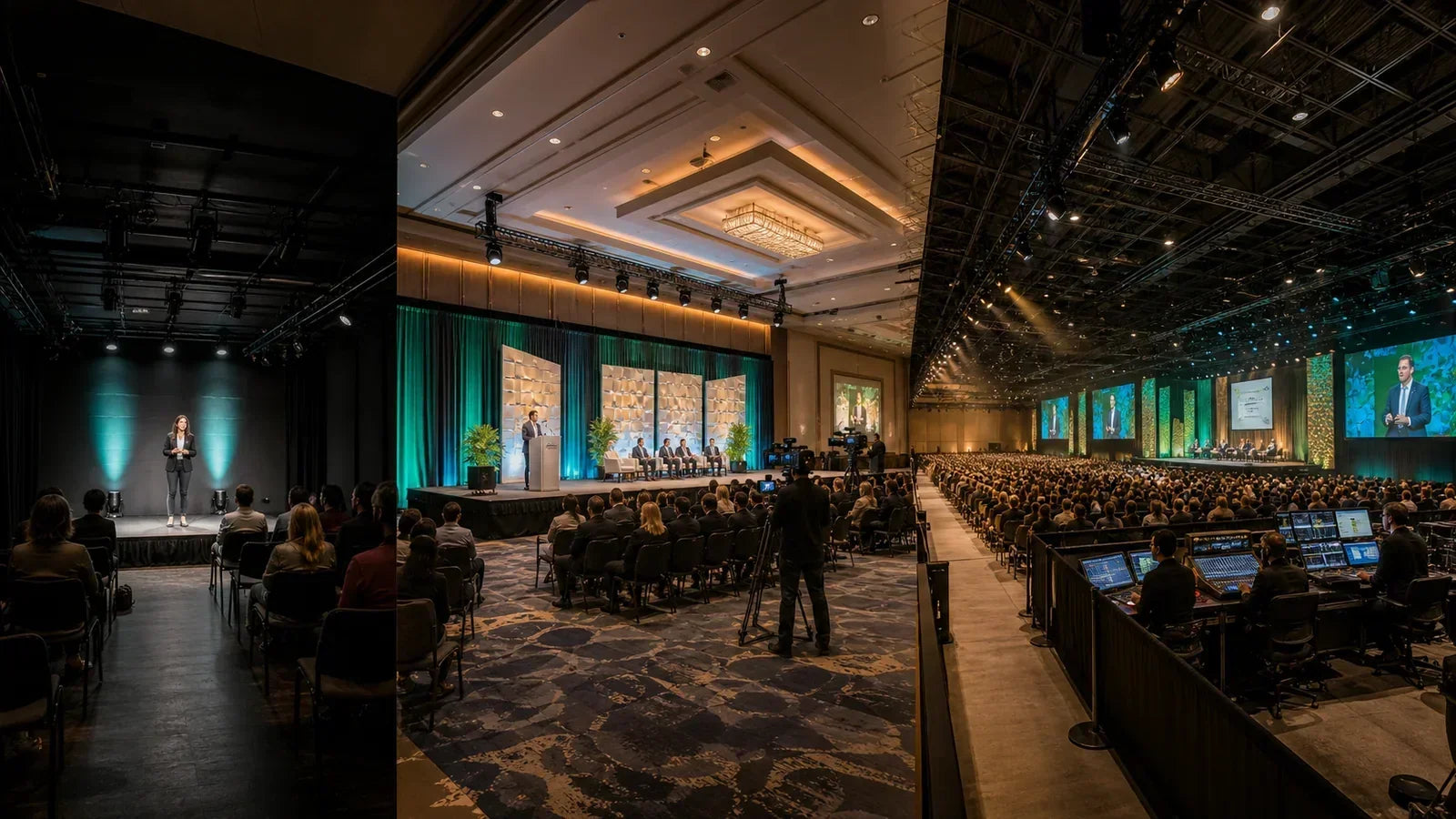

How Do Small, Medium, and Large Venue Scenarios Differ?
To decide how to choose stage lights by venue size, use planning profiles instead of universal dimensions or audience bands. Two rooms with similar capacity can produce different shortlists because height, distance, zones, cameras, access, and crew differ.
| Planning profile | Geometry | Zones | Throw and height | Cameras and screens | Control and crew | Logistics | Starting jobs | Added verification |
| Compact, lower-ceiling, or short-throw room | Close positions and limited clearance | Few required zones, possibly shared | Shorter measured paths; glare and spill can dominate | Camera or display may still be present | Simple operation may fit a limited cue list | Portability, fast setup, storage | Broad controllable coverage and required subject emphasis | Noise, movement clearance, spill, actual coverage, control burden |
| Medium-complexity multi-zone room | Wider or deeper working area | Independent subject, scenic, screen, or audience zones | Different distances may coexist | Multiple frames or display states may conflict | Named scenes and clearer ownership may help | Longer setup and more handoffs | Separate core zones, scenic treatment, controlled emphasis | Coexistence, cue conflicts, camera and display acceptance, connector compatibility |
| Larger, higher-trim, or longer-throw production | Distant positions, higher mounting, more obstructions | Simultaneous main, side, entrance, scenic, or audience roles | Selected-model optics and photometrics become decisive | More capture and display states may need testing | Fuller control only when program and topology require it | Venue access, transport, documentation, crew handoffs | Verified subject coverage, scenic layers, then justified beam or repositionable roles | Measured target sizes, photometrics, aiming, mounting, infrastructure, topology, restore tests |
The profile changes the depth of verification. It does not automatically prescribe a product, quantity, network, control protocol, or crew.
How Do Room Constraints Change the Shortlist?
A room label is never the final filter. Apply the same exclusion logic to every scenario.
| Condition | Risk to the visual job | Candidate adjustment | Evidence needed | Test | Exclusion rule | Approval owner |
| Low ceiling or short throw | Hot spots, glare, spill, blocked view, movement conflict | Compare suitable optics, placement, or static roles | Selected-model coverage and movement data | Planned position and target | Exclude if the required state cannot be accepted | Venue and lighting leads |
| Long throw or high trim | Insufficient target result or aiming limits | Review model-specific optics and photometrics | Official file and exact variant | Measured distance, target, ambient light | Exclude if evidence or test is unresolved | Lighting lead |
| Daylight or reflective surface | Reduced contrast, glare, camera conflict | Reconsider position, target, surface, and fixture role | Room condition and model data | Representative ambient state | Exclude unsupported output assumptions | Producer and video lead |
| Restricted position or sightline | Coverage gap or obstruction | Compare another approved position or role | Venue plan | Audience and camera views | Exclude unapproved placement | Venue contact |
| Low-noise program | Audible distraction | Compare documented noise and operating modes | Exact model record | Rehearsal from occupied areas | Exclude unresolved noise | Producer |
| Mobile setup or short rehearsal | Excess transport or programming burden | Simplify roles and control | Weight, size, cases, workflow | Timed approved setup and cue check | Exclude beyond crew capacity | Operator |
| Outdoor, wet, or dusty exposure | Environmental mismatch | Review exact rated outdoor category | Current model rating and conditions | Project and venue review | Exclude unverified environmental fit | Venue and qualified reviewer |
Do not convert these constraints into universal thresholds or remedies.
Which Model Data Should You Verify?
A plausible category becomes a reviewable model only when its identity, evidence, and missing fields are clear.
| Field | Exact record | Evidence status | Project check | Exclusion decision |
| Model and variant | Full current identifier | Verified, stale, missing | Match quoted and delivered unit | Exclude unresolved identity |
| Optics and photometrics | Beam or field data, conditions, zoom, focus, framing | Exact source and date | Planned position, target, ambient light | Exclude unsupported fit |
| Color, dimming, refresh | System, metrics, curves, relevant refresh data | Exact variant | Audience and camera observation | Exclude unsupported claim |
| Movement and noise | Limits, speed options, operating sound | Exact variant | Clearance and occupied-room test | Exclude if required state fails |
| Control and connection | Modes, channels, connectors, protocol implementation | Exact documentation | System compatibility and operator workflow | Exclude unresolved compatibility |
| Power, mounting, size, weight, IP | Current official fields | Exact variant and scope | Venue and qualified review | Exclude missing required approval |
| Service and commerce | Current market status | Purchase-date check | Buyer review | Do not rank on stale data |
The captured SHEHDS LEKO Zoom 250W/350W variants list 16-bit dimming, 19–36-degree zoom, a stated 5–20 m projection range, adjustable 2800–10000 K, high-PWM positioning, four-blade framing, and DMX input and output.
The captured 18x18W aluminum flat PAR model lists a 40-degree beam angle, RGBWA+UV, DMX512 and power input and output, and master-slave operation. These examples show which fields to inspect. Their ranges, wattage, beam angle, or high-PWM language do not prove venue, coverage, throw, camera, or system fit.
How Should You Test a Stage Light Before Buying?
Make fit an observed and recorded decision. Use the exact candidate and variant in the planned position, under representative room and program conditions.
| Candidate | Position and distance | Target zone | Ambient condition | Cue or look | Camera or screen condition | Observed result | Correction | Reviewer | Status |
| Exact model | Approved location and measurement | Named subject or surface | Representative state | Required scene and transition | Actual camera settings, frame, and content as applicable | Coverage, edges, spill, glare, dimming, color, movement, noise, control response | Assigned action | Named owner | Pass, retest, or exclude |
In-room test
Check target coverage, edge quality, spill, glare, dimming, color, movement clearance, noise, control response, changeover, and representative cues. Repeat the state from required audience viewpoints and record what changed.
Camera and screen test
When capture or displays matter, review exposure, color, spill, glare, visible banding or flicker, screen content, and transitions with the actual camera model, settings, frames, and representative content. A listed refresh or high-PWM feature does not establish camera readiness.
The observation applies to the tested setup only. It does not establish universal coverage, color, flicker-free behavior, screen readability, or quantity.
How Should Control and Crew Capacity Affect the Choice?
Control should match the show, the fixture groups, and the people who will operate them. Complexity is useful only when it supports required zones or repeatable cues and the team can configure, document, rehearse, and recover the system.
| Show need | Fixture groups | Control approach to inspect | Compatibility checks | Operator burden | Rehearsal | Growth gate |
| Stable limited look | Few groups | Standalone or documented master-slave workflow when supported | Exact mode, leader/follower behavior, connectors | Setup and observation | Run required state | Add control only for a defined need |
| Repeatable scenes | Independent zones | DMX controller and compatible fixtures | Profiles, modes, addresses, channels, connectors, protocol implementation | Programming, cue operation, backup record | Cue-to-cue and fallback | Add groups after compatibility and capacity review |
| Larger distributed operation | Multiple endpoints or control paths | Deeper DMX or network planning when justified | Exact controller, nodes, endpoints, software, firmware, network ownership | Documentation, monitoring, recovery | System and restore tests | Project topology review |
Art-Net and ANSI E1.31-2025 may describe network transport of DMX data, but neither makes a topology necessary, compatible, scalable, or resilient. Verify the project implementation. Do not let control complexity outrun operator skill, setup time, monitoring, documentation, or rehearsal.
Which Power, Cable, Mounting, and Rigging Checks Apply?
Close infrastructure questions through venue documents and appropriately qualified review before installation or purchase.
| Item | Document or data | Venue owner | Qualified reviewer | Approval | Exception | Recheck |
| Selected-model requirements | Current official record | Lighting lead | Relevant technical reviewer | Open or approved | Named owner | After model change |
| Power and cable routes | Venue distribution and routing plan | Venue contact | Qualified responsible person | Open or approved | Named owner | After layout change |
| Positions, mounting, rigging | Approved plot, method, point data where applicable | Venue contact | Competent planner or qualified engineer as required | Open or approved | Named owner | After relevant change |
For US workplace contexts, OSHA says flexible cords are more susceptible to damage than fixed wiring, requires grounded three-wire extension cords, and warns that wet connectors can create leakage paths. This is not a complete electrical plan or a global rule.
ICOPER says temporary rigging should be preplanned by a competent person, venue point capacities identified when appropriate, and designs beyond predetermined limits reviewed by a qualified structural engineer experienced in entertainment rigging. ICOPER is entertainment-industry guidance, not universal law.
Venue and jurisdiction requirements govern. This guide does not calculate load, select hardware, approve rigging, or declare compliance.
How Should You Build a Core Rig and Expansion Roadmap?
Buy required visual jobs, workable operation, and approved infrastructure first. Defer movement, texture, audience effects, outdoor variants, deeper control, or backup capacity until a documented need unlocks them.
| Stage | Capability or job | Reason | Existing dependency | New evidence | Test | Owner | Go or no-go |
| Core | Required subject, general, and scenic states | Supports the current program | Approved positions, power, mounting, operator | Exact model evidence | Room, camera, control, infrastructure | Buyer and production leads | Approve, revise, or defer |
| Expansion 1 | Added zone, controlled focus, or movement | New program requirement | Core coverage and compatible control | Optics, photometrics, modes, connectors | Coexistence and cue test | Lighting lead | Approve, revise, or defer |
| Expansion 2 | Audience effects, outdoor use, deeper control, backup measure | Defined future event or risk need | Environment, topology, infrastructure, crew | Exact rating, compatibility, risk and commerce records | Project-specific acceptance | Risk and technical owners | Approve, revise, or defer |
Record future positions, zones, control protocol and addressing, endpoints, power, mounting, transport, storage, crew, maintenance, and test requirements.
Do not assume networked control, spare capacity, cross-model compatibility, future availability, or a future-proof purchase. Each stage needs a fresh evidence and acceptance gate.
Which SHEHDS Categories Should You Review?
Use the completed worksheet to narrow categories by job, not to build a universal package.
| Venue profile | Visual job | Category to inspect | Inclusion condition | Exclusion condition | Evidence | Project test | Owner |
| Any defined profile | Category overview | stage lights | Inputs and required jobs are documented | Room label is the only reason | Current category records | Scorecard review | Buyer |
| Controlled subject, lectern, product, or scenic emphasis | Focused light | spotlights | Target, distance, optics, and framing need are verified | Throw or camera fit is assumed | Exact model data | Planned position and frame | Lighting and video leads |
| Multi-zone or repositionable broad coverage | Flexible wash | Moving head wash lights | Independent zones and cues justify movement | Clearance, noise, control, or test is unresolved | Exact model and control data | Every approved position | Lighting lead |
The LED PAR and controller categories above cover broad wash and repeatable control; keep them in the shortlist only when the scorecard supports those jobs.
Send SHEHDS the dimensions, throws, trim, zones, ambient light, event types, cameras and screens, positions, power, mounting, control, crew, logistics, weather exposure, existing fixtures, growth plan, and budget.
This SHEHDS-owned guide can narrow categories or named models for review; it does not promise design, quantity, safety, compliance, compatibility, stock, delivery, or outcomes.
Frequently Asked Questions
Can venue capacity tell me how many stage lights I need?
No. Use geometry, zones, selected-model optics and photometrics, program states, infrastructure, crew, and project testing.
Which light type should a small venue inspect first?
Start with required broad coverage and subject jobs. Then test a suitable PAR or wash category, or controlled emphasis category, under the room’s actual constraints.
How does ceiling height change the choice?
It changes candidate positions, angles, coverage, glare, spill, movement clearance, sightlines, and mounting review. It does not create one universal fixture rule.
When do cameras change the specification?
When capture is required, test the selected fixture and position with actual camera settings, frames, representative content, and cue states. Assign reviewers and record the result.
Do small venues need DMX control?
Not automatically. Base control on independent zones, repeatable cues, compatibility, operator skill, setup, documentation, and rehearsal.
How should I plan for a larger venue later?
Record future jobs, positions, control, power, mounting, transport, storage, crew, compatibility checks, and acceptance gates before adding equipment. Reverify models and commercial facts at that time.
