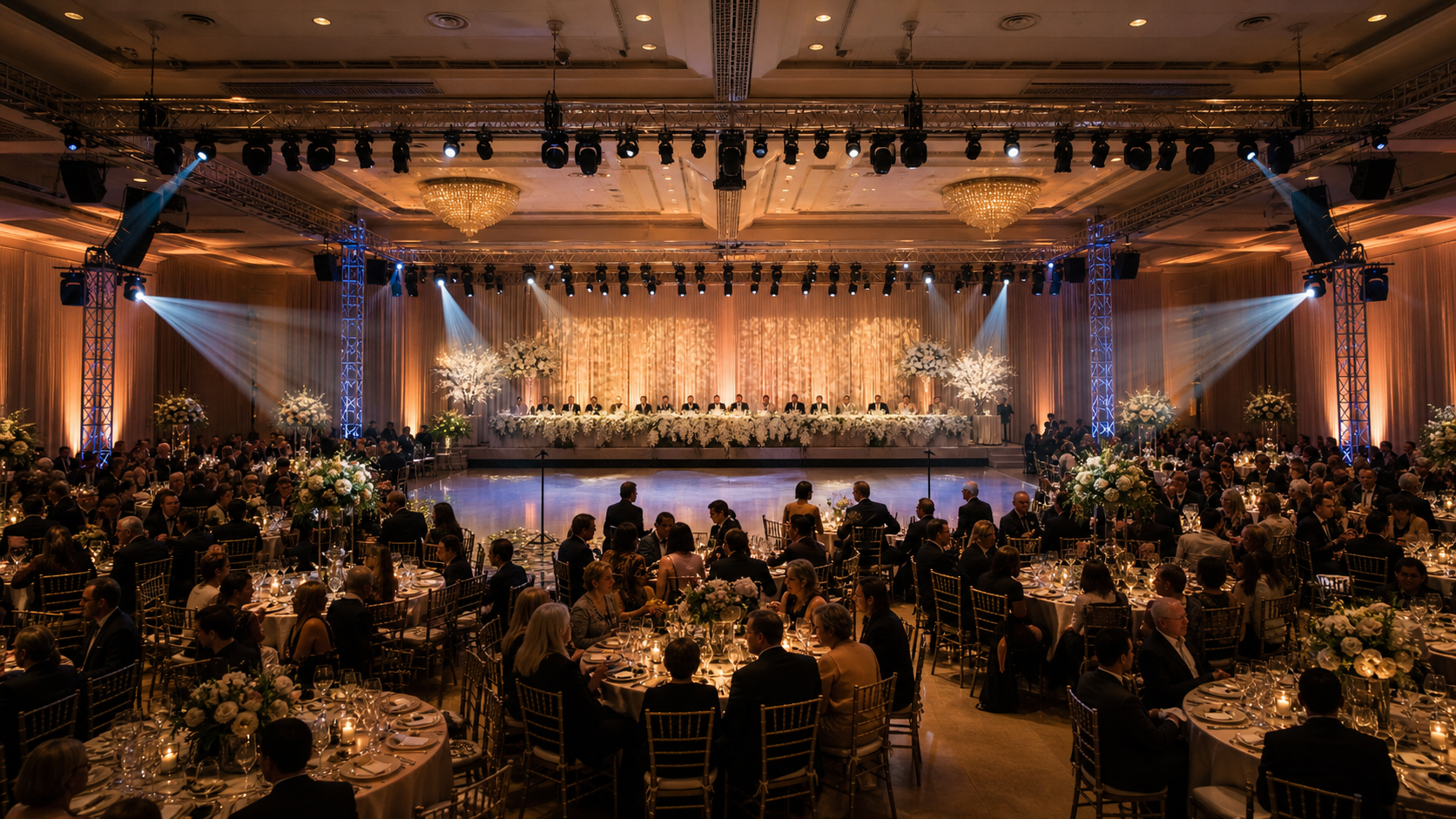

An 800+ guest wedding needs a production lighting plan, not a larger DJ package. Start with 8-12 moving wash fixtures across front, rear, and side positions; use 24-40 uplights for the room architecture; and build separate scenes for dinner, speeches, the first dance, and open dancing. For ballrooms with exterior access, tents, and exposed event positions, the SHEHDS Waterproof 19x15W RGBL Zoom Moving Head is a practical main fixture because it combines IP66 protection, 7-60 degree zoom, and DMX512/RDM control.
At this scale, the lighting must connect a stage, head table, dance floor, room perimeter, and guest seating that may extend far beyond the front rows. A few fixtures above the DJ booth leave the room visually split in half. The solution is to create lighting directions from the front, rear, and sides, then program each zone independently.
What Does an 800+ Guest Wedding Lighting Plan Need?
The guest count is only one part of the calculation. Stage width, ceiling or tent height, room depth, video coverage, weather exposure, and the number of active areas all affect the fixture plan.
| Venue Format | Moving Wash Fixtures | Uplights | Recommended Structure |
|---|---|---|---|
| Large ballroom | 8 | 24-30 | Front truss, rear truss, side stands or house points |
| Grand hall or convention venue | 10-12 | 30-36 | Three lighting directions and dedicated power planning |
| Large tent or estate reception | 10-12 IP-rated units | 36-40 | Ground support, weather plan, cable ramps, protected distribution |
Use fixture counts as a starting point. A wide 40-foot stage needs more coverage than a narrow platform serving the same guest count. The final rig should be focused from the stage, the head table, the rear audience area, and the primary photo positions before guests arrive.
Why Use IP66 Zoom Wash Lights for a Large Wedding?
Large weddings are not always indoor-only. A ballroom may open onto a terrace. A tent can allow wind-driven rain under the roof. A reception can move outdoors after sunset. In these conditions, an IP66 wash mover gives the rig more placement options than an indoor-only fixture.
The SHEHDS Waterproof 19x15W RGBL Zoom Moving Head lists 19 x 15W RGBL LEDs, IP66 protection, a 7-60 degree zoom range, 19/33-channel DMX modes, RDM support, 540-degree pan, and 190-degree tilt. The wide end of the zoom can wash a stage roof, backdrop, or dance floor. The narrow end can create more defined aerial movement after dinner.
The fixture is not a substitute for a dedicated key light on the couple. Use it for color, separation, stage texture, and controlled movement. Add a front-light position for speeches, live music, and the first dance so faces remain visible to guests and cameras.
How Should You Divide the Large Wedding Rig?
| Lighting Zone | Fixture Placement | Job During Formal Events | Job During Dancing |
|---|---|---|---|
| Front / Stage | Front truss or approved house points | Head table, speeches, performers | Cross-light and color support |
| Rear | Rear truss or rear towers | Backlight and backdrop depth | Audience sweeps and ceiling effects |
| Side | Side truss or ground-supported towers | Facial shaping and stage separation | Crossing movements and dance-floor texture |
| Architecture | Columns, drape, entryways, walls | Warm room atmosphere | Low-level color continuity |
A reliable eight-fixture arrangement uses four fixtures on the front truss and four on the rear truss. A 10- or 12-fixture arrangement adds a side pair on each side. Do not put every moving fixture above the dance floor. Front and side positions are what give performers shape during speeches and formal moments.
How Many Uplights Should Support the Main Rig?
Uplights establish the room before moving fixtures start to work. For an 800+ guest wedding, use them to connect the entrance, dining area, stage, head table, and dance floor into one visual environment.
- 24-30 uplights: One large ballroom with a regular wall perimeter.
- 30-36 uplights: Ballroom plus entry hall, cocktail area, drape, and columns.
- 36-40 uplights: Large tent, estate layout, convention venue, or multiple event zones.
Place uplights first at the entrance, stage wings, head table, floral wall, columns, and drape bays. Fill the remaining fixtures along visible wall sections. Do not spend units behind catering stations or in corners blocked by guest seating.
For reception lighting fundamentals, including uplighting, first-dance coverage, and DJ-area placement, see Wedding DJ Lighting: A Guide for Couples and DJs.
What DMX Scenes Should Be Prepared?
Program the formal looks before building the party looks. Large weddings have too many moving parts for the operator to create every cue from scratch during the event.
- Guest Arrival: Warm architectural uplighting and restrained stage color.
- Grand Entrance: Increase the entrance and stage layer with slow, coordinated movement above guests.
- Dinner: Return to a stable warm palette. Keep the head table slightly brighter than the perimeter.
- Speeches: Use a clean front-light position and avoid saturated colors on faces.
- First Dance: Lower general room intensity, retain a visible backdrop, and use a soft crossing wash around the couple.
- Open Dance Floor: Activate tighter zoom, crossing movements, and richer color after the formal program finishes.
- Changeover / Work Light: Keep a clear practical scene for staff, musicians, and equipment changes.
DMX512 lets the front, rear, side, and uplight zones change independently. RDM can also help a larger temporary rig with addressing and fixture management, but it does not replace a full pre-event signal test.
What Does IP66 Not Cover in a Wedding Production?
An IP66 fixture handles its rated environmental exposure. The rest of the temporary production still needs separate planning.
| System Area | What Still Needs Protection |
|---|---|
| Power distribution | Keep it elevated, dry, and sized for the actual fixture load. |
| Signal connections | Protect DMX joins and label every run before doors open. |
| Public pathways | Use cable ramps and maintain exit access. |
| Truss and towers | Use rated hardware, safety cables, ballast, and a wind procedure. |
| Weather escalation | Define the show-hold process before rain or wind arrives. |
For outdoor or tented events, coordinate the power and rigging plan with qualified event, electrical, and rigging professionals. A fixture rating cannot correct an overloaded circuit or an unsupported temporary tower.
For more stage-positioning detail, see Indoor Wedding Stage Lighting Guide. For venue-size planning across event types, use Stage Lighting Setup Guide by Venue Size and Event Type.
Large Wedding Lighting Setup FAQ
How many moving heads do I need for an 800-person wedding?
Start with eight moving wash fixtures for one large room. Use 10-12 when the stage is wide, the venue has separate zones, or the reception includes a large tent or live performance.
Can one lighting rig work indoors and outdoors?
It can when the fixture positions and product ratings match the exposure. Use IP-rated fixtures for exposed positions and protect distribution, cable joins, and rigging separately.
Do large weddings need a dedicated lighting operator?
Yes, when the rig includes multiple truss positions, live entertainment, video, or a detailed cue sequence. A dedicated operator keeps lighting changes aligned with the event timeline.
Should moving heads light the couple during the first dance?
Use moving washes to create color and a visible backdrop around the couple. Add a controlled front-light position for faces, photography, and video.
How much setup time does this rig need?
Allow four to six hours for truss, fixture placement, power, DMX addressing, focusing, programming, and a complete cue check. Outdoor and tent builds may need additional time for access, weather protection, and temporary power.
Build for Coverage First, Effects Second
Large wedding lighting succeeds when guests can see the important moments from every part of the room, while the dance floor still has energy later in the night. Build the front, rear, side, and architectural layers first. Then use zoom, color, and movement to raise the energy at the right time.
Browse SHEHDS Waterproof Stage Lights for IP-rated moving heads, PAR fixtures, and outdoor-event products. For current product availability, visit stage lighting.
