Laser Wavelength:
R-640nm / G-520nm / B-457nm
Laser Power:
R-1W / G-2W / B-3W
Spot Size (laser window spot)
5.5mm
Light Source Divergence Angle
＜1.5mrad
Modulation Mode
0~5V analog, up to 25khz/TTL
Laser Class
Class IV
Laser Color
Red, green, blue mixed colors
Evenness
>98%
Imaging System
-25% to +25%
Lens Vertical Offset
-25% to +25%
Imaging Mode
3D/2D pattern and animation (with software)
Projection Distance
＜100M The best distance is 18~60M
Playback Rate
20 KPPS
Playback Angle
Max50°
Pan
540° and 16Bit
Tilt
180° and 16Bit
Safety Standard
Follow the IEC60825 standard，FDA regulations and TUV Laser Safety
Safety Item
Overcurrentand voltage protection
Degree Of Protection
IP20
Operating Temperature
-15℃~45℃
Control Interface
DMX In/Out，RJ45 In/Out
Control mode
DMX512、Bluetooth APP
DMX Channel
15/42ch
Power Interface
PowerCon in
Cooling Method
Air cooled
Structure
40mm plug-in heat dissipation layer
Bentilation Fan
40mm fan * 1
Working Power
100~240V AC 50/60HZ
Working Power
100~240V AC 50/60HZ
Power Consumption
Max 150W

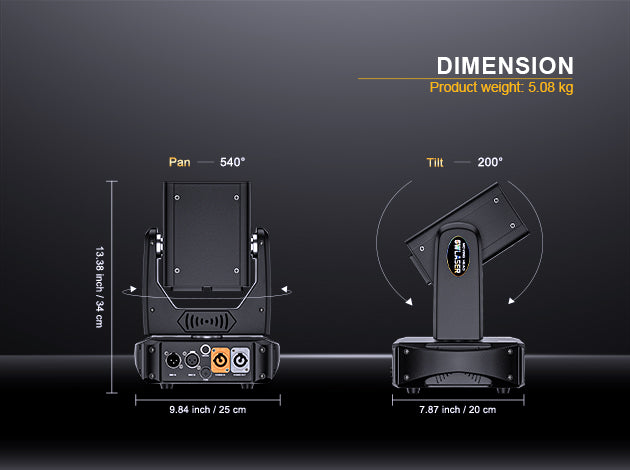

Product Size
9.84x7.87x13.38 inch / 25x20x34 cm
Product Weight
5.08 kg
Pack Size
13.58x13.19x12.20 inch / 34.5x33.5x31 cm
Package Weight
6.27 kg
6W RGB Animation Laser Ligh(IP65)
The laser equipment produced by our company complies with IEC 60825-1 and U S. FDA standards are used to ensure that this product complies with international safety standards!
This product has obtained a deviation application from the performance standards for laser products in accordance with 21 CFR 1010.4 (c) (1) from the United States (CDRH),
And grant our company the assembly and production of Class IIIb (3B) and Class IV (4) laser lamps, and allow them to legally enter the commercial market.
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.
Product Size
Product size : 9.84x12.99x7.09 inch / 25x33x18 cm
Product weight: 8.82 Kg
Pack size: 14.17x14.96x8.27 inch / 36x38x21 cm
Package weight: 10.5 Kg

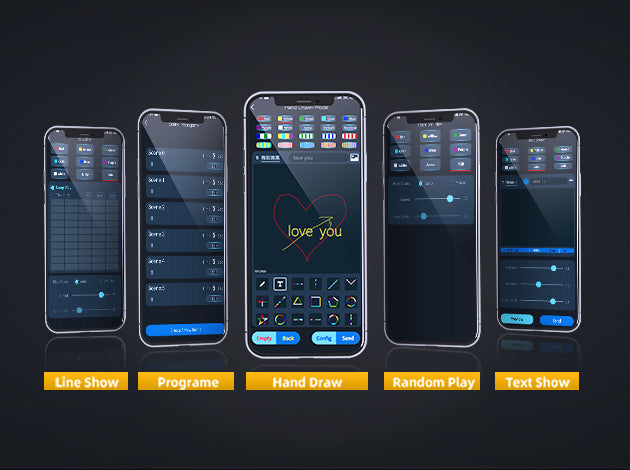

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.
Control Mode
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.
"Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue. Can mix multiple brilliant colors! For example, Magenta, Yellow，Cyan，White"
"The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment."
"Presenting a dreamy and colorful visual effect similar to the auroram, Providing more possibilities and creative space for various performance occasions."
"Supporting multiple color blends and gradients, making local patterns more colorful and vibrant in color. Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing viewers a more vivid visual experience."
"20 KPPS with high precision High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning, achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects, but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine."
"The 6W laser lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue. "
"During the use of a laser source, Do not look directly at the light source. The effect of stage laser lights is formed by high-speed scanning of the laser beam through high-speed galvanometers or low-speed stepper motors. The harm to the human body is mainly reflected in the harm to the eyes, and prolonged exposure can lead to blindness."
"Laser lamp production, wholeheartedly crafting every detail, using carefully selected high-quality accessories. Every beam of light embodies our ingenuity, ensuring that every light and shadow experience is as dazzling as magic. We believe that excellent products stem from a persistent pursuit of details. It is these high-quality accessories that make our laser lights shine with unique brilliance in the night sky, igniting every wonderful moment!"
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
