Outdoor Music Festival Stage Lighting Setup: How Many Stage Lights Do You Actually Need?

If you are asking how many stage lights you need for a music festival stage lighting setup, the direct answer is this: most small outdoor festivals need 13 to 17 fixtures, medium festivals need 29 to 37 fixtures, and large festivals usually need 44 or more fixtures. The number depends on three factors: the size of the stage, the number of spectators, and whether the event takes place during the day, night, or sunset. After reading this guide, you will learn how to plan the number of luminaires, determine where to install them, and check whether your lighting scheme is sufficient for the activity.

How many stage lights for a festival do you need for a music festival?

·   Small festival (under 500 people): 13–17 fixtures

·   Medium festival (500–2,000 people): 29–37 fixtures

·   Large festival (2,000+ people): 44+ fixtures

What Are the 3 Variables That Determine How Many Stage Lights You Need?

A music festival stage lighting setup should never start with fixture brands or special effects. It should start with three planning numbers. These numbers tell you how many lights you actually need, not just how many would look nice in a product photo.

Stage Size (Width × Depth)

Stage width decides how many front wash fixtures you need to light performers evenly. A simple rule is one wash light for every 3 to 4 meters of stage width for the front line. If the stage is very wide, spacing fixtures too far apart creates dark gaps across faces and bodies.

Stage depth matters too. A shallow platform can often work with a front row and a rear row. Once the depth grows beyond 4 meters, you usually need more rear wash or side coverage. A good working rule is to add another back-wash row for every 2 meters of depth beyond 4 meters, especially when multiple performers move across the full stage.

For example, a 12m wide × 6m deep stage needs at least 4 front wash units and 4 rear wash units as a basic starting point. That is only the wash baseline. It does not include beam effects, audience lighting, or pathway lighting.

Audience Size and Viewing Distance

Audience size changes lighting needs because larger crowds stand farther away. The farther the crowd is from the stage, the more output you need for the lighting to feel strong and visible. Wash lights help people see the performers, but they do not always carry visual energy deep into a large audience area.

Once the crowd extends beyond 30 meters, beam moving head lights become much more important. Their narrow, high-intensity output travels farther and keeps the show looking alive from the back of the field. For a small audience under 200 people, basic PAR lights and wash fixtures often cover most needs without heavy beam use. So the question is not only “How many people are coming?” It is also “How far back will they stand?” That distance affects how many high-output fixtures you need.

Event Timing (Daytime vs. Night)

Timing changes everything. A night event can look excellent with fewer, well-placed fixtures. A daytime event needs much more output to compete with ambient light. In practical terms, outdoor daytime setups often need 2 to 3 times more lux output than a night event using the same stage.

That does not always mean triple the fixture count. Sometimes this means that the number of lamps is reduced, but the power is greatly improved. For daytime and sunset activities, high-brightness LED wall washing lights of 150W and above should be preferred. The decorative beam effect may be excellent at night, but it hardly works in direct sunlight. If the event starts at sunset and continues late into the night, plan for both. You need to make sure you have enough brightness at dusk and flexibility to create an atmosphere at night.

Which Stage Zones Need Lighting — and How Many Fixtures Does Each Zone Require?

Every stage has six functional lighting zones. Each zone has a different job. When you estimate by zone, the fixture count becomes much easier to understand and much more accurate.

Zone 1 — Main Stage Front Wash

This is the most important zone. Front wash lets the audience clearly see performers’ faces, bodies, and movement. Without it, the show can feel dim even when you have many other lights running. The best fixture types here are LED PAR lights or wash moving head stage lights. Use 1 fixture per 2 to 3 meters of stage width, with a minimum of 4 units for any real performance stage. A 10-meter-wide stage usually needs 4 to 5 front wash fixtures spaced evenly across the front truss.

Zone 2 — Beam / Mid-Air Effects

This zone creates the beam columns and aerial effects people associate with a festival lighting setup. These fixtures do not replace wash. They add shape, motion, and energy over the stage and crowd. Use beam moving head stage lights in the 90W to 200W range. Most small to medium stages need 4 to 8 units. Always place them in even numbers and in a symmetrical layout. Uneven placement often looks messy from the crowd.

Zone 3 — Back Lighting / Rear Stage Wash

Rear wash gives depth to the stage picture. It helps separate performers from the backdrop and makes the scene feel layered instead of flat. Good choices are moving head wash light or PAR bar strips. Use at least 4 units across the rear of the stage. If the stage is wider than 10 meters, move up to 6 to 8 units. This zone becomes more important as stage depth increases.

Zone 4 — Laser Effects

Lasers are not basic lighting, but they are useful for wide-area atmosphere and crowd engagement. They carry visual energy far into the audience and work well during drops, transitions, and headline moments. Use RGB animation laser stage lights. Small stages under 6 meters wide often need 1 to 2 units. Medium and large stages usually need 2 to 4 units.

Zone 5 — Audience / Crowd Lighting

This zone connects the stage to the audience. It adds movement over the crowd and helps the entire event feel more active. Use beam moving head lights or scanner lasers placed at the stage-front corners and pointed outward. A good range is 2 to 4 units. These do not need to be the highest count in the rig, but they should be planned early, not added as an afterthought.

Zone 6 — Entrance and Pathway Lighting

Many organizers forget this zone. That is a mistake. Entrance and pathway lighting helps with both atmosphere and wayfinding. It also makes the event feel complete the moment attendees arrive. Use PAR stage lights or COB wash lights. Plan at least 4 to 8 units for a normal entrance corridor. Add more if the site has several entry points, longer walkways, or food and merch areas that need light.

How Many Stage Lights Do You Need by Event Scale? (3-Tier Setup Guide)

Use this table as your starting point. These numbers reflect common outdoor festival setups. Then adjust up or down based on stage dimensions, crowd depth, and event timing.



Budget estimates are based on typical rental pricing in the US market. Purchase costs vary. Outdoor fixtures should carry at least an IP65 weatherproof rating. See What Is the IP65 Rating?.

Small Festival Setup (Under 500 Attendees)

A small festival usually works well with 4 beam moving heads, 8 PAR lights, and 1 RGB laser. This gives you front wash, rear wash, beam effects, and basic crowd atmosphere without making the rig too complex. This setup fits single-stage community festivals, local outdoor concerts, and club-style outdoor events. In many cases, the total active fixture count lands between 13 and 17 once you add pathway or entrance lights.

Medium Festival Setup (500–2,000 Attendees)

Medium events need more structure. The addition of 4 wash moving heads improves stage depth and performer visibility from longer viewing distances. 16 PAR lights give enough coverage for front, rear, and side fill at the same time. A confetti machine adds a strong production moment without a huge budget jump. Most medium setups land in the 29 to 37 fixture range when all stage zones are included.

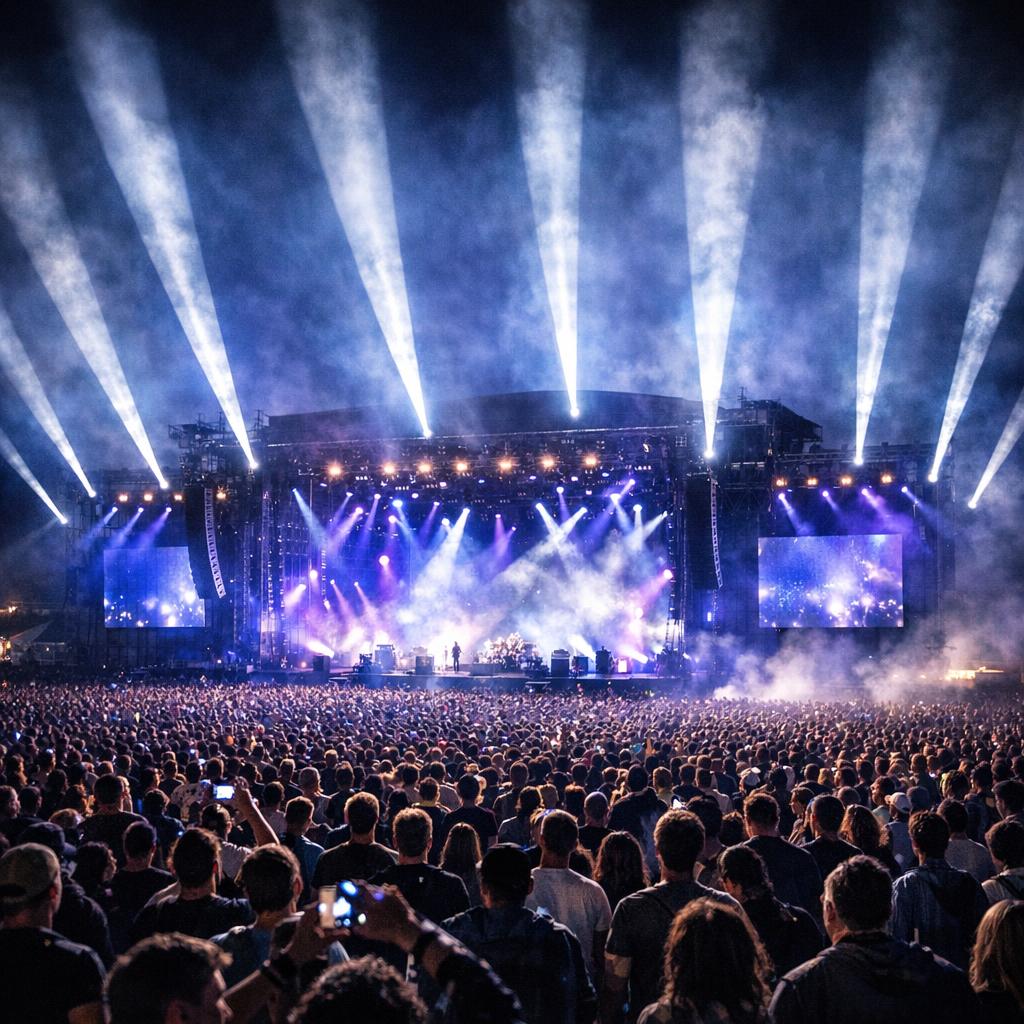

Large Festival Setup (2,000+ Attendees)

Large festival planning cannot rely on one fixed count. Truss layout, stage height, crowd width, and viewing distance all change the answer. Still, 12 or more beam moving heads are the minimum for strong visual impact, and many large events run 20 to 30 or more beam fixtures.

At this scale, custom planning matters. A large rig may start around 44 fixtures, but many go much higher once side stages, crowd towers, and scenic lighting are included.

How Do You Calculate Stage Lighting Coverage? (A Simple Lux-Based Method)

You do not need advanced software to make a useful stage lighting estimate. A simple lux-based method gives you a strong starting point for wash coverage.

What Is Lux and Why Does It Matter for Stage Lighting?

Lux measures how much light falls on a surface. For stage planning, it tells you how bright performers actually look where they are standing. For an outdoor stage at night, a practical benchmark for wash lighting is around 500 to 1,000 lux at the performance position. For daytime outdoor use, aim much higher, around 2,000 to 3,000 lux, so the lighting still reads against ambient light.

The Coverage Area Formula

Use this simple formula:

Required fixtures = Stage area (m²) ÷ Single fixture coverage area (m²)

Here is a basic example:

• Stage size: 10m × 6m = 60m²

• One LED PAR light covers about 8m² at a normal performance distance

• 60 ÷ 8 = 7.5

That means you need about 8 PAR fixtures for full wash coverage. This is why many small outdoor stages land around 8 PAR lights as a baseline. It is not random. It comes from area and coverage. A good production habit is to multiply the result by 1.15 before ordering. That gives you a 15% buffer for fixture failure, bad weather repositioning, or last-minute changes.

How to Calculate Beam Light Quantities

Beam fixtures are different. You do not calculate them by area. You calculate them by visual impact and symmetry.

Use even numbers only and place them symmetrically. As a rough guide:

• Up to 8m stage width: 4 beam units

• 8m to 14m stage width: 6 to 8 beam units

• 14m and above: 10 to 12+ beam units

That gives you a clean look across the truss and enough output to carry into the crowd.

What Are the Most Common Mistakes When Estimating Stage Light Quantities?

Most fixture-count problems come from planning mistakes, not from lack of budget. These are the issues that show up again and again.

Mistake 1 — Only Counting Main Stage Fixtures

Many first-time organizers count only the performance area. They forget crowd sweeps, entrance lighting, and walkways. The result is a stage that looks okay in isolation but feels disconnected from the rest of the venue. The fix is simple. Use the six-zone checklist before finalizing the order.

Mistake 2 — Using Indoor Lux Specs for Outdoor Planning

Fixture spec sheets are often measured in clean indoor conditions. Outdoors, light has to fight distance, open air, and ambient brightness. That means indoor numbers can be misleading. A safe rule is to plan for 2 to 3 times the lux output outdoors compared with indoor use at the same distance. Ask suppliers for outdoor-tested figures whenever possible.

Mistake 3 — Not Accounting for Fixture Failures

Live events are never perfect. A fixture can fail, a cable can get damaged, or weather can force a position change. If you run the rig with no spare capacity, one failure can leave a visible hole in the design. Bring 10 to 15% spare units. On a 20-fixture rig, that means at least 2 to 3 backup fixtures.

Mistake 4 — Buying All the Same Fixture Type

A rig made only of PAR lights looks flat. A rig made only of beam moving heads lacks wash support and often feels harsh. A balanced outdoor setup always works better because each fixture type handles a different visual job. That is why a mix of beam + wash + laser usually gives better results than loading the whole budget into one fixture style.

Which Stage Lighting Fixtures Should You Use for Each Zone?

Based on the zone breakdown above, here is how fixture categories map to each stage area. This keeps the planning simple and stops you from using the wrong fixture for the wrong task.



FAQs

How many stage lights do I need for a small outdoor concert?

Most small outdoor concerts need 13 to 17 fixtures in total. That usually includes front wash, rear wash, a few beam effects, and basic entrance or pathway lighting.

Are PAR lights enough for a festival stage?

PAR lights are enough for basic wash coverage on a small stage, but they are not enough for a full festival look. Most setups also need beam fixtures for distance and movement.

Do daytime festivals need more stage lights?

Yes. Daytime events usually need 2 to 3 times more output than night events. In many cases, that means higher-wattage fixtures, not just more fixtures.

Should I rent or buy festival stage lighting?

Renting makes more sense for one-off or seasonal events. Buying works better if you run repeated shows and already know the fixture types and counts you need.

Conclusion

A good music festival stage lighting setup is built with simple math, not guesswork. It comes from stage size, audience size, and event timing, then gets refined zone by zone. That is why a small local event may work with 13 to 17 fixtures, while a medium event needs 29 to 37, and a large festival often starts at 44 or more. Use the setup table in this guide as your first benchmark. Then check your stage width, crowd depth, and daylight conditions before placing the final order. Also remember two non-negotiables: use IP65-rated outdoor fixtures and always keep a 15% spare-unit buffer in the plan.
